House Plan 1219B Martin's Landing II, Heritage House Plan

House Plan NDG 1219B Upper Floor

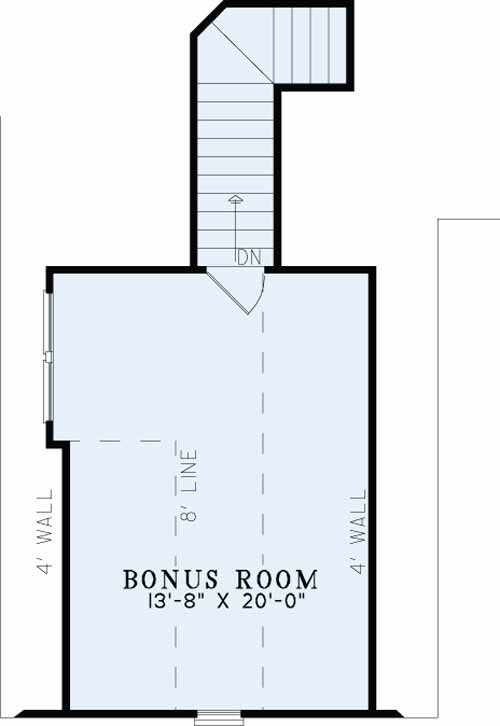

House Plan NDG1219B Upper Floor/Bonus Room
House Plan NDG 1219B Upper Floor
House Plan NDG1219B Upper Floor/Bonus Room

Floor plans

NDG 1219B

House Plan 1219B Martin's Landing II, Heritage House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1219B
  • Total Living Space:2089Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 59
  • Width In.: N/A
  • Depth Ft.: 65
  • Depth In.: 10


NDG 1219B

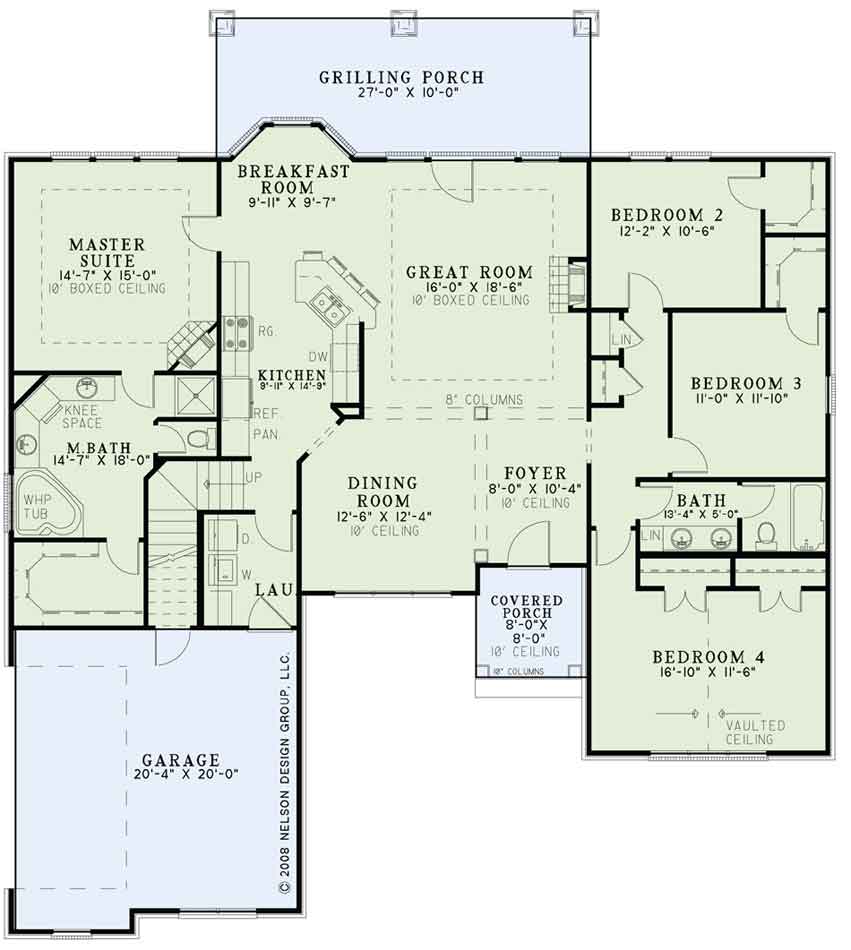

A stunning addition to our Heritage House Collection, Martin’s Landing II is loaded with character inside and out, from the brick and vinyl siding with stone accents to arch-style windows. Inside, the Foyer flows effortlessly into the Dining and Great Rooms through tall columns and 10-foot ceilings. The Kitchen opens to the Breakfast Room and Great Room by a peninsula bar, perfect for entertaining and quick meals. The bay-windowed Breakfast Room provides a sunny alternative to the formal Dining Room and affords a lively view of the back yard and spacious Grilling Porch. From here, you can retire into relaxation in the Master Suite, where a spacious bedroom lies below a stunning boxed ceiling. Unwind from a stressful day by sitting before the corner fireplace with your partner, or by taking a soak in the Master Bath’s whirlpool tub. For morning rushes, a dual sink vanity is there to prevent you and your partner from bumping elbows, and a makeup station gives you plenty of extra space to get ready for the day. A separate shower is also featured, as well as a large walk-in closet.

On the opposite side of Martin’s Landing II are the rest of the bedrooms for a peaceful split bedroom design. Bedrooms 2 and 3 are located toward the rear of the home and each enjoy modest walk-in closets. Bedroom 4 is the largest of the bedrooms, featuring a vaulted ceiling, and two spacious closets make this room perfect for an older child. These bedrooms share a hall bathroom located between Bedrooms 3 and 4, with a dual sink vanity and private toilet/shower room. There’s also a Bonus Room over the 2-car garage providing many different options. How would you customize this amazing house plan?

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:2089Sq.Ft.
  • Main Floor: 2089 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 301 Sq.Ft.
  • Porch (Sq.Ft.): 316 Sq.Ft.
  • Garage (Sq.Ft.): 462 Sq.Ft.
  • Total Square Feet: 3168 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
