House Plan 1268 Scenic View, Rustic House Plan

House Plan 1268 Scenic View, Rustic House Plan

House Plan NDG 1268
House Plan NDG 1268

Floor plans

NDG 1268

House Plan 1268 Scenic View, Rustic House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1268
  • Total Living Space:2373Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 76
  • Width In.: 10
  • Depth Ft.: 59
  • Depth In.: 2

Description

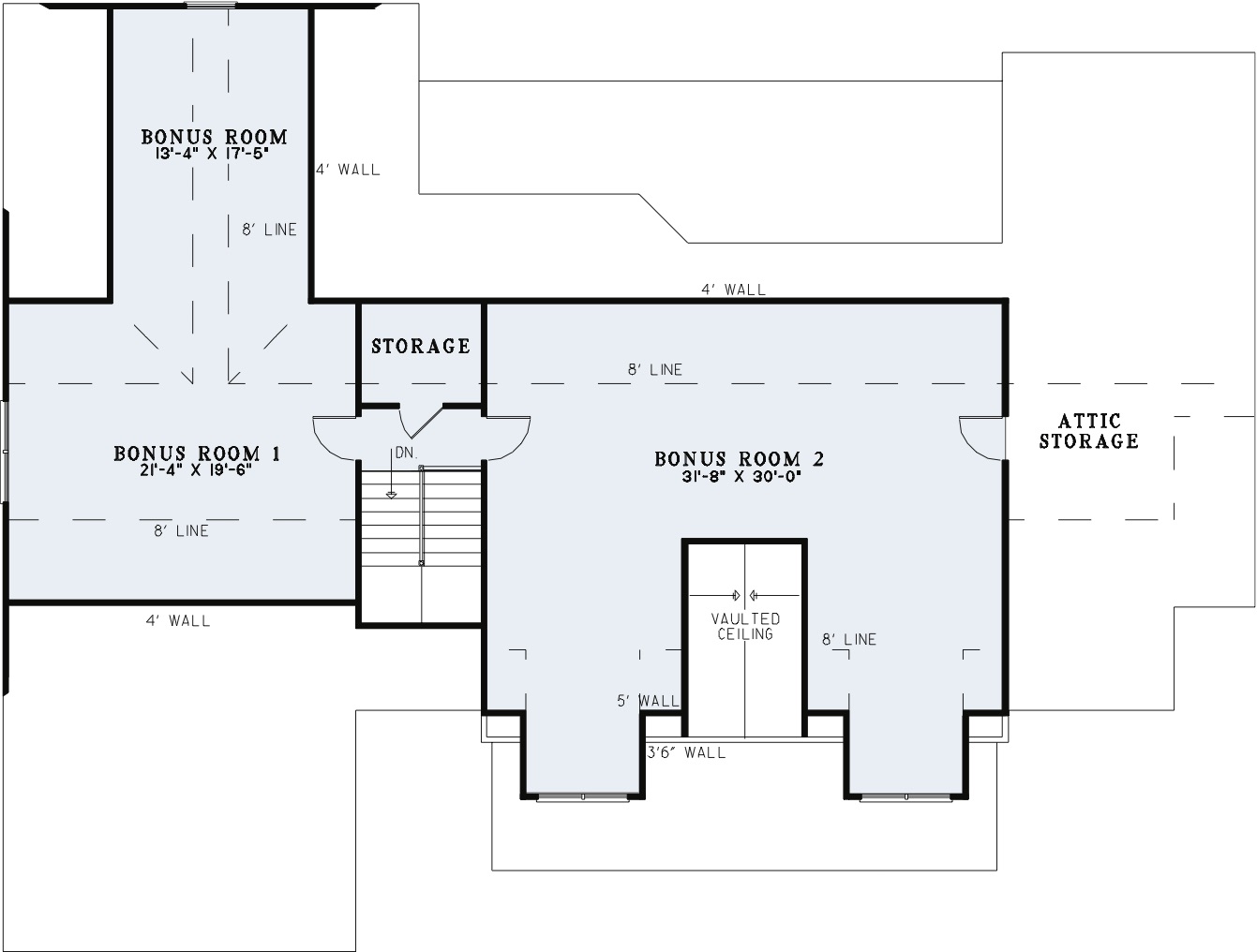

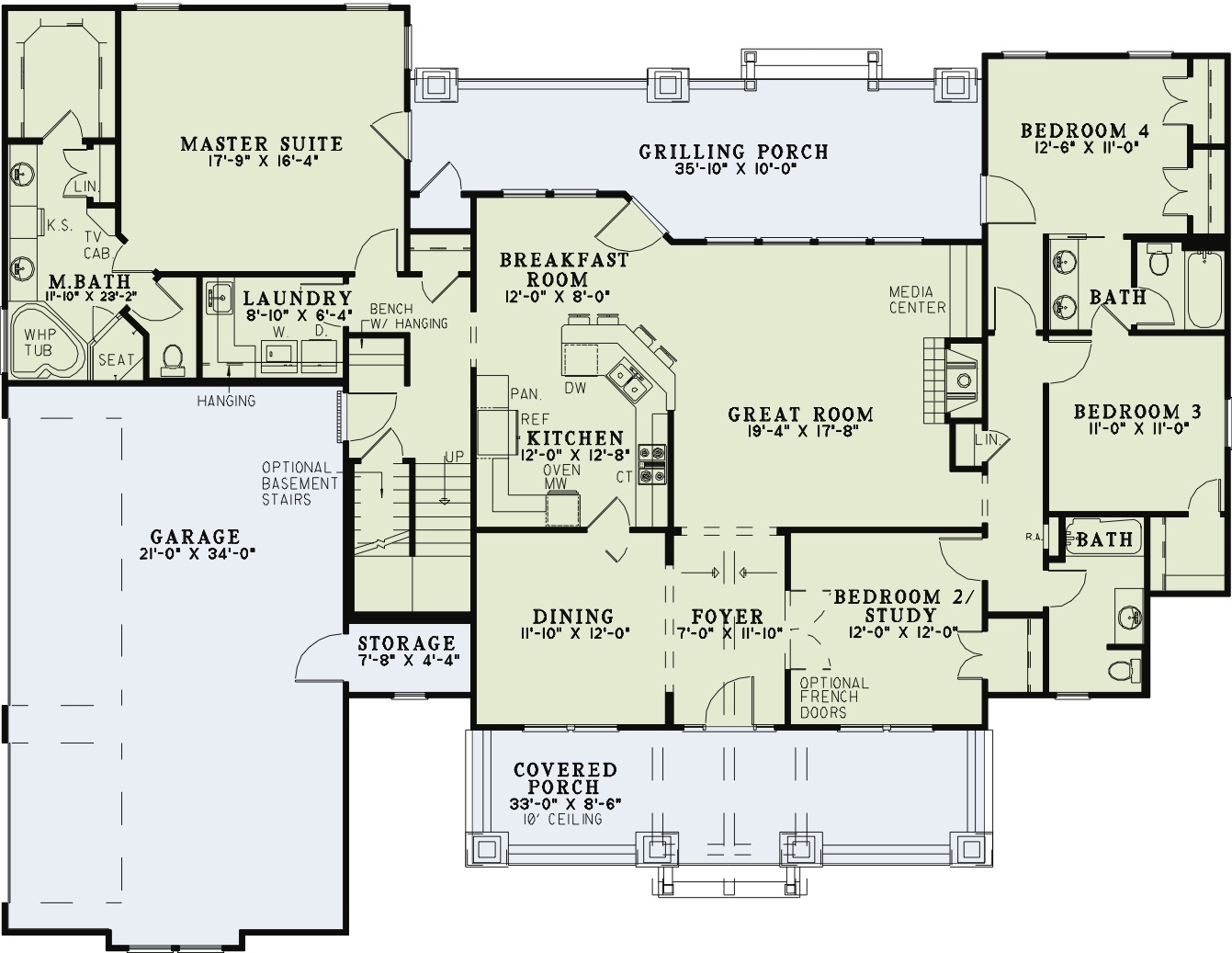

This rustic plan features a large covered front porch with stone based columns and decorative timber work in the gables. Inside you’ll enjoy the great room with a fireplace and media center and is open to the kitchen and breakfast room. The master suite is large and has access to the grilling porch. And the master bath has a large corner whirlpool tub, a corner shower with a seat and the door is on a 45 degree angle, and a tv cabinet to enjoy while relaxing in the tub. It also features 2 vanities and a large walk-in closet. 2 more bedrooms share located on the opposite side of the house along with 2 full bathrooms. A storage room and 2 huge bonus rooms can be found on the 2nd floor.

Specifications

  • Total Living Space:2373Sq.Ft.
  • Main Floor: 2373 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1542 Sq.Ft.
  • Porch (Sq.Ft.): 597 Sq.Ft.
  • Garage (Sq.Ft.): 783 Sq.Ft.
  • Total Square Feet: 5295 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,200.00)
    • CAD ($2,400.00)
    • Five Set ($1,300.00)
    • PDF ($1,200.00)
    • PDF + Unlimited Build ($1,900.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
