House Plan 1269 Aspen Valley, Rustic House Plan

House Plan NDG 1269

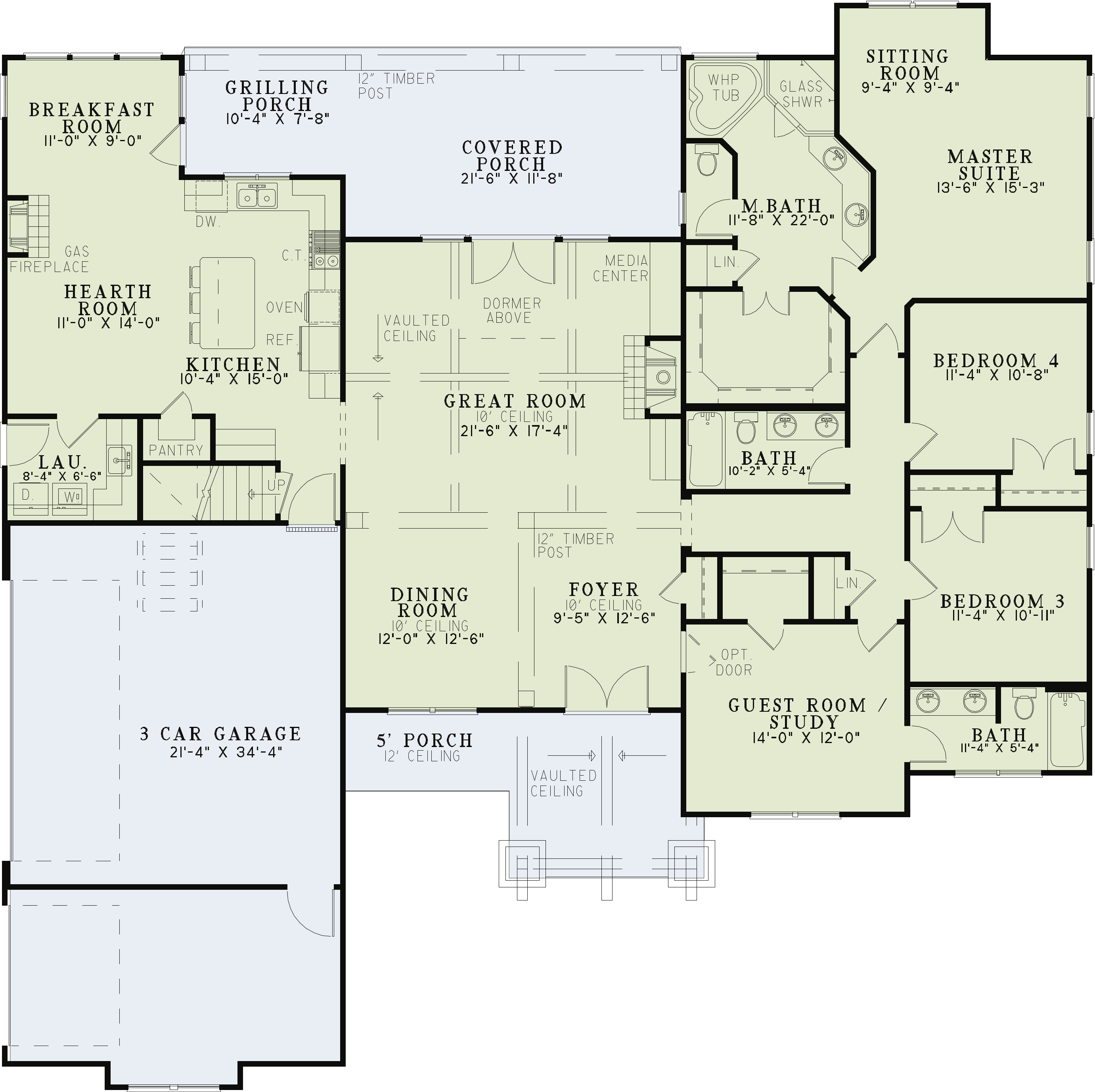

House Plan NDG 1269 Main Floor
House Plan NDG 1269
House Plan NDG 1269 Main Floor

Floor plans

NDG 1269

House Plan 1269 Aspen Valley, Rustic House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1269
  • Total Living Space:2994Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 69
  • Width In.: 10
  • Depth Ft.: 62
  • Depth In.: 8

Description

This house features a front entry with stone columns and a 12′ vaulted ceiling. The spacious 3 car side entry garage is to the left. The spacious foyer ahead features elegant exposed timber posts. The master suite is roomy with a sitting room and large master bath with a whirlpool tub. You will have a difficult time choosing a favorite room in this house, be it the spacious kitchen, the great room with exposed timber and fireplace, or the relaxing whirlpool tub in the master bath. You are sure to find a room you will love.

Specifications

  • Total Living Space:2994Sq.Ft.
  • Main Floor: 2539 Sq.Ft
  • Upper Floor (Sq.Ft.): 455 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A

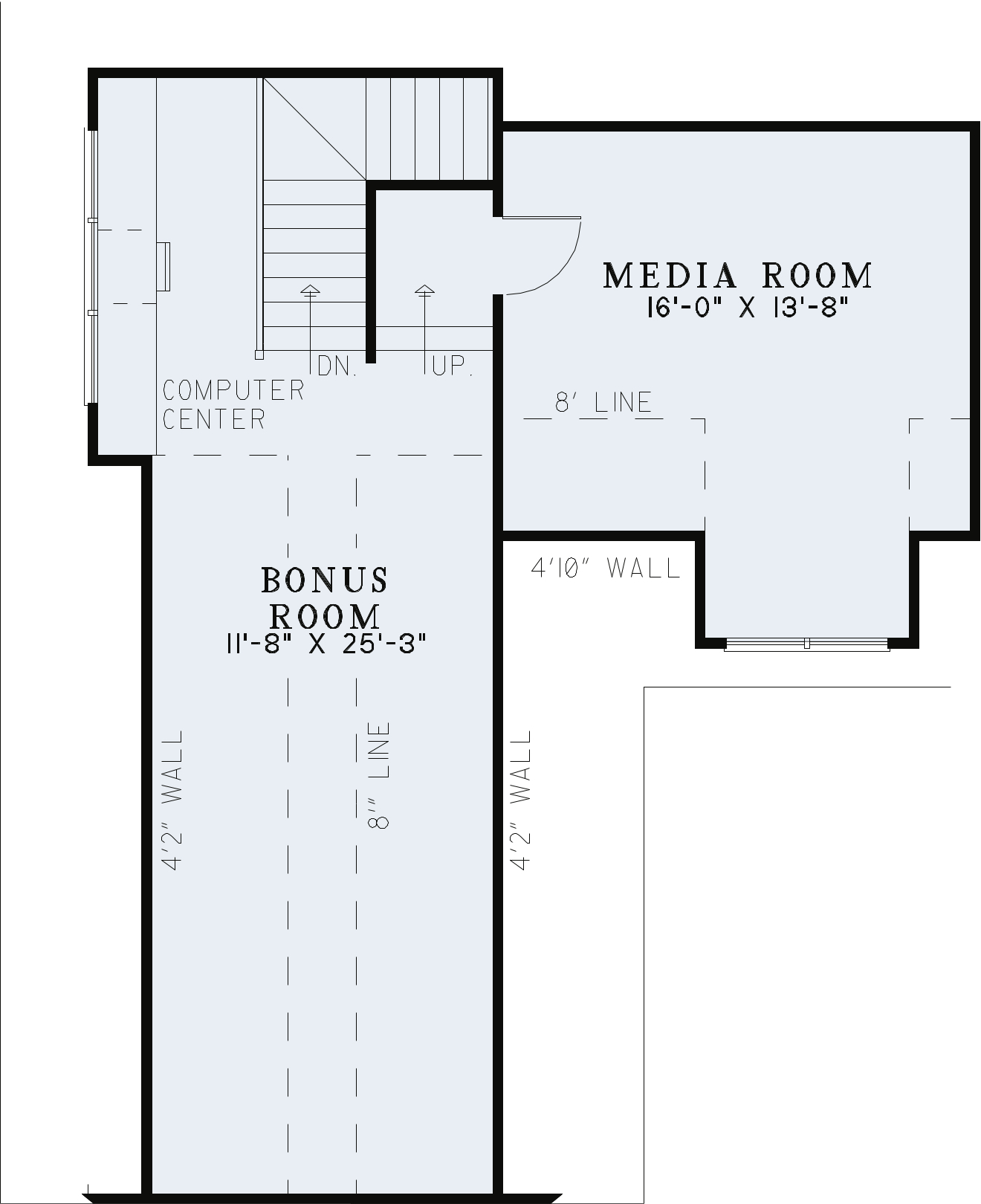

  • Bonus Room (Sq.Ft.): 311 Sq.Ft.
  • Porch (Sq.Ft.): 504 Sq.Ft.
  • Garage (Sq.Ft.): 759 Sq.Ft.
  • Total Square Feet: 4568 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
