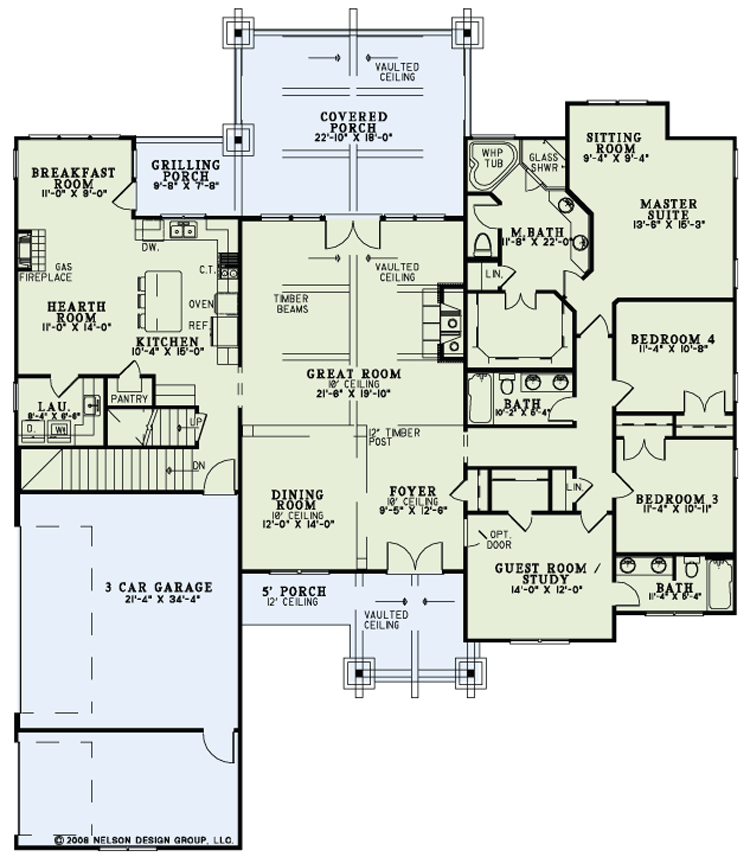

House Plan NDG 1270 Main Floor
House Plan NDG 1270 Basement

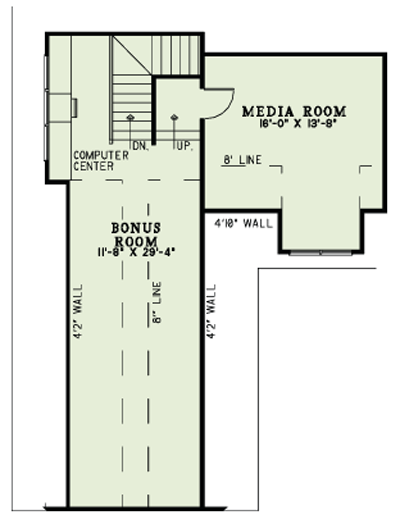

House Plan NDG 1270 Upper Floor
House Plan NDG 1270 Main Floor
House Plan NDG 1270 Basement
House Plan NDG 1270 Upper Floor

Floor plans

NDG 1270

House Plan 1270 Northbrook, Rustic House Plan

PDF: $2,450.00

Plan Details

  • Plan Number: NDG 1270
  • Total Living Space:6089Sq.Ft.
  • Bedrooms: 6
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 69
  • Width In.: 10
  • Depth Ft.: 79
  • Depth In.: 2


This gorgeous rustic home welcomes you in through its front covered porch with massive stone columns. Inside you’ll find the foyer open to the dining room and great room. Featuring 10′ ceilings and 12″ timber posts in the corners of the foyer and dining room while the great room has timber beams exposed in its vaulted ceiling and a fireplace. French doors also lead out to a massive covered porch that also has a vaulted ceiling. The kitchen is sure to be a popular hangout with a large island bar, walk-in pantry, open hearth room with a fireplace and a breakfast room with access to a grilling porch. The master suite has a unique sitting area allowing lots of design options. The master bath opens at a 45 degree angle with a large whirlpool tub and glass shower with a seat, double vanities and a huge walk-in closet. Nearby are the guest room/study, bedrooms 3 and 4 and 2 full baths. There’s a bonus room and computer center upstairs along with a media room. The lower level offers a complete 2nd living floor. There’s a full kitchen with a wrap-around island bar and a large dining/entertaining area, and a den with a fireplace and double doors to a huge covered porch. There’s also an in-laws suite, 5th bedroom, both with walk-in closets, 1 and 1/2 bathrooms, an incredible home theater with stadium seating and a huge storage room.


  • Total Living Space:6089Sq.Ft.
  • Main Floor: 2712 Sq.Ft
  • Upper Floor (Sq.Ft.): 455 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 360 Sq.Ft.
  • Porch (Sq.Ft.): 1133 Sq.Ft.
  • Garage (Sq.Ft.): 752 Sq.Ft.
  • Total Square Feet: 8334 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
