House Plan 1293 Melanie Place, Heritage House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1293
  • Total Living Space:2625Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 56
  • Width In.: 8
  • Depth Ft.: 68
  • Depth In.: 8


Step onto the covered porch and be welcomed inside a lovely split-bedroom home. This home has a great room with a fireplace and access to a screened porch. The kitchen features a large 45 degree angled island bar and is open to the breakfast area and hearth room- complete with a corner fireplace and a computer center. The master suite features private access to the screened porch and has a 10′ boxed ceiling while the master bathroom offers a whirlpool tub, glass shower, and a large walk-in closet. 3 more bedrooms are upstairs, each having walk-in closets. And a huge bonus room is over the garage, perfect for a game room.


  • Total Living Space:2625Sq.Ft.

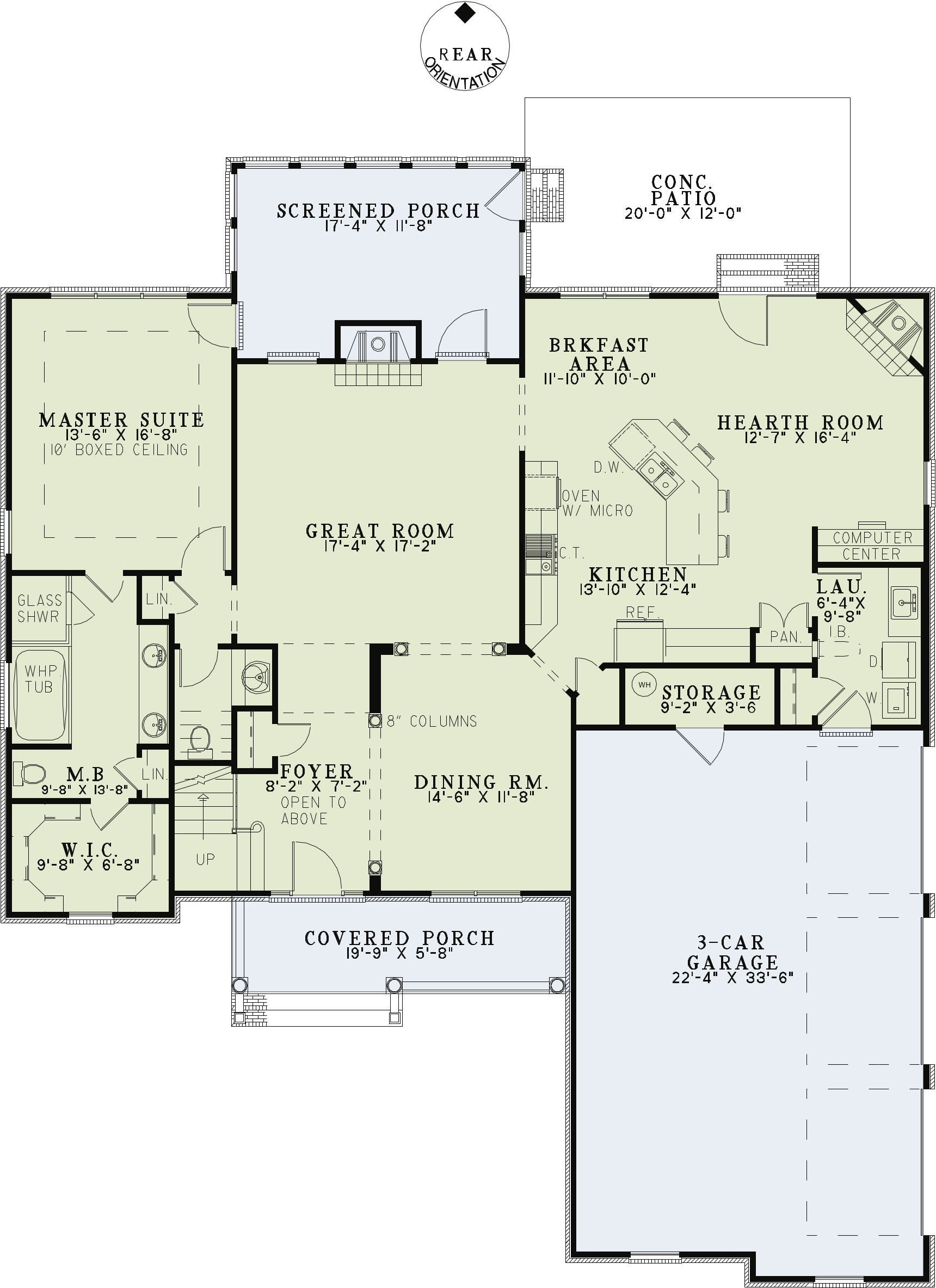

  • Main Floor: 1770 Sq.Ft

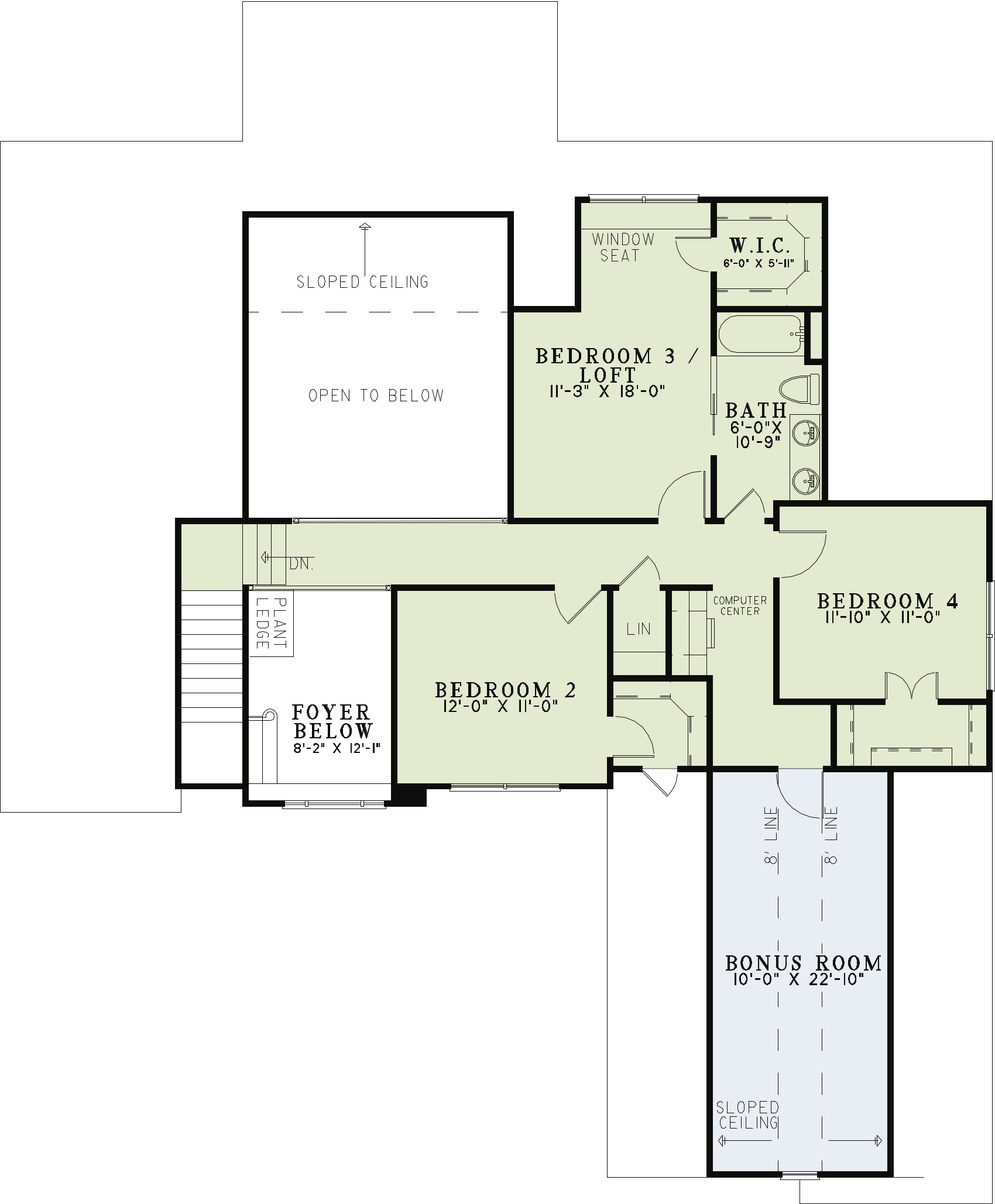

  • Upper Floor (Sq.Ft.): 855 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 385 Sq.Ft.
  • Porch (Sq.Ft.): 347 Sq.Ft.
  • Garage (Sq.Ft.): 759 Sq.Ft.
  • Total Square Feet: 4116 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
