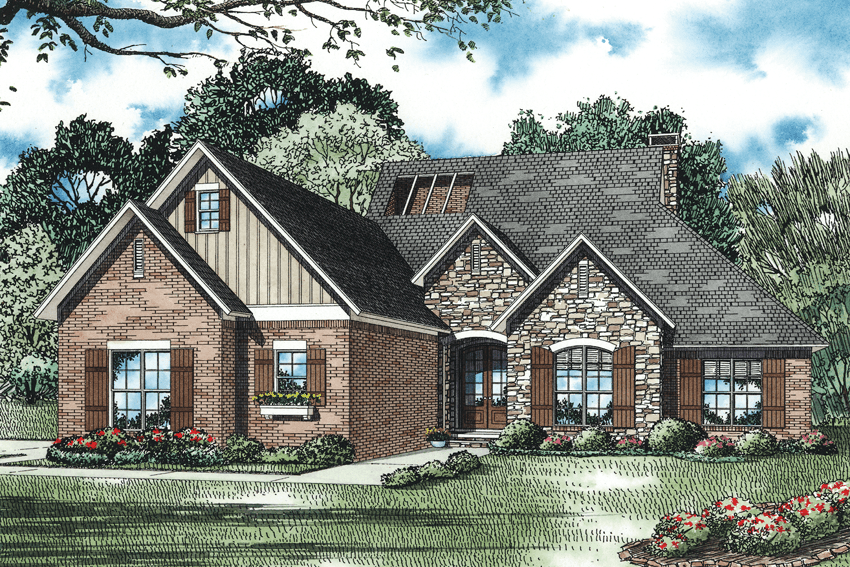

House Plan 1295 Artesia, Atrium House Plan

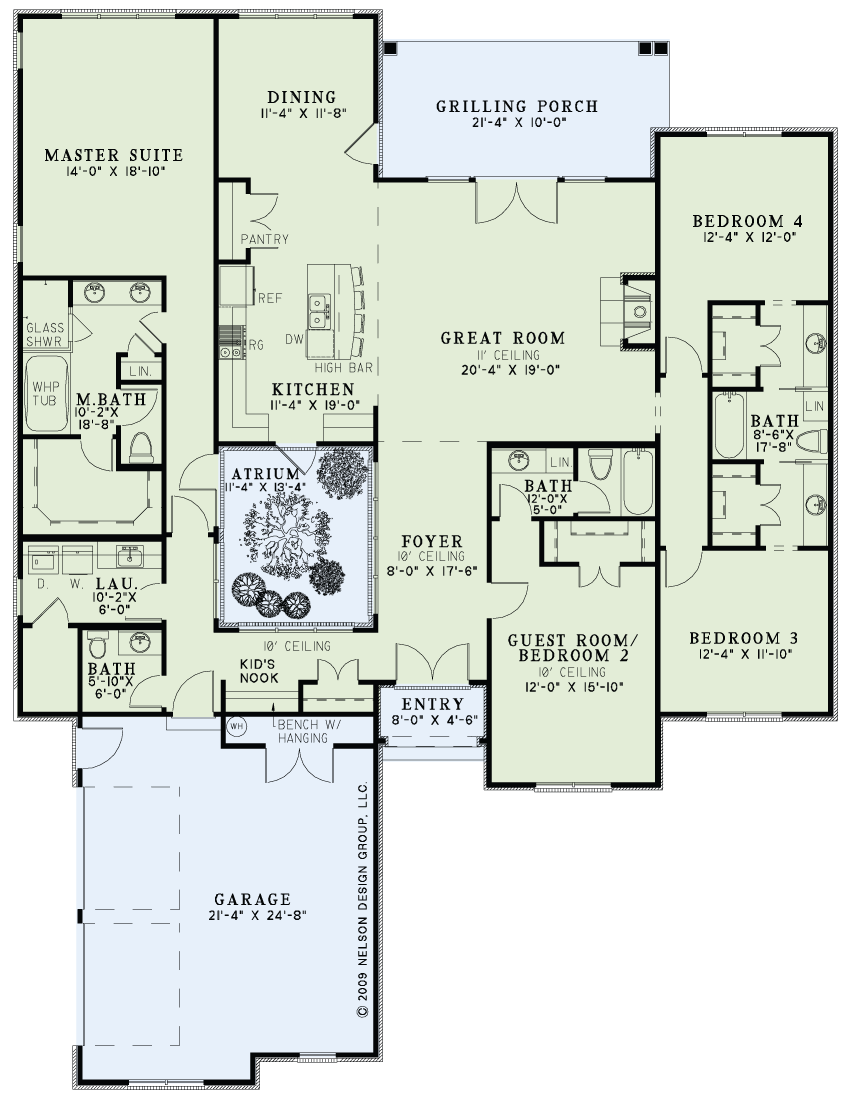

House Plan NDG 1295 Main Floor
House Plan NDG 1295 Main Floor

Floor plans

NDG 1295

House Plan 1295 Artesia, Atrium House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1295
  • Total Living Space:2611Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 59
  • Width In.: 8
  • Depth Ft.: 78
  • Depth In.: 6

Description

This home allows you to bring the beauty of nature inside with an atrium. This wonderful addition to the home will great guests as they step into the foyer. The split bedroom design allows for a peaceful nights sleep even with teenagers staying up late. Everyone will have space as they dash about in the kitchen before heading off to work and school with the open design and eat-at bar.

Specifications

  • Total Living Space:2611Sq.Ft.
  • Main Floor: 2611 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 246 Sq.Ft.
  • Garage (Sq.Ft.): 576 Sq.Ft.
  • Total Square Feet: 3433 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
