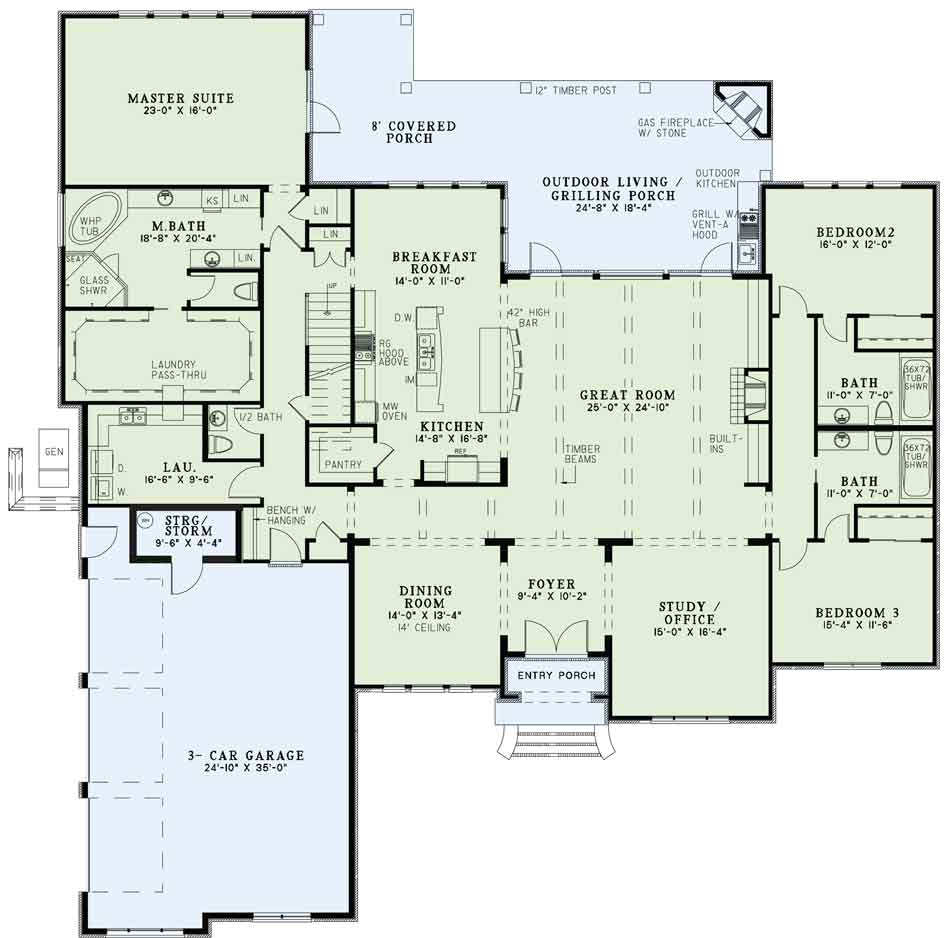

House Plan NDG1373 Main Floor
House Plan NDG 1373 Bonus Room
>

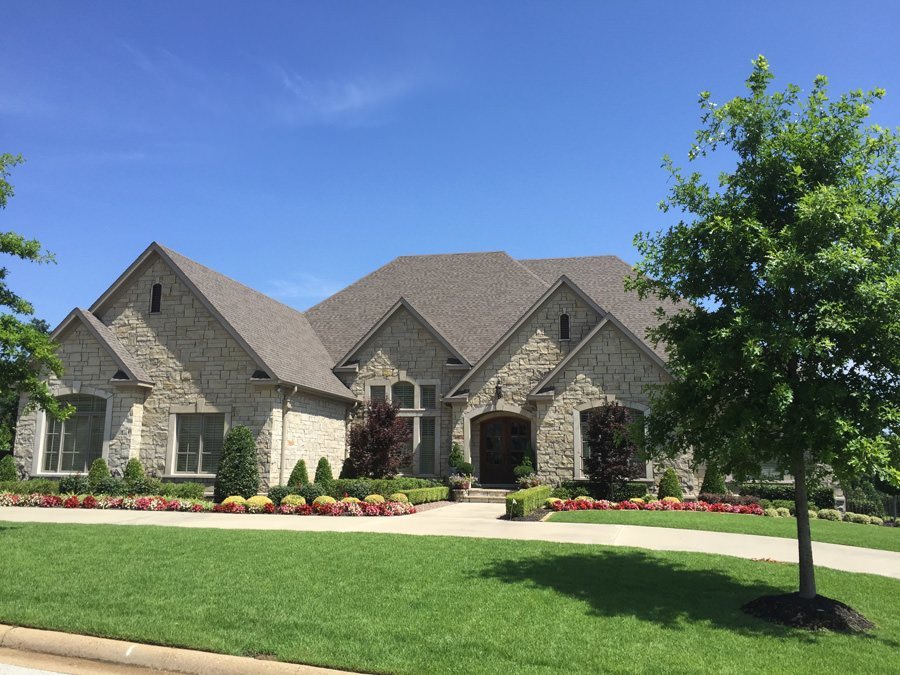

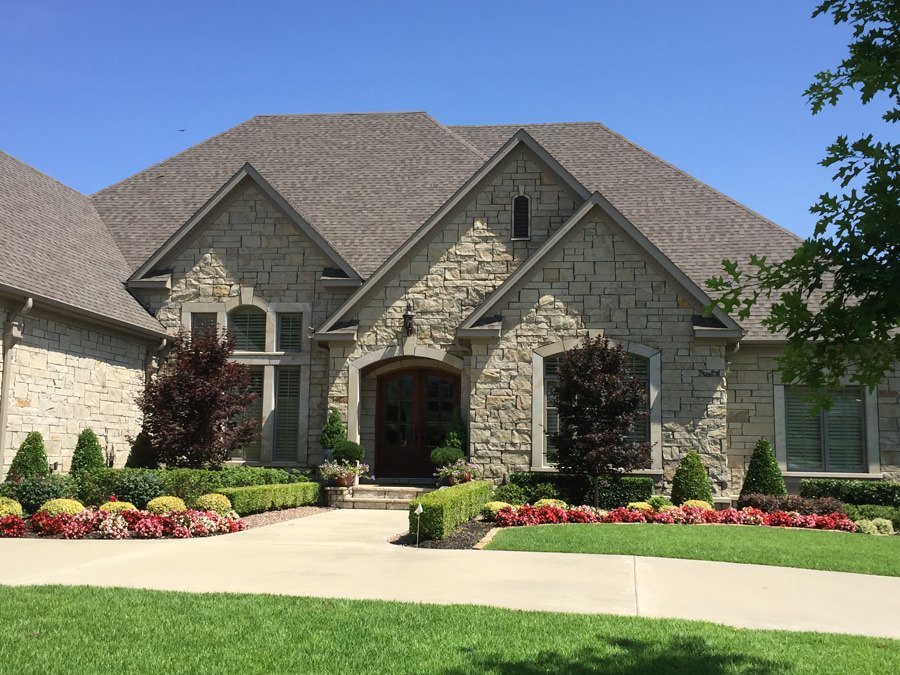

House Plan - NDG1373 Front Exterior>
House Plan - NDG1373 Front Exterior>

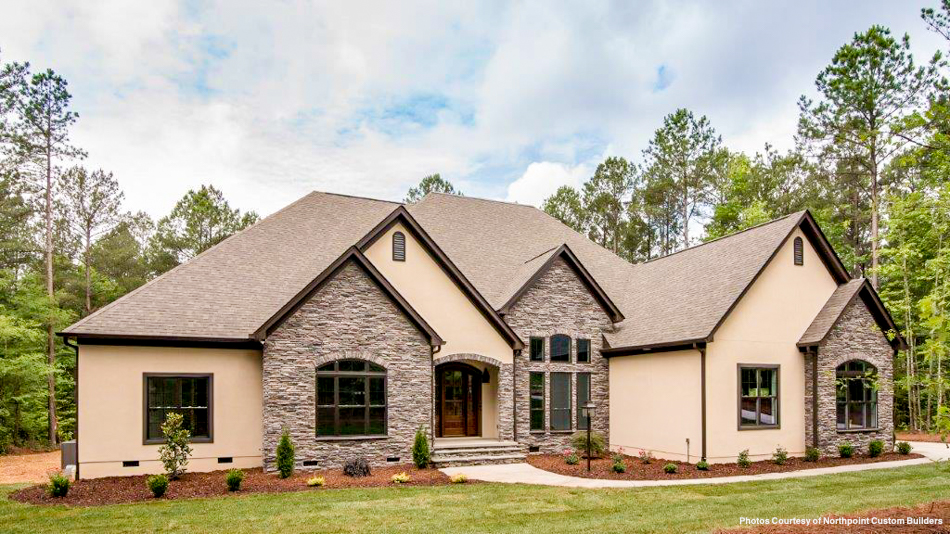

House Plan - NDG 1373 Front View>

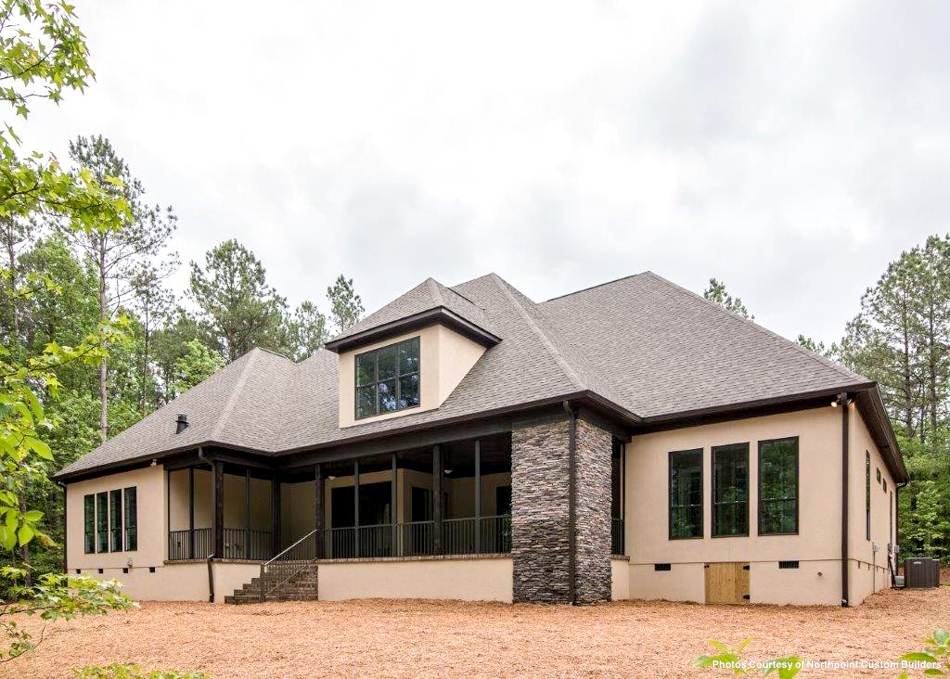

House Plan - NDG 1373 Backyard Pool>
House Plan - NDG 1373 Hall Bathroom>

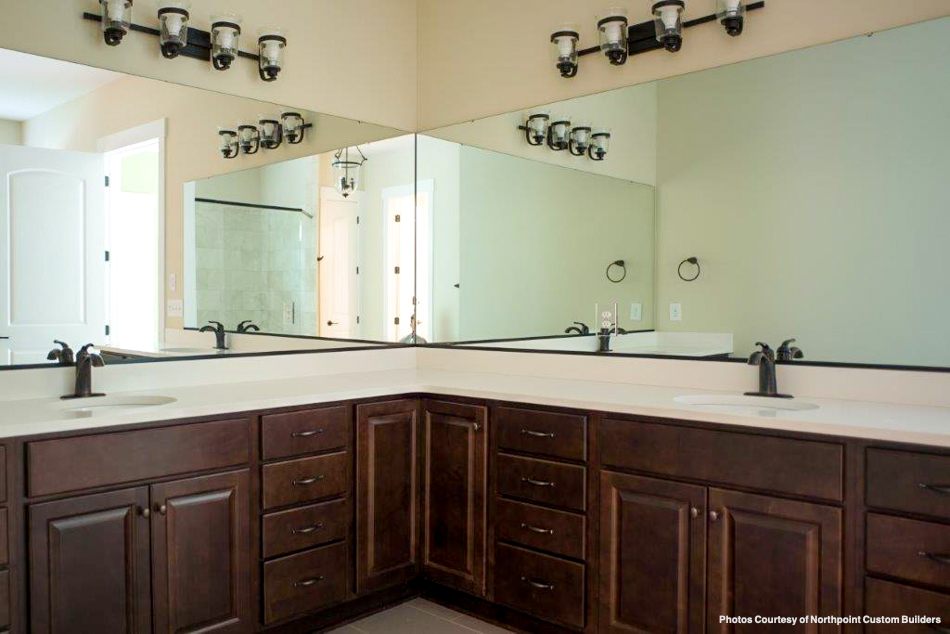

House Plan - NDG 1373 Master Bath>

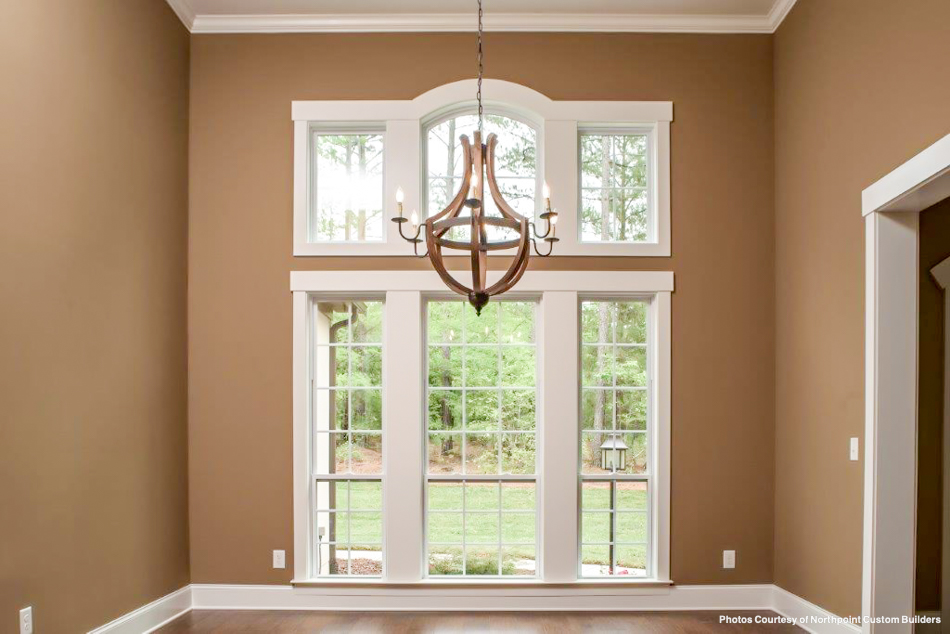

House Plan - NDG 1373 Dining Room>
House Plan - NDG 1373 Study/Office>

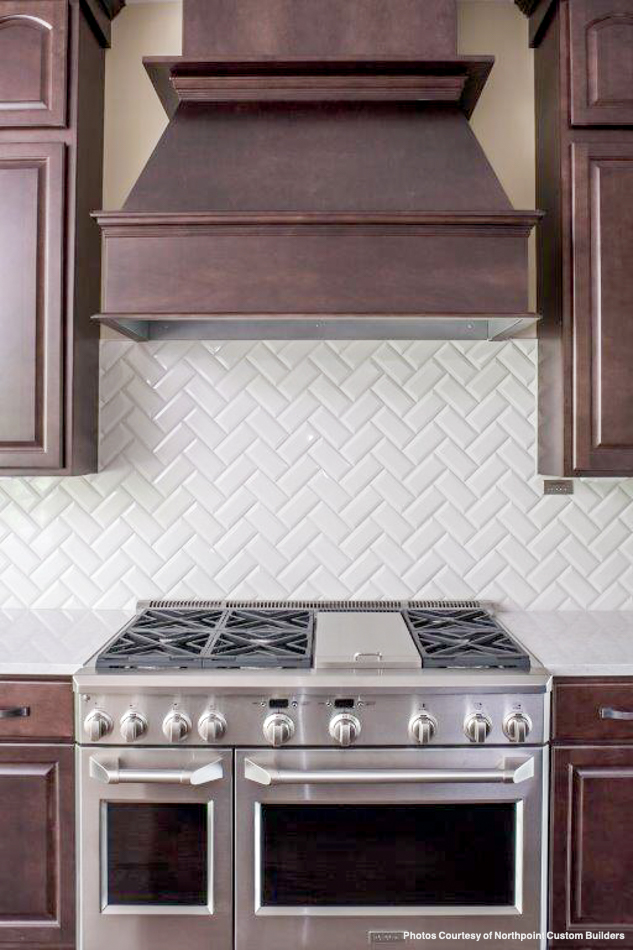

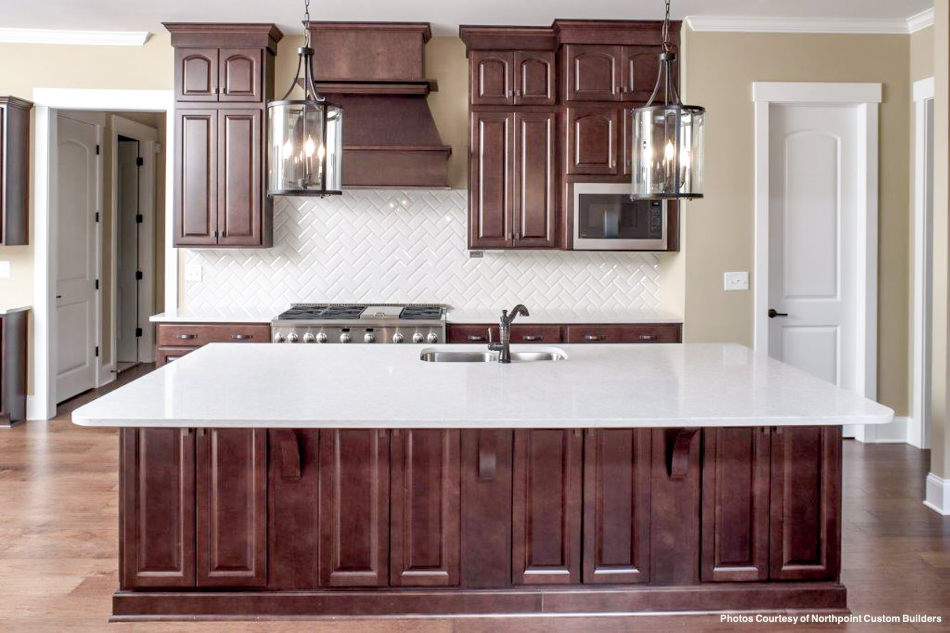

House Plan - NDG 1373 Kitchen>

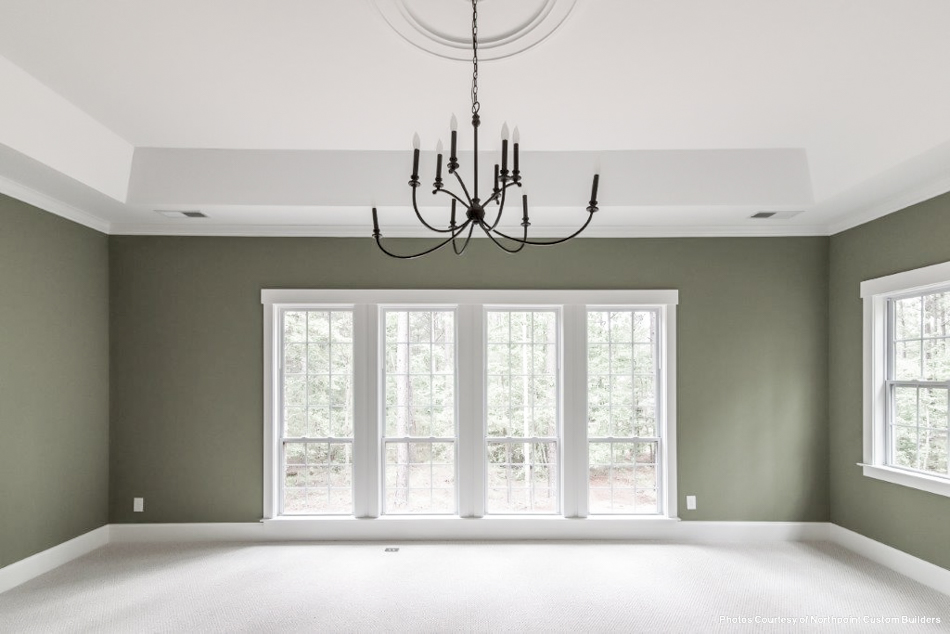

House Plan - NDG 1373 Master Suite>

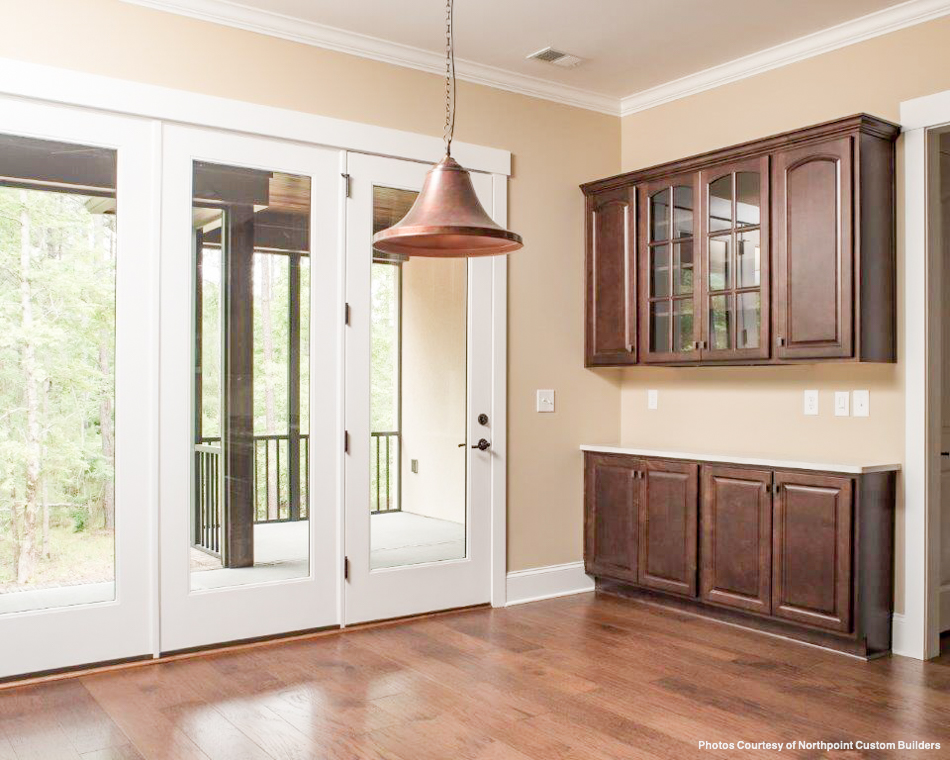

House Plan - NDG 1373 Breakfast Room>
House Plan - NDG 1373 Kitchen>
House Plan - NDG 1373 Backyard Pool>
House Plan - NDG 1373 Dining Room>
House Plan NDG1373 Main Floor

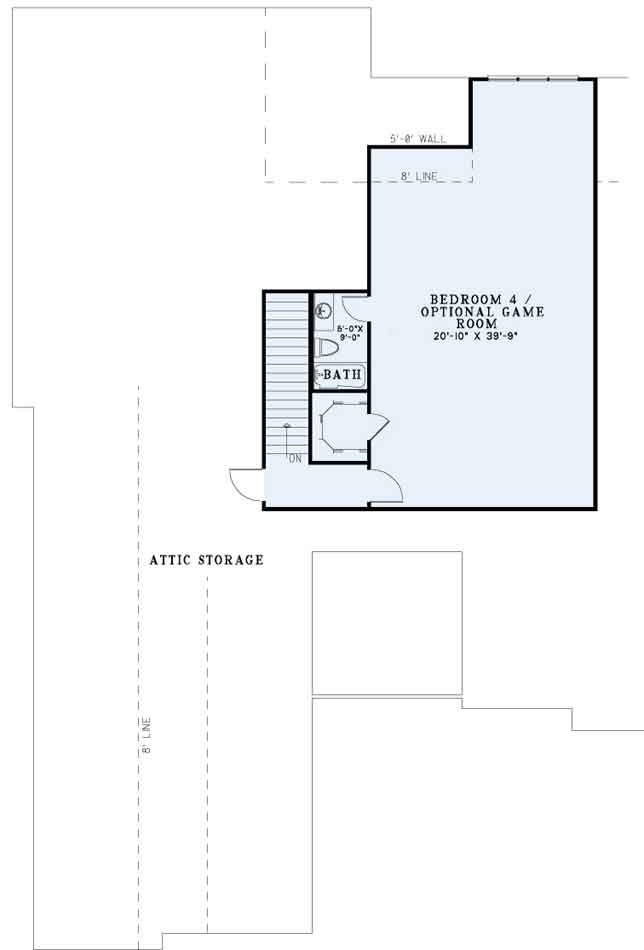

House Plan NDG 1373 Bonus Room
House Plan - NDG1373 Front Exterior
House Plan - NDG1373 Front Exterior
House Plan - NDG 1373 Front View
House Plan - NDG 1373 Backyard Pool
House Plan - NDG 1373 Hall Bathroom
House Plan - NDG 1373 Master Bath
House Plan - NDG 1373 Dining Room
House Plan - NDG 1373 Study/Office
House Plan - NDG 1373 Kitchen

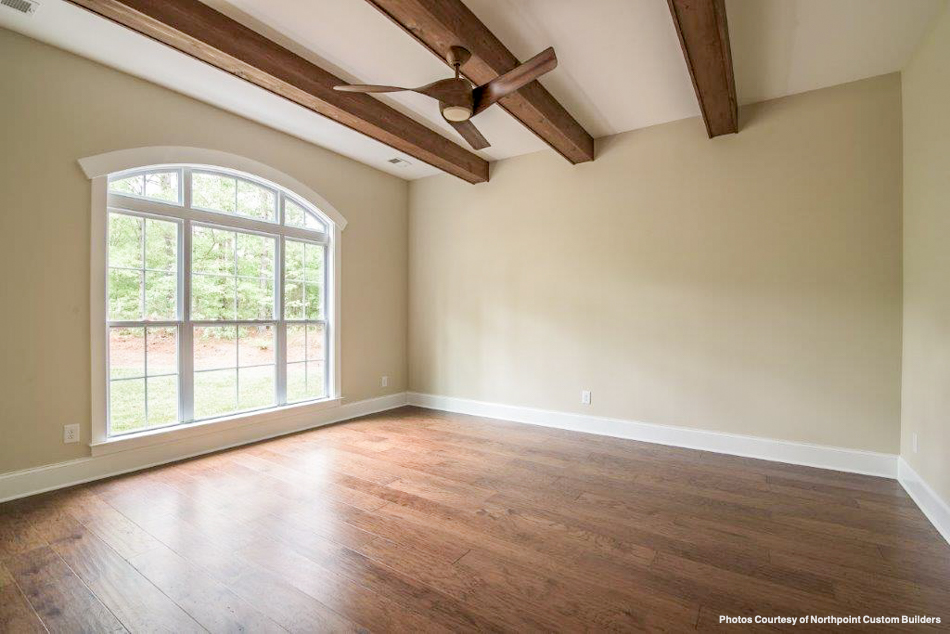

House Plan - NDG 1373 Master Suite
House Plan - NDG 1373 Breakfast Room
House Plan - NDG 1373 Kitchen
House Plan - NDG 1373 Backyard Pool
House Plan - NDG 1373 Dining Room

Floor plans

NDG 1373

House Plan 1373 Jean Baptiste, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1373
  • Total Living Space:3766Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 83
  • Width In.: 8
  • Depth Ft.: 88
  • Depth In.: N/A

Description

NDG 1373

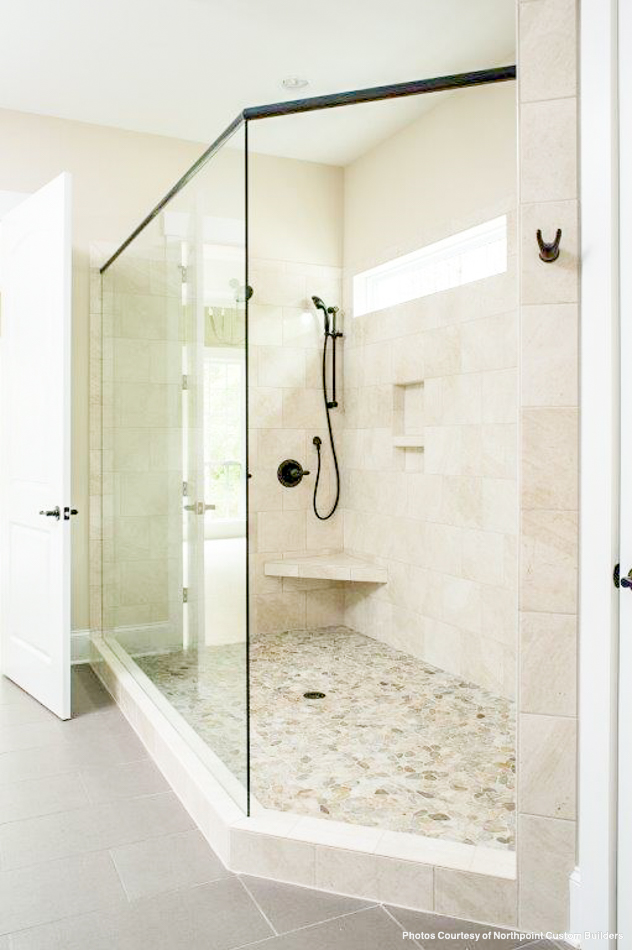

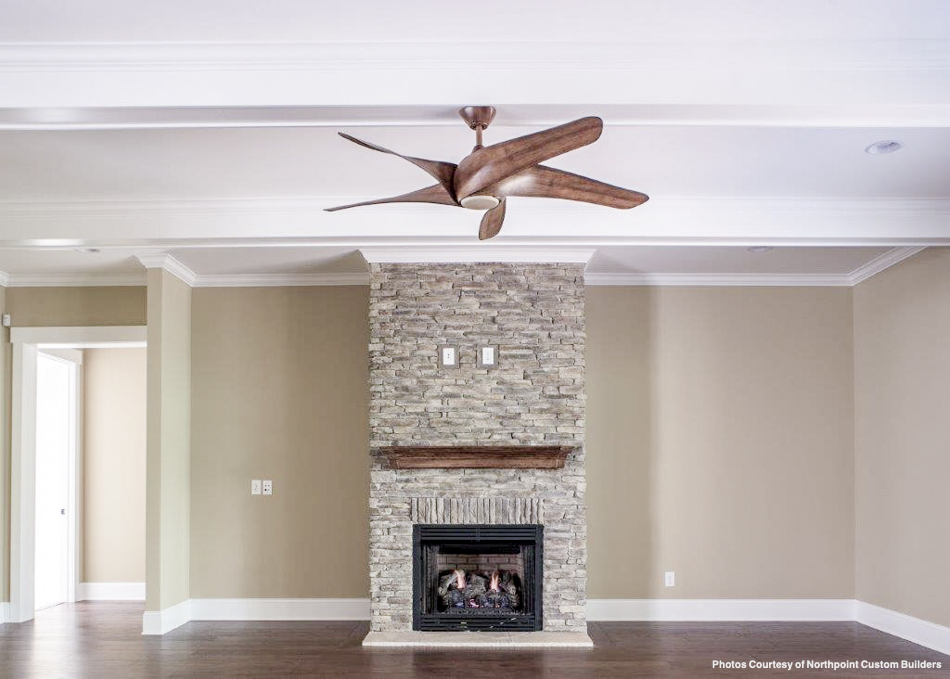

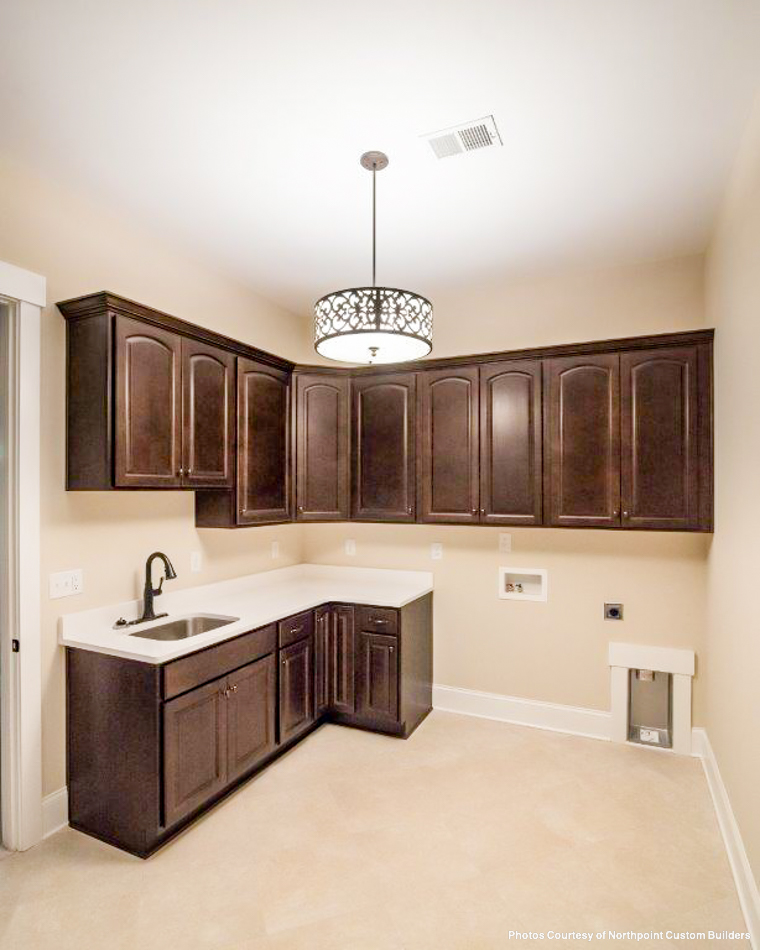

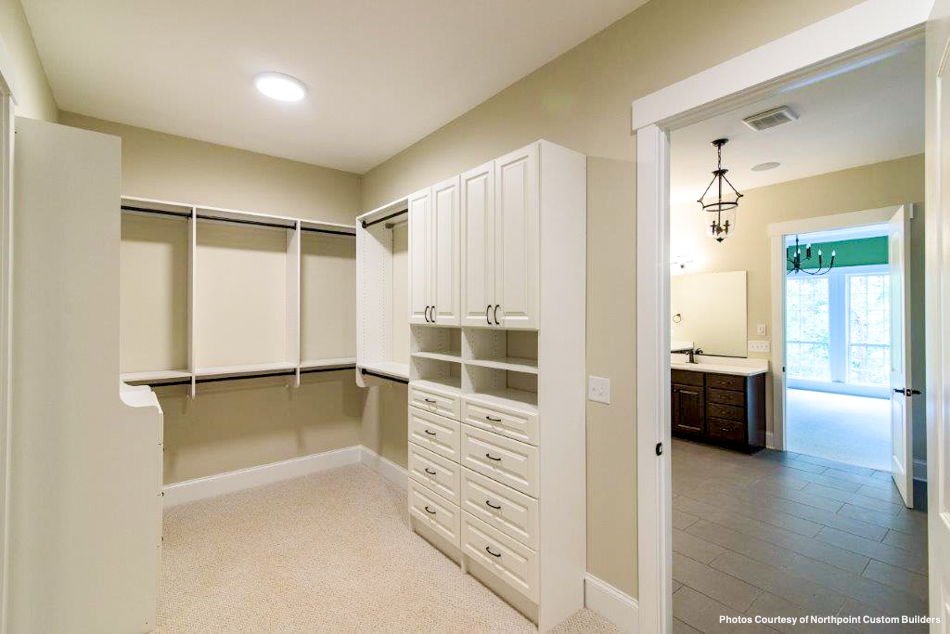

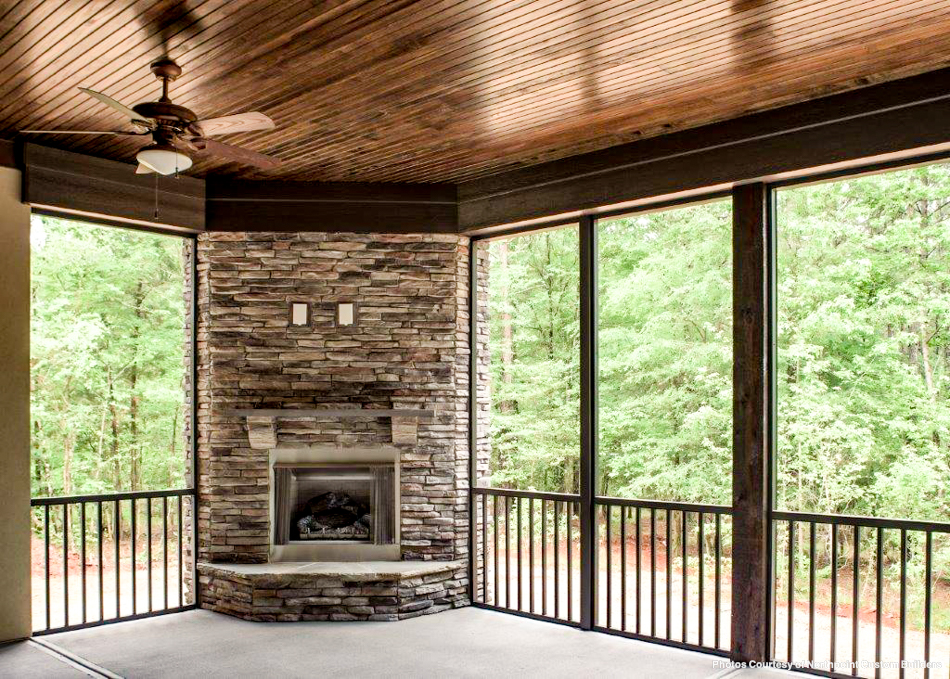

A stunning addition to our European House Collection, Jean Baptiste is perfect for entertaining with plenty of space for family and friends to gather. Head straight into the great room where you can enjoy a cozy fireplace accentuated by built-ins and a timber beam ceiling. This room flows into the large kitchen featuring an island, high bar, walk-in pantry, and a connected breakfast room. The outdoor living space is the perfect addition to this home’s element of entertaining, complete with an outdoor kitchen, grill, and stone fireplace. The luxurious master suite is privately located on the left side of Jean Baptiste. This suite is complete with a huge bedroom that has private access to the covered porch. The master bath features a whirlpool tub, glass shower with seating, two vanities, and private toilet room, and a huge walk-in closet enjoys a pass through to the laundry room for your convenience. On the other side of the home are bedrooms 2 and 3, each with a private bathroom. Upstairs is an optional 4th bedroom, or game room, with a bathroom and walk-in closet. The 3-car garage has a storage room that doubles as a storm room for a safe place to take shelter. How would you customize this amazing house plan?

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.

Specifications

  • Total Living Space:3766Sq.Ft.
  • Main Floor: 3766 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 947 Sq.Ft.
  • Porch (Sq.Ft.): 750 Sq.Ft.
  • Garage (Sq.Ft.): 976 Sq.Ft.
  • Total Square Feet: 6439 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 35
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
