House Plan 1462 Calera Court, Multi-Family House Plan

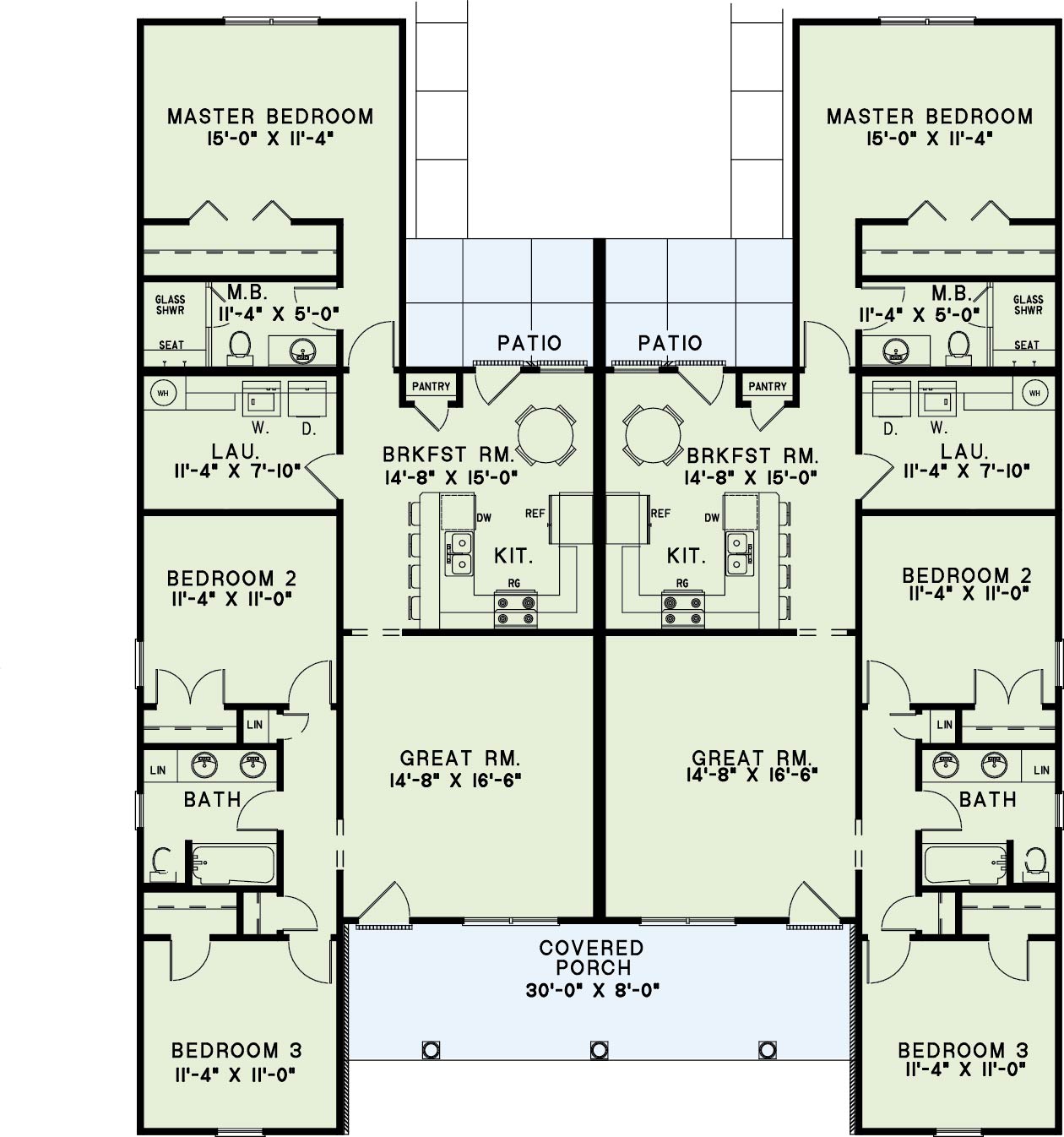

House Plan NDG 1462 Main Floor
House Plan NDG 1462 Main Floor

Floor plans

NDG 1462

House Plan 1462 Calera Court, Multi-Family House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1462
  • Total Living Space:1344Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 54
  • Width In.: N/A
  • Depth Ft.: 65
  • Depth In.: 2


Imagine yourself rocking away the tensions of life on the front covered porch of this southern style home. You’ll be welcomed by the tiled entrance leading into the comfortable great room. Start family traditions in the cozy kitchen with eat-at bar and breakfast room with access to rear patio. Two bedrooms are at the front of the house with a full bathroom in between them. The master bedroom offers privacy at the rear of the home with the laundry room near by. This Traditional Neighborhood design will accommodate you and your family.


  • Total Living Space:1344Sq.Ft.
  • Main Floor: 1344 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 120 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1464 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
