House Plan 271 Wellington Lane, Village at Wellington House Plan

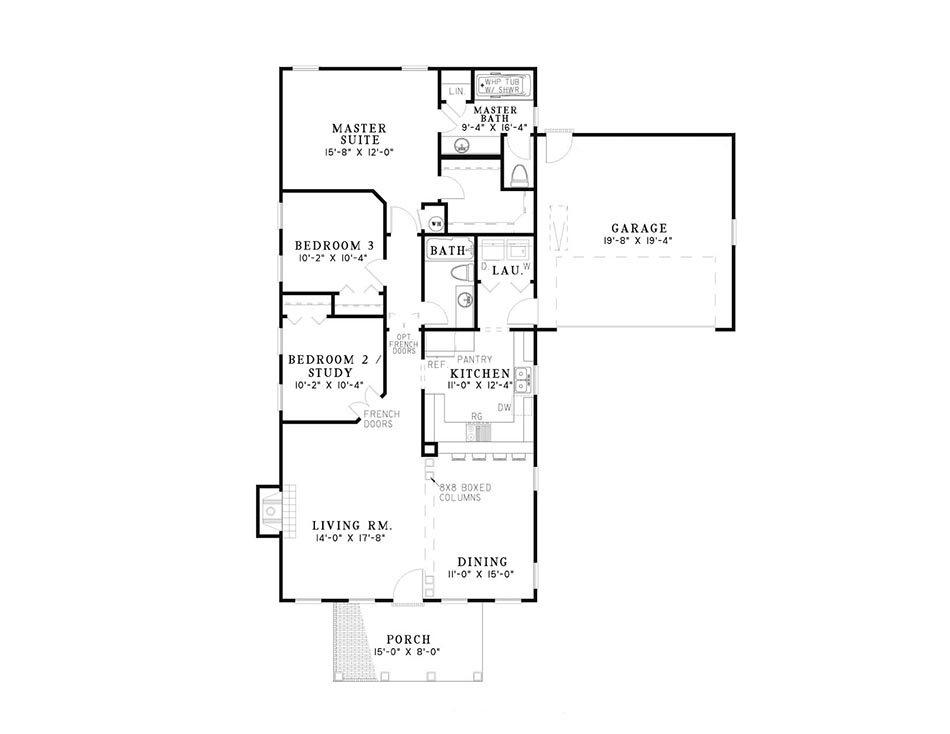

House Plan NDG 271 Main Floor

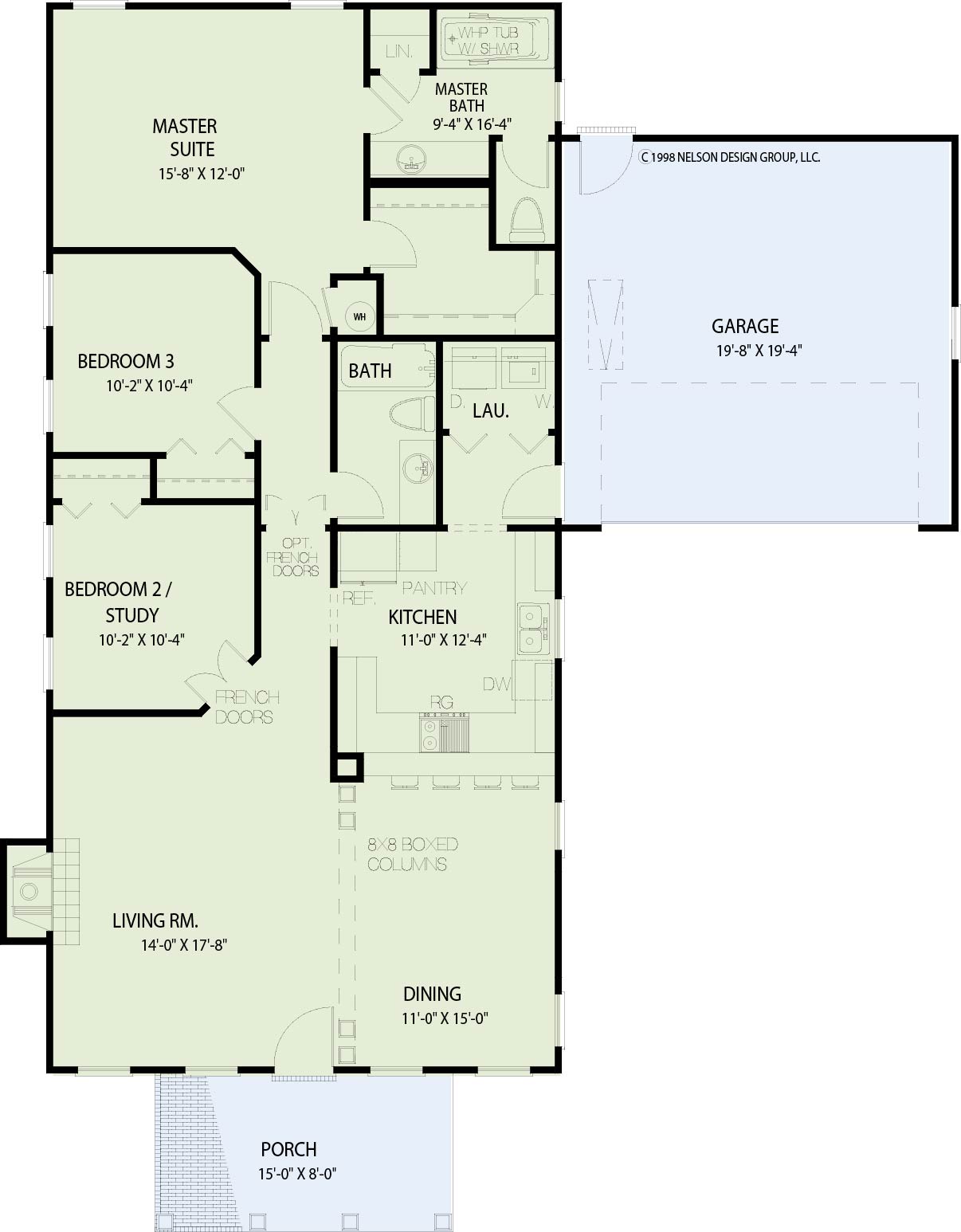

House Plan NDG 271 Main Floor

Floor plans

NDG 271

House Plan 271 Wellington Lane, Village at Wellington House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 271
  • Total Living Space:1404Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 48
  • Width In.: 2
  • Depth Ft.: 62
  • Depth In.: N/A


A charming southern traditional home reminiscent of grandmother’s house exemplifies this home. Impressive boxed columns embrace the entry to the spacious dining room, while French doors open to the study. Breakfast tradition can begin in your home in our cozy kitchen with view to the dining room. To the rear of the home, you’ll find a spacious master suite with ample closet space. Conclude a busy day with a long soak in your whirlpool bath.


  • Total Living Space:1404Sq.Ft.
  • Main Floor: 1404 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 120 Sq.Ft.
  • Garage (Sq.Ft.): 380 Sq.Ft.
  • Total Square Feet: 1904 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
