House Plan 283 Sage Meadows, Southern House Plan

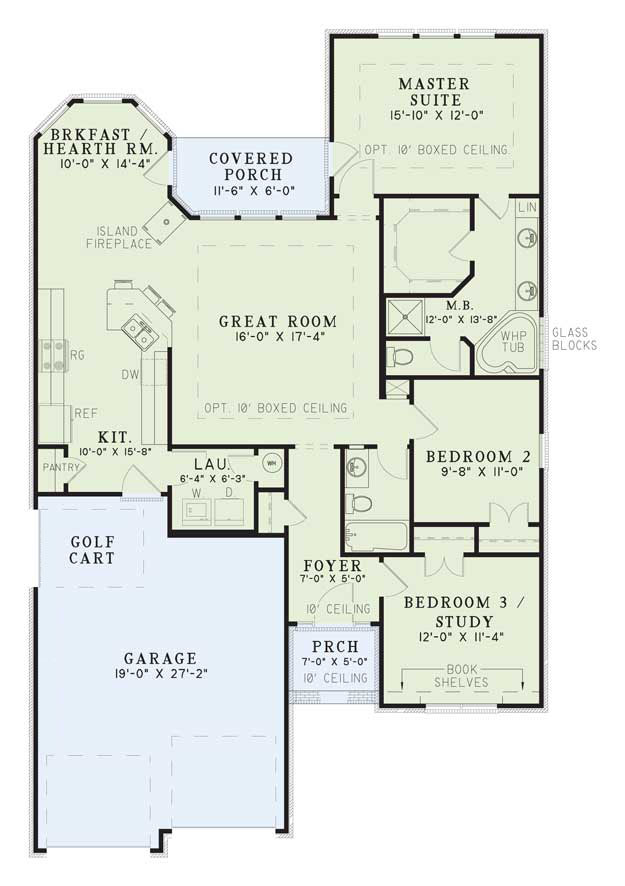

House Plan NDG 283 Main Floor

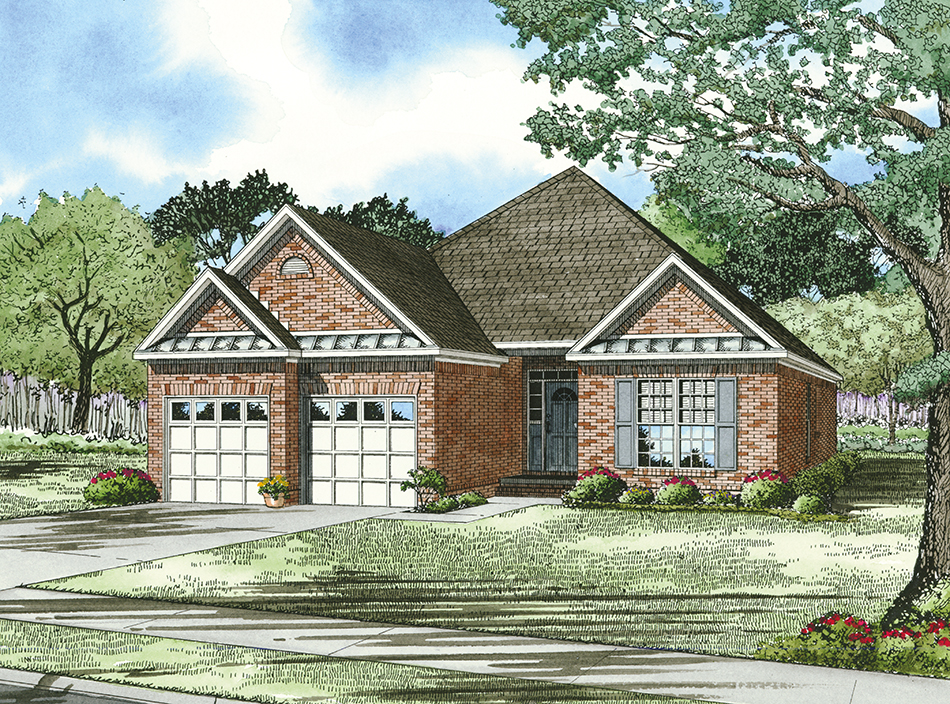

House Plan - 283p Front View>
House Plan NDG 283 Main Floor
House Plan - 283p Front View

Floor plans

NDG 283

House Plan 283 Sage Meadows, Southern House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 283
  • Total Living Space:1480Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: 4
  • Depth Ft.: 63
  • Depth In.: 2


At the heart of this home is an impressive great room with ten foot ceilings and peninsula fireplace. Off the great room, your family will enjoy meals together any time of day in the expansive kitchen. With an island, eat-at open bar, and breakfast nook complete with bay windows, you won’t hear any excuses for not finding time to eat. A secluded private entrance with french doors from the master suite to a rear covered porch allows you the opportunity to “get away” from it all.


  • Total Living Space:1480Sq.Ft.
  • Main Floor: 1480 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 85 Sq.Ft.
  • Garage (Sq.Ft.): 516 Sq.Ft.
  • Total Square Feet: 2081 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
