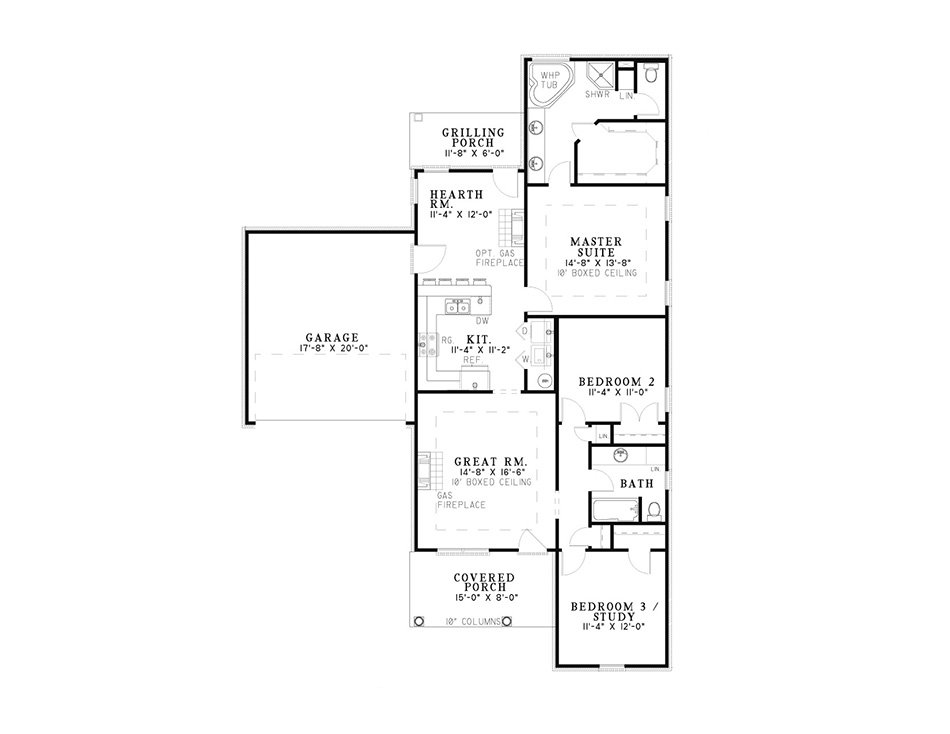

House Plan NDG 290 Main Floor

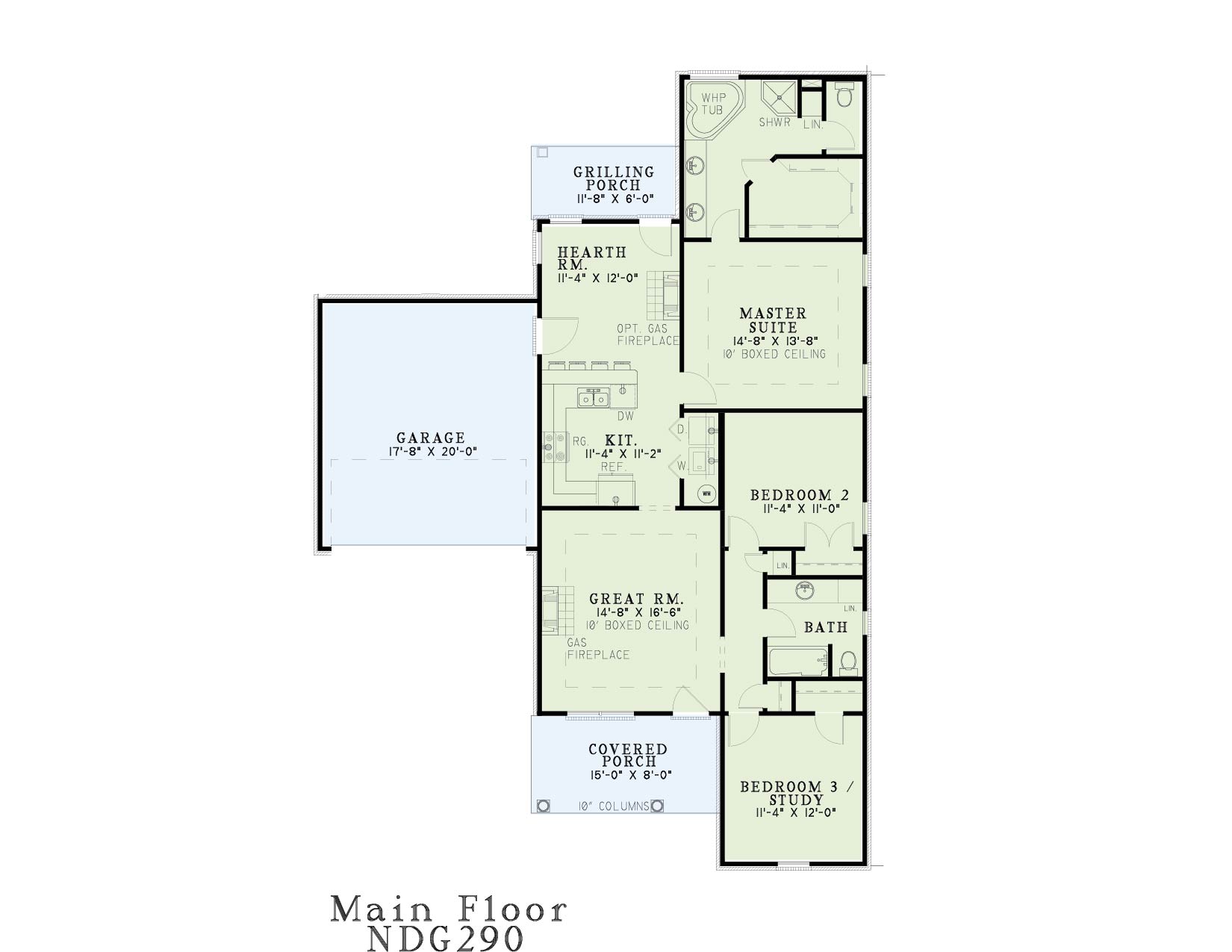

House Plan NDG 290 Main Floor

Floor plans

NDG 290

House Plan 290 Wellington Lane, Village at Wellington House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 290
  • Total Living Space:1425Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 45
  • Width In.: N/A
  • Depth Ft.: 64
  • Depth In.: 10


Enjoy peaceful fall evenings watching the sun set in this home. When it gets too cold, you can warm yourself in the comfortable great room, complete with fireplace. Begin each day with coffee and the morning paper in the hearth room with fluid access to the kitchen. The family chef will love displaying his or her skills during an afternoon cookout on the rear grilling porch. After the day has come to a close, you will find it most relaxing to soothe aches away in the privacy of your master bath.


  • Total Living Space:1425Sq.Ft.
  • Main Floor: 1425 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 137 Sq.Ft.
  • Garage (Sq.Ft.): 353 Sq.Ft.
  • Total Square Feet: 1915 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
