House Plan 310 Windstone Place, Village at Windstone I House Plan
> Floor plans
NDG 310
House Plan 310 Windstone Place, Village at Windstone I House Plan
Plan Details
- Plan Number: NDG 310
- Total Living Space:1959Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Rear Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 38
- Width In.: 6
- Depth Ft.: 78
- Depth In.: 6
Description
This southern traditional home plan has a formal foyer that leads into a spacious great room – perfect for entertaining and relaxing. Delight your friends with an evening cookout on your covered grilling porch located just off the kitchen and dining area. A secluded master suite and master bath in this house plan, complete with whirlpool tub, will offer plenty of privacy. As you travel to the upper floor, you’ll find a full bath and three spacious bedrooms or convert one to a game room for the kids. An eight foot balcony completes this home.
Specifications
- Total Living Space:1959Sq.Ft.

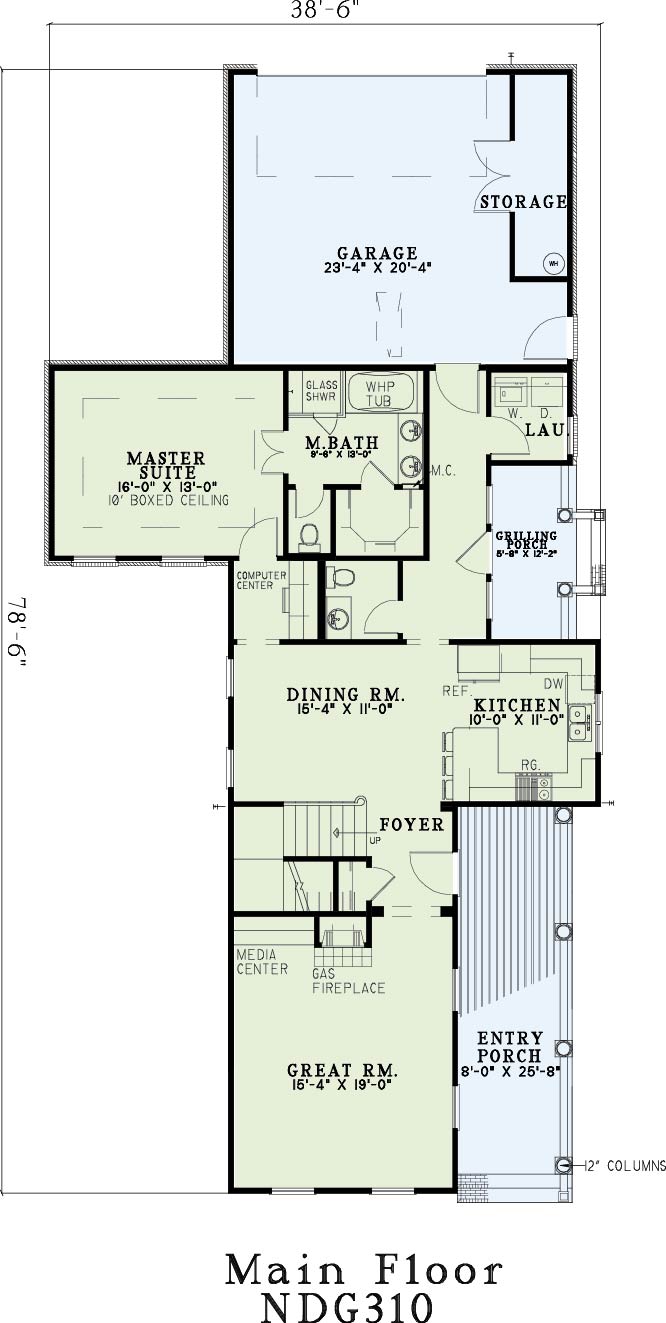

- Main Floor: 1295 Sq.Ft

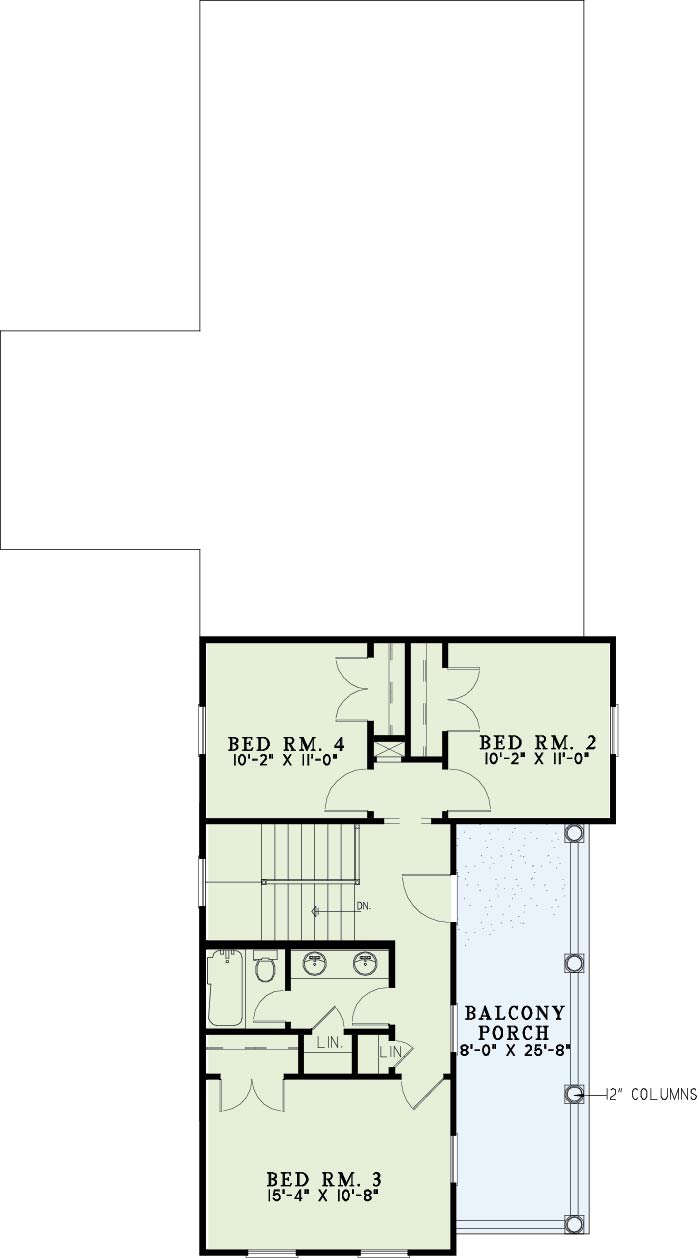

- Upper Floor (Sq.Ft.): 664 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 487 Sq.Ft.
- Garage (Sq.Ft.): 498 Sq.Ft.
- Total Square Feet: 2944 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 9
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 26
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
