House Plan 332 Waterfront Cove, Waterfront House Plan

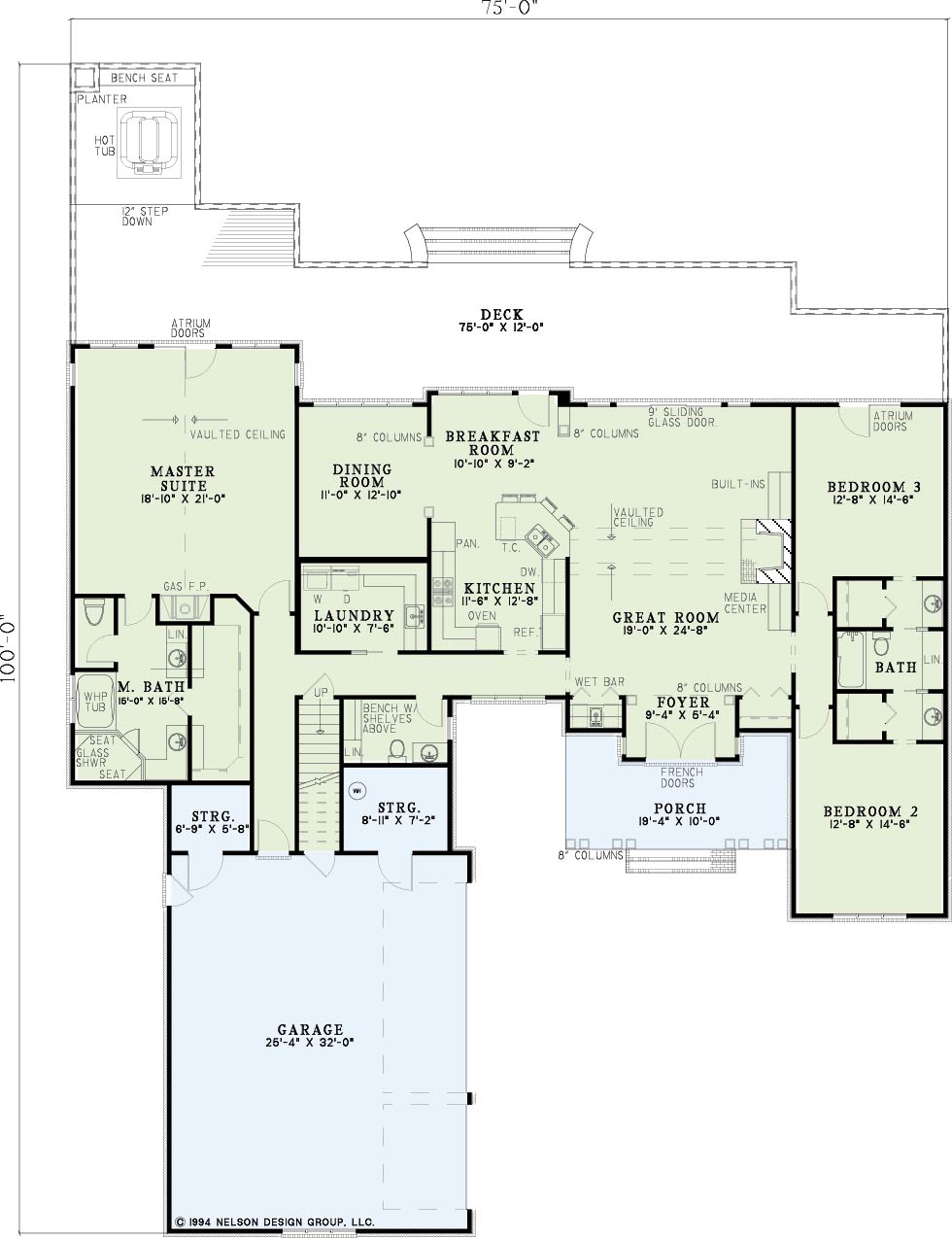

House Plan NDG 332 Main Floor

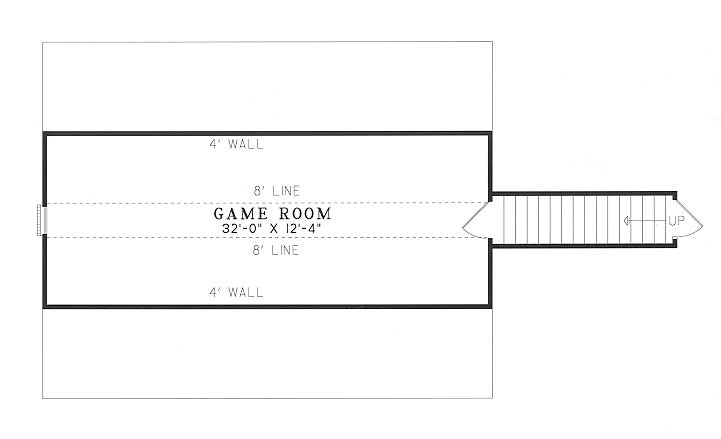

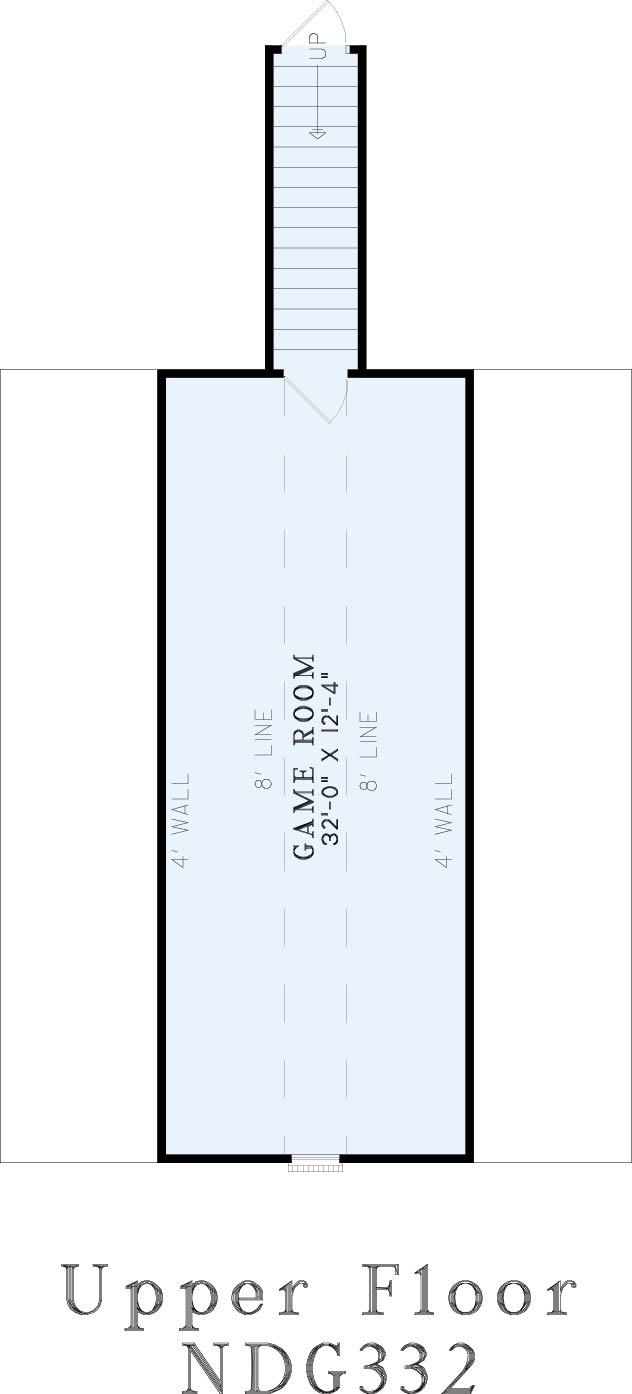

House Plan NDG 332 Game Room
House Plan - 332 1p Front View>
House Plan NDG 332 Main Floor
House Plan NDG 332 Game Room
House Plan - 332 1p Front View

Floor plans

NDG 332

House Plan 332 Waterfront Cove, Waterfront House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 332
  • Total Living Space:2611Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 75
  • Width In.: N/A
  • Depth Ft.: 100
  • Depth In.: N/A

Description

This premier vacation home is perfect entertaining out-of-town guests. Your friends will enjoy remembering old times in the vaulted great room which includes wet bar, media center, built-ins and access to the rear deck through sliding door. Start the next morning with a big breakfast in your kitchen and breakfast room before heading to the lake. Evening can begin with an elegant cuisine in the formal dining room, before making your way upstairs to the game room for a round of pool. Next, relax and unwind in the outdoor hot tub.

Specifications

  • Total Living Space:2611Sq.Ft.
  • Main Floor: 2611 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 424 Sq.Ft.
  • Porch (Sq.Ft.): 168 Sq.Ft.
  • Garage (Sq.Ft.): 953 Sq.Ft.
  • Total Square Feet: 4156 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
