House Plan 338 Windstone Place, Village at Windstone II House Plan

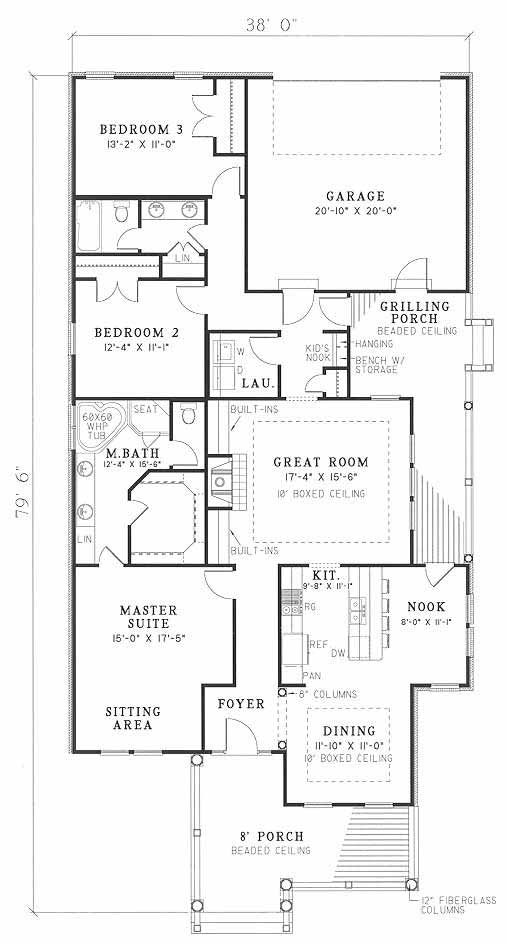

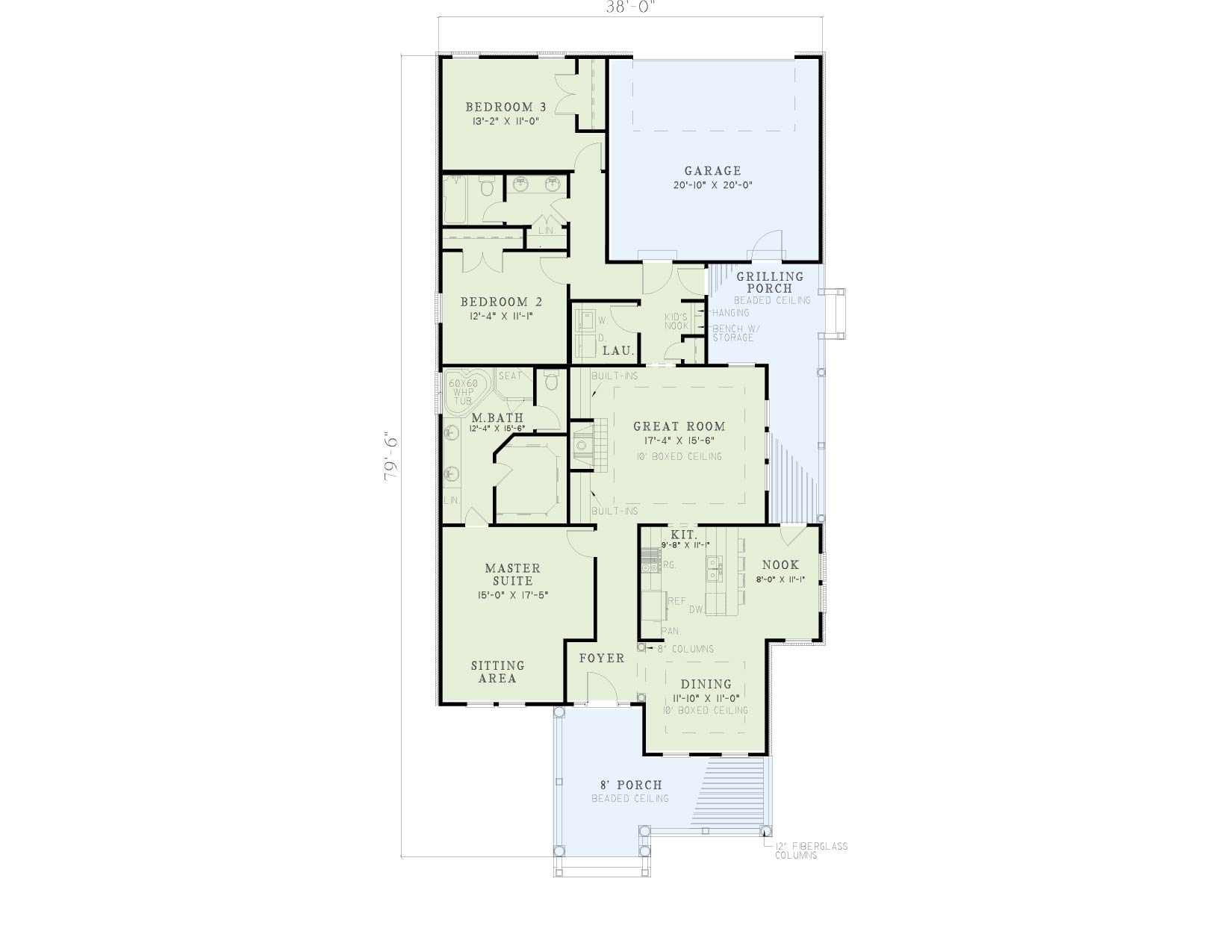

House Plan NDG 338 Main Floor
House Plan NDG 338 Main Floor

Floor plans

NDG 338

House Plan 338 Windstone Place, Village at Windstone II House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 338
  • Total Living Space:1848Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 38
  • Width In.: N/A
  • Depth Ft.: 79
  • Depth In.: 6

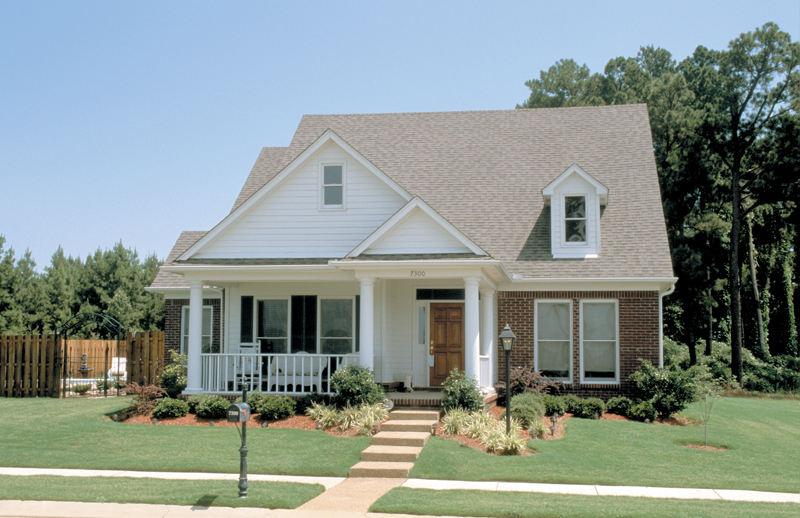

Step inside this traditional home and leave the world behind. Enjoy comfortable evenings relaxing in your spacious great room, complete with fireplace and built-in shelving. Dinner parties are a breeze in the comfort of your formal dining area enhanced by eight inch wood columns. For more casual gatherings, invite friends over for a delicious cookout on your grilling porch, accessible from sitting nook and garage. Finally, relish in the privacy of your large master suite and relax in the corner whirlpool tub of the master bath.


  • Total Living Space:1848Sq.Ft.
  • Main Floor: 1848 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 430 Sq.Ft.
  • Garage (Sq.Ft.): 429 Sq.Ft.
  • Total Square Feet: 2707 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
