House Plan 423 Table Rock, Riverbend House Plan

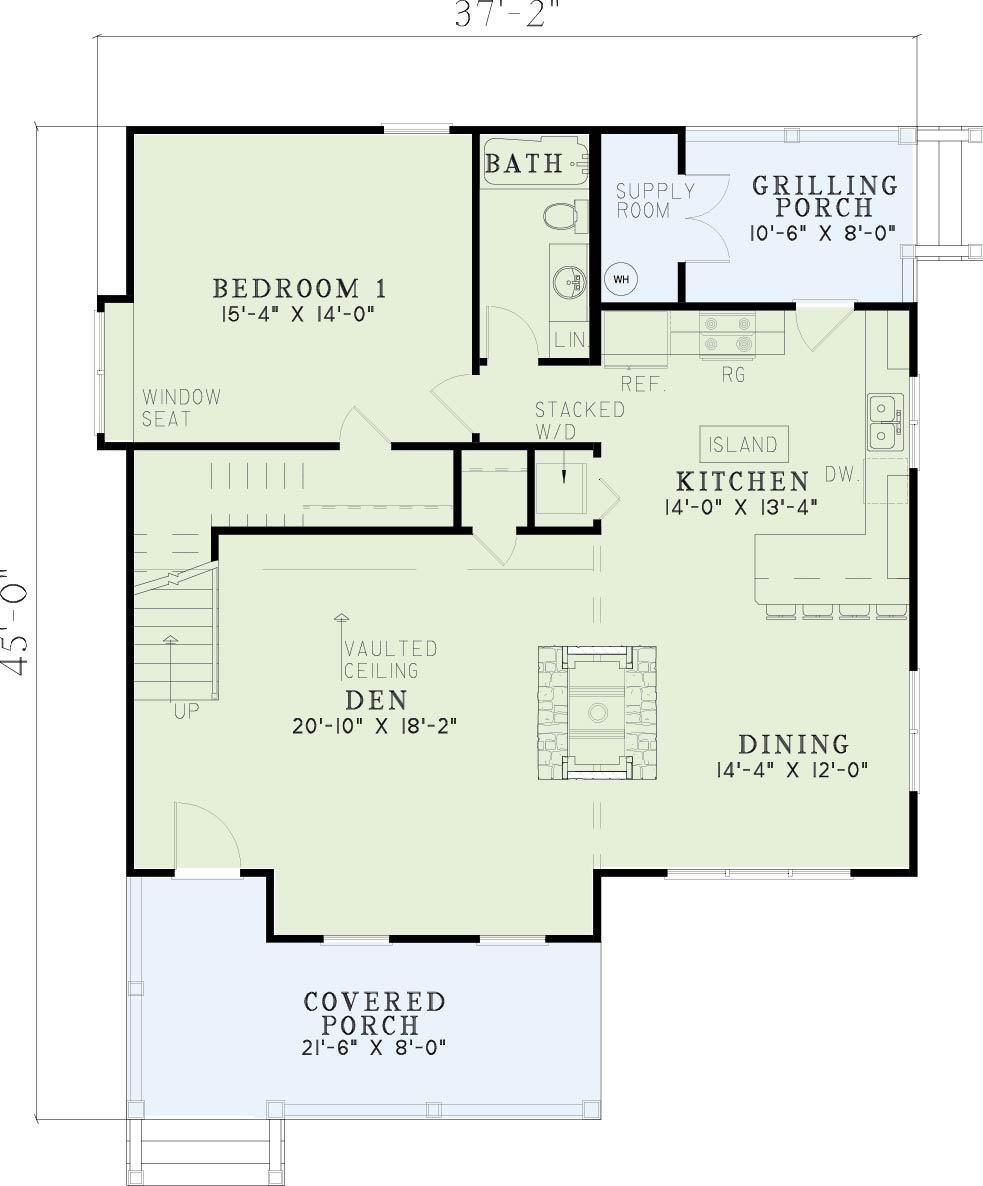

House Plan NDG 423 Main Floor

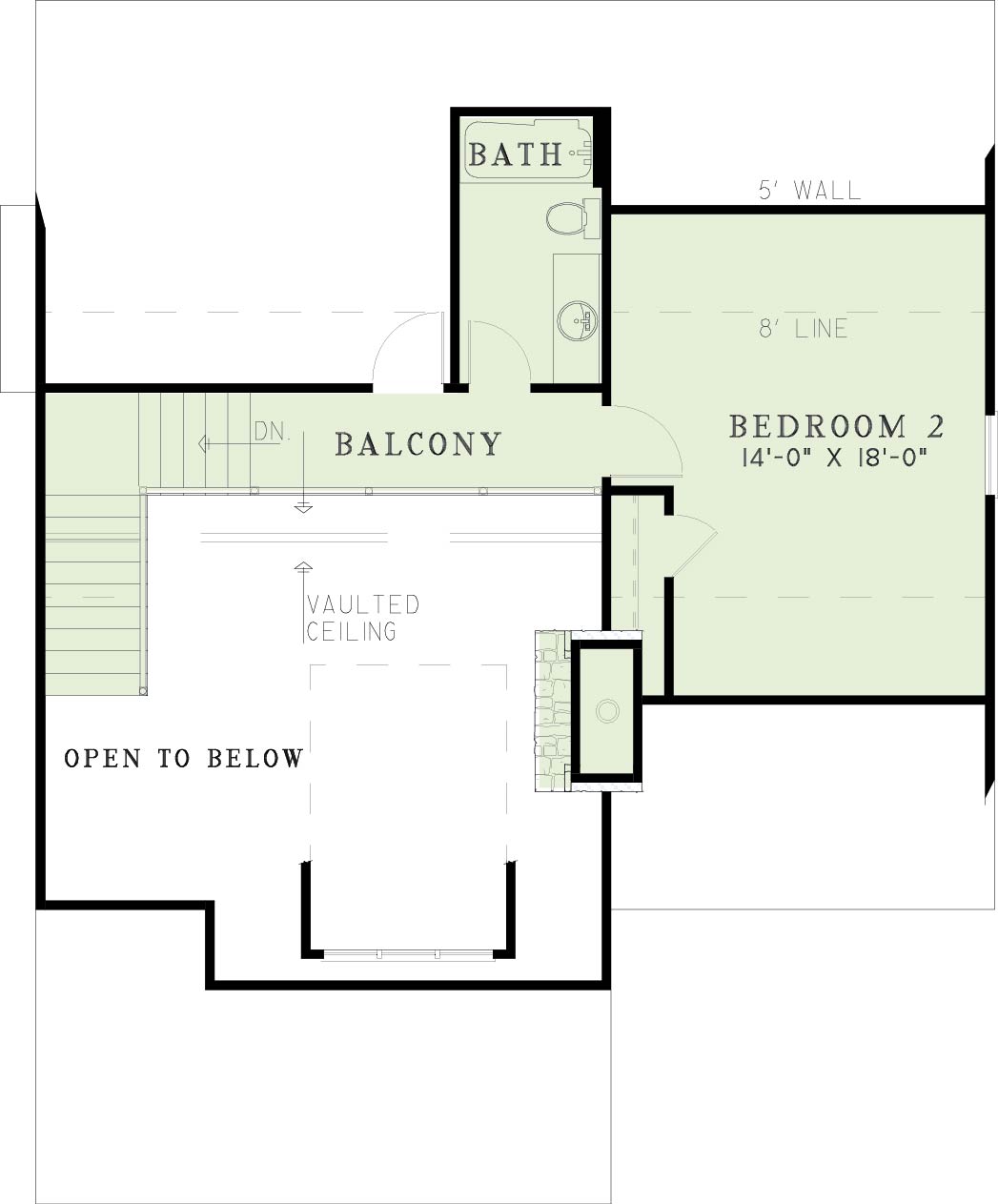

House Plan NDG 423 Upper Floor

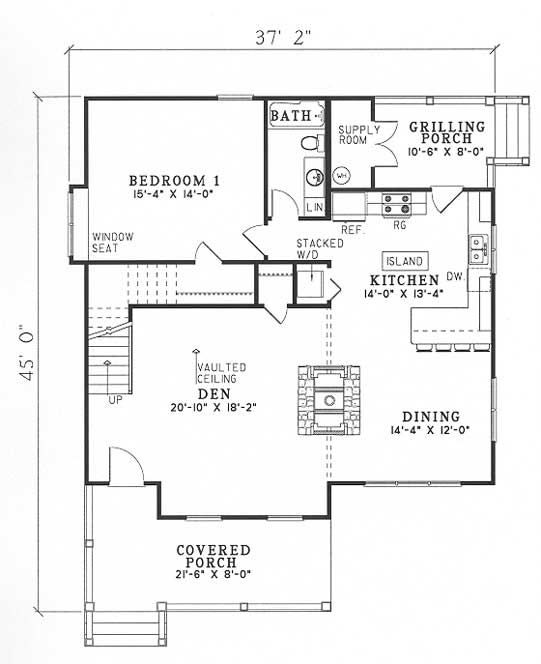

House Plan NDG 423 Main Floor

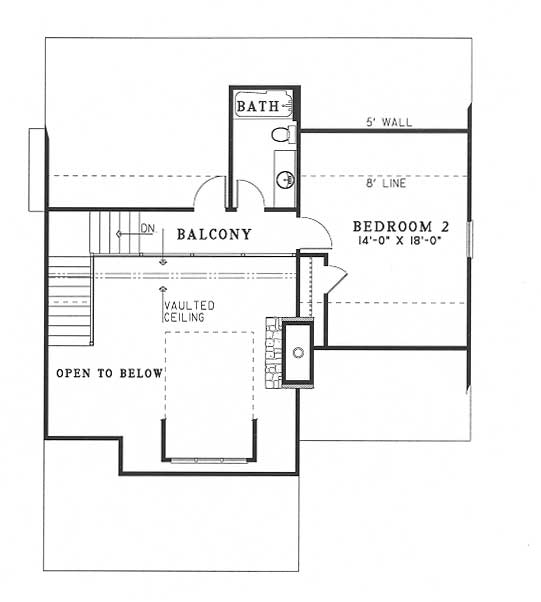

House Plan NDG 423 Upper Floor

Floor plans

NDG 423

House Plan 423 Table Rock, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 423
  • Total Living Space:1542Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 37
  • Width In.: 2
  • Depth Ft.: 45
  • Depth In.: N/A


They giggled with delight as the fish began to nibble on their toes as they dipped their feet into the water. The children always loved the lazy summer days at Grandma’s and Grandpa’s cabin. They loved the early morning swims in River Bend’s cool waters and the lemonade that Grandma served in the afternoons. What they especially enjoyed, was laying on the large flat rock that allowed the river’s water to gently splash over its surface providing cool relief from the summer’s heat. The days here at Table Rock would always be home to their fondest memories.


  • Total Living Space:1542Sq.Ft.
  • Main Floor: 1159 Sq.Ft
  • Upper Floor (Sq.Ft.): 383 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 395 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1937 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: N/A
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
