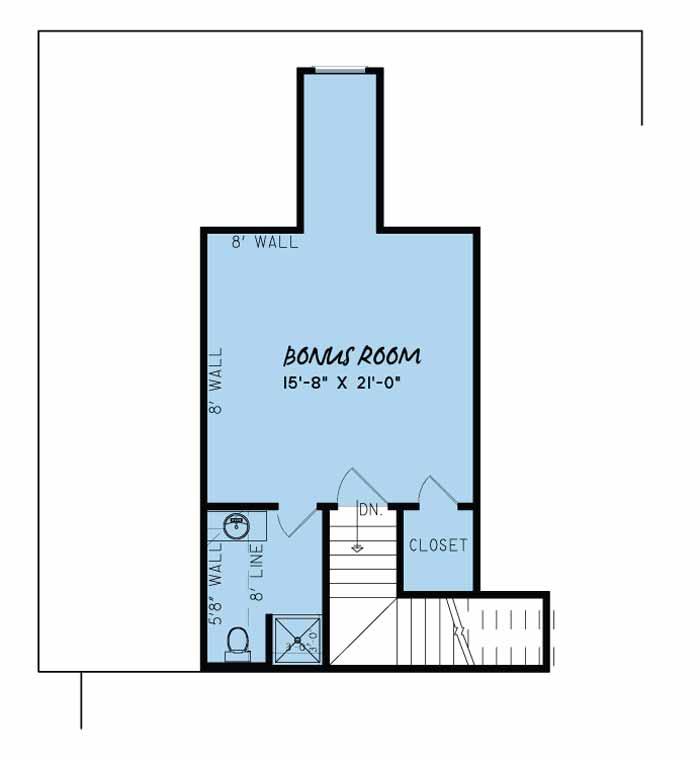

House Plan MEN 5027 Upper Floor/Bonus Room
>
House Plan MEN 5027 Garage>
House Plan MEN 5027 Front Entry>

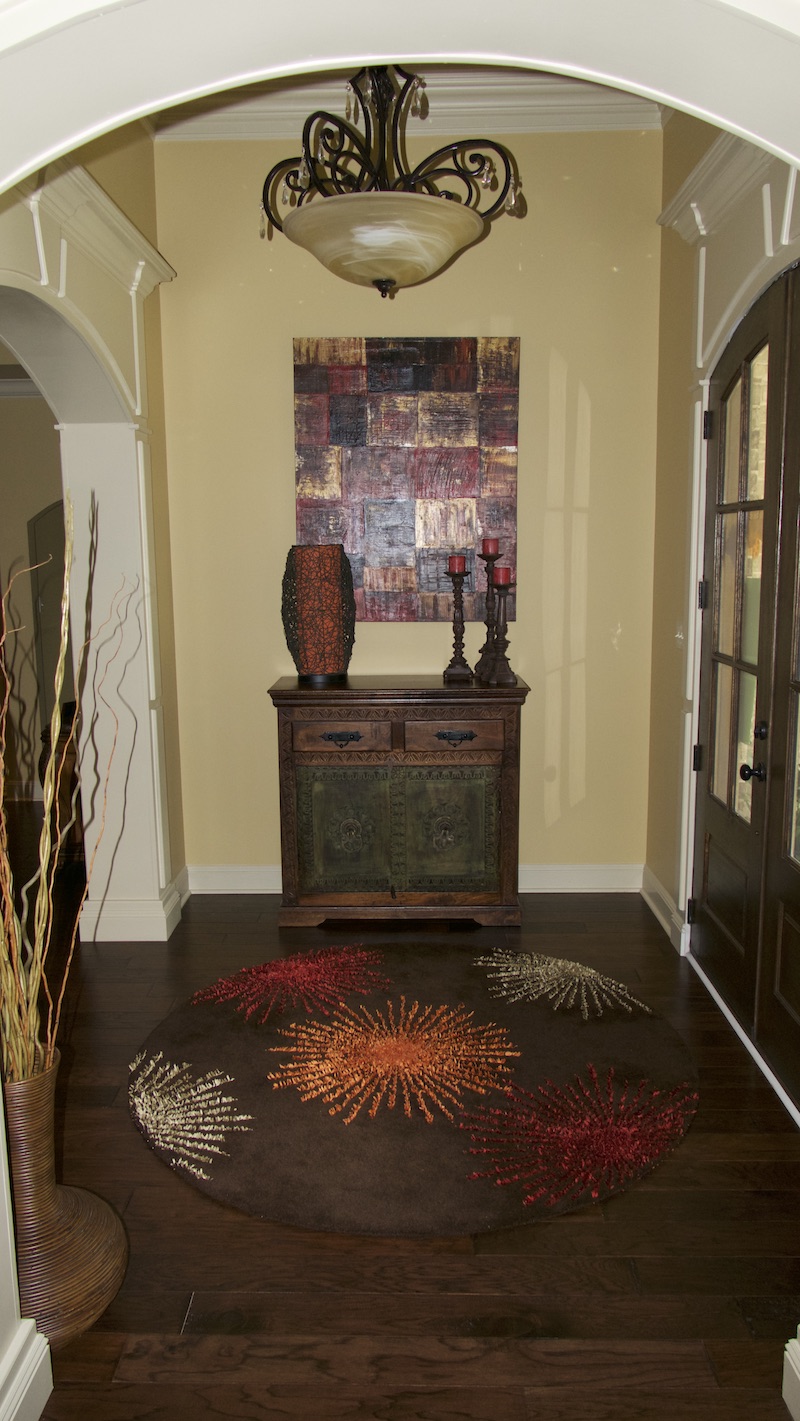

House Plan MEN 5027 Foyer>

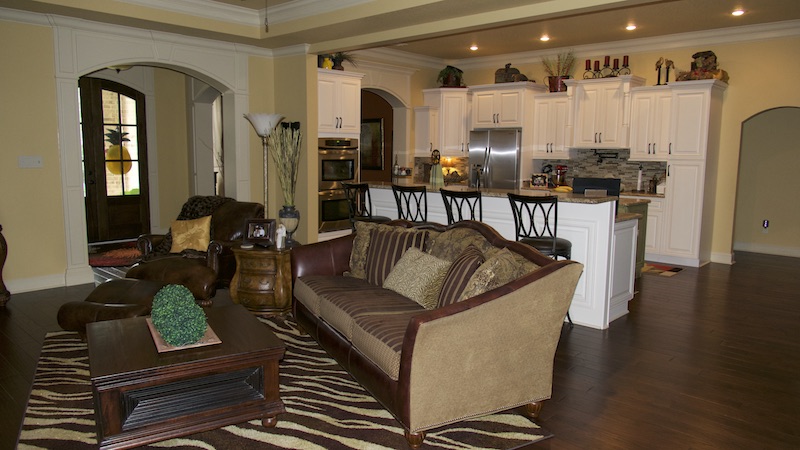

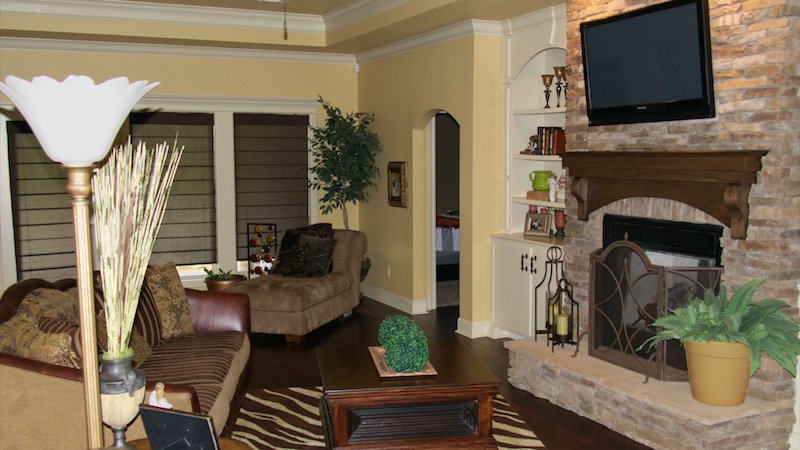

House Plan MEN 5027 Great Room>
House Plan MEN 5027 Great Room>

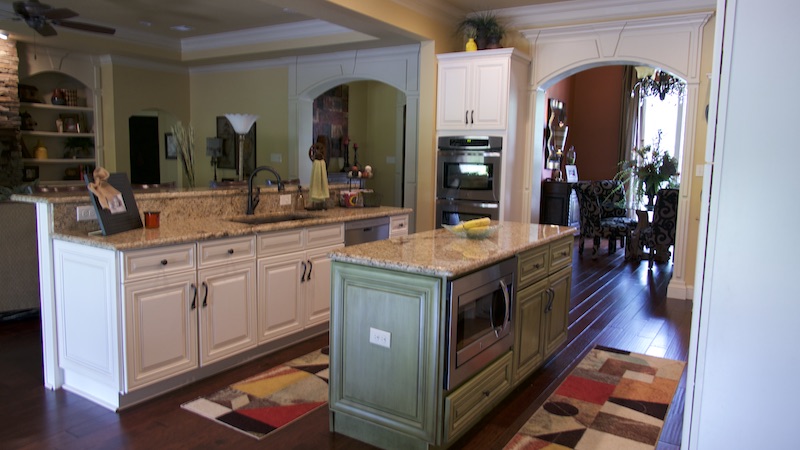

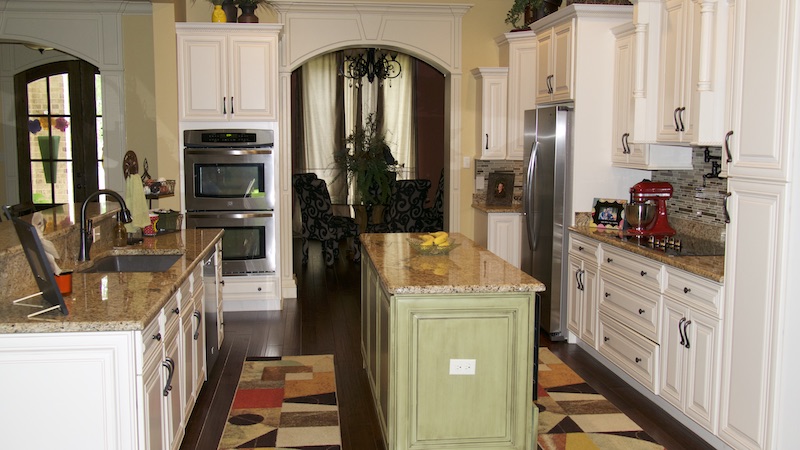

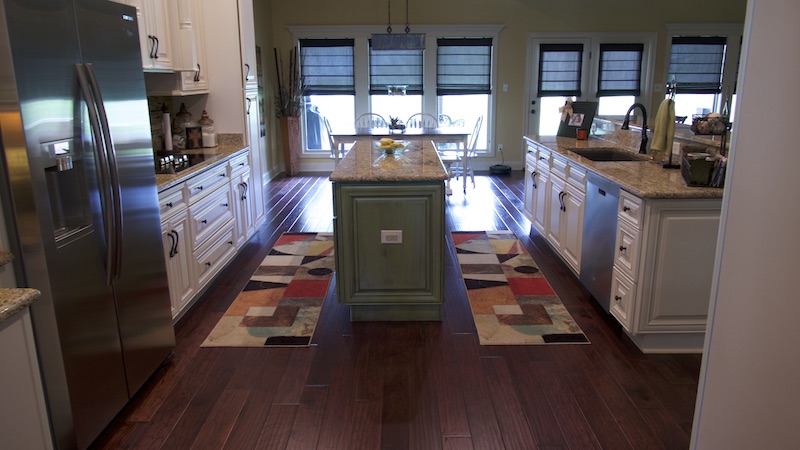

House Plan MEN 5027 Kitchen>
House Plan MEN 5027 Kitchen>
House Plan MEN 5027 Kitchen>

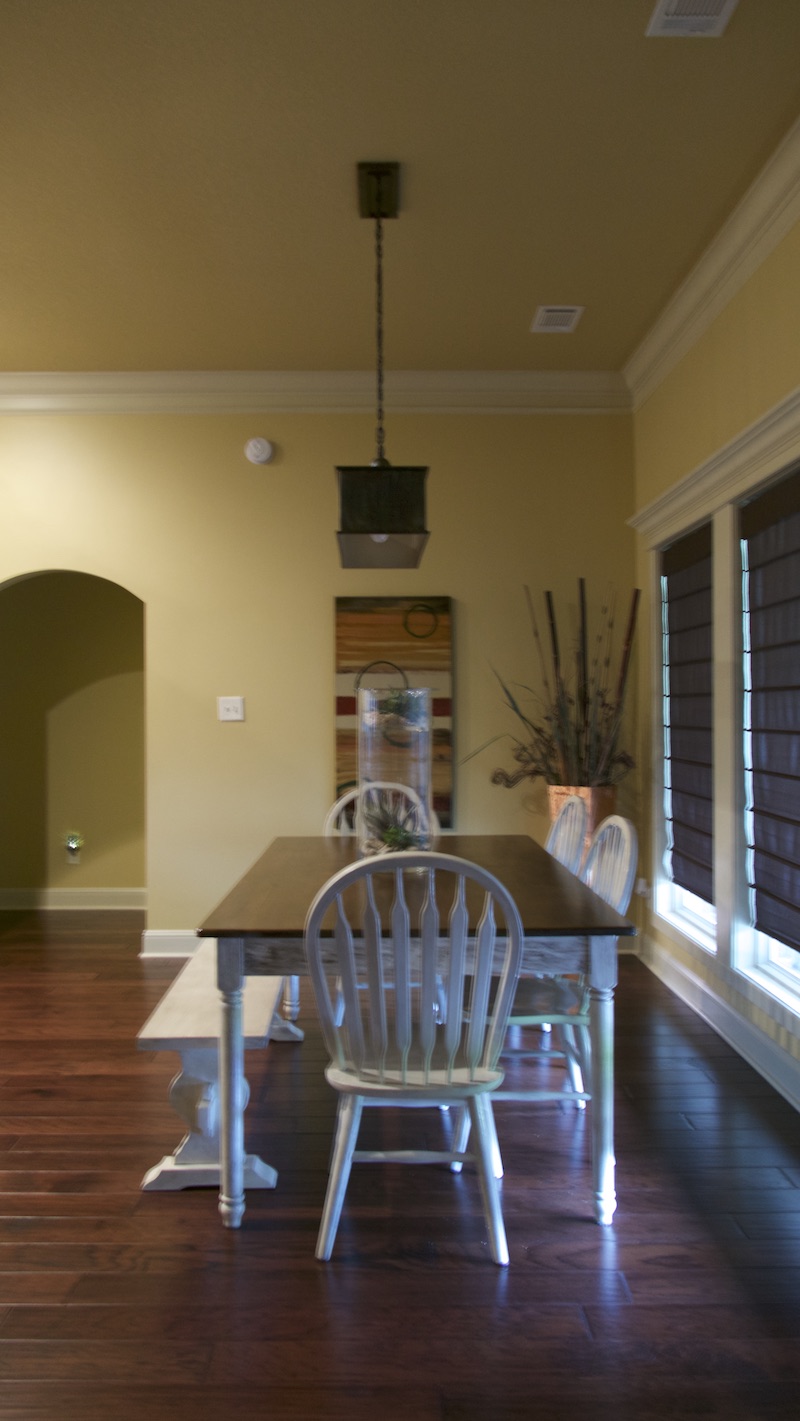

House Plan MEN 5027 Breakfast Room>

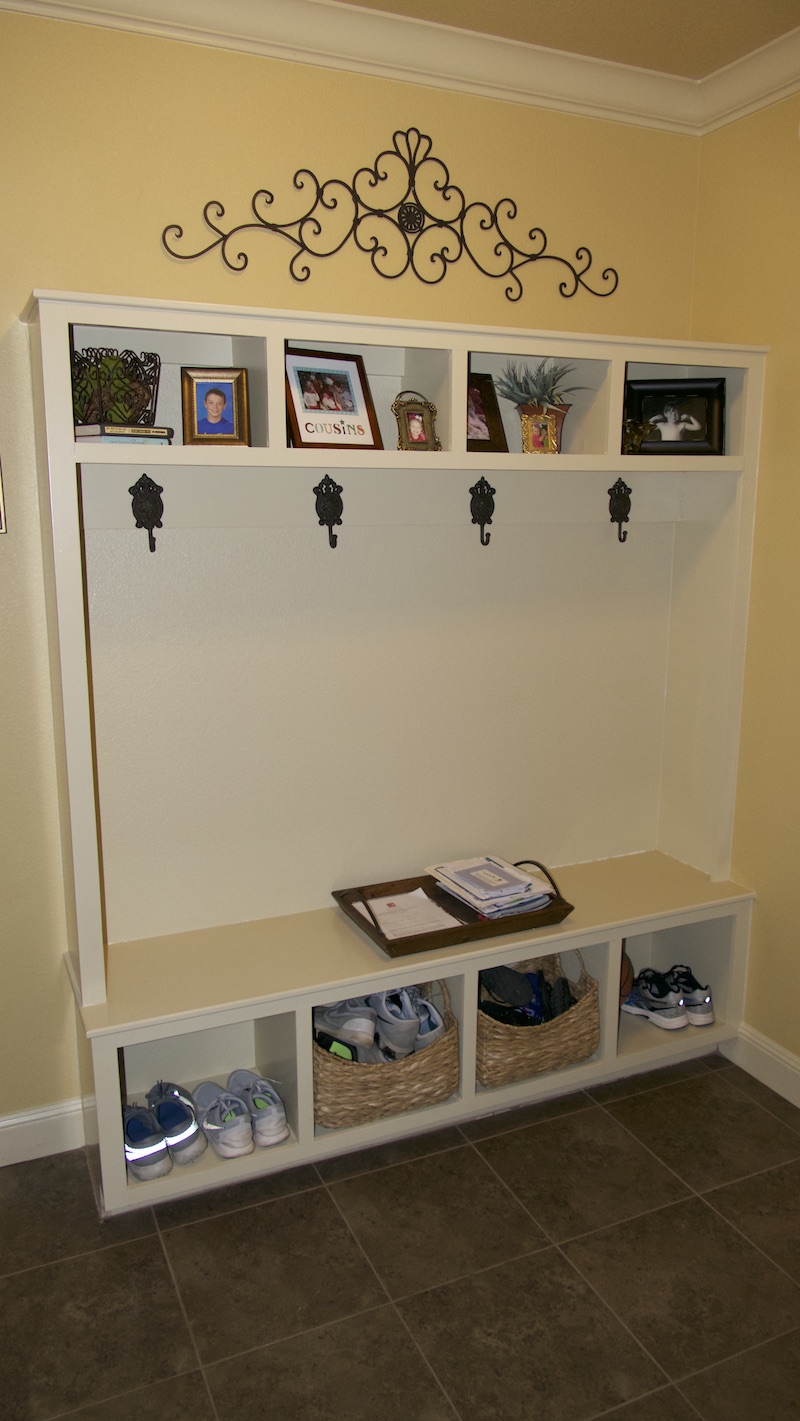

House Plan MEN 5027 Kid's Nook>
House Plan MEN 5027 Bedroom 2>

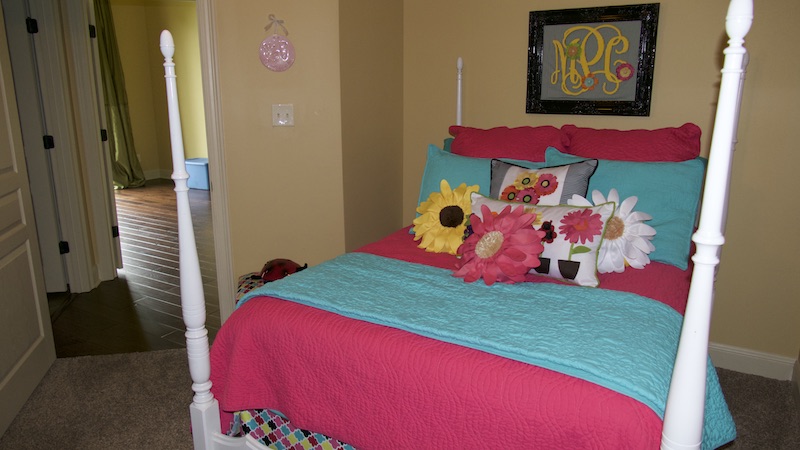

House Plan MEN 5027 Bedroom 3>

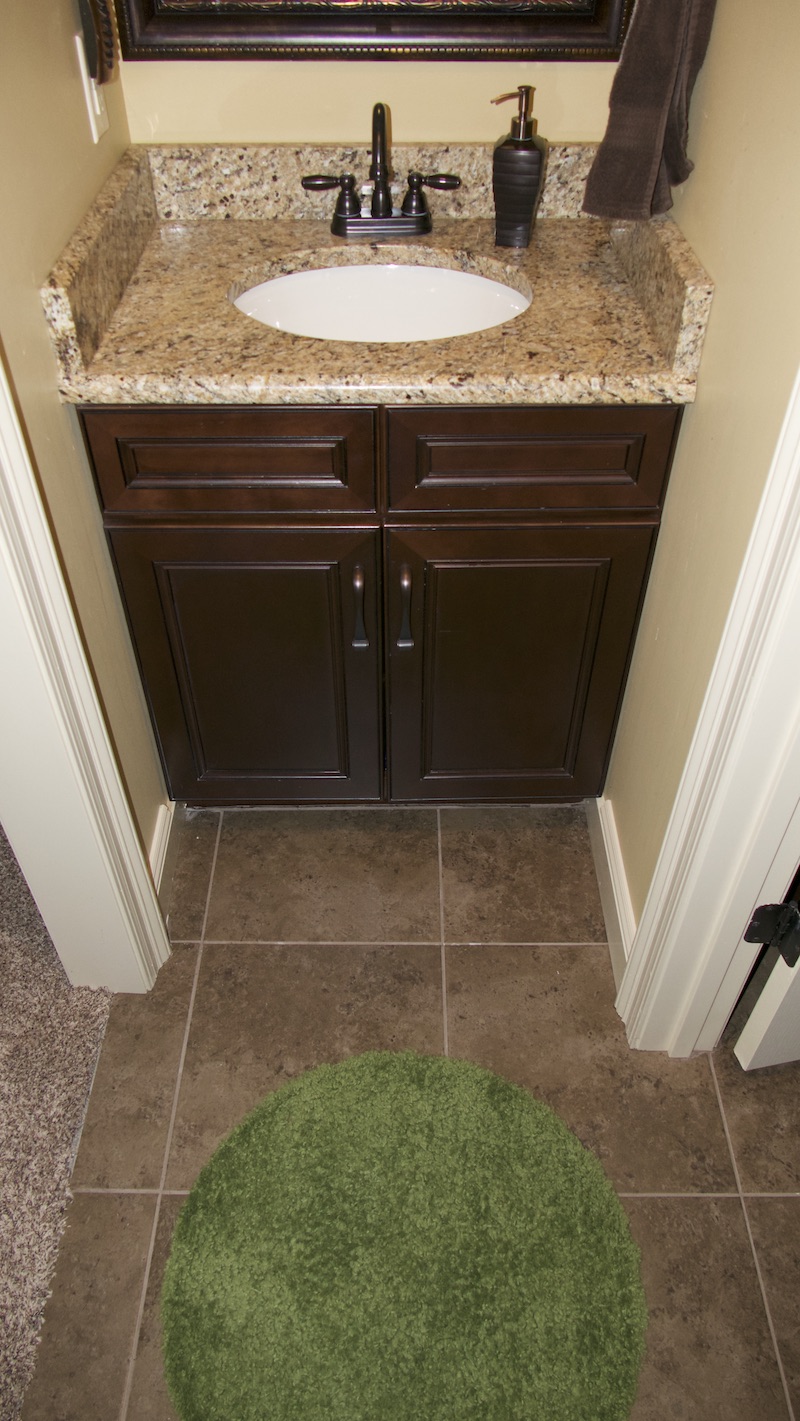

House Plan MEN 5027 Bedroom Bath>
House Plan MEN 5027 Bedroom Bath>

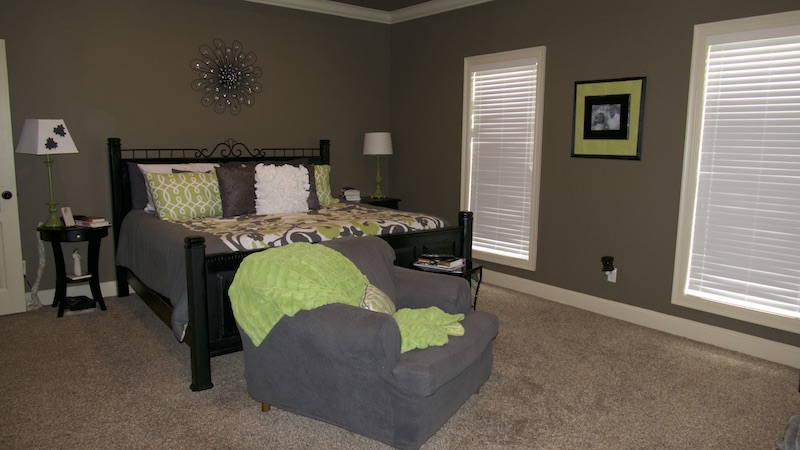

House Plan MEN 5027 Master Suite>
House Plan MEN 5027 Master Suite>

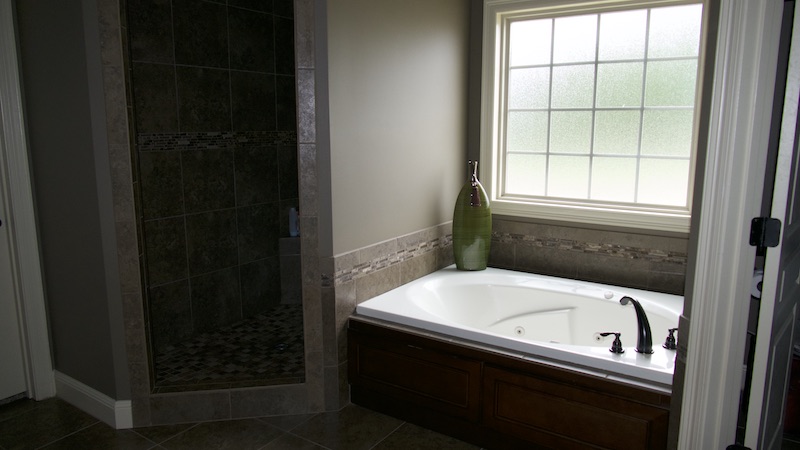

House Plan MEN 5027 Master Bath>

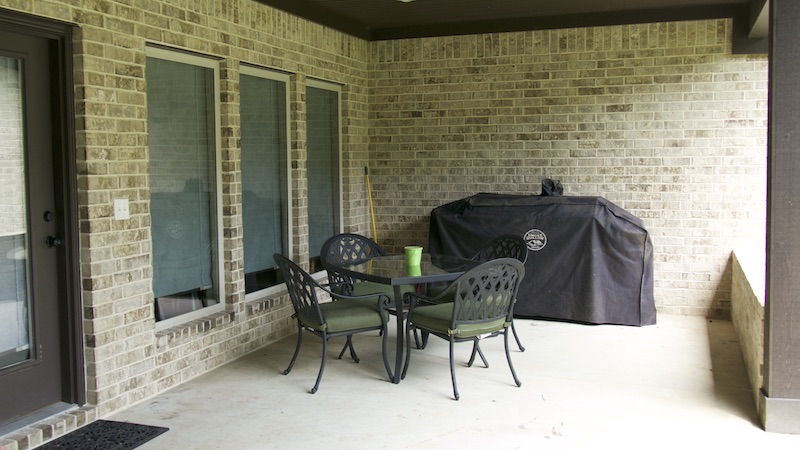

House Plan MEN 5027 Outdoor Living Grilling Porch>

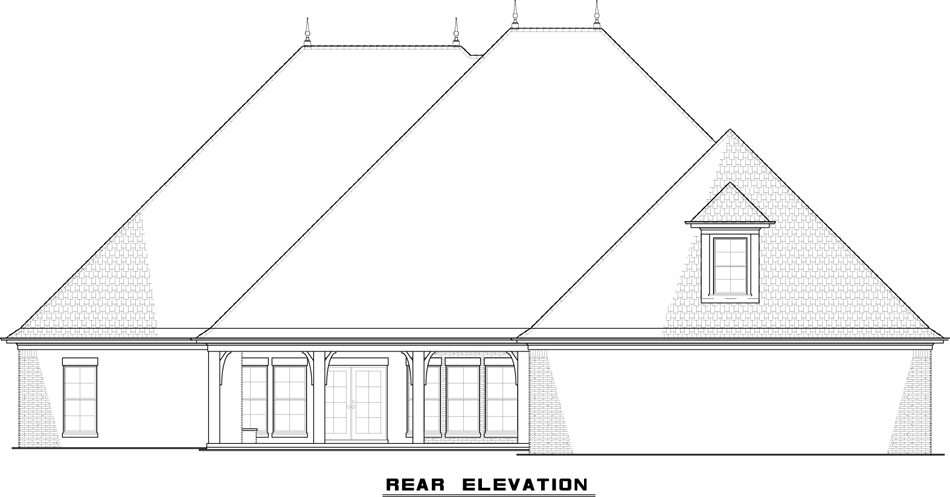

House Plan MEN 5027 Rear Exterior>

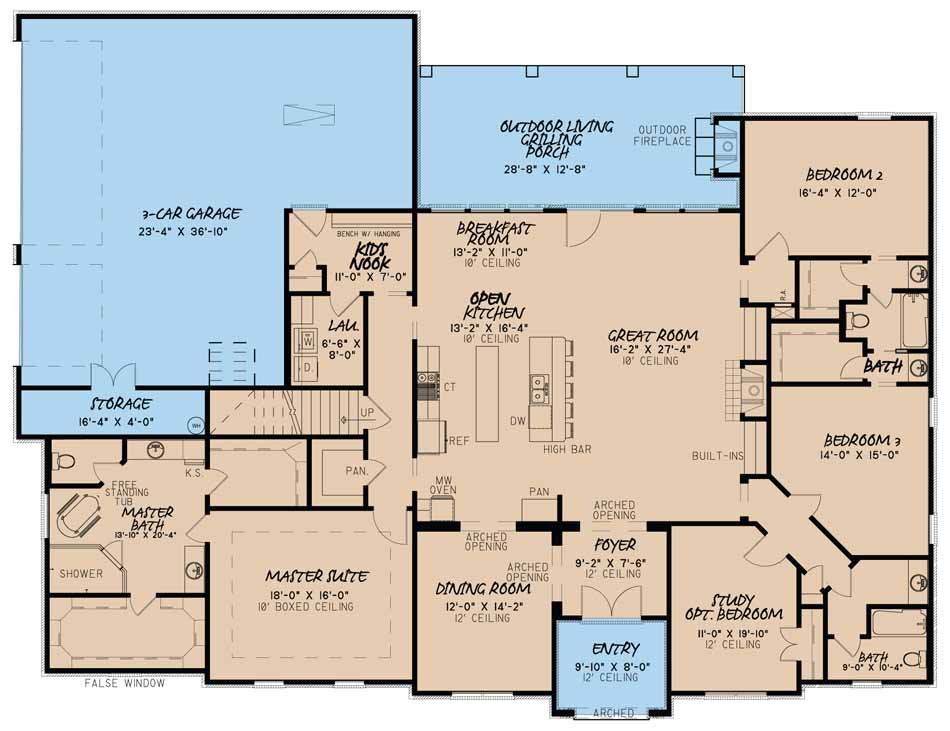

House Plan MEN 5027 Main Floor
House Plan MEN 5027 Upper Floor/Bonus Room

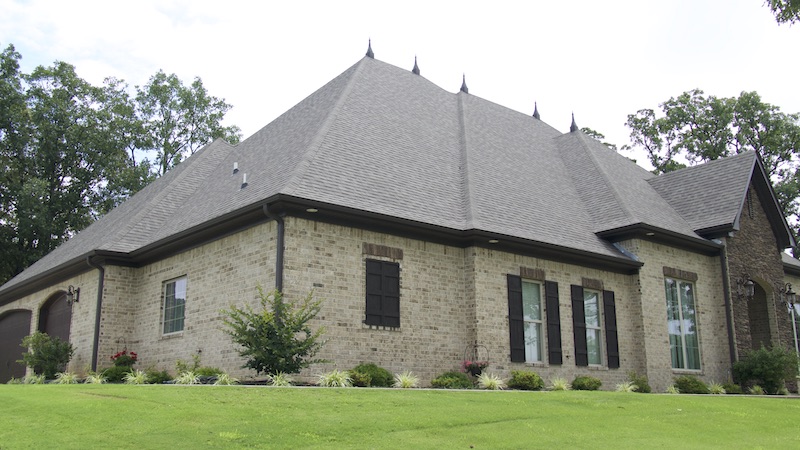

House Plan MEN 5027 Garage

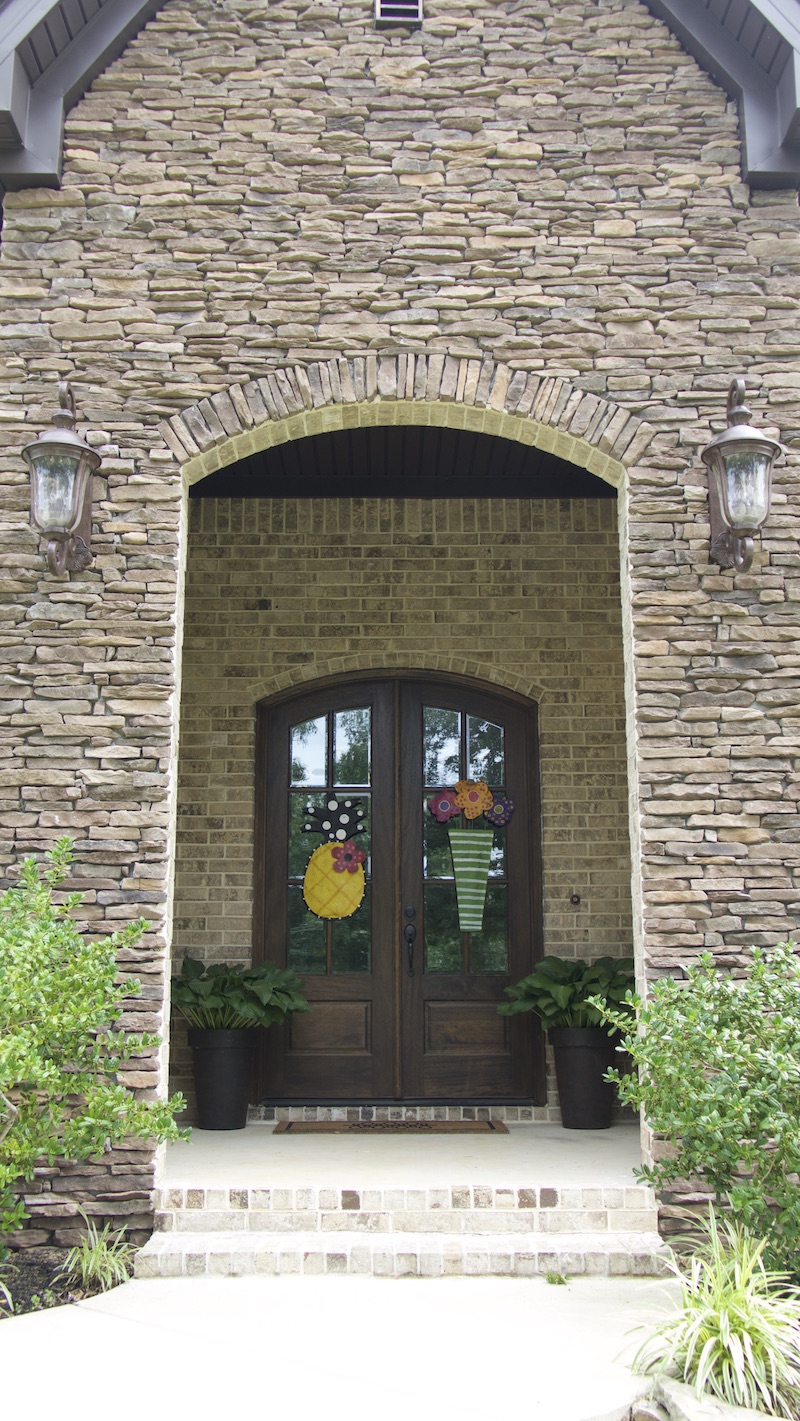

House Plan MEN 5027 Front Entry
House Plan MEN 5027 Foyer
House Plan MEN 5027 Great Room
House Plan MEN 5027 Great Room
House Plan MEN 5027 Kitchen
House Plan MEN 5027 Kitchen
House Plan MEN 5027 Kitchen
House Plan MEN 5027 Breakfast Room
House Plan MEN 5027 Kid's Nook
House Plan MEN 5027 Bedroom 2
House Plan MEN 5027 Bedroom 3

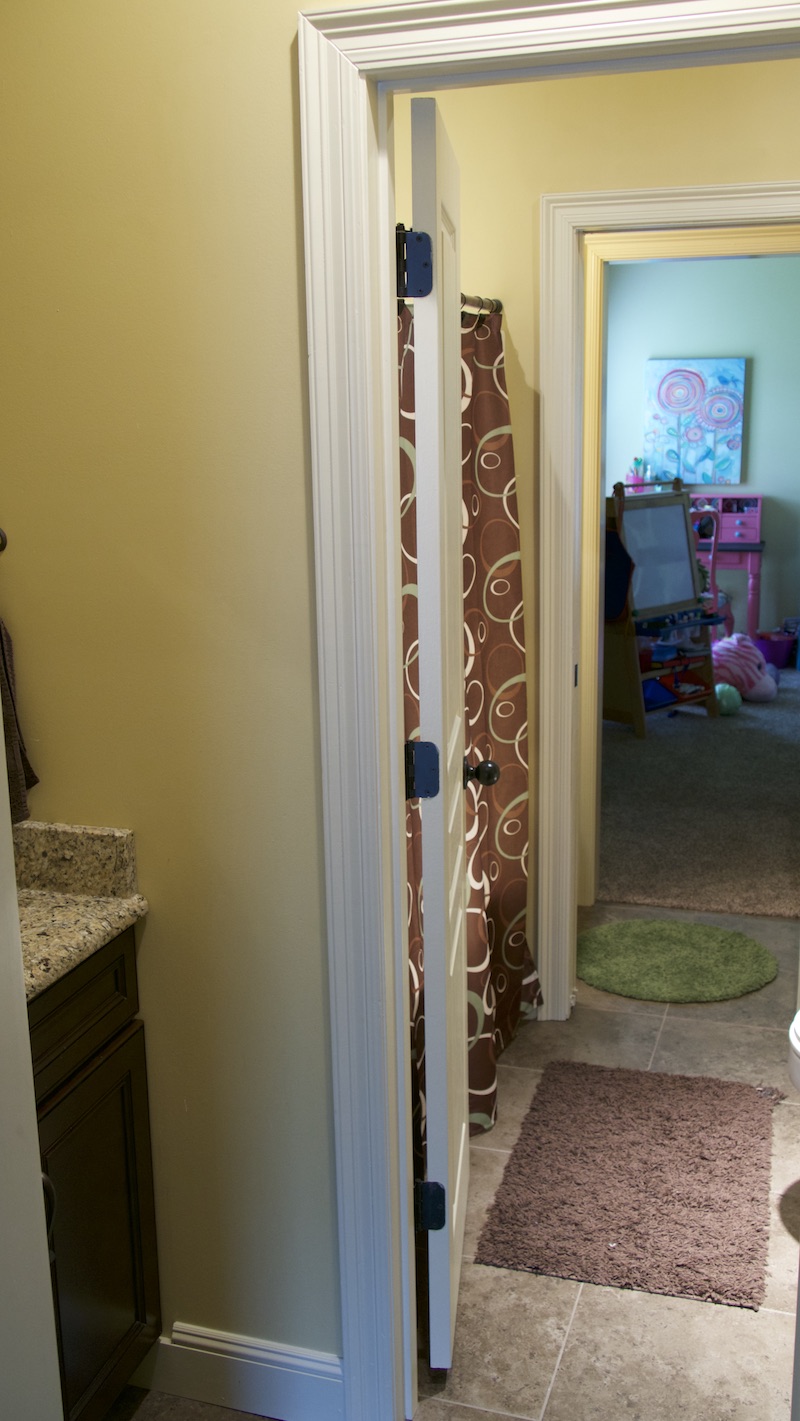

House Plan MEN 5027 Bedroom Bath
House Plan MEN 5027 Bedroom Bath

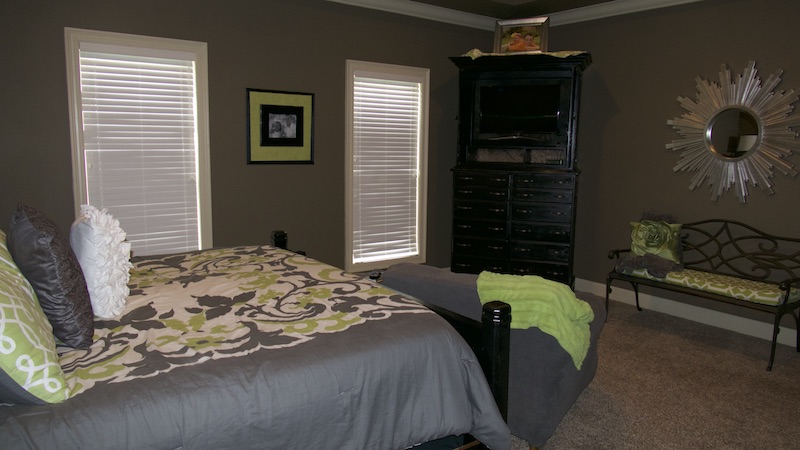

House Plan MEN 5027 Master Suite
House Plan MEN 5027 Master Suite
House Plan MEN 5027 Master Bath
House Plan MEN 5027 Outdoor Living Grilling Porch

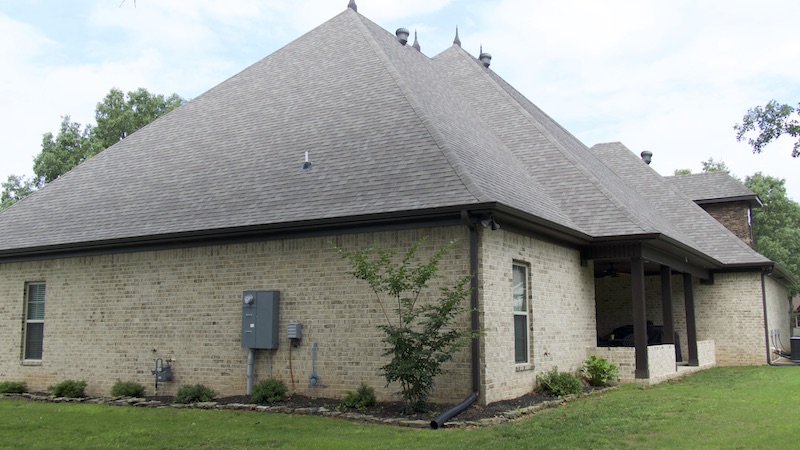

House Plan MEN 5027 Rear Exterior

Floor plans

MEN 5027

House Plan 5027 St. Charles, European House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: MEN 5027
  • Total Living Space:2993Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 81
  • Width In.: N/A
  • Depth Ft.: 62
  • Depth In.: N/A

Description

This traditional European style home features tons of amenities and space. The elegant stone and brick exterior creates stunning curb appeal for this home. A side load 3 car garage can be found on the right side of the home. Inside arched openings help to separate spaces while still maintaining the flow of an open layout. The private master suite is sure to spoil you with space and amenities such as an oversized shower, two walk-in closets, and a free standing tub. Bedrooms 2 and 3 are located on the opposite side of the home with spacious closets and a Jack and Jill bath between the two. Just steps away from bedroom 3 is a room which can be used as an additional bedroom or an office. Upstairs is a large bonus room with a full bath. The large outdoor living area with a fireplace completes this large and elegant home.

Specifications

  • Total Living Space:2993Sq.Ft.
  • Main Floor: 2993 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 409 Sq.Ft.
  • Porch (Sq.Ft.): 449 Sq.Ft.
  • Garage (Sq.Ft.): 1050 Sq.Ft.
  • Total Square Feet: 4901 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 37
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
