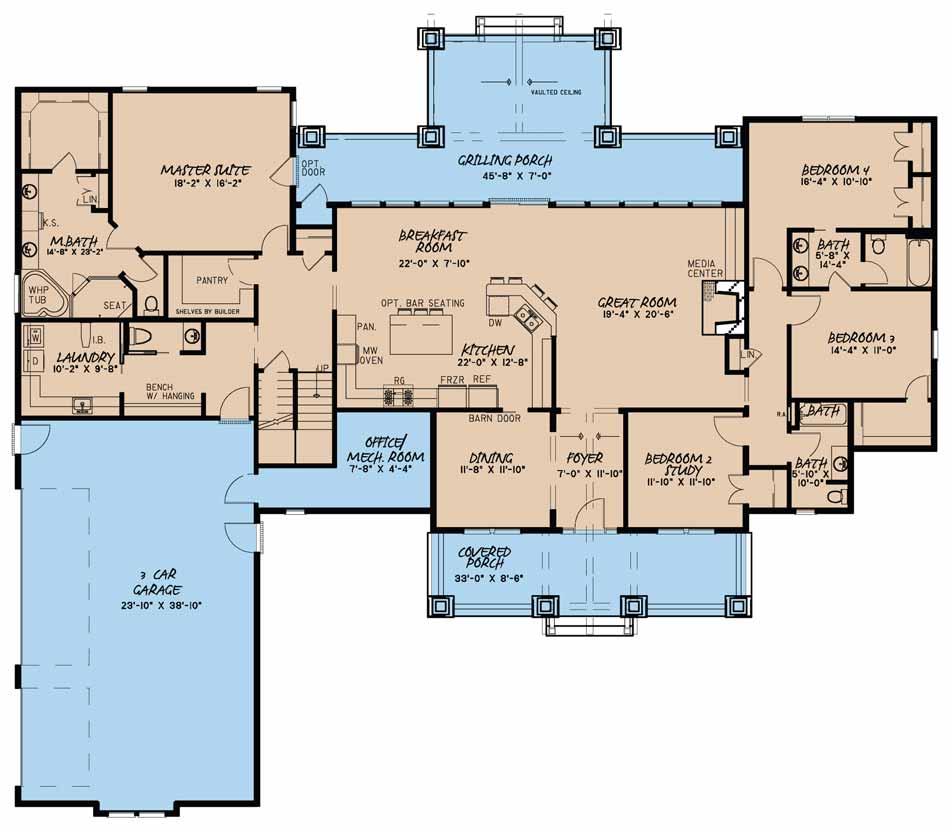

House Plan MEN 5030 Main Floor

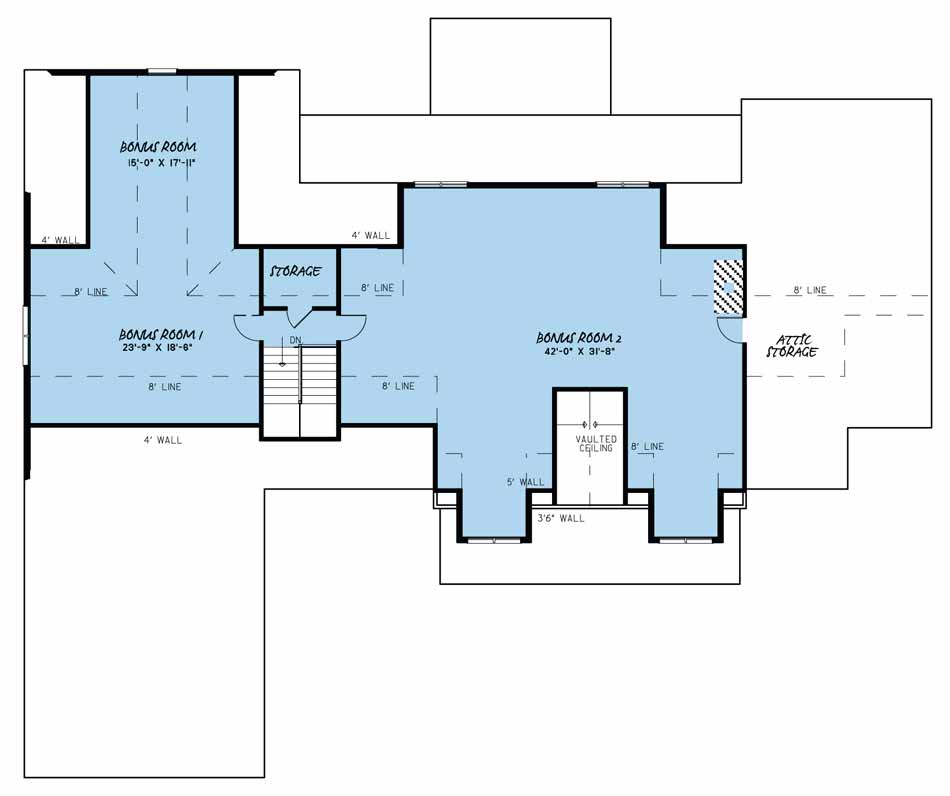

House Plan MEN 5030 Bonus Room
House Plan MEN 5030 Main Floor
House Plan MEN 5030 Bonus Room

Floor plans

MEN 5030

House Plan 5030 Appalachian Trail, Rustic House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: MEN 5030
  • Total Living Space:3101Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 93
  • Width In.: 10
  • Depth Ft.: 80
  • Depth In.: 2

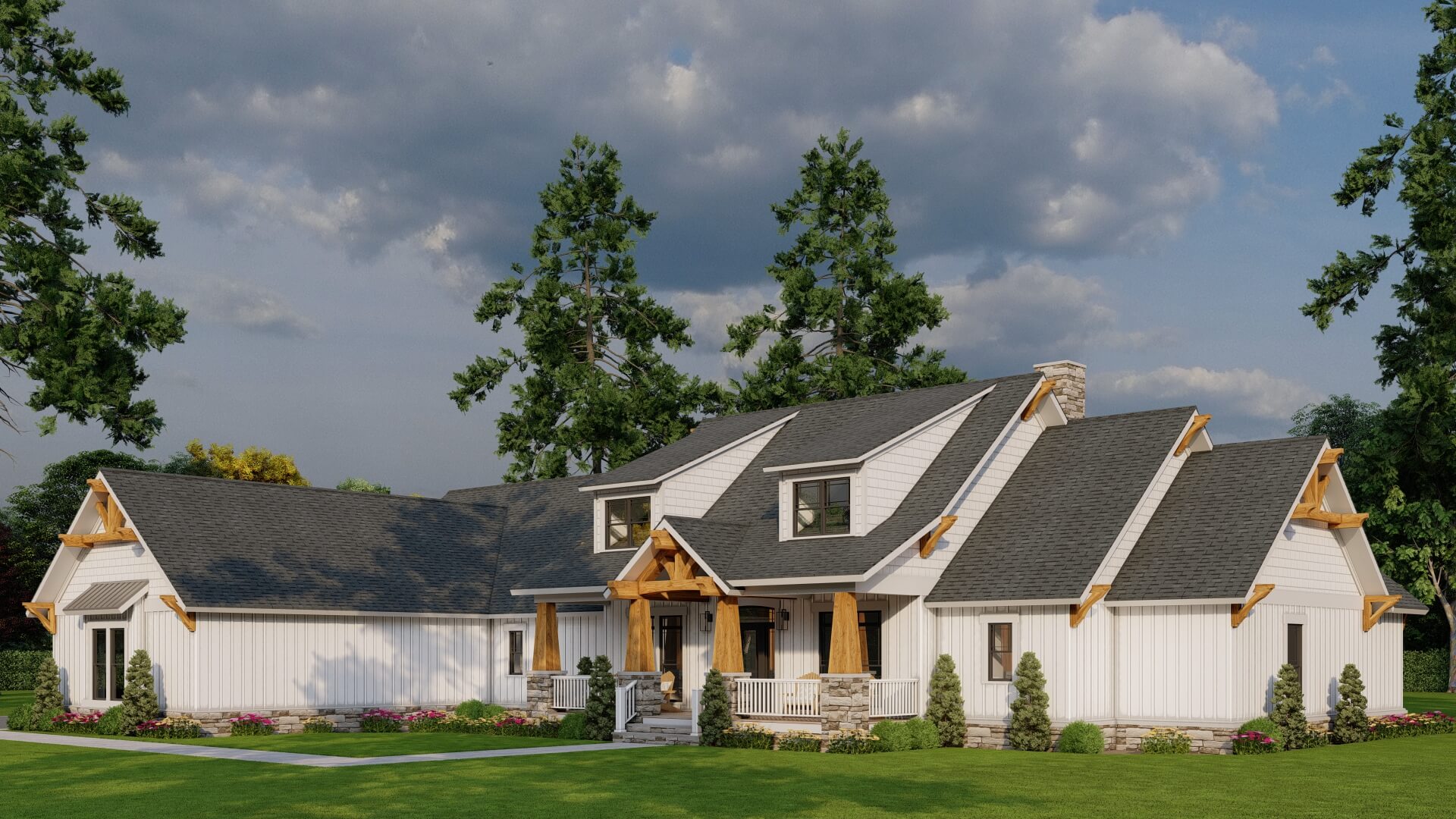

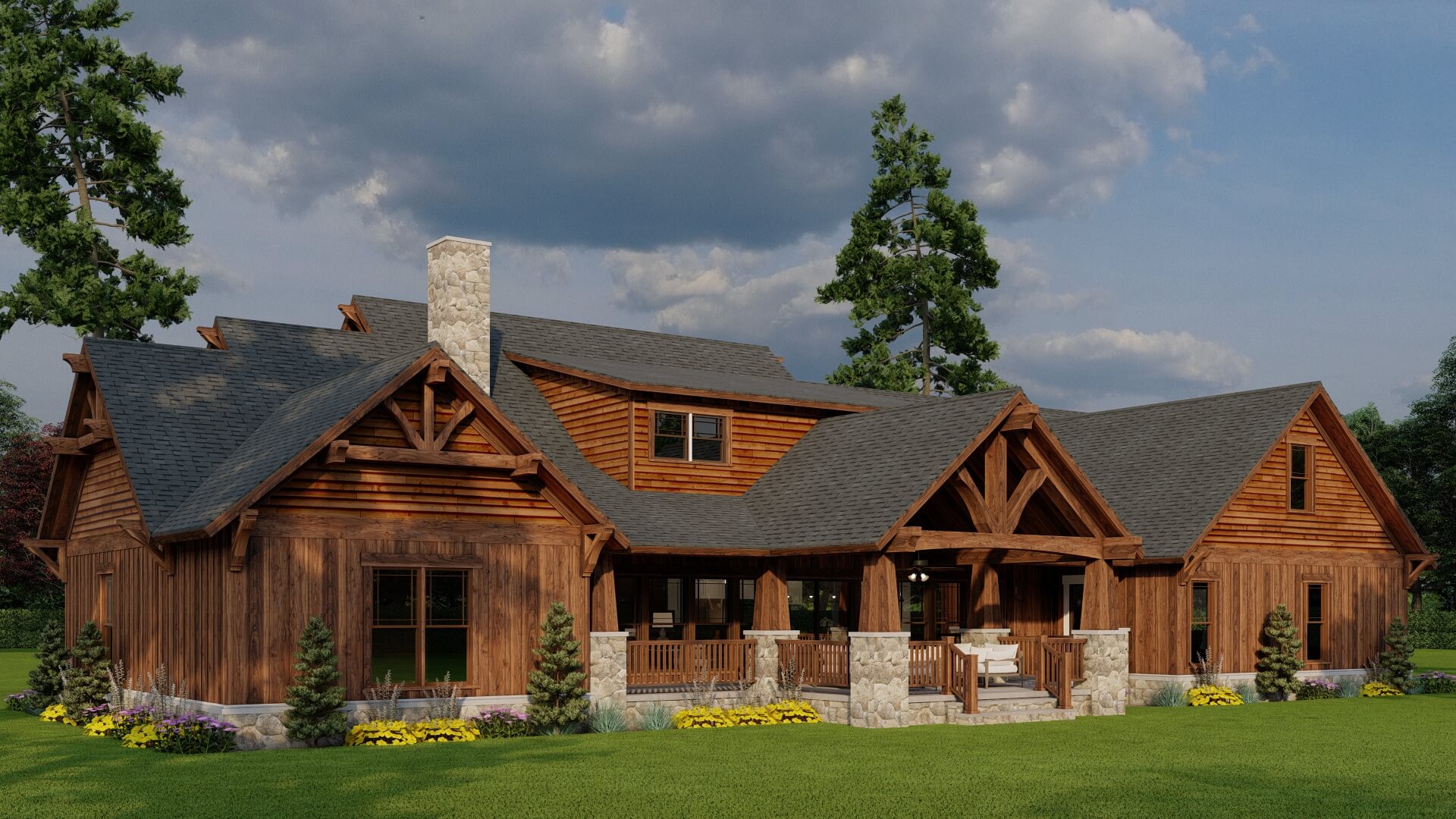

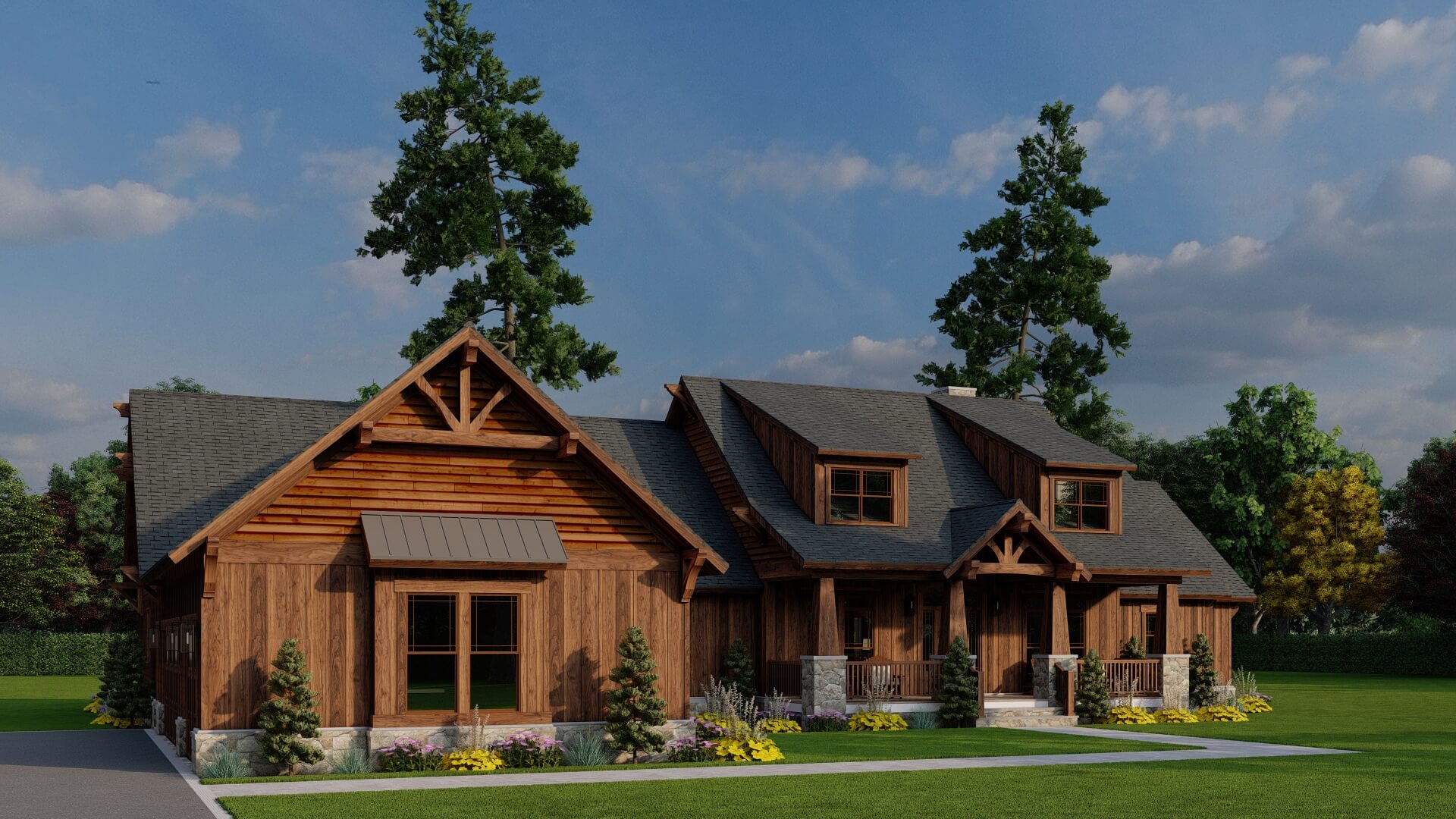

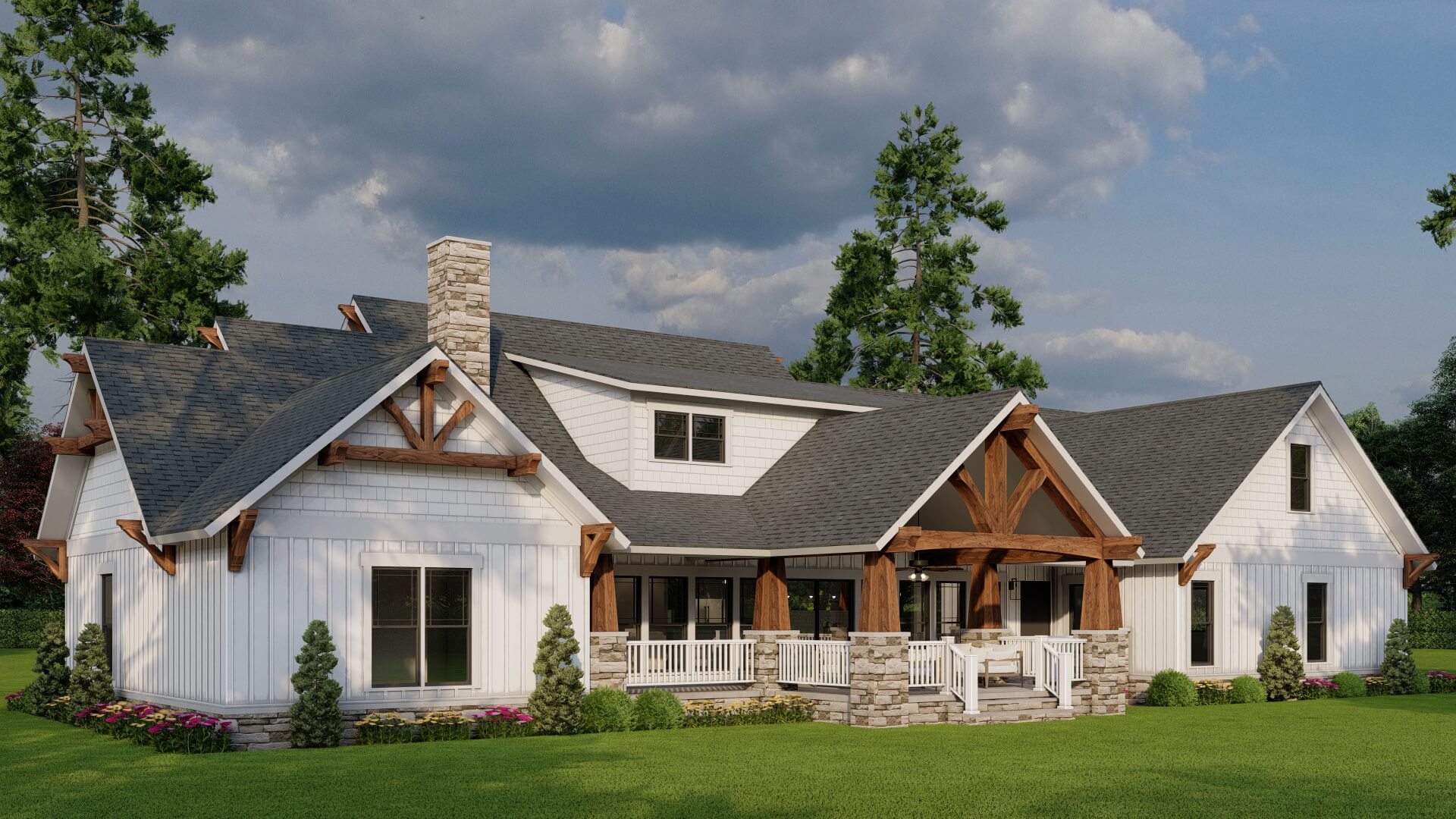

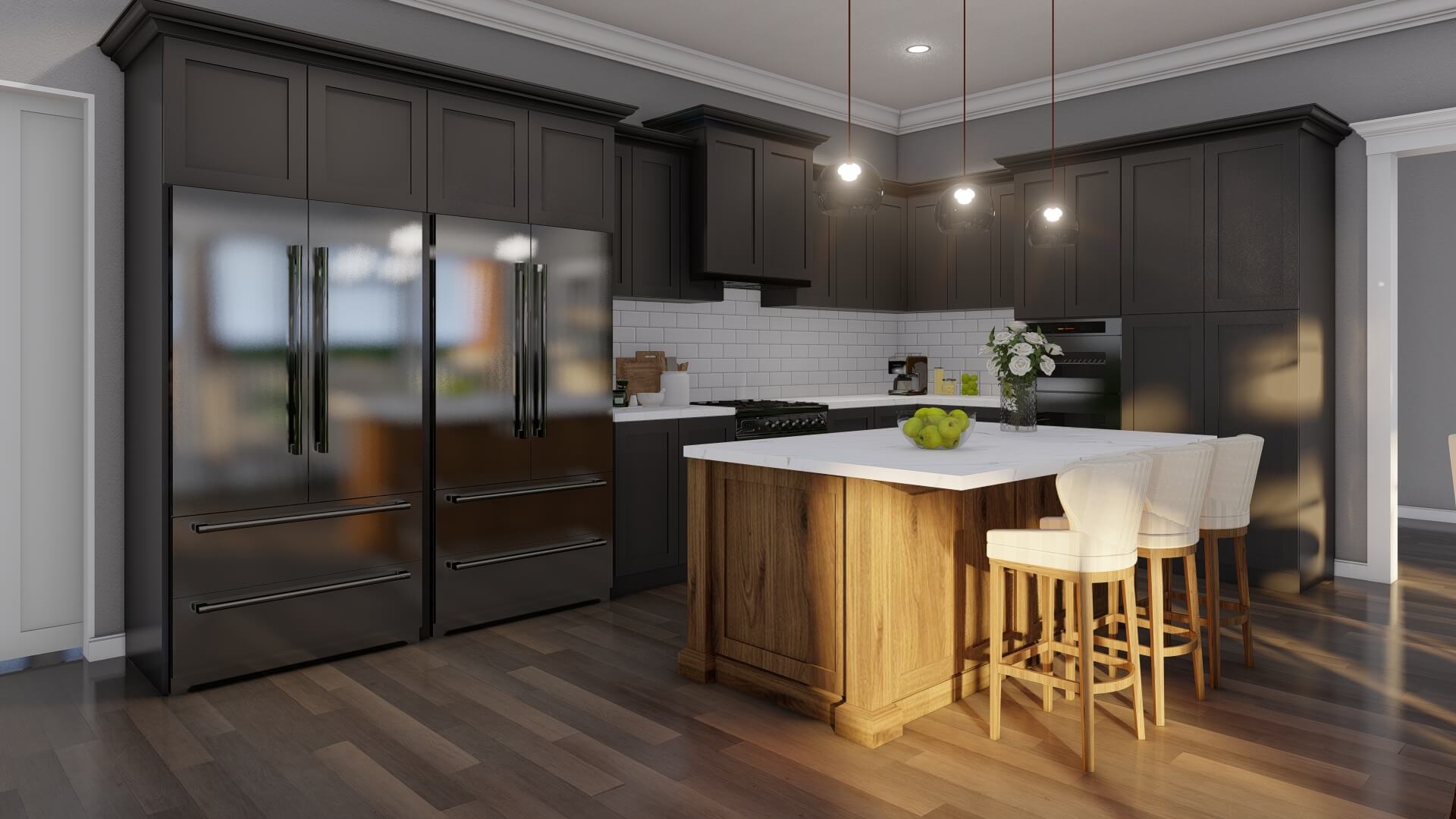

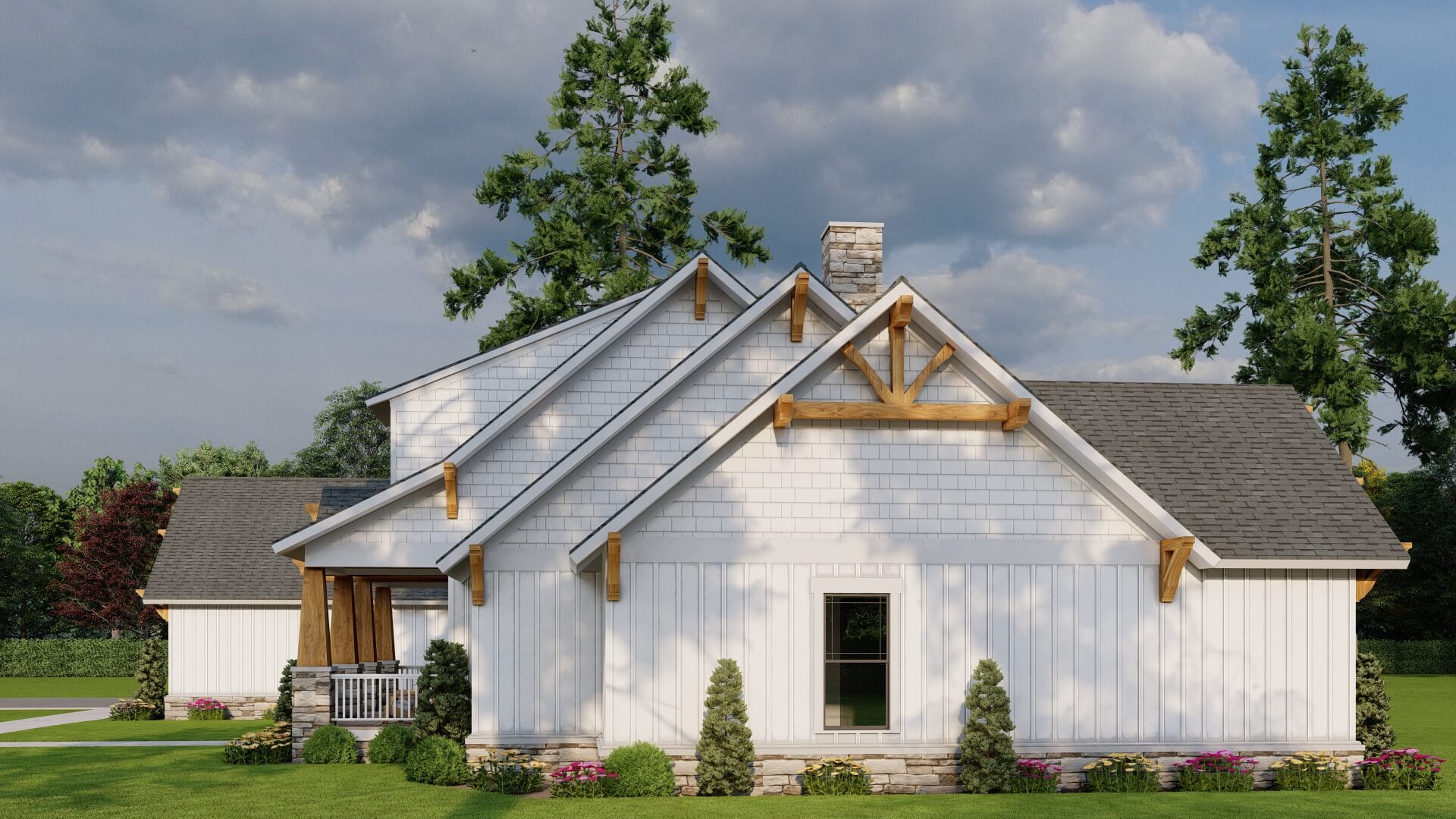

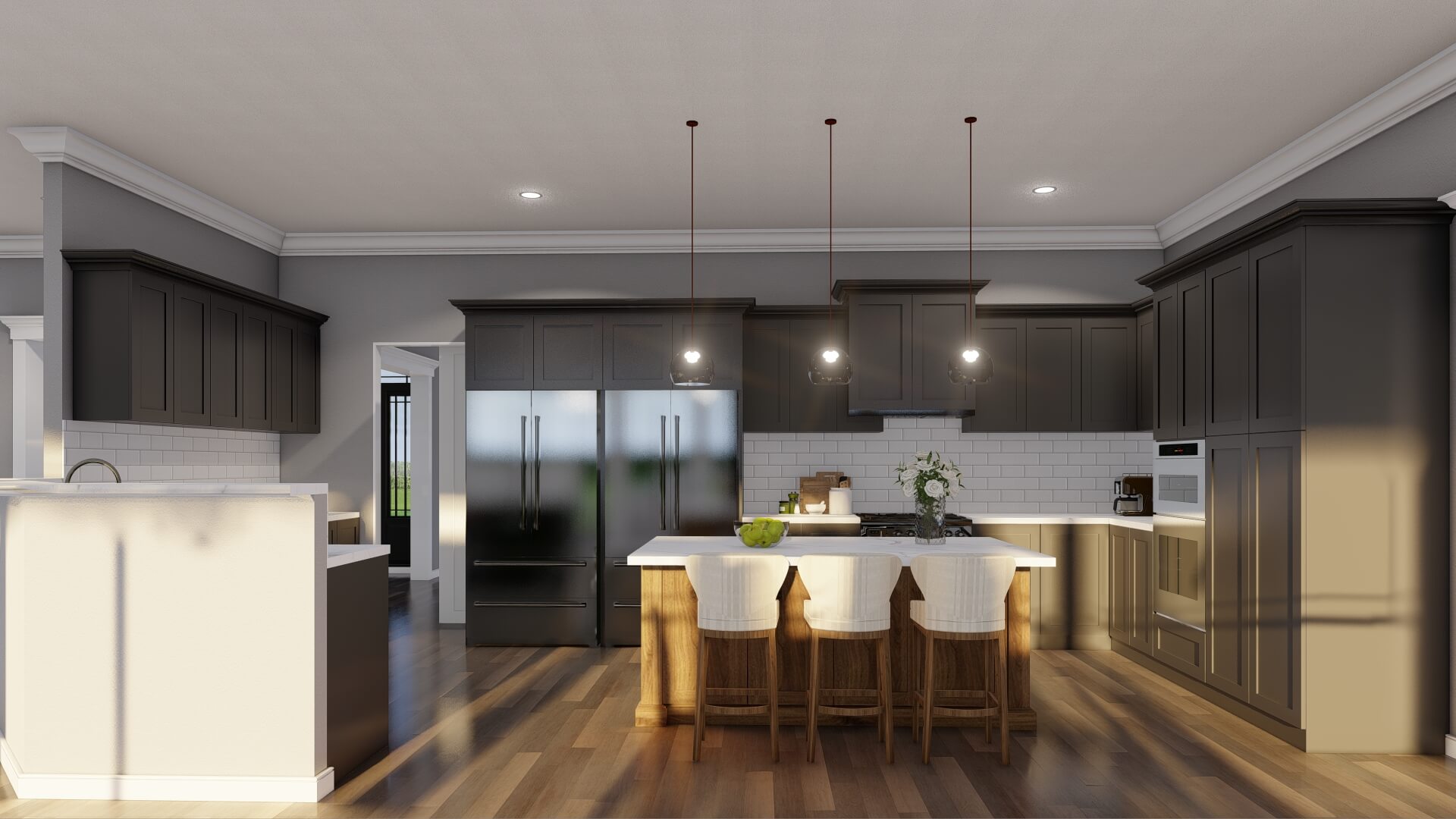

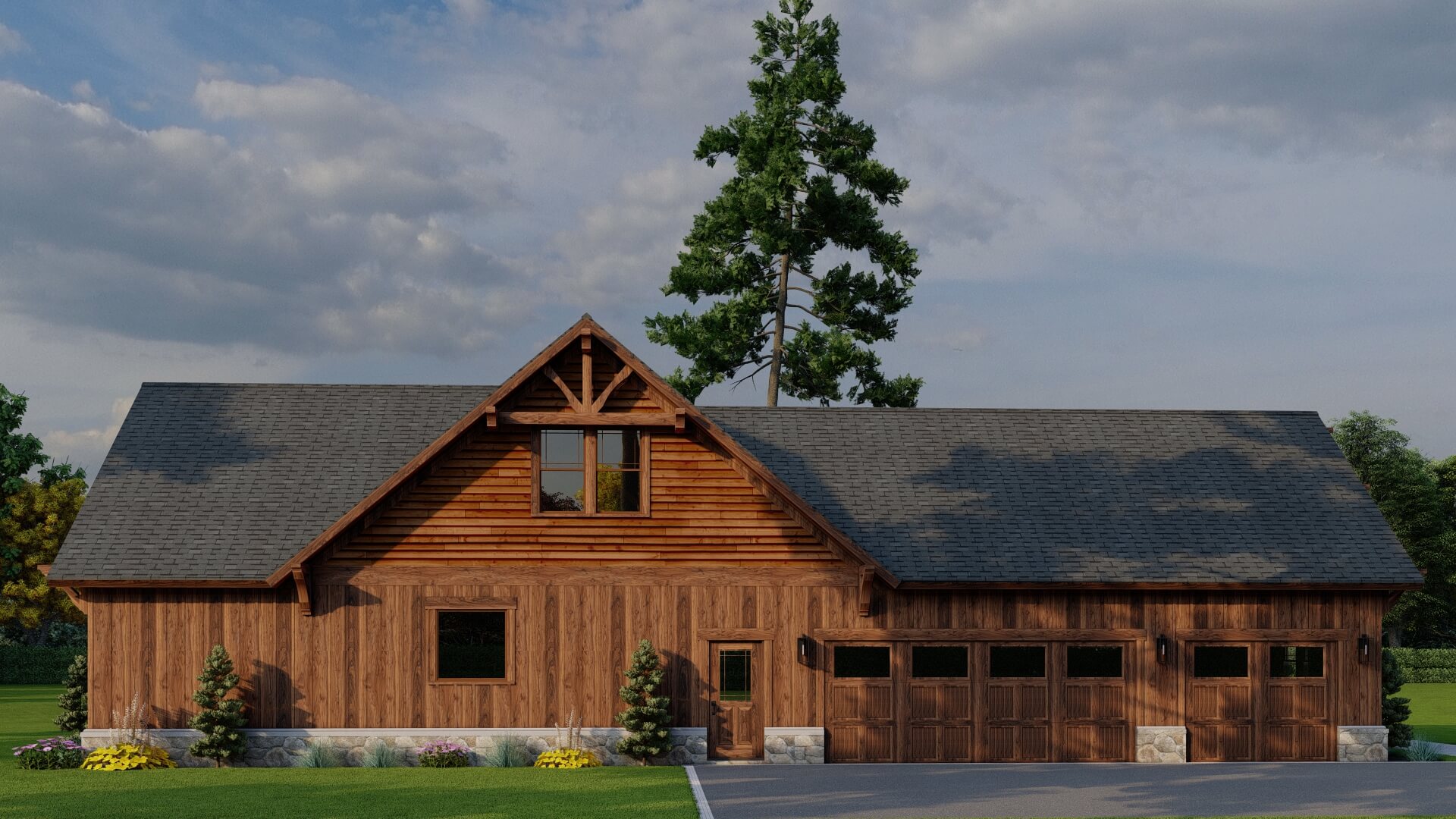

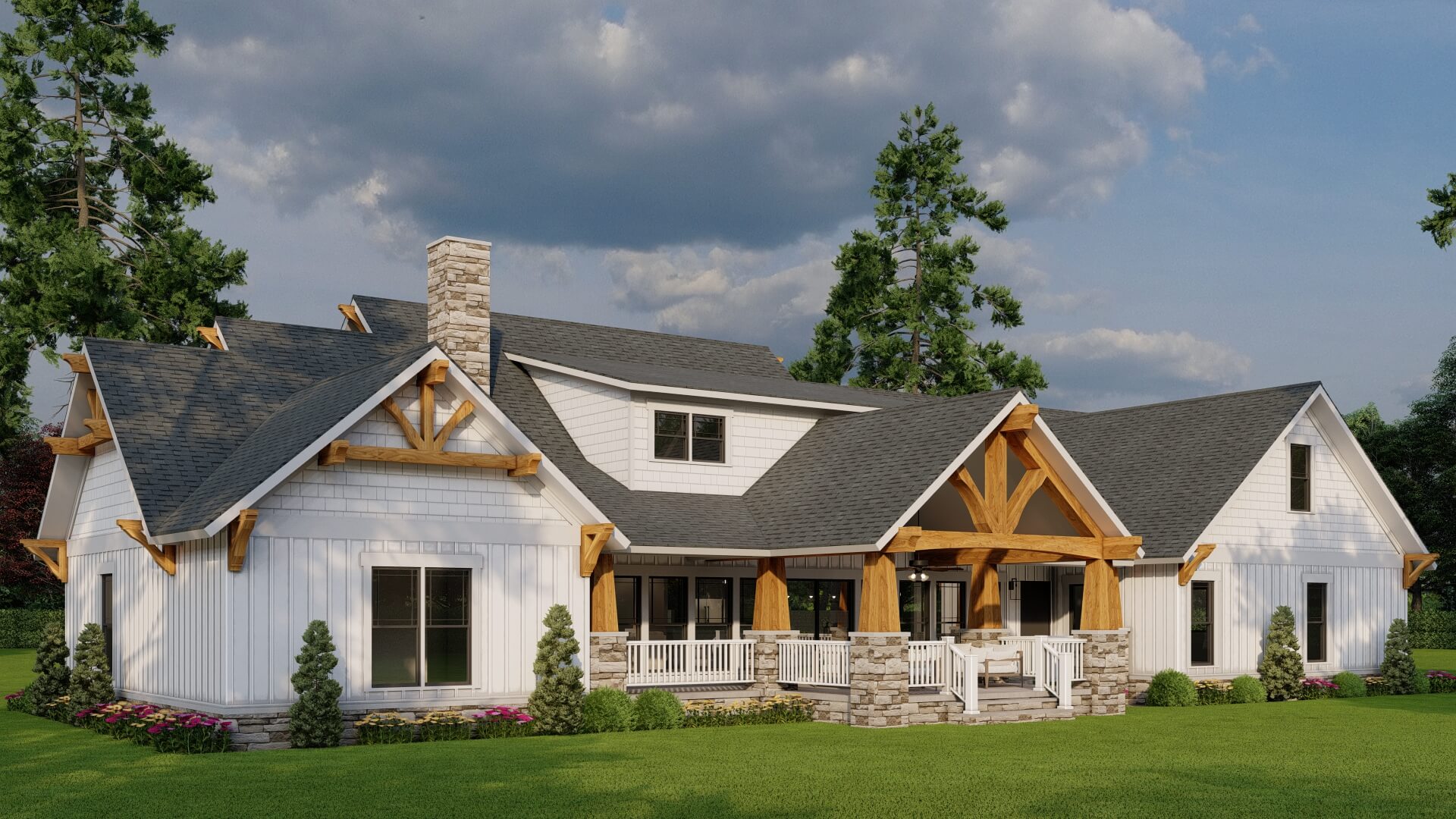

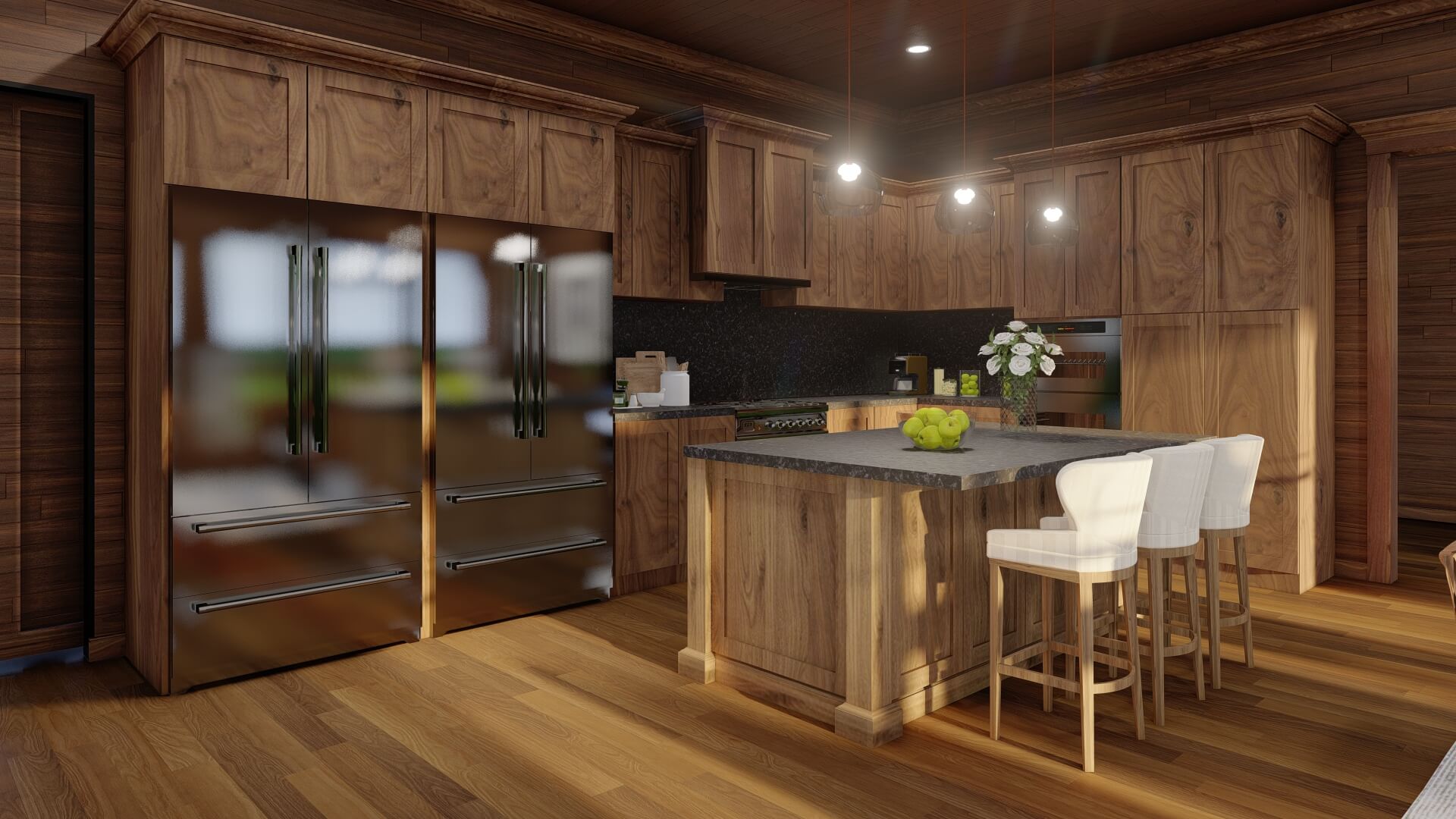

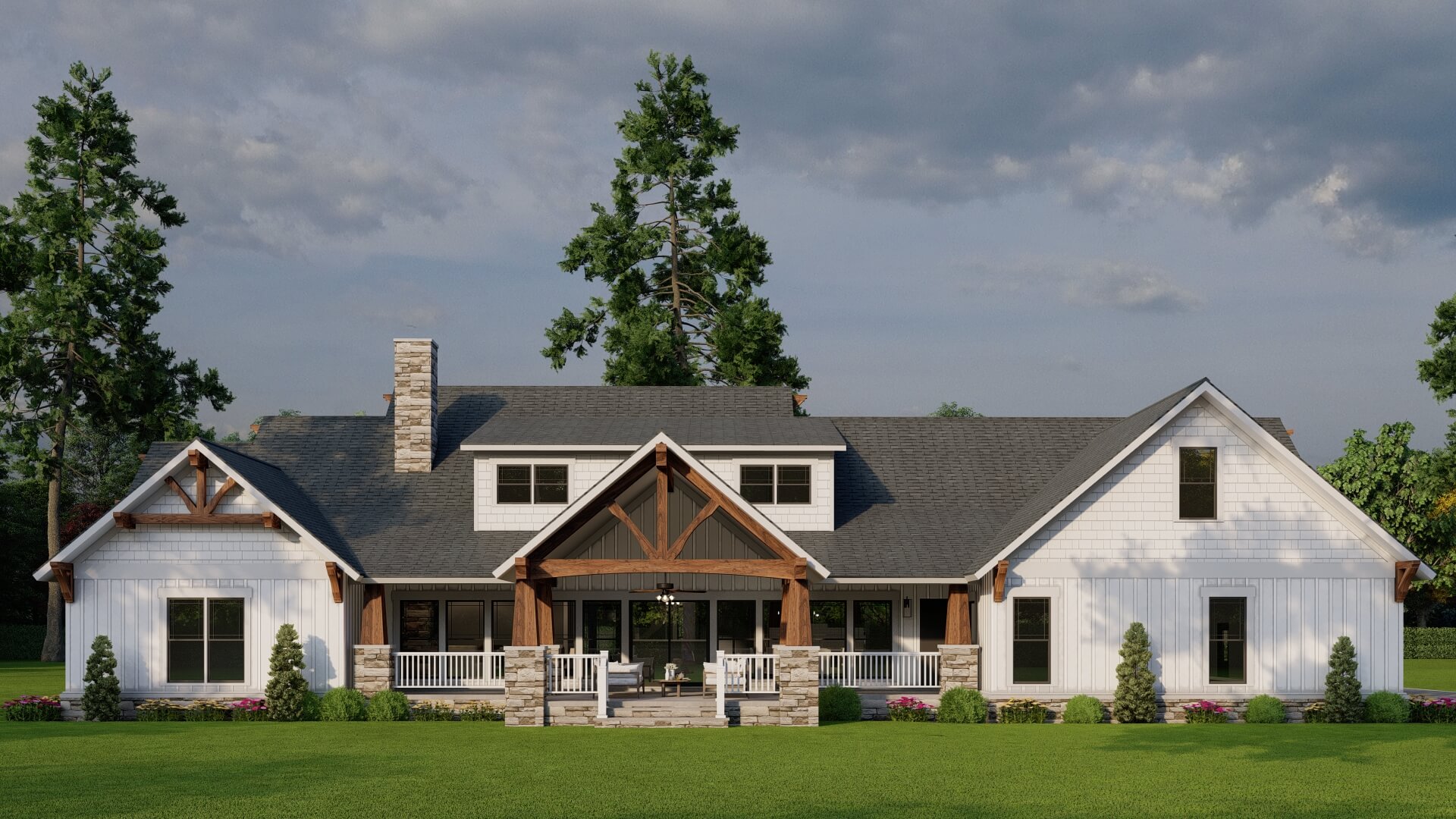

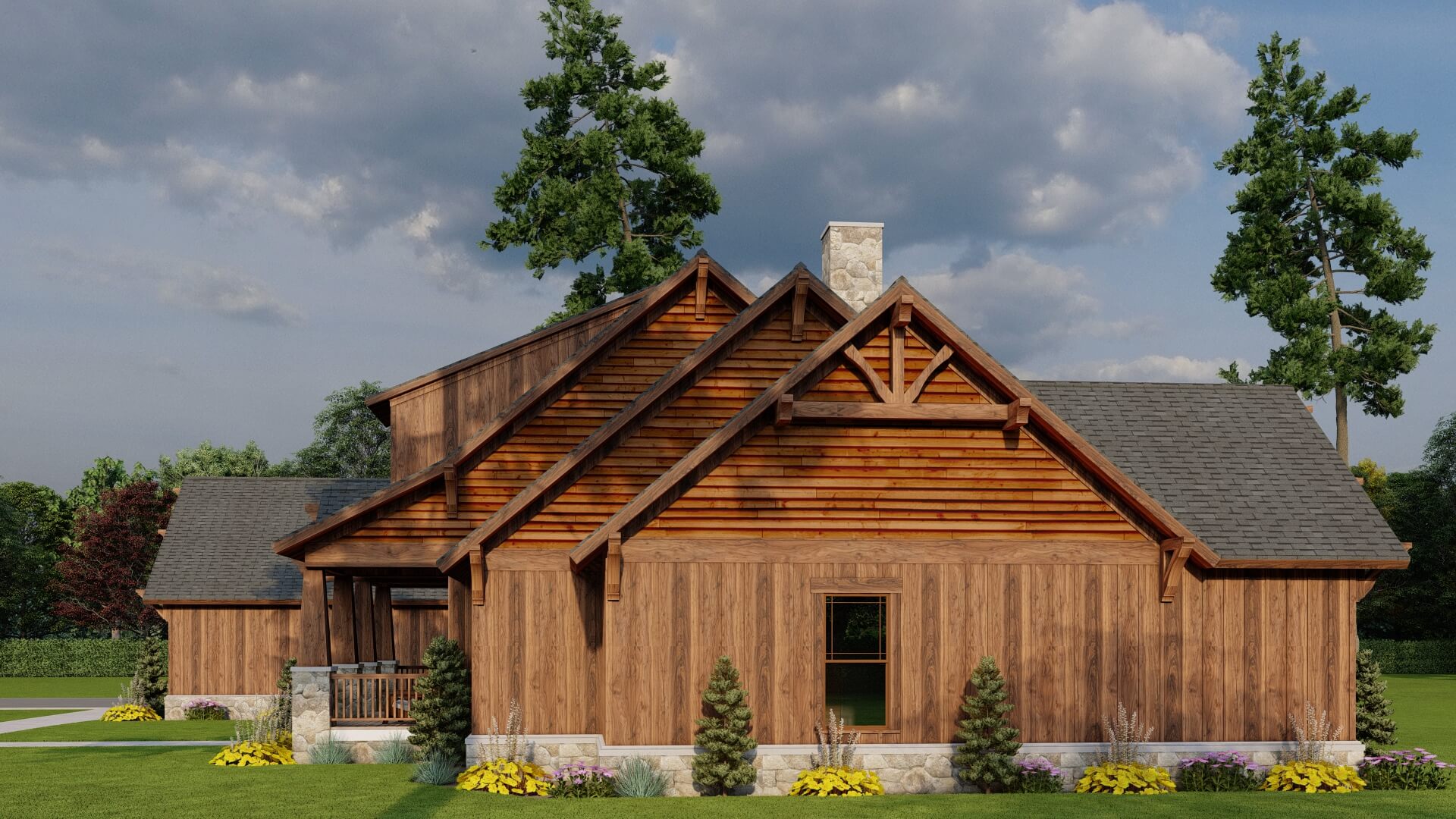

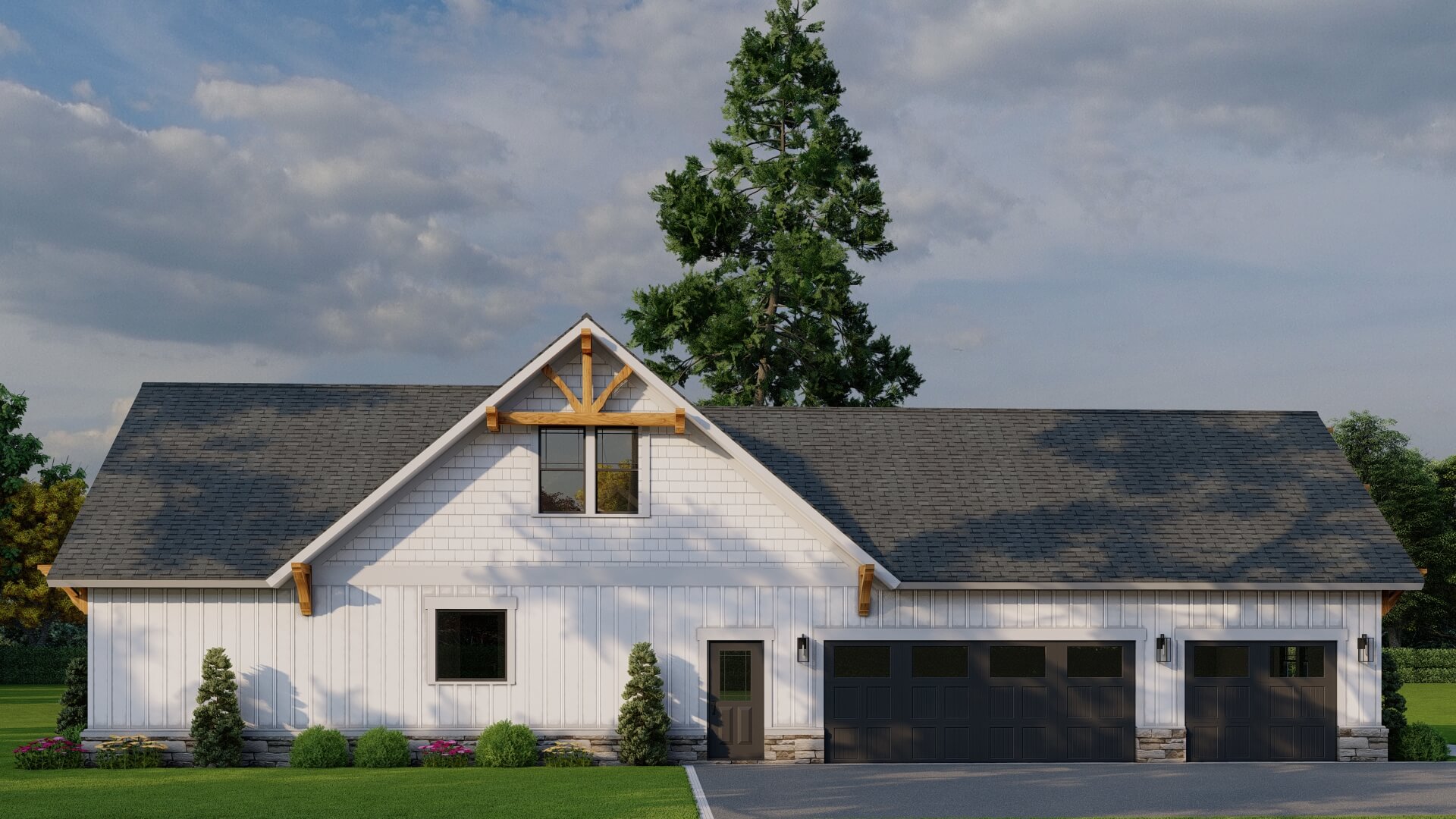

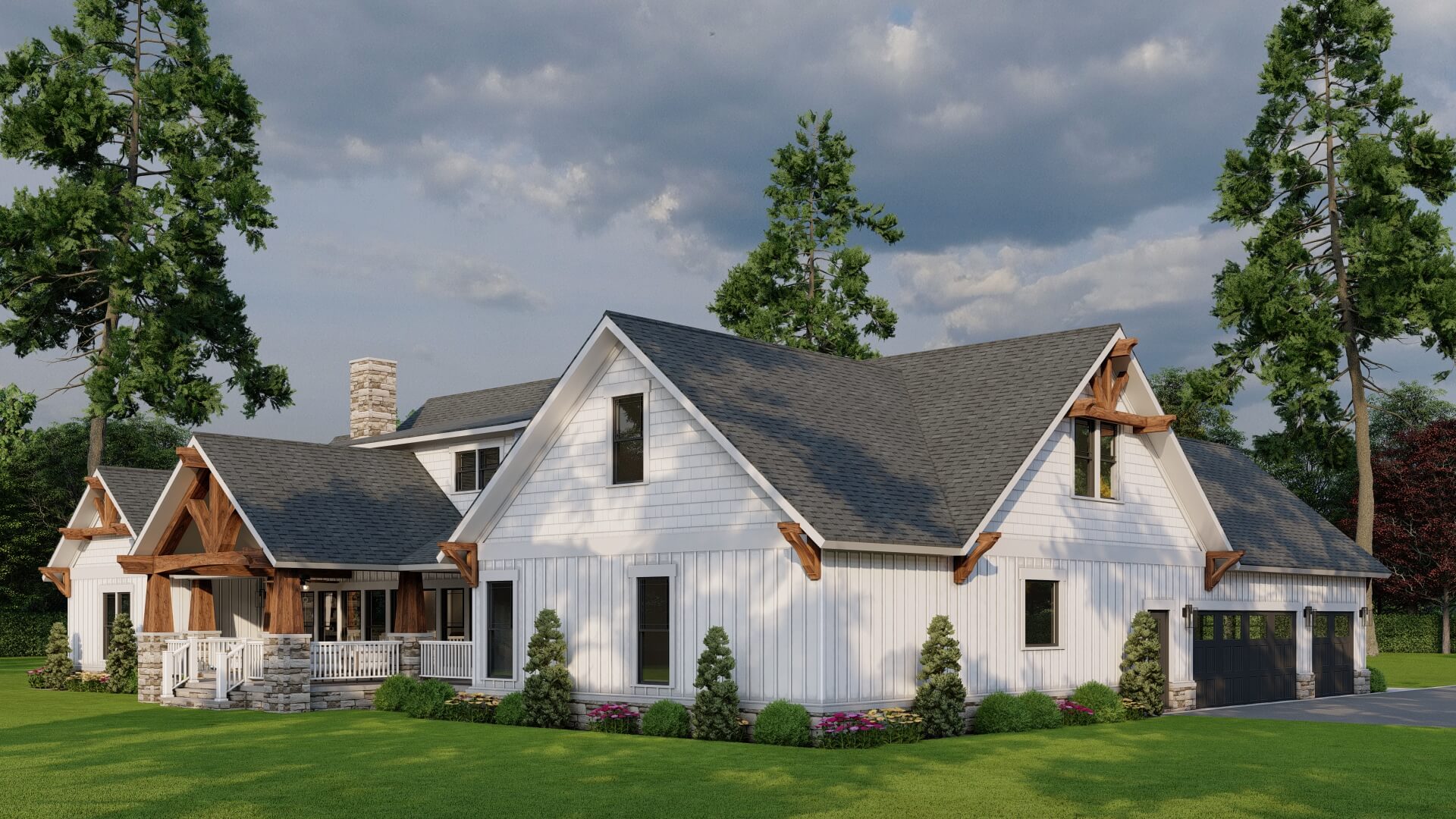

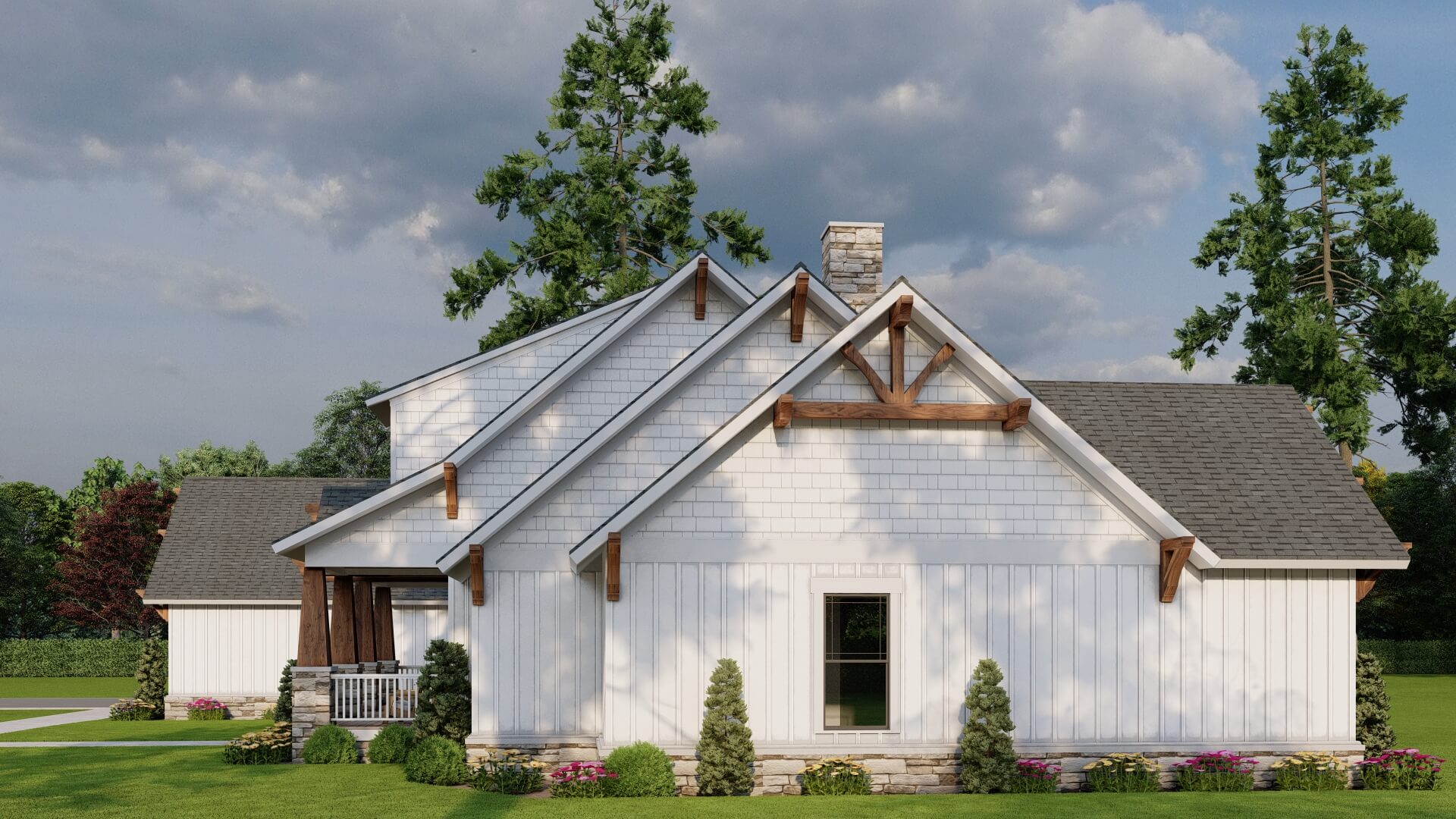

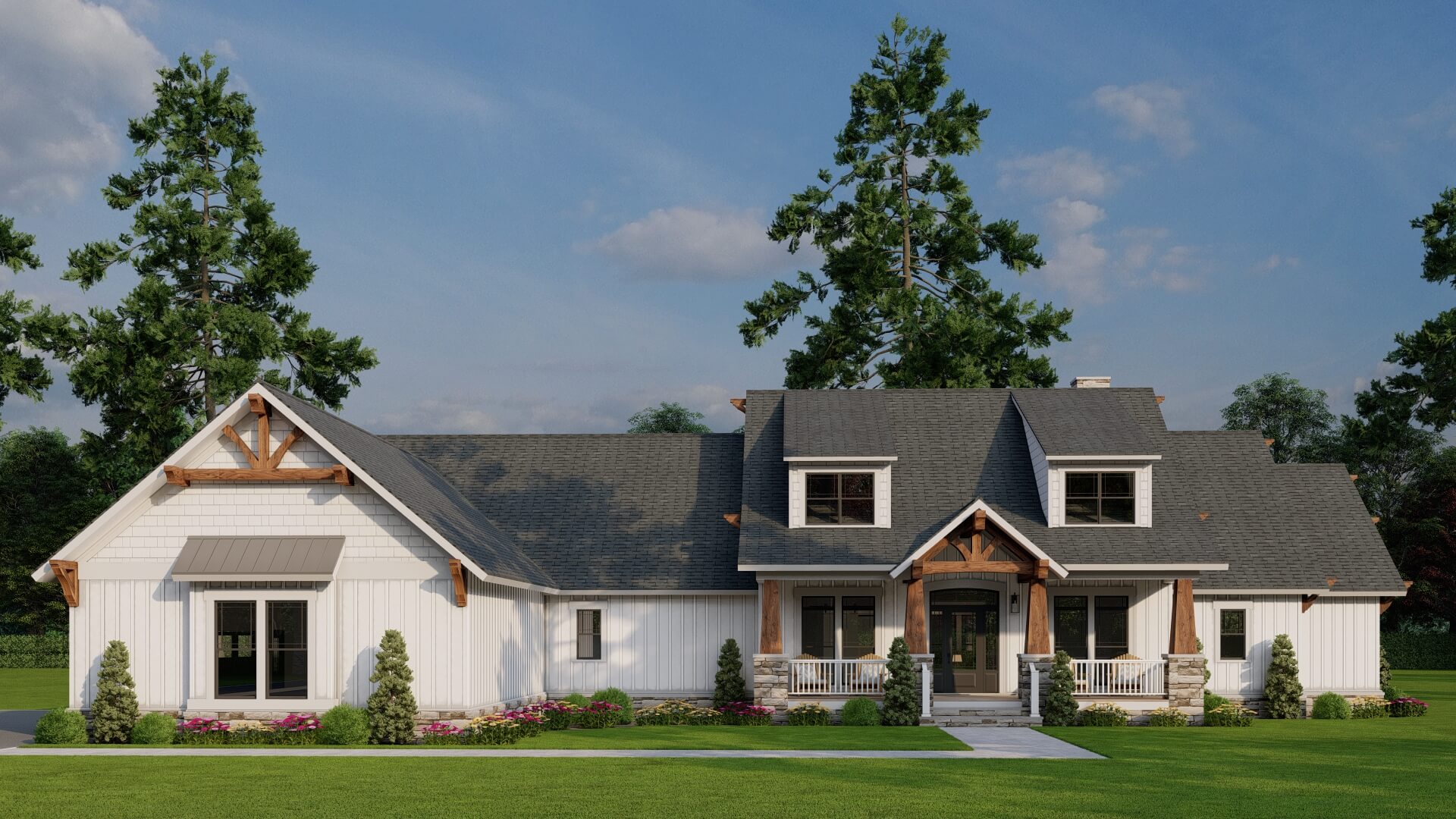

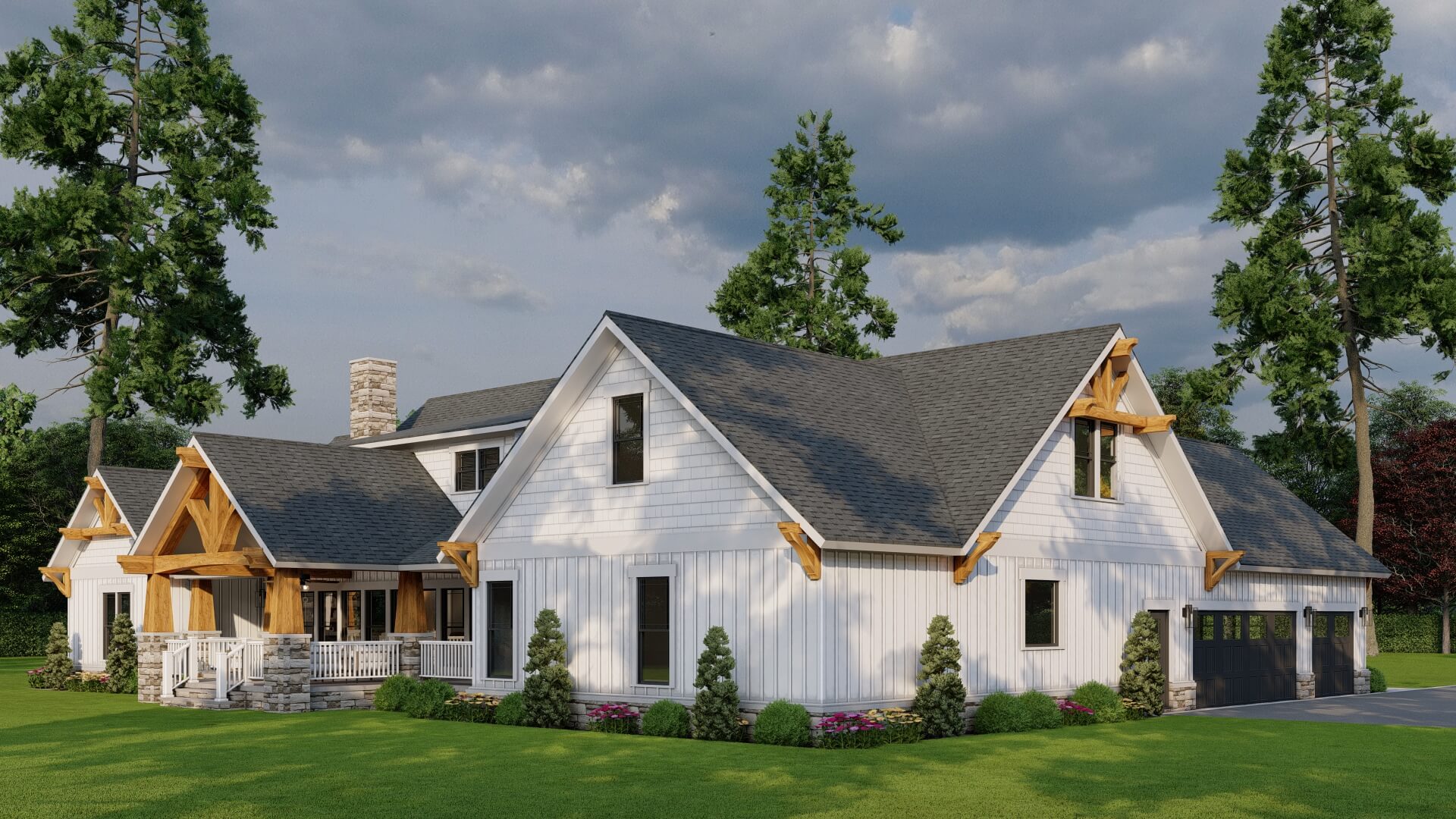

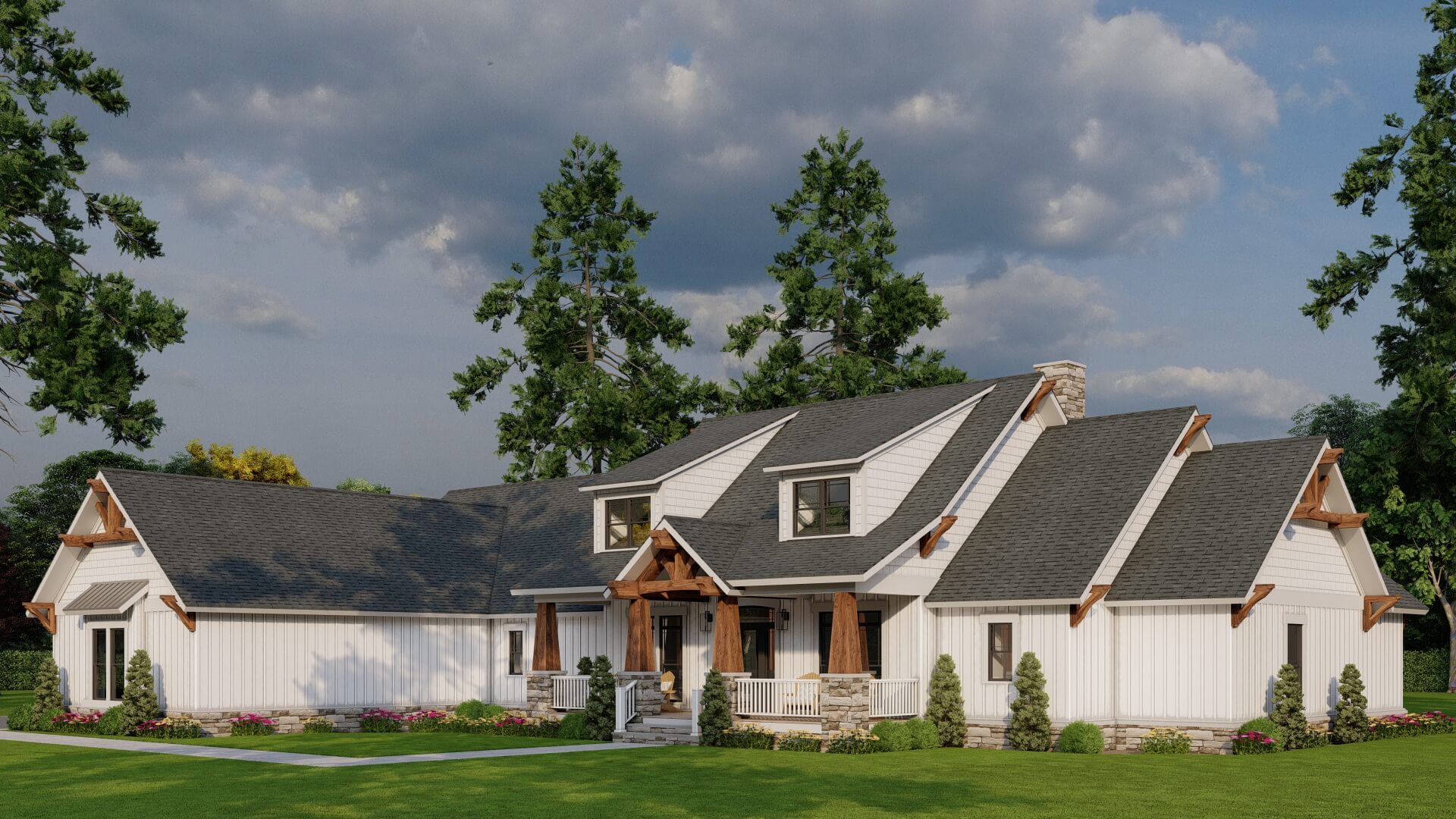

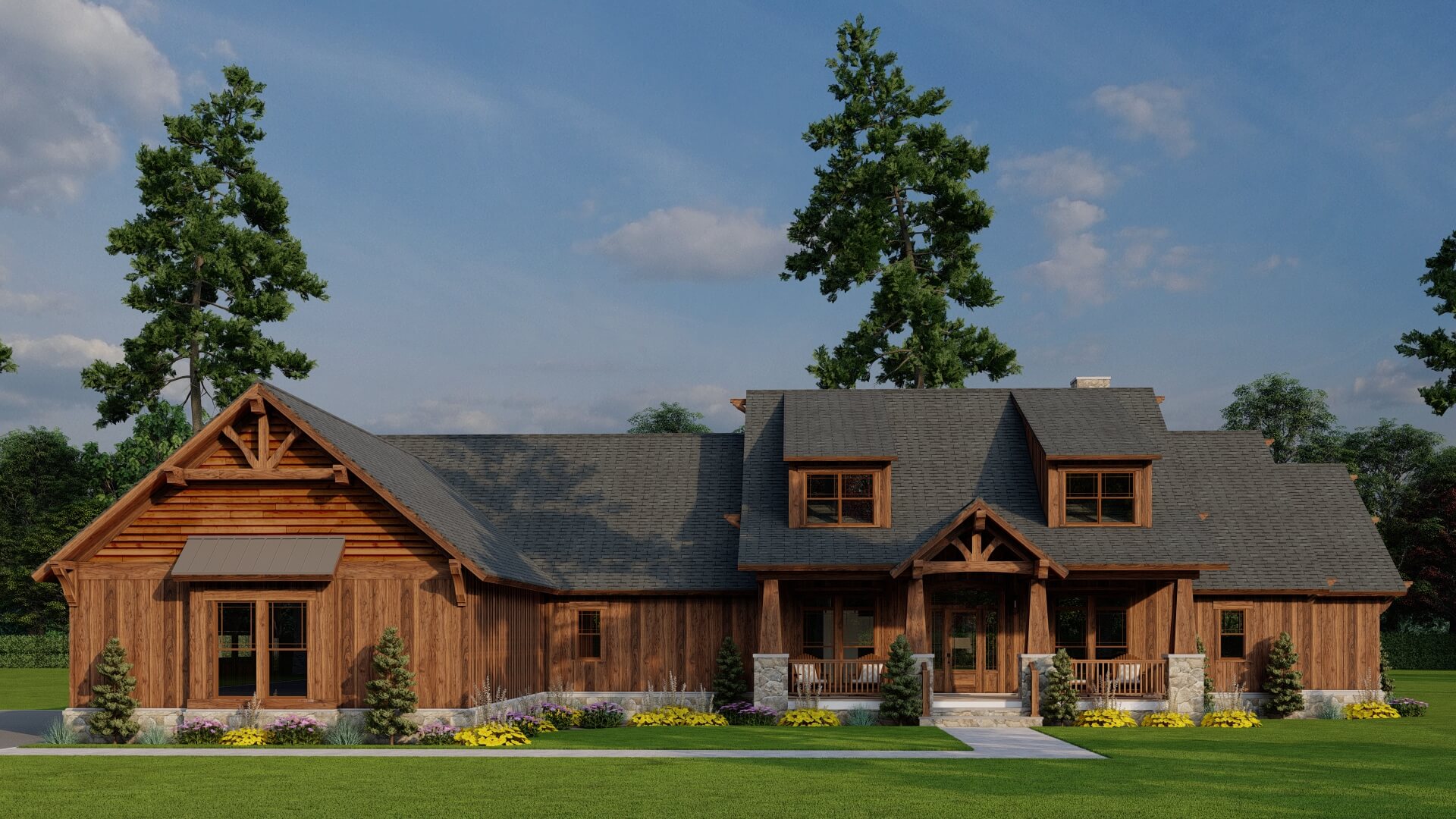

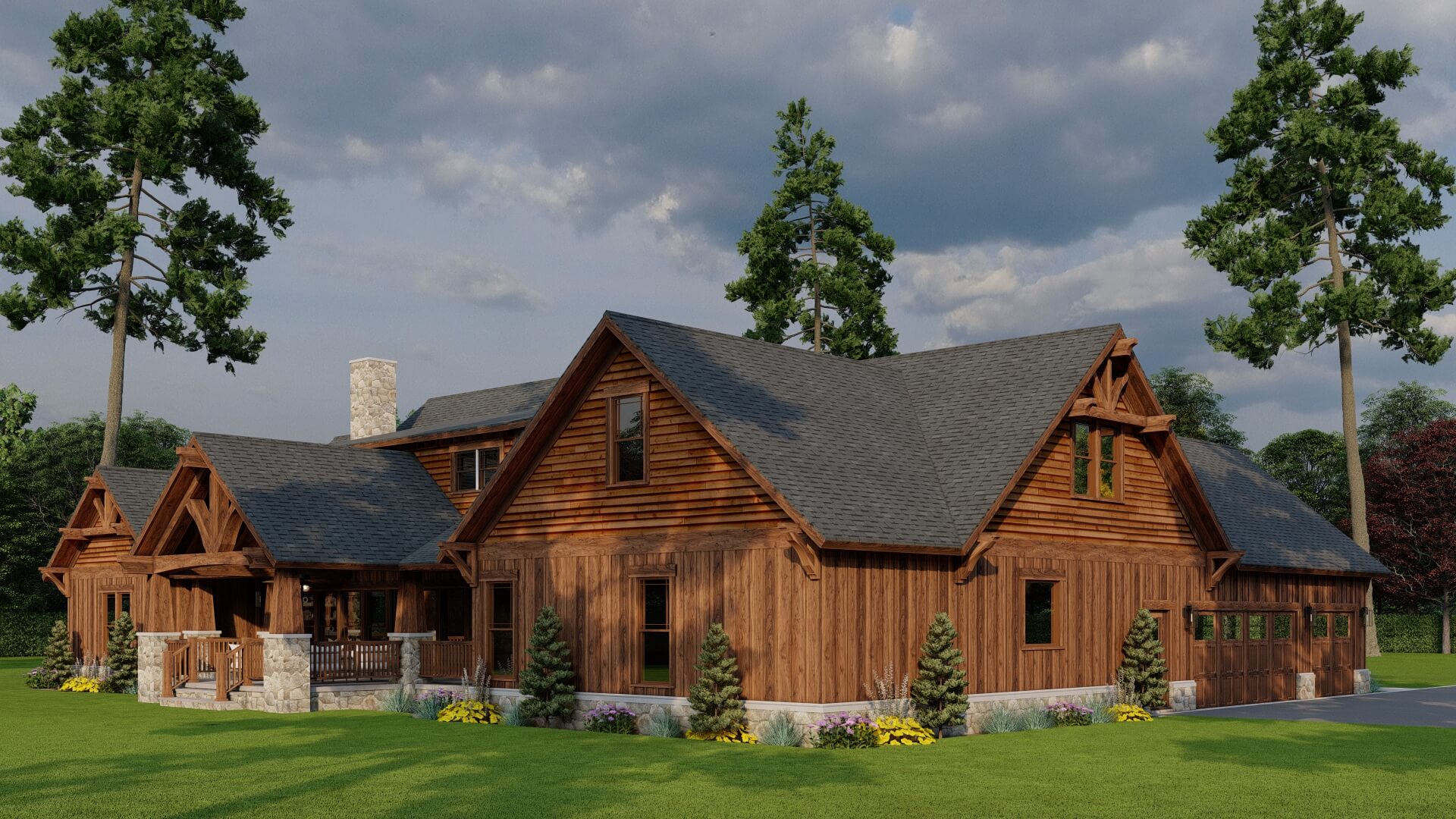

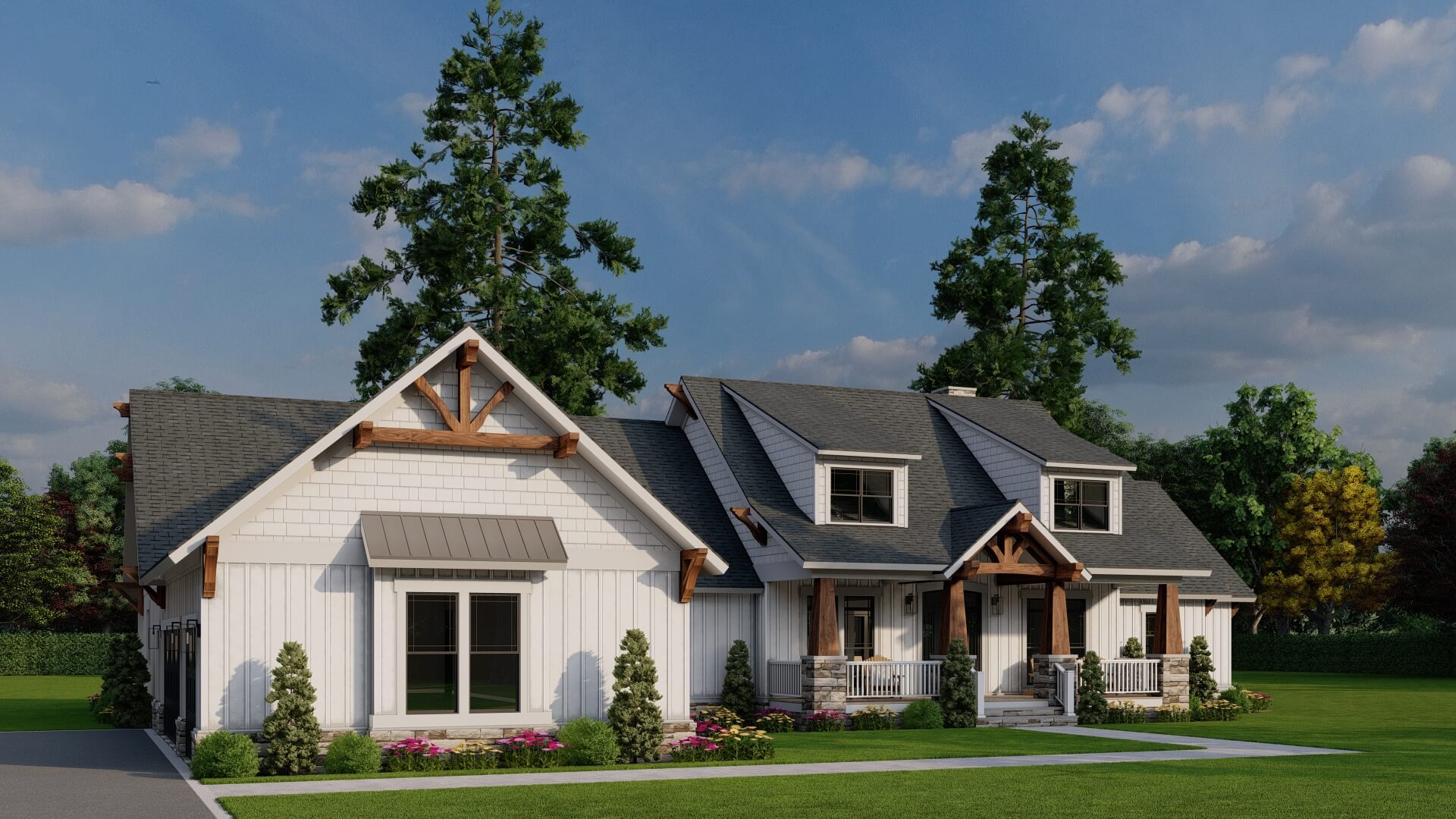

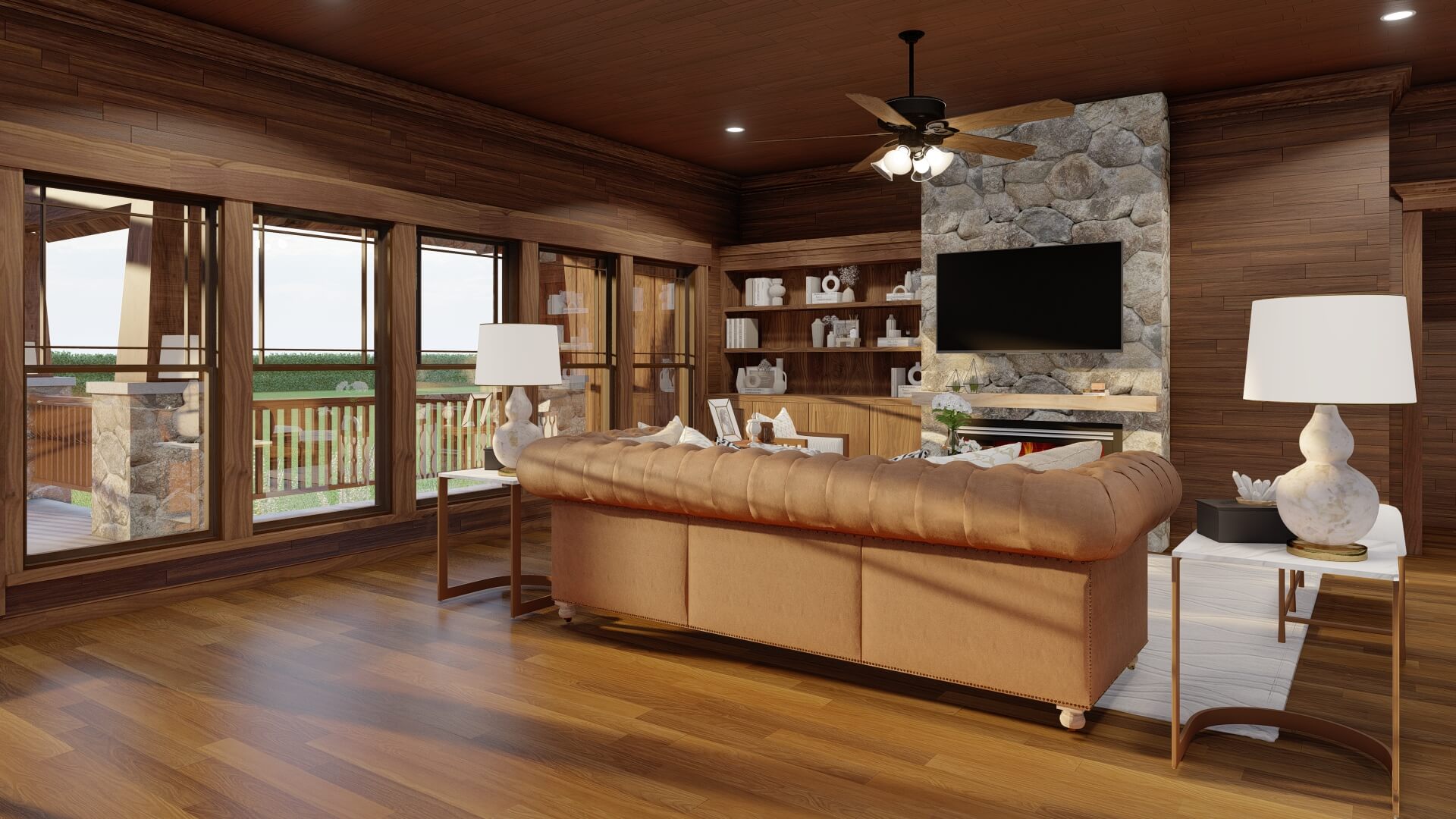

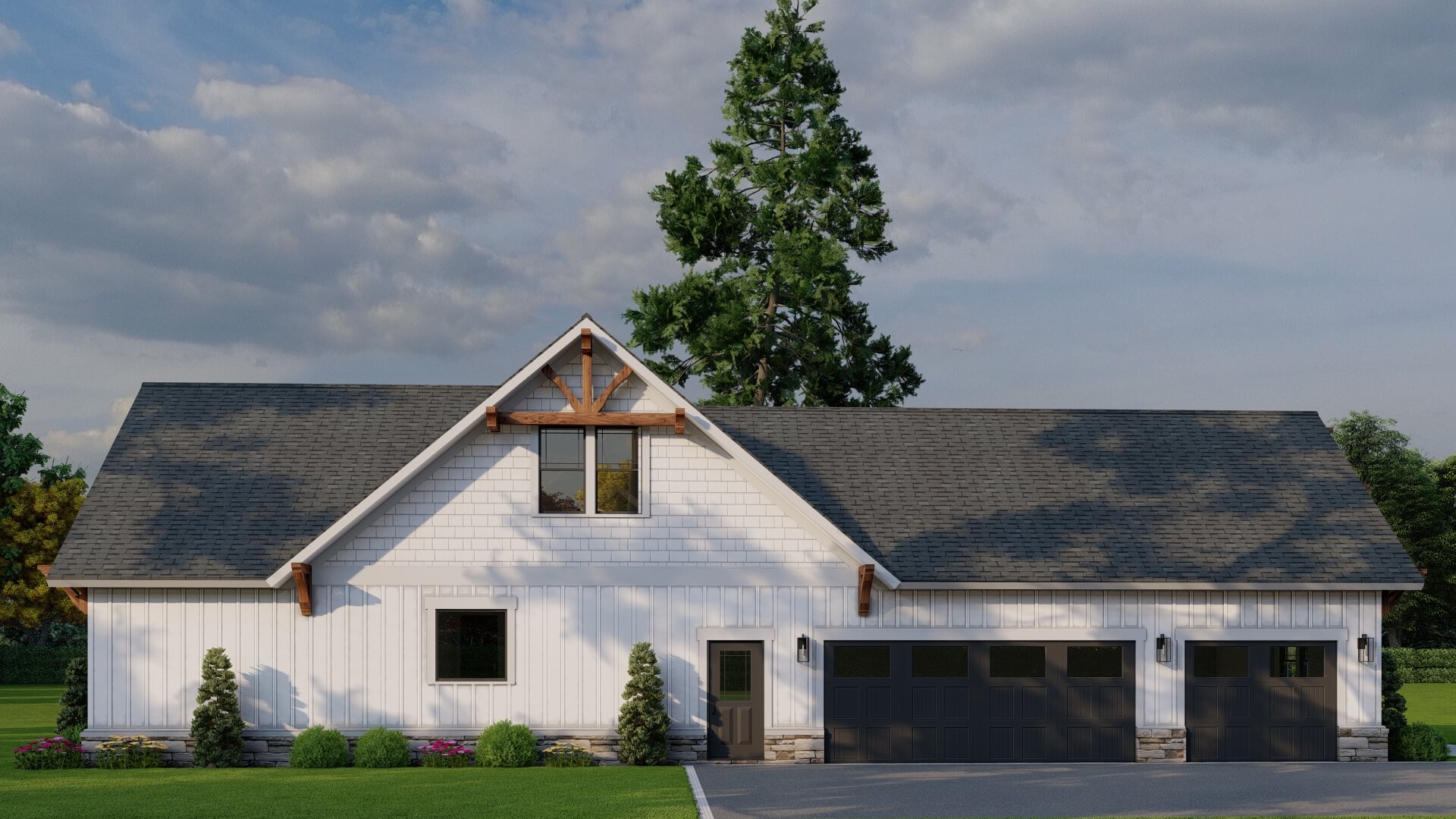

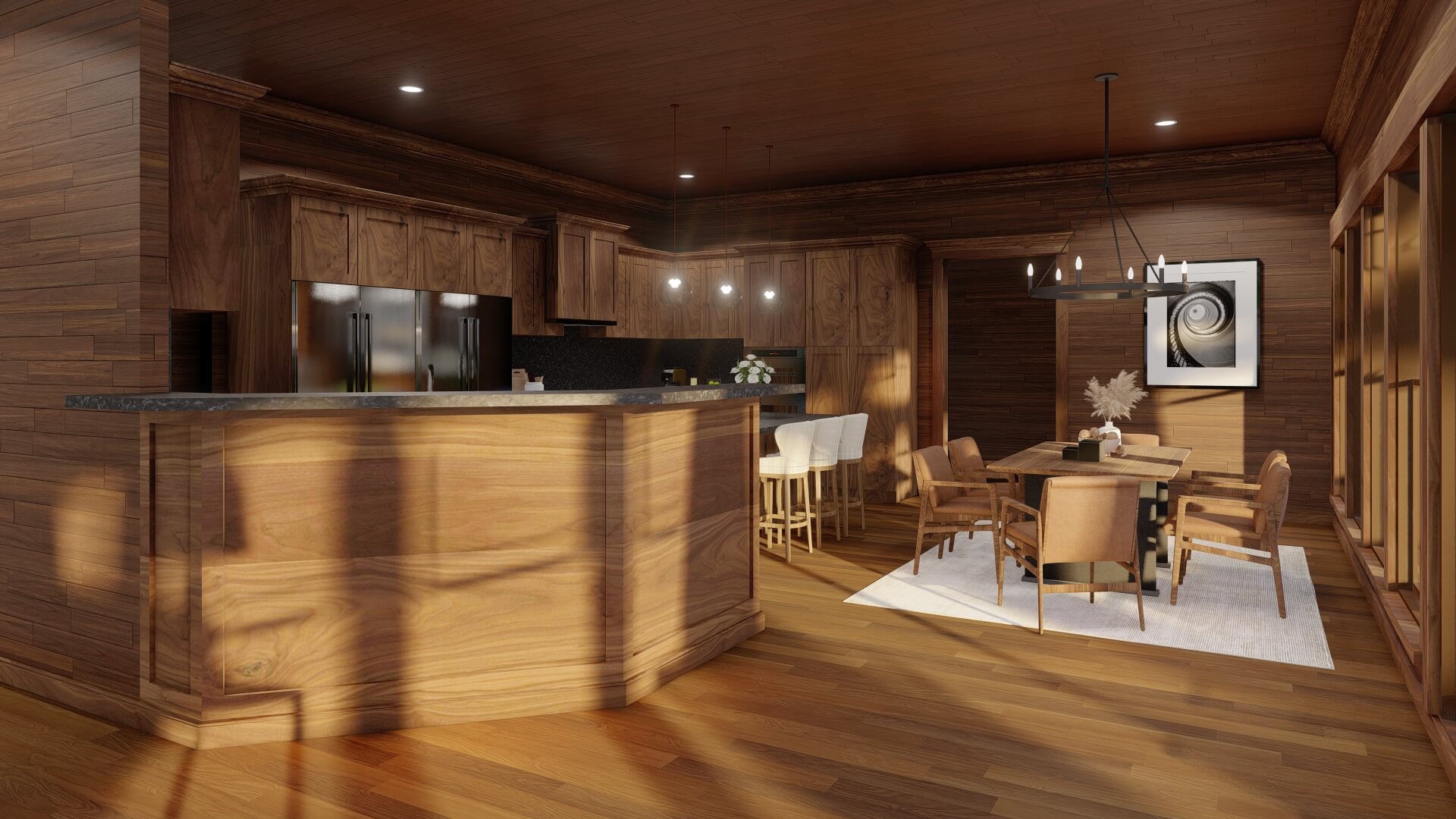

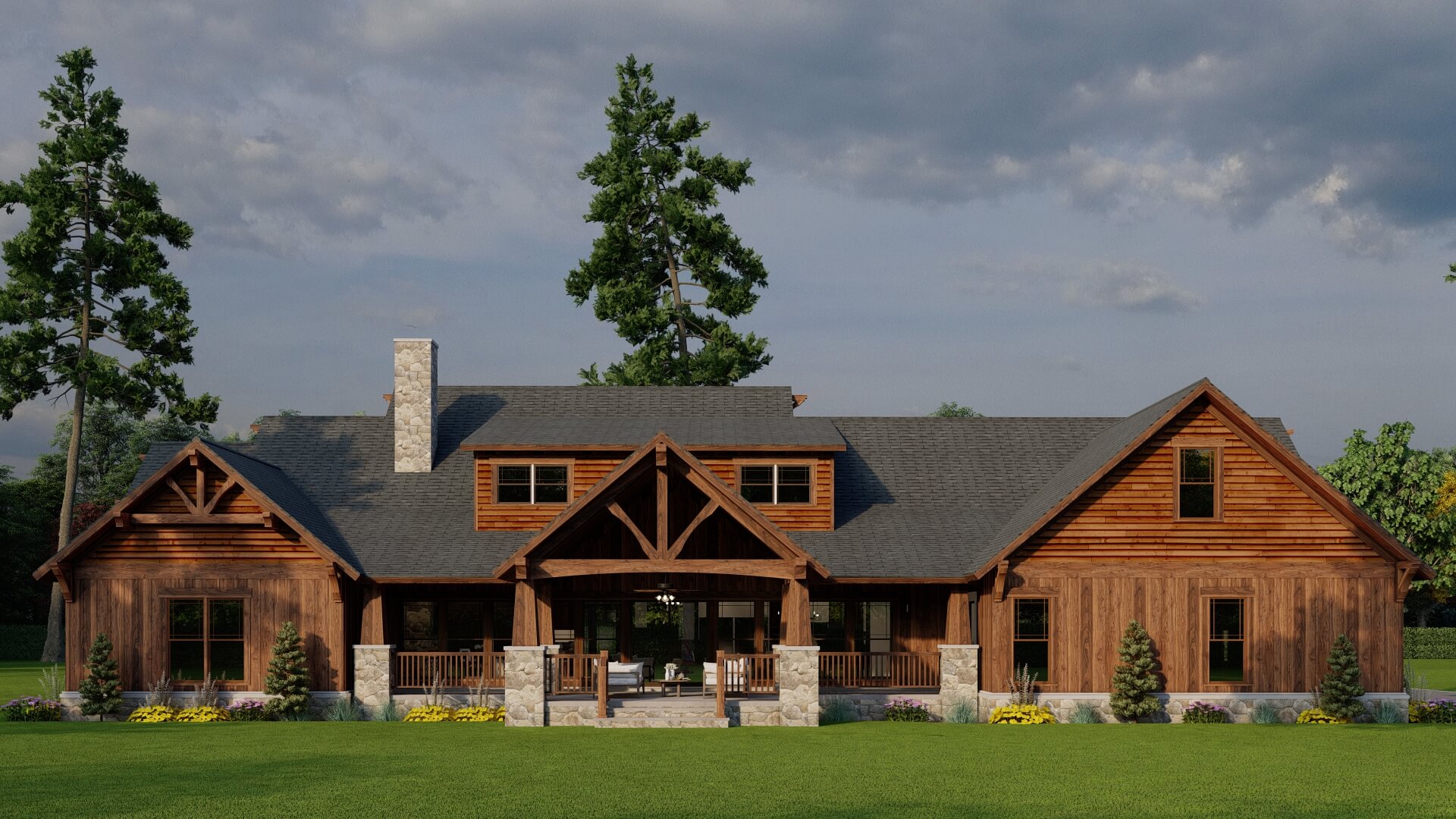

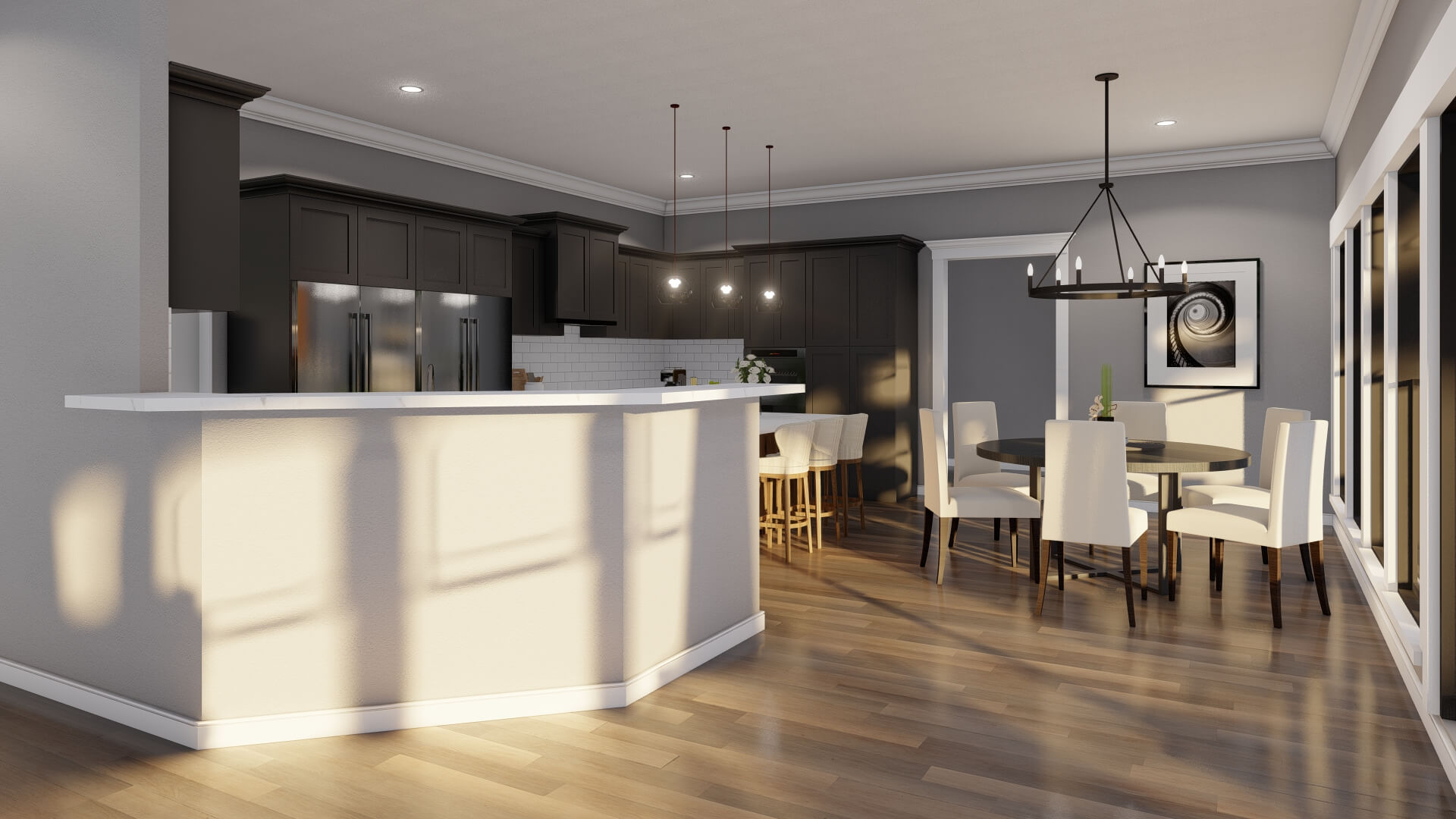

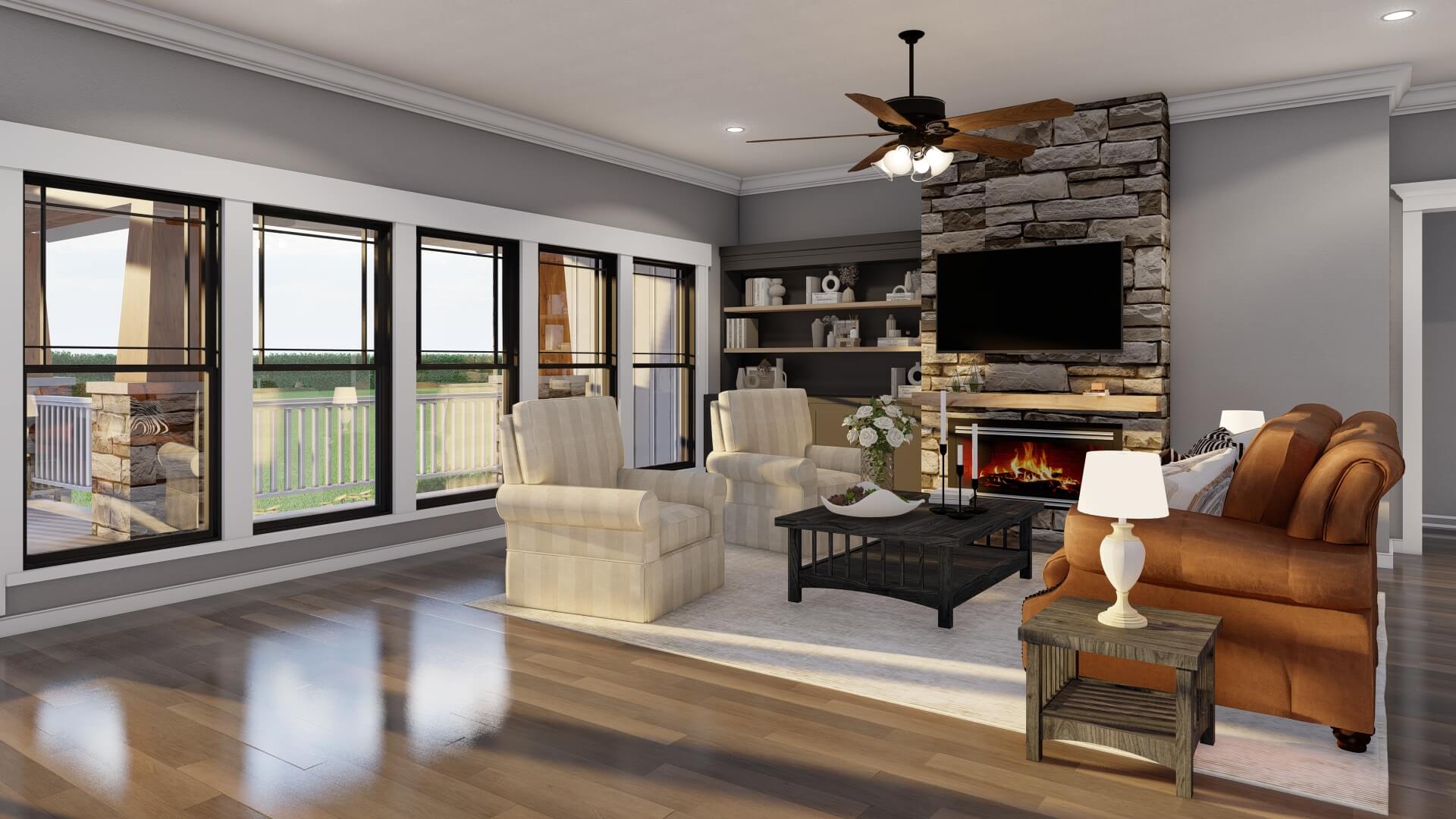

This rustic, mountain style house plan features a mixture of materials on the exterior including shake, siding, and stone. The exterior of the home exudes a relaxed rustic style that is welcoming with the expansive covered front porch. Inside you will find an open concept great room and kitchen that provides plenty of room for entertaining or family time. The spacious master suite features a large bath, walk-in closet, and an optional door to the expansive grilling porch. The opposite side of the home features 3 additional bedrooms and 2 more full baths. A large three car garage, laundry room, and mechanical room complete this house plan.


  • Total Living Space:3101Sq.Ft.
  • Main Floor: 3101 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 2035 Sq.Ft.
  • Porch (Sq.Ft.): 603 Sq.Ft.
  • Garage (Sq.Ft.): 1116 Sq.Ft.
  • Total Square Feet: 6855 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
