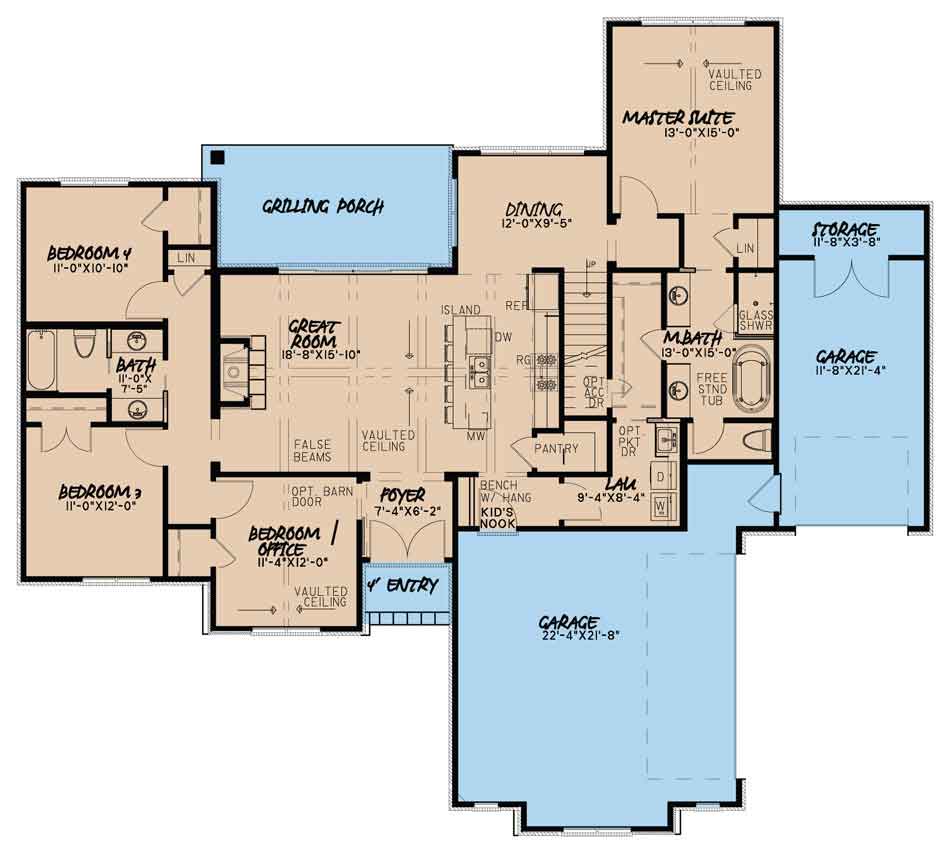

House Plan MEN 5078 Main Floor

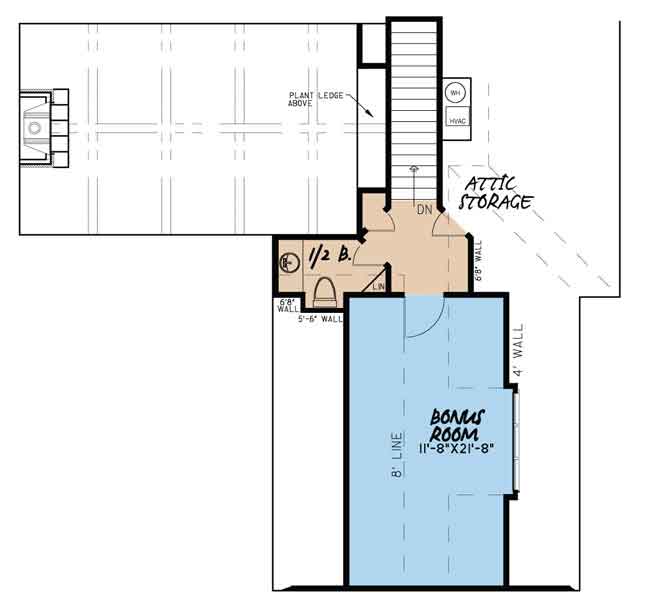

House Plan MEN 5078 Bonus Room
House Plan MEN 5078 Main Floor
House Plan MEN 5078 Bonus Room

Floor plans

MEN 5078

House Plan 5078 Crescent Manor, French Country House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5078
  • Total Living Space:1901Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 72
  • Width In.: 6
  • Depth Ft.: 64
  • Depth In.: 8

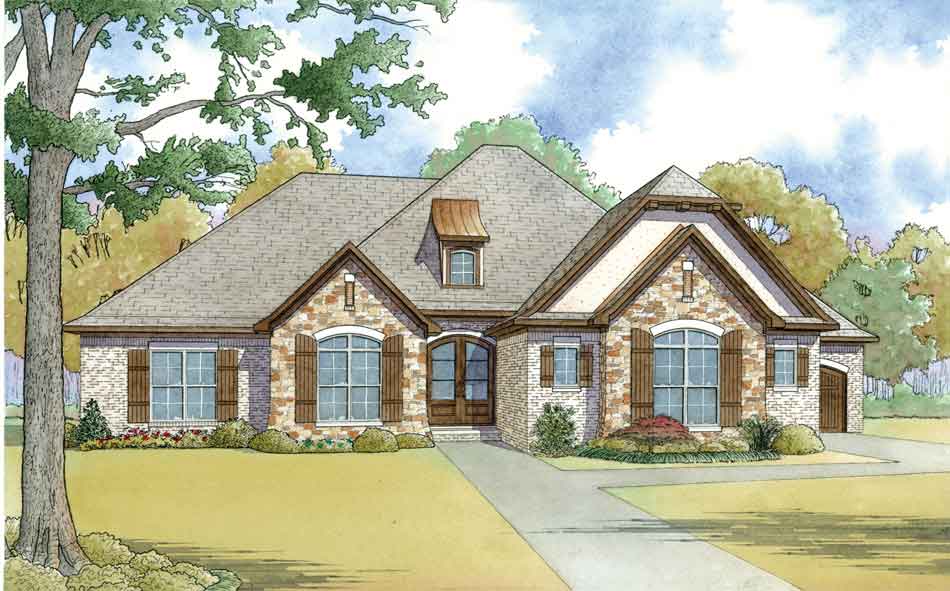

With just under 2,000 square feet this stunning house plan is a great choice for your next home. The brick,stone and stucco exterior gives great street appeal especially when complimented with the wood shutters and the unique dormer above the door. As you step into the Foyer it will lead you into the open floor plan Great Room and Kitchen. The Kitchen is complete with a large island with raised bar seating and a walk-in pantry. You'll also notice an attached Dining Area perfect for dinner with the family. On the left side of the home are bedrooms 2,3 and 4 as well as a hall bath. Bedroom 2 can be used as an Office with an optional barn door opening into the Foyer if desired. On the opposite side of the home is the spacious Master Suite. The Bedroom features a beautiful vaulted ceiling while the bath offers two separate vanities, glass shower, free standing tub, private toilet room and a large walk-in closet with direct access to the laundry room.


  • Total Living Space:1901Sq.Ft.
  • Main Floor: 1901 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 373 Sq.Ft.
  • Porch (Sq.Ft.): 208 Sq.Ft.
  • Garage (Sq.Ft.): 881 Sq.Ft.
  • Total Square Feet: 3363 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
