House Plan 517B Belmont Avenue, French Traditional House Plan

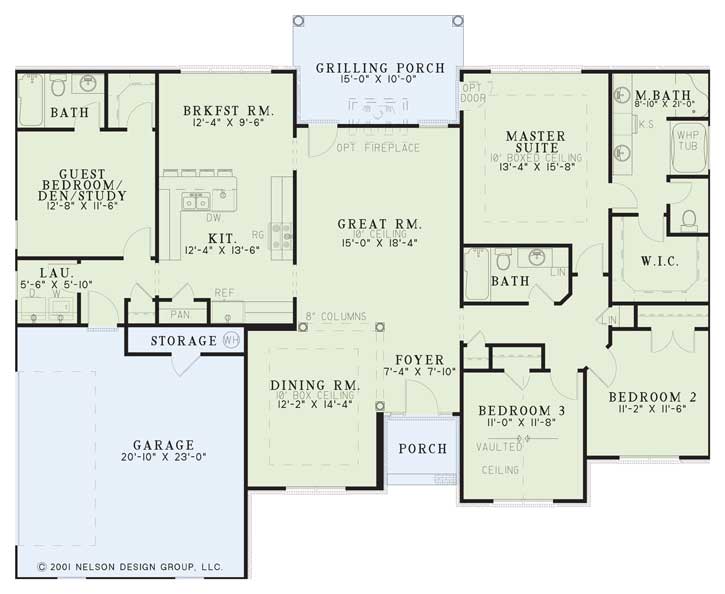

House Plan NDG 517B Main Floor
House Plan NDG 517B Main Floor

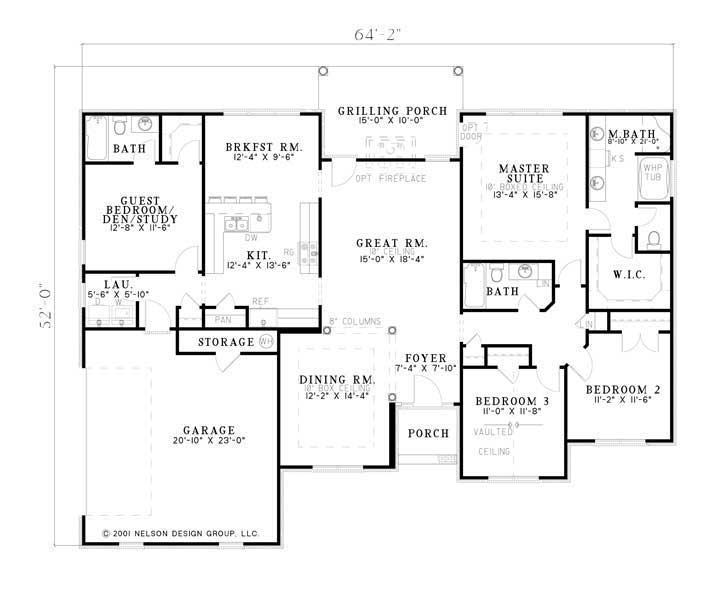

Floor plans

NDG 517B

House Plan 517B Belmont Avenue, French Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 517B
  • Total Living Space:2022Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 64
  • Width In.: 2
  • Depth Ft.: 52
  • Depth In.: N/A

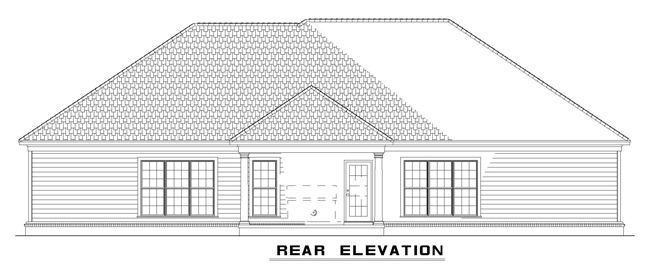

This impressive home offers you two different exterior finishes. Full brick or siding will enable you to determine the overall style you want. High ceilings and a rear-grilling porch will be focal points when entertaining. The master suite has a ten foot boxed ceiling and lovely private bathroom with a whirlpool tub and large walk-in closet. If a study or home office is desired, consider the fourth bedroom, which is conveniently located next to the kitchen and breakfast room.


  • Total Living Space:2022Sq.Ft.
  • Main Floor: 2022 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 191 Sq.Ft.
  • Garage (Sq.Ft.): 497 Sq.Ft.
  • Total Square Feet: 2710 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
