House Plan 555 The Armhurst, Florida House Plan

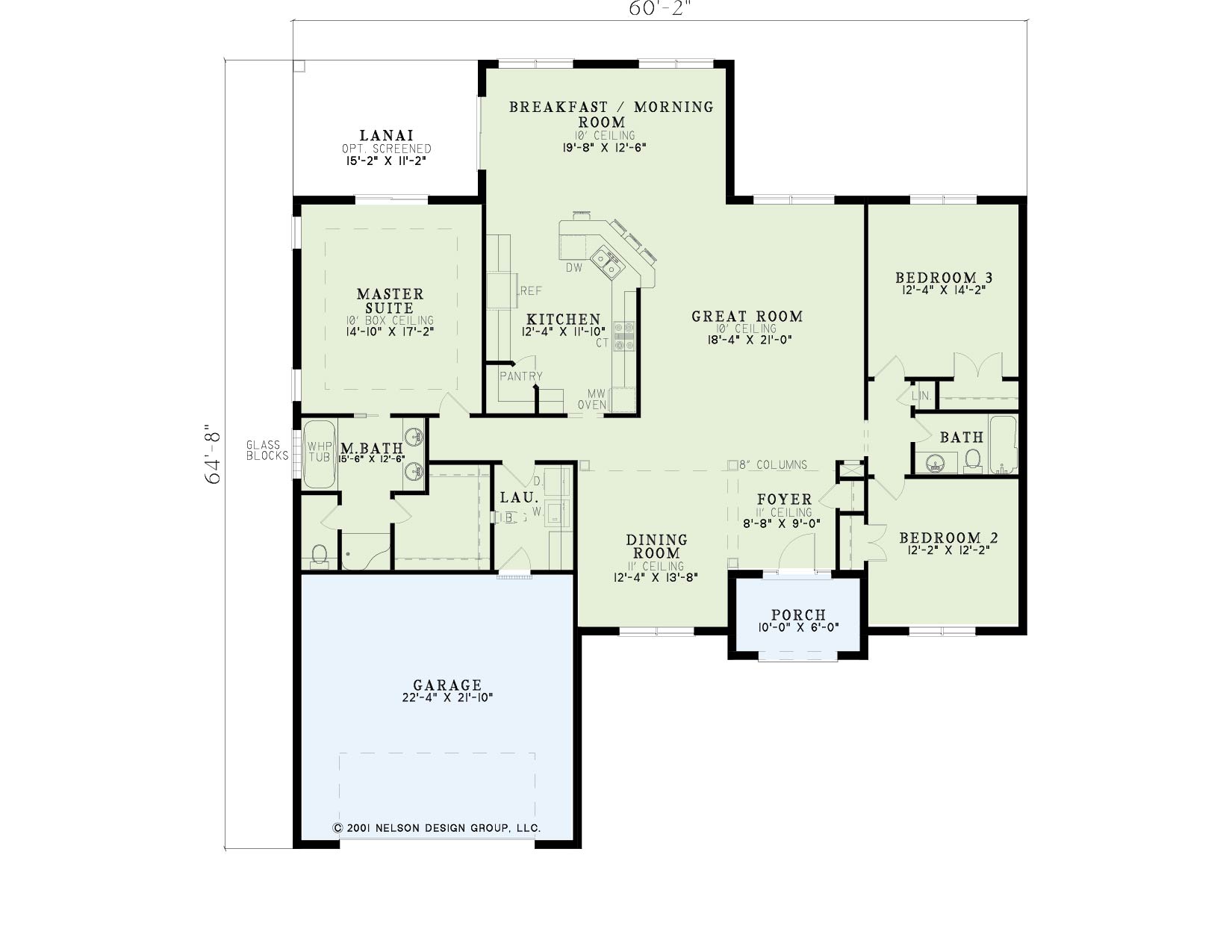

House Plan NDG 555 Main Floor
House Plan NDG 555 Main Floor

Floor plans

NDG 555

House Plan 555 The Armhurst, Florida House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 555
  • Total Living Space:2237Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 60
  • Width In.: 2
  • Depth Ft.: 64
  • Depth In.: 8


Note: Designed using 8-inch concrete wall construction and tile roofing; see NDG-194 for very similar design with standard wood framing.

An open floor plan; capable of both formal and casual entertaining characterize this lovely split-bedroom home. The extensive great room allows unencumbered transitions to the formal dining room, kitchen and enormous breakfast room. The kitchen enjoys a walk-in pantry and an angled eat-at bar. The secluded master suite offer a private entrance to the screened lanai, 10' boxed ceiling, and a substantial walk-in closet.


  • Total Living Space:2237Sq.Ft.
  • Main Floor: 2237 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 240 Sq.Ft.
  • Garage (Sq.Ft.): 524 Sq.Ft.
  • Total Square Feet: 3001 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
