House Plan 568 Cypress Drive, Affordable House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 568
  • Total Living Space:1894Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 54
  • Width In.: 4
  • Depth Ft.: 43
  • Depth In.: N/A

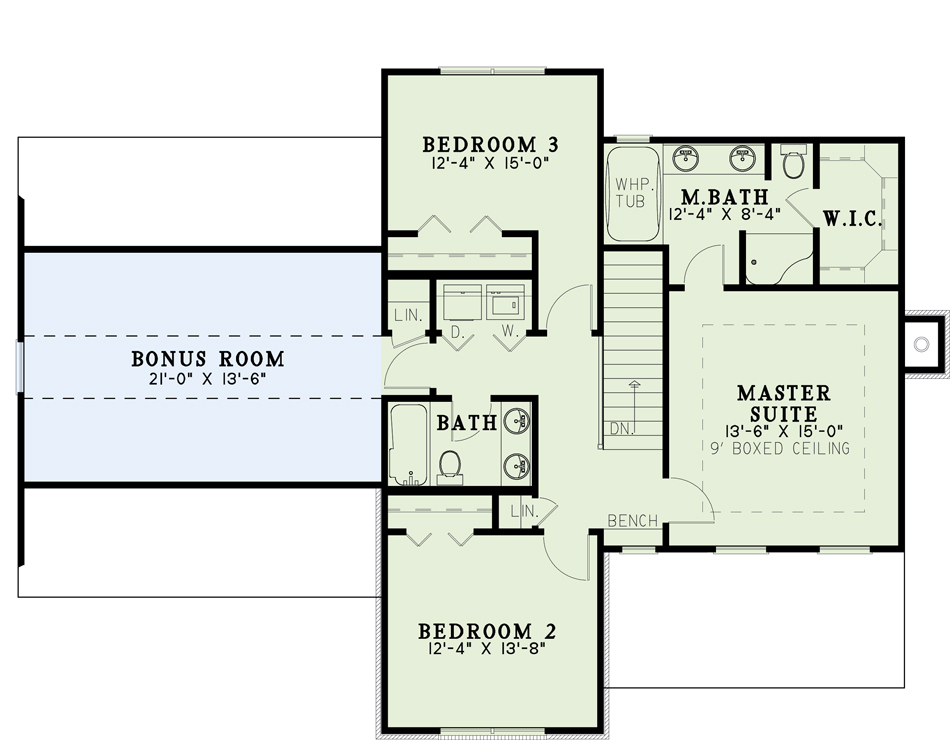

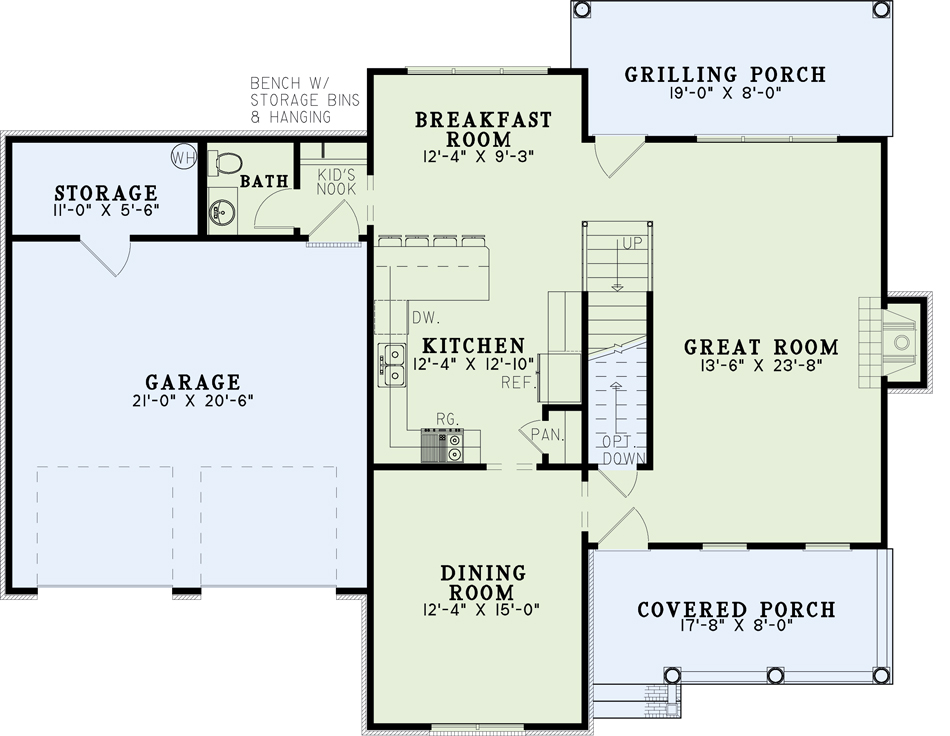

The quaint covered porch of this home will welcome friends and family alike. A spacious great room with fireplace accesses the rear-grilling porch perfect for entertaining. The kitchen and large breakfast room full of windows has additional bar seating and flows through to a formal dining room. For your convenience, a kid’s nook and half bath near the garage entry complete the main level. Traveling upstairs, you’ll find a luxurious Master suite, two additional bedrooms, a full bath and the laundry room. Family will love the bonus room, which can easily be converted into a TV area or game room.


  • Total Living Space:1894Sq.Ft.
  • Main Floor: 998 Sq.Ft
  • Upper Floor (Sq.Ft.): 896 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 300 Sq.Ft.
  • Porch (Sq.Ft.): 292 Sq.Ft.
  • Garage (Sq.Ft.): 514 Sq.Ft.
  • Total Square Feet: 3000 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
