House Plan 616 Cherry Street, Traditional House Plan

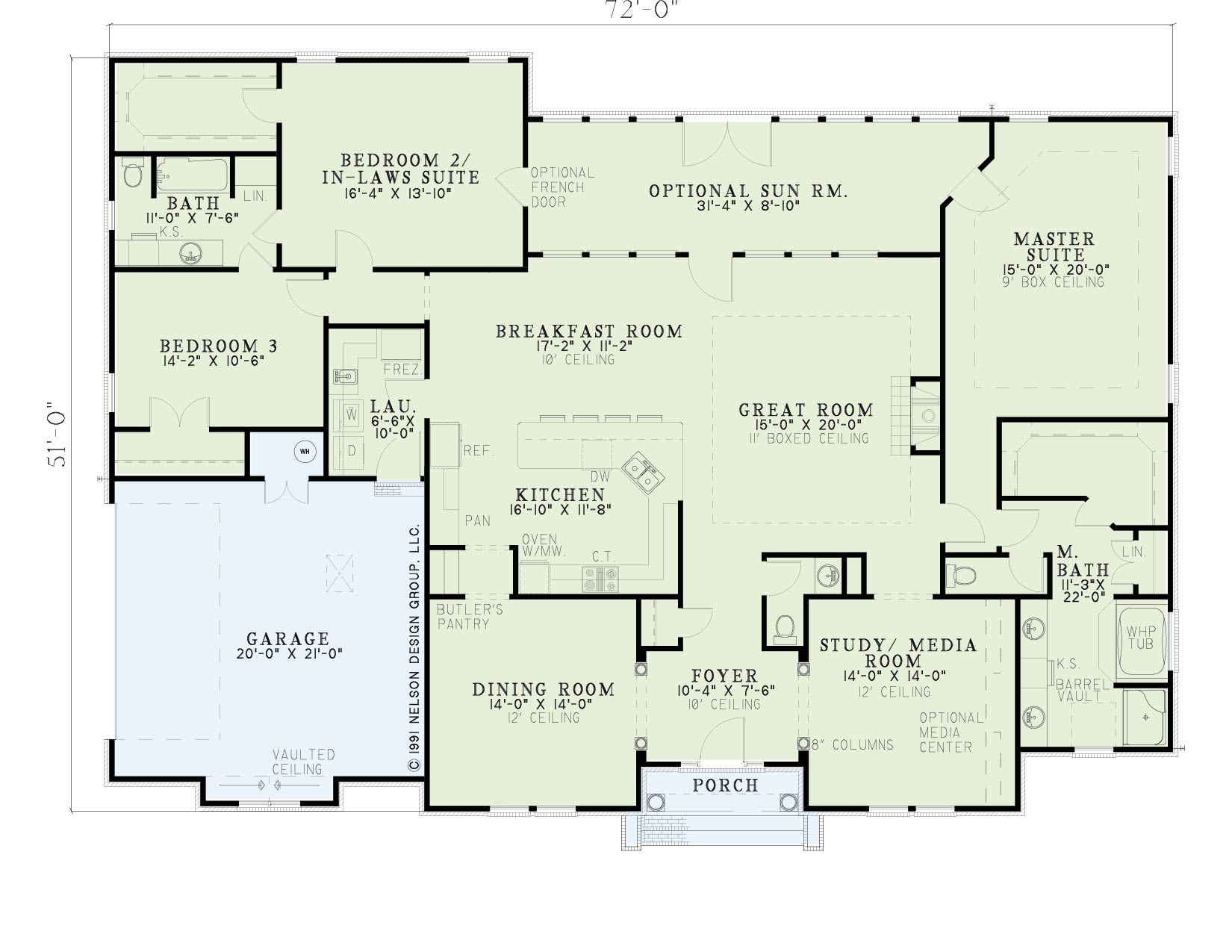

House Plan NDG 616 Main Floor
House Plan NDG 616 Main Floor

Floor plans

NDG 616

House Plan 616 Cherry Street, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 616
  • Total Living Space:2676Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 72
  • Width In.: N/A
  • Depth Ft.: 51
  • Depth In.: N/A


This absolutely exquisite design by Nelson Design Group has two master suites giving the homeowner a world of options. A large foyer separates the formal dining room from the Study/optional media room, for the music enthusiast. The centrally located great room has a wall of windows giving view to the rear grilling porch or optional sun room. The well-planned kitchen and expansive breakfast room is divided by a breakfast bar with seating. Eleven and twelve-foot ceilings are used throughout creating a grand appearance while boxed ceilings enhance the great room and primary master suite.


  • Total Living Space:2676Sq.Ft.
  • Main Floor: 2676 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 270 Sq.Ft.
  • Porch (Sq.Ft.): 32 Sq.Ft.
  • Garage (Sq.Ft.): 450 Sq.Ft.
  • Total Square Feet: 3428 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
