House Plan 624 Moss Cove, Riverbend House Plan

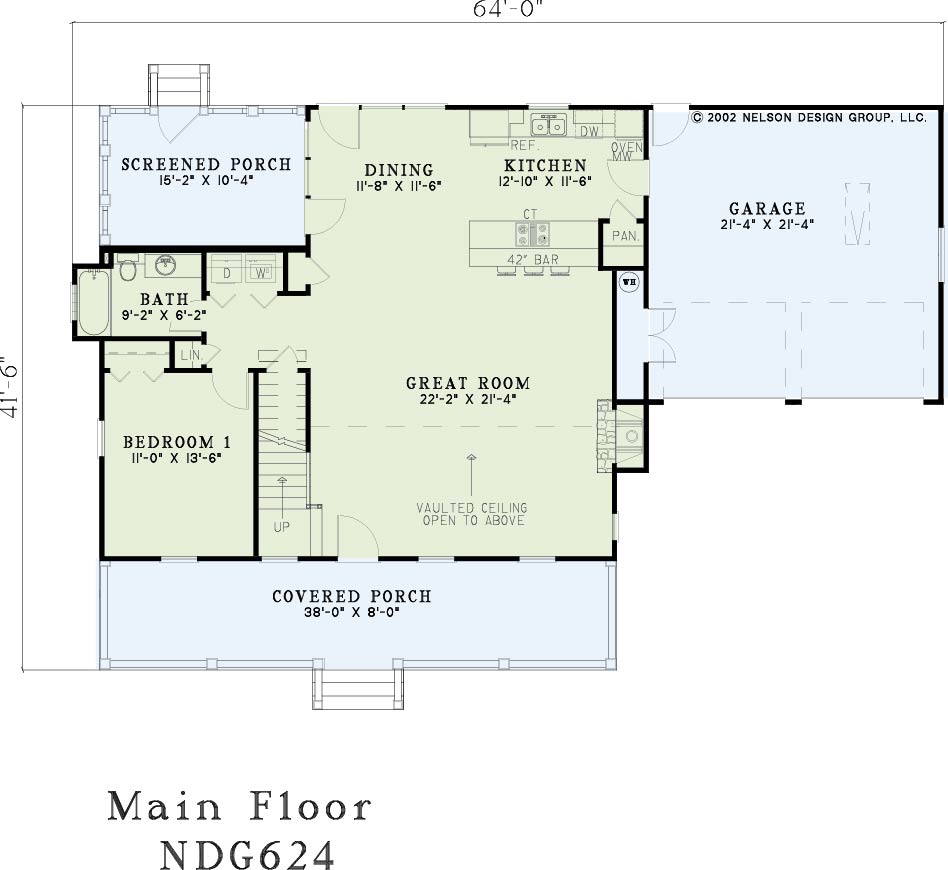

House Plan NDG 624 Main Floor

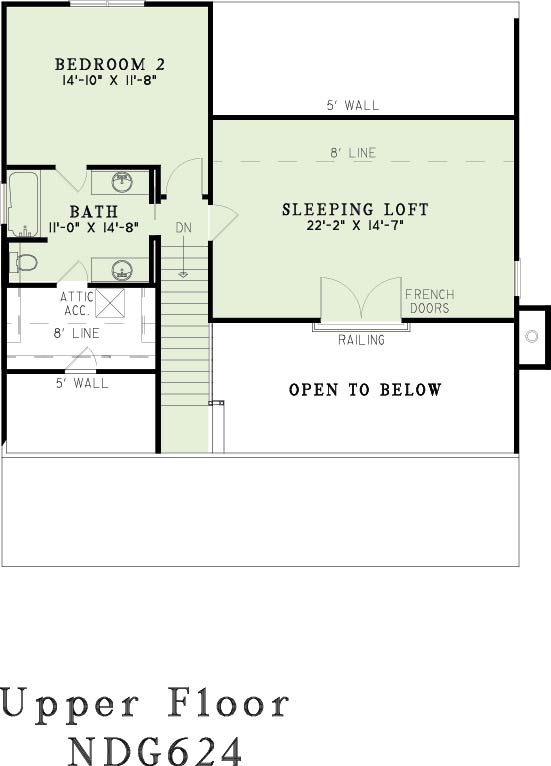

House Plan NDG 624 Upper Floor
House Plan NDG 624 Main Floor
House Plan NDG 624 Upper Floor

Floor plans

NDG 624

House Plan 624 Moss Cove, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 624
  • Total Living Space:1903Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 64
  • Width In.: N/A
  • Depth Ft.: 41
  • Depth In.: 6


My fondest memories are spending the fall weekends with my best friend at our cabin at Moss Cove. Billy and me used to scare my brothers at night by throwing pine needles on them as they tried to fall asleep. We had the best place to camp out in the upstairs loft and mom would let us stay up all night, if we could. We still to this day play cards on the screened in porch and listen to the crickets chirp. I hope my kids have wonderful memories like I do and someday…. Maybe my grandchildren will reminisce about their campouts in the upstairs loft.


  • Total Living Space:1903Sq.Ft.
  • Main Floor: 1156 Sq.Ft
  • Upper Floor (Sq.Ft.): 747 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 461 Sq.Ft.
  • Garage (Sq.Ft.): 500 Sq.Ft.
  • Total Square Feet: 2864 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
