House Plan 640 Burlington Cove, Affordable House Plan


Floor plans

NDG 640

House Plan 640 Burlington Cove, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 640
  • Total Living Space:1286Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 34
  • Width In.: N/A
  • Depth Ft.: 36
  • Depth In.: N/A

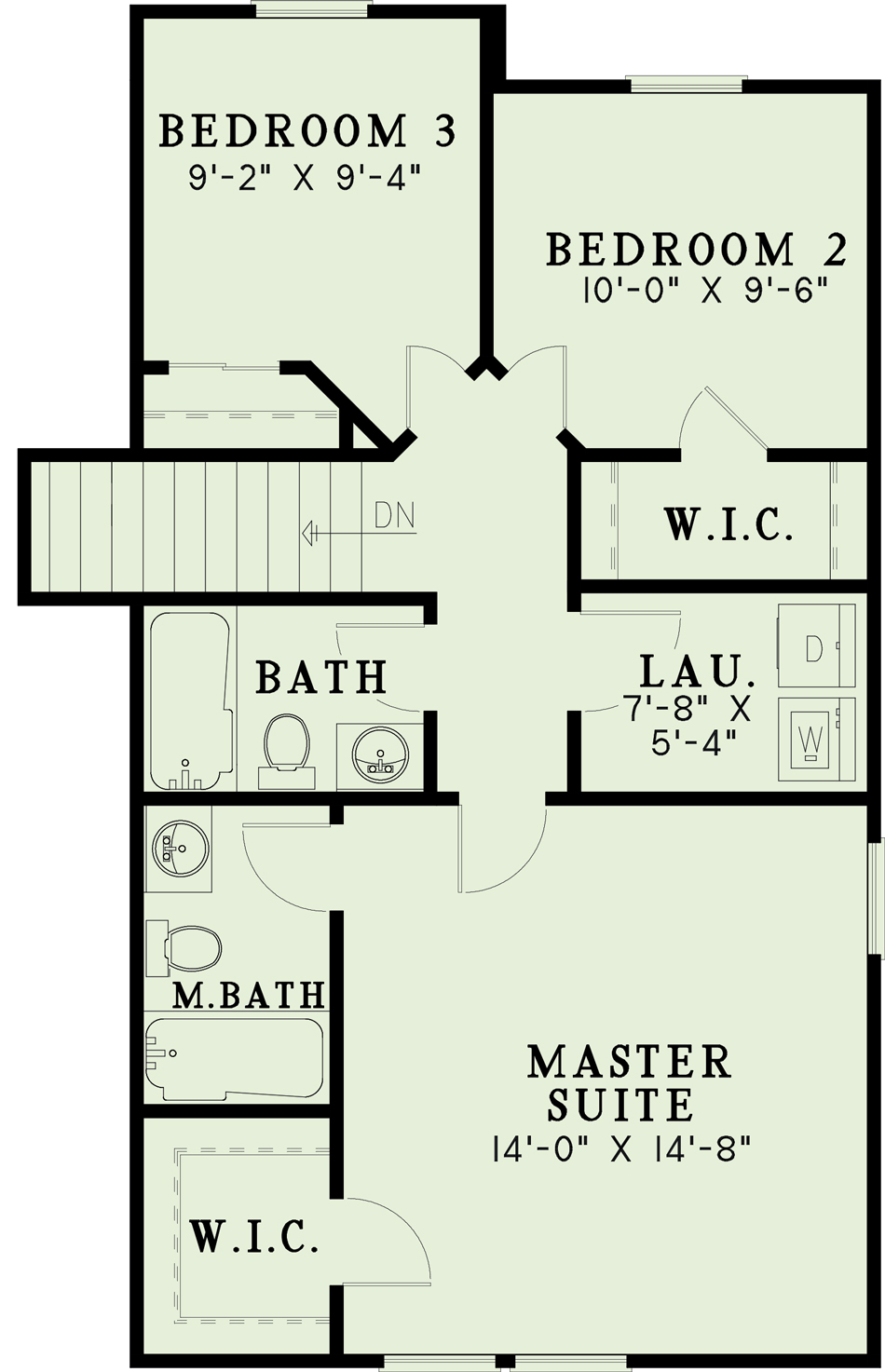

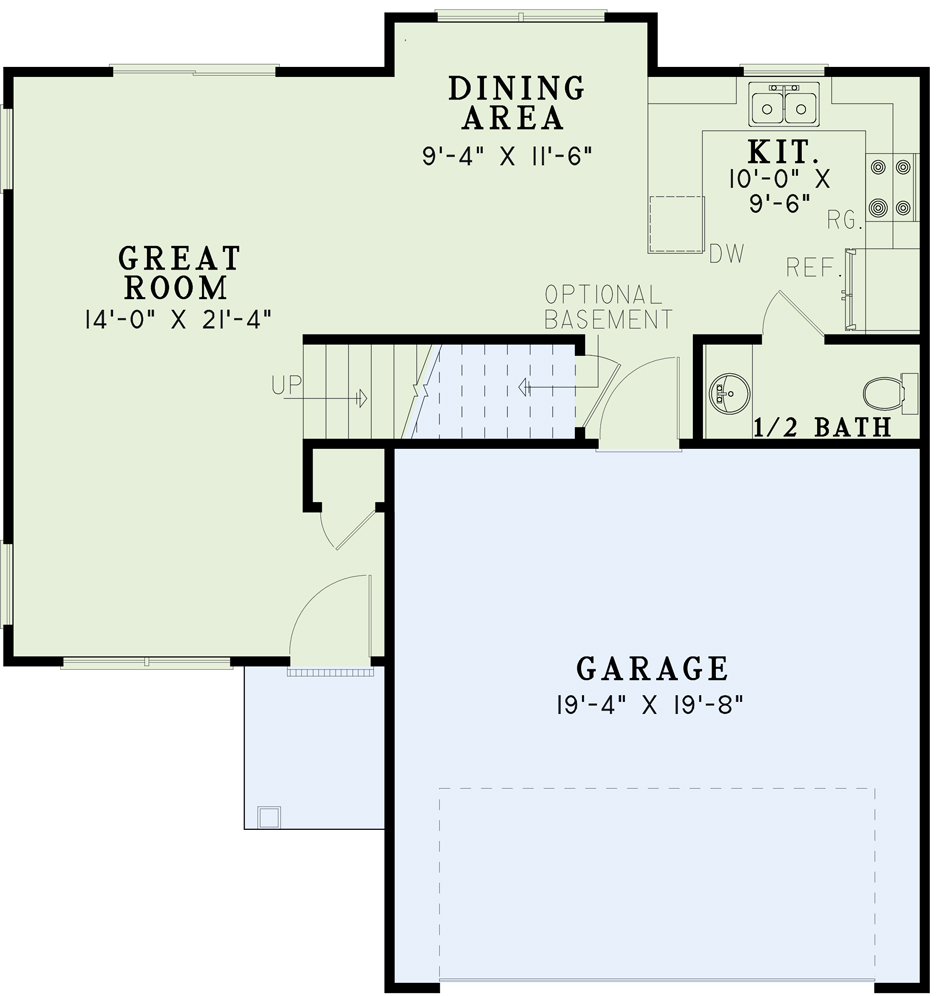

Friends and family will enjoy gatherings in this quaint Nelson Design Group home. This open floor plan allows the great room to open into a spacious dining area with large windows for plenty of natural lighting. A sliding glass door at the rear of the great room allows family to comfortably access the rear patio while entertaining. The U-shaped kitchen has a convenient half bath near the upstairs and garage access. All three bedrooms and the laundry room are located upstairs including the master suite with a large walk-in closet and private bathroom.


  • Total Living Space:1286Sq.Ft.
  • Main Floor: 611 Sq.Ft
  • Upper Floor (Sq.Ft.): 675 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 87 Sq.Ft.
  • Garage (Sq.Ft.): 397 Sq.Ft.
  • Total Square Feet: 1770 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
