House Plan 651 Olive Street, Traditional House Plan

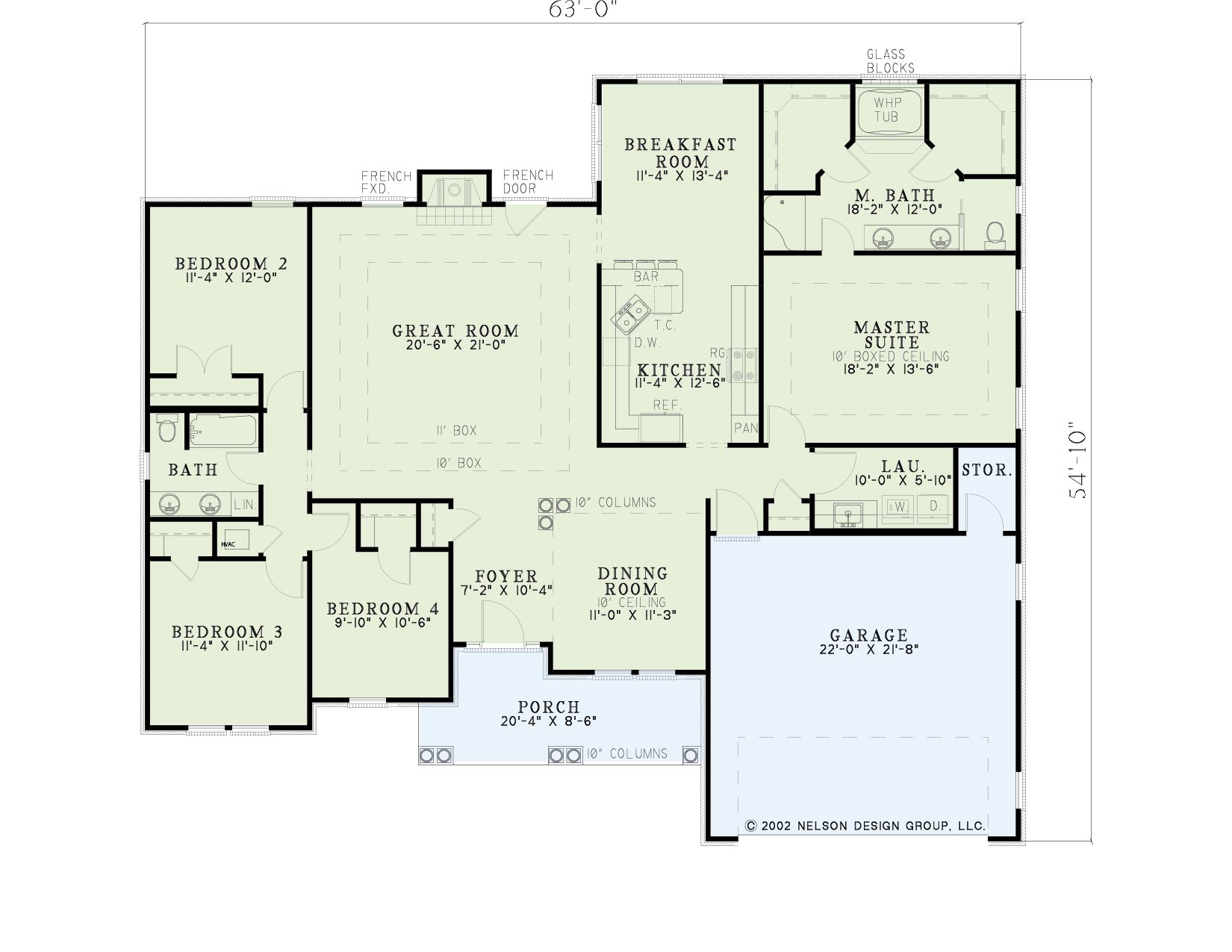

House Plan NDG 651 Main Floor
House Plan NDG 651 Main Floor

Floor plans

NDG 651

House Plan 651 Olive Street, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 651
  • Total Living Space:2214Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 63
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: 10


Double 10-inch round columns atop brick pillars and round top windows will make this Nelson Design Group home the talk of the neighborhood. The foyer opens into a formal dining room and views the great room fireplace centered between French doors. This split bedroom plan has ten foot-boxed ceilings in the dining, great room, and master suite. Enjoy soaking in the master tub nestled between two large walk-in closets and plenty of natural light filtered through the private glass block window. Three additional bedrooms on the opposite side allow for plenty of office, study or guestroom options.


  • Total Living Space:2214Sq.Ft.
  • Main Floor: 2214 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 140 Sq.Ft.
  • Garage (Sq.Ft.): 523 Sq.Ft.
  • Total Square Feet: 2877 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
