House Plan 739 Talbot Lane, Farmhouse House Plan

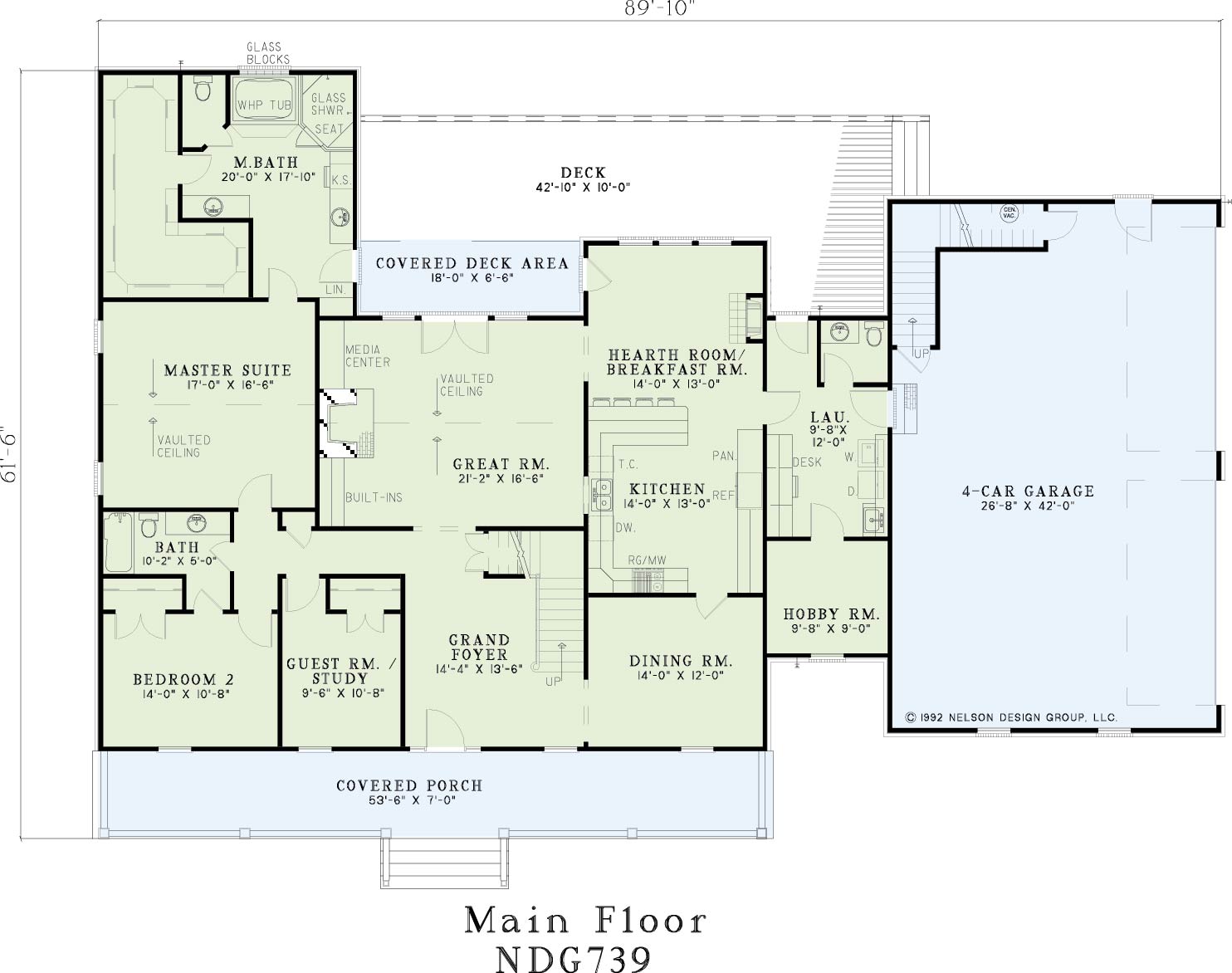

House Plan NDG 739 Main Floor

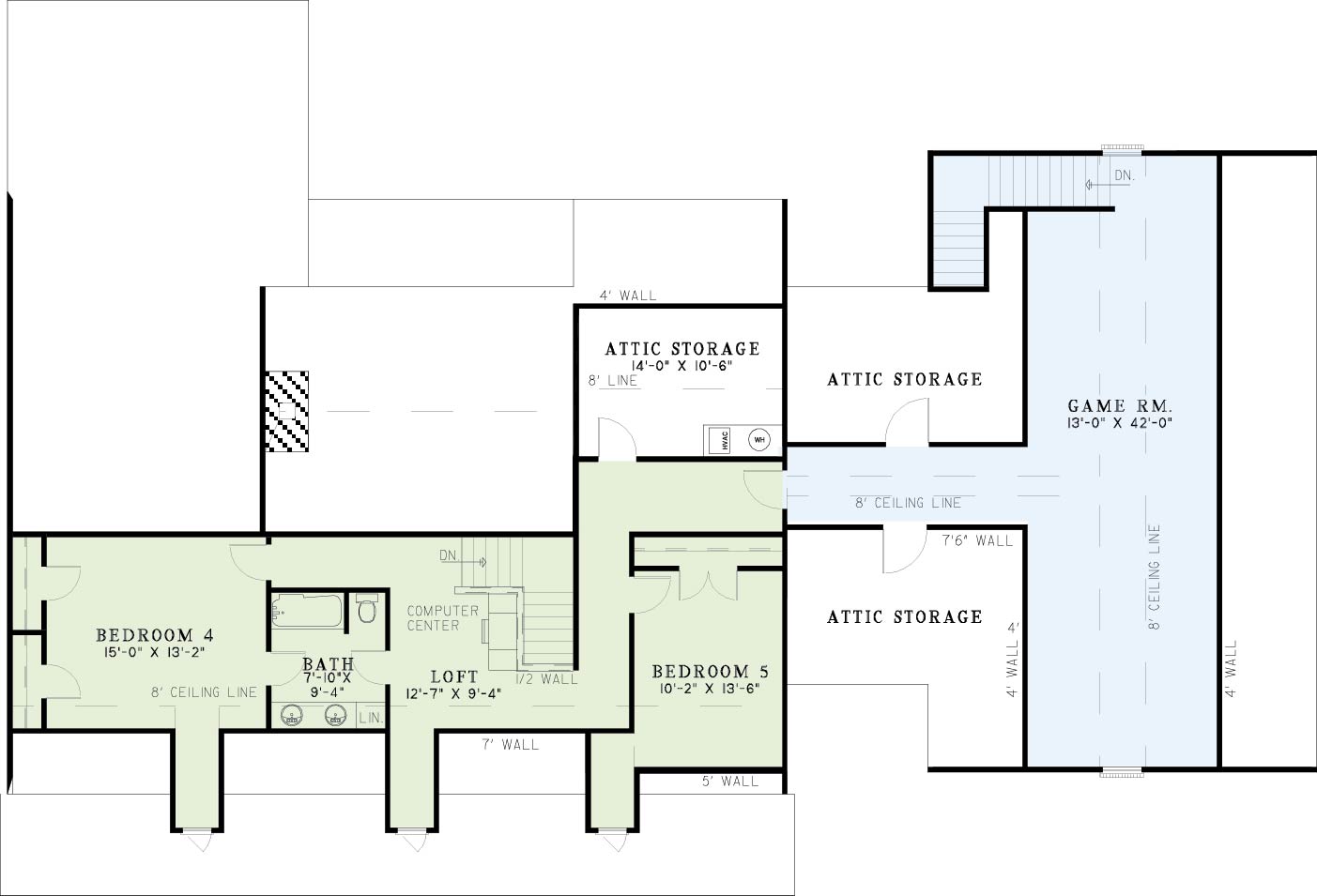

House Plan NDG 739 Upper Floor
House Plan NDG 739 Main Floor
House Plan NDG 739 Upper Floor

Floor plans

NDG 739

House Plan 739 Talbot Lane, Farmhouse House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 739
  • Total Living Space:3499Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 4 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 89
  • Width In.: 10
  • Depth Ft.: 61
  • Depth In.: 6


This Nelson Design Group plan truly has something for every family member. Mom can enjoy movie night with friends in the great room, or she can spend some quiet time soaking in the master bath’s whirlpool tub. Dad will like to tinker around in the hobby room just off the four-car garage, or he can show off his grilling talents on the large rear deck. All of the kids will appreciate the privacy of their own rooms but will love spending time together in the large game room on the upper floor. Even guests will have something to talk about with the inclusion of a comfortable guest room. With this home, the possibilities are endless.


  • Total Living Space:3499Sq.Ft.
  • Main Floor: 2631 Sq.Ft
  • Upper Floor (Sq.Ft.): 868 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 657 Sq.Ft.
  • Porch (Sq.Ft.): 409 Sq.Ft.
  • Garage (Sq.Ft.): 1129 Sq.Ft.
  • Total Square Feet: 5694 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
