House Plan 822 Mulberry Lane, Olde Town House Plan

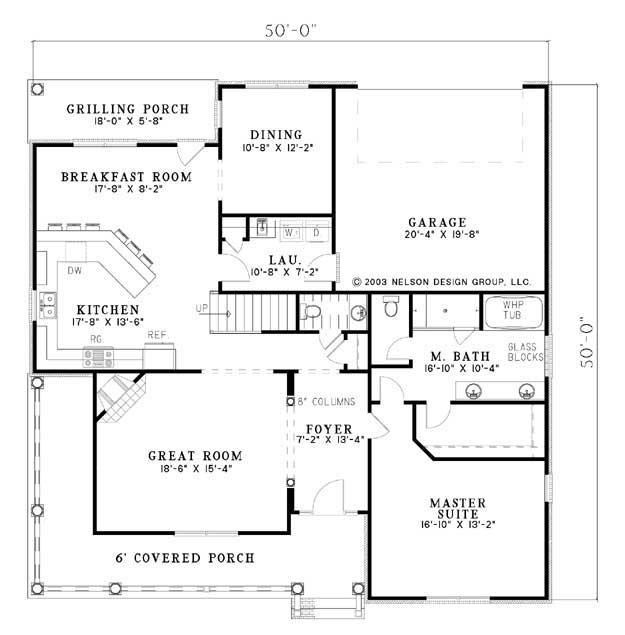

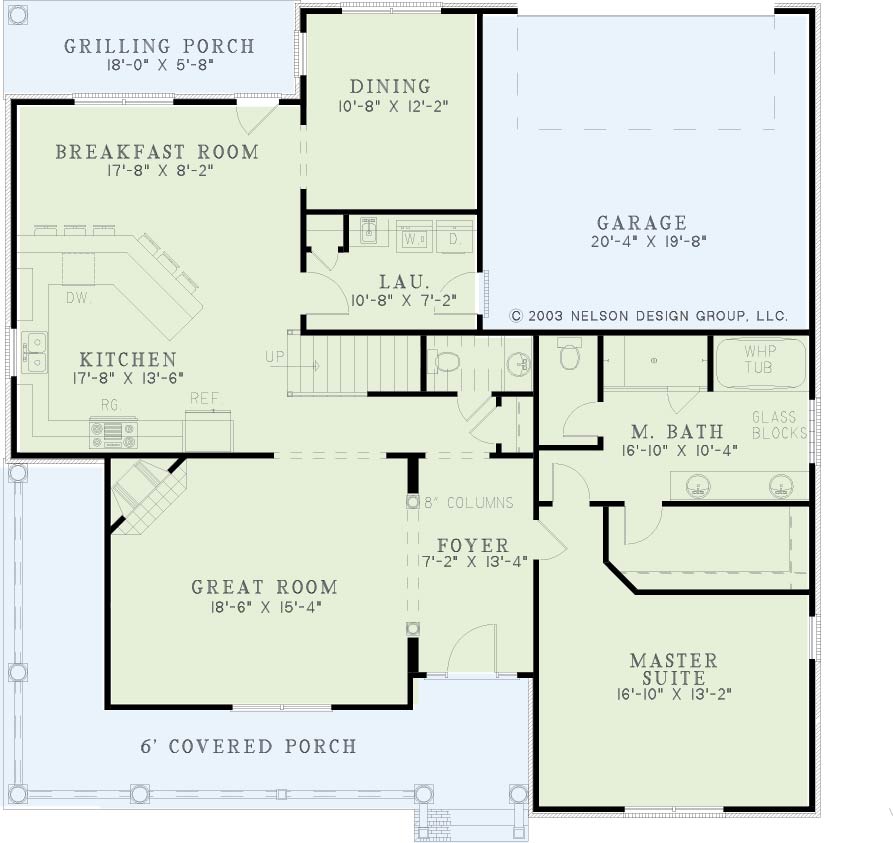

House Plan NDG 822 Main Floor

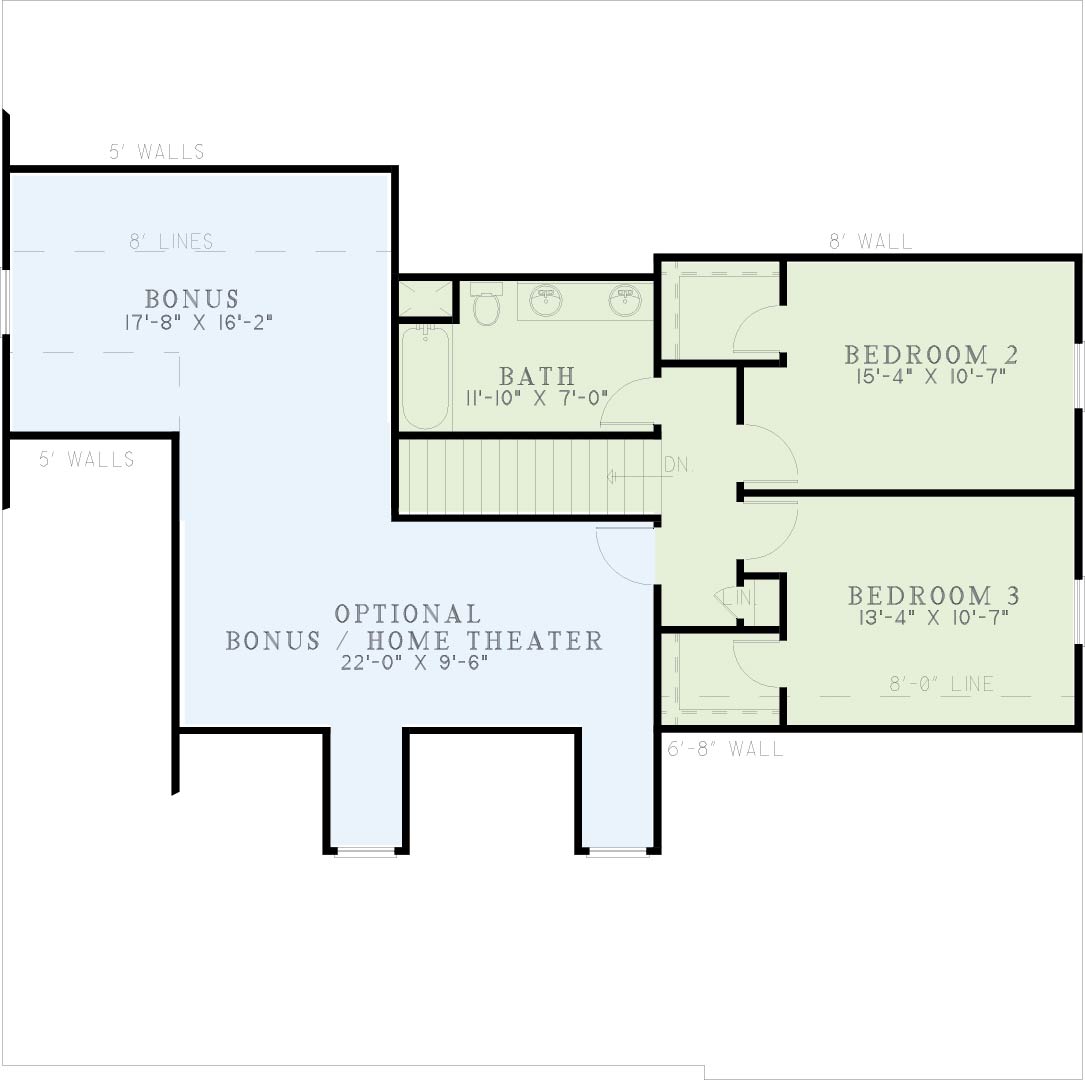

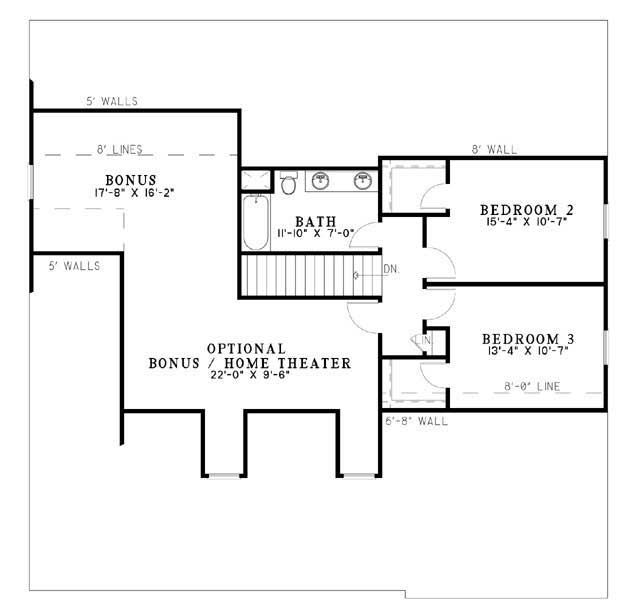

House Plan NDG 822 Upper Floor
House Plan NDG 822 Main Floor
House Plan NDG 822 Upper Floor

Floor plans

NDG 822

House Plan 822 Mulberry Lane, Olde Town House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 822
  • Total Living Space:2196Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 50
  • Width In.: N/A
  • Depth Ft.: 50
  • Depth In.: N/A

Description

This southern traditional home features a corner wrap around porch with round columns. The foyer details eight inch columns to the great room with a corner fireplace. The kitchen provides ample counter space with a snack bar open to the expansive breakfast room. The dining room is conveniently located for hosting dinner parties. A luxurious master suite with numerous amenities available in the master bath will be a favorite. The upper floor allows the children ample closet space and the large bonus room completes the design.

Specifications

  • Total Living Space:2196Sq.Ft.
  • Main Floor: 1672 Sq.Ft
  • Upper Floor (Sq.Ft.): 524 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 544 Sq.Ft.
  • Porch (Sq.Ft.): 407 Sq.Ft.
  • Garage (Sq.Ft.): 413 Sq.Ft.
  • Total Square Feet: 3560 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
