House Plan 825 Woodland Drive, Stone-And-Brick House Plan

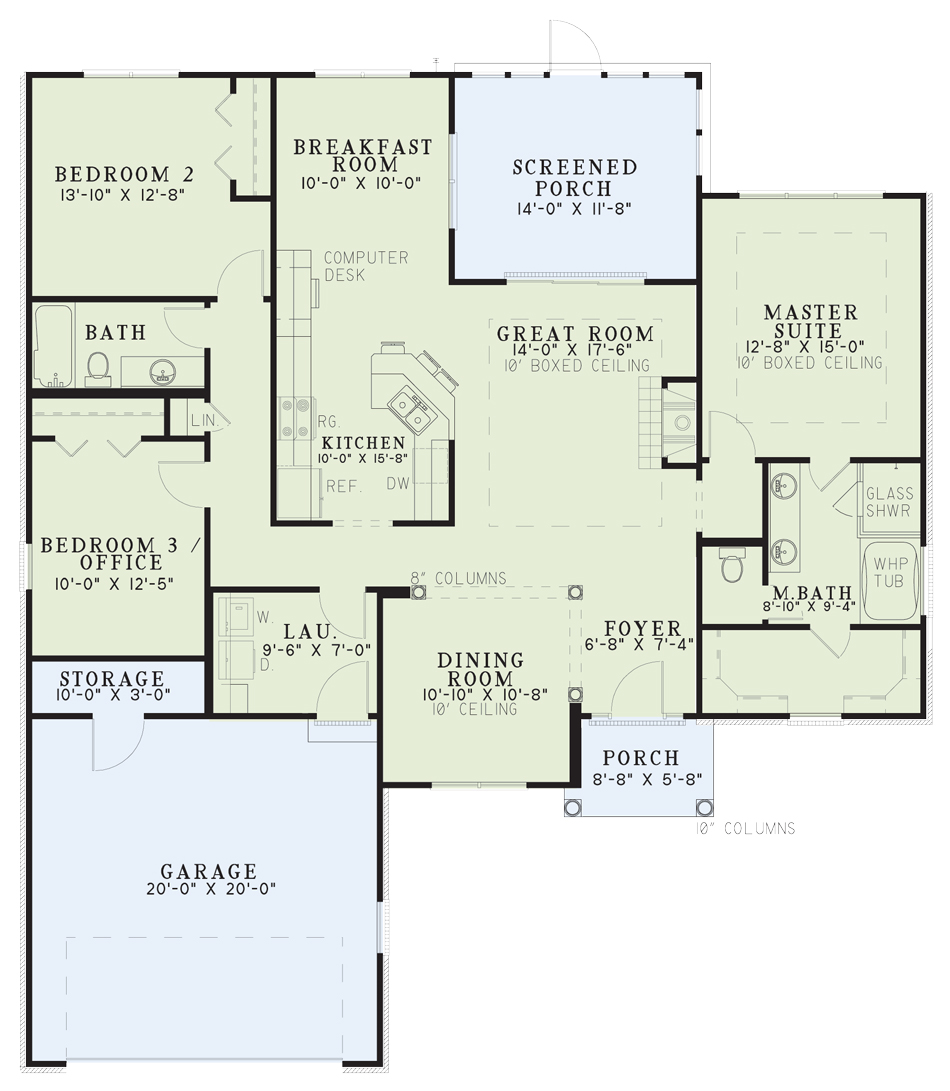

House Plan NDG 825 Main Floor
House Plan NDG 825 Main Floor

Floor plans

NDG 825

House Plan 825 Woodland Drive, Stone-And-Brick House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 825
  • Total Living Space:1708Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: 2
  • Depth Ft.: 57
  • Depth In.: 8


An elegant interior and plenty of gathering space in this Nelson Design Group plan makes this home a winner! The formal dining room, great room and master suite have ten-foot ceilings adding a luxurious touch to each area. The great room with fireplace and the nearby screened porch are perfect for entertaining. The kitchen and breakfast room blend into one another and share a built-in computer desk ? providing family a central space to surf the web. The privately placed master suite has a wall of windows for plenty of natural light and a spectacular bathroom full of amenities including a whirlpool bath, glass shower and an enormous walk-in closet.


  • Total Living Space:1708Sq.Ft.
  • Main Floor: 1708 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 216 Sq.Ft.
  • Garage (Sq.Ft.): 450 Sq.Ft.
  • Total Square Feet: 2374 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
