House Plan 941B Quail Drive, Traditional House Plan

House Plan NDG 941B Main Floor
House Plan NDG 941 Upper Floor/Bonus Room

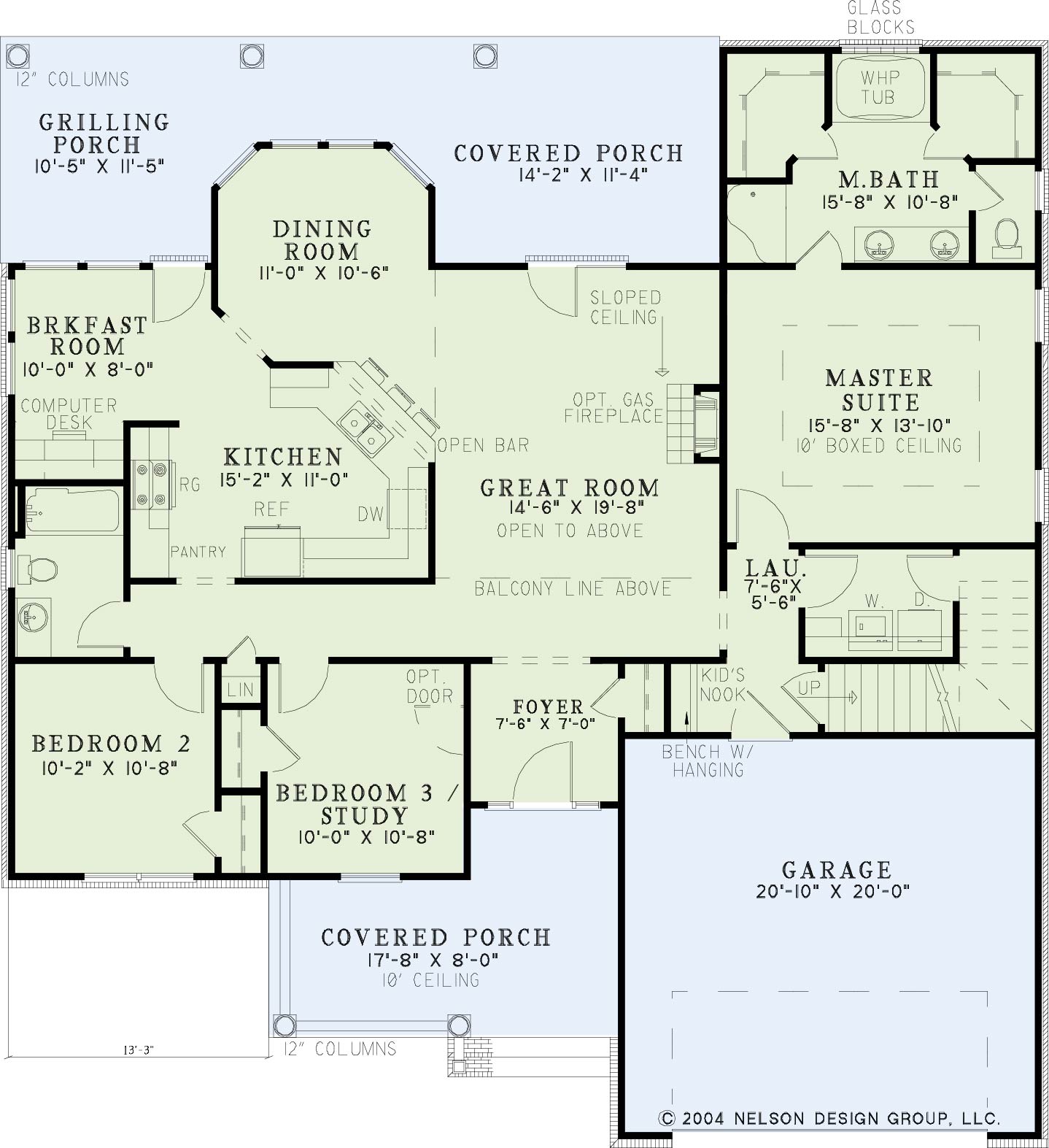

House Plan NDG 941B Main Floor
House Plan NDG 941 Upper Floor/Bonus Room

Floor plans

NDG 941B

House Plan 941B Quail Drive, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 941B
  • Total Living Space:1710Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: 6
  • Depth Ft.: 55
  • Depth In.: 6

Description

The mixed materials specified on this Nelson Design Group craftsman style home create an attractive exterior. The great room, complete with fireplace, is the central entertaining area of your home. In your spacious breakfast room with accommodating computer center you will be able to manage your budget effectively. The rear grilling porch will serve as the entertaining area for summer barbeques. The split bedrooms design will be appreciated when retiring for the evening to the master bath. The upper bonus area will be an excellent choice for the home theater for the entire family’s enjoyment.

Specifications

  • Total Living Space:1710Sq.Ft.
  • Main Floor: 1710 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 557 Sq.Ft.
  • Porch (Sq.Ft.): 501 Sq.Ft.
  • Garage (Sq.Ft.): 436 Sq.Ft.
  • Total Square Feet: 3204 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Lower Level
