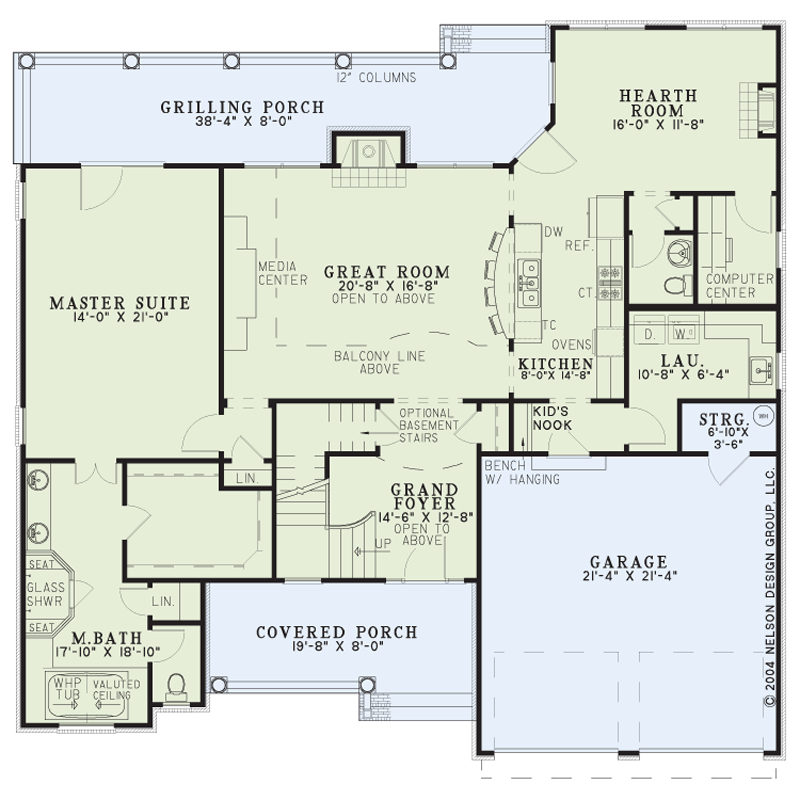

House Plan NDG 951 Main Floor

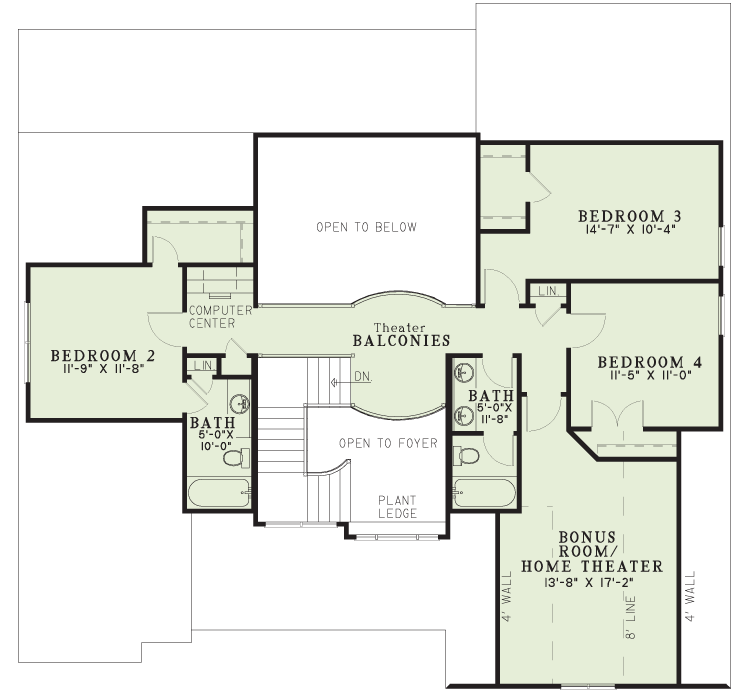

House Plan NDG 951 Upper Floor
House Plan - modica951 Side load garage option

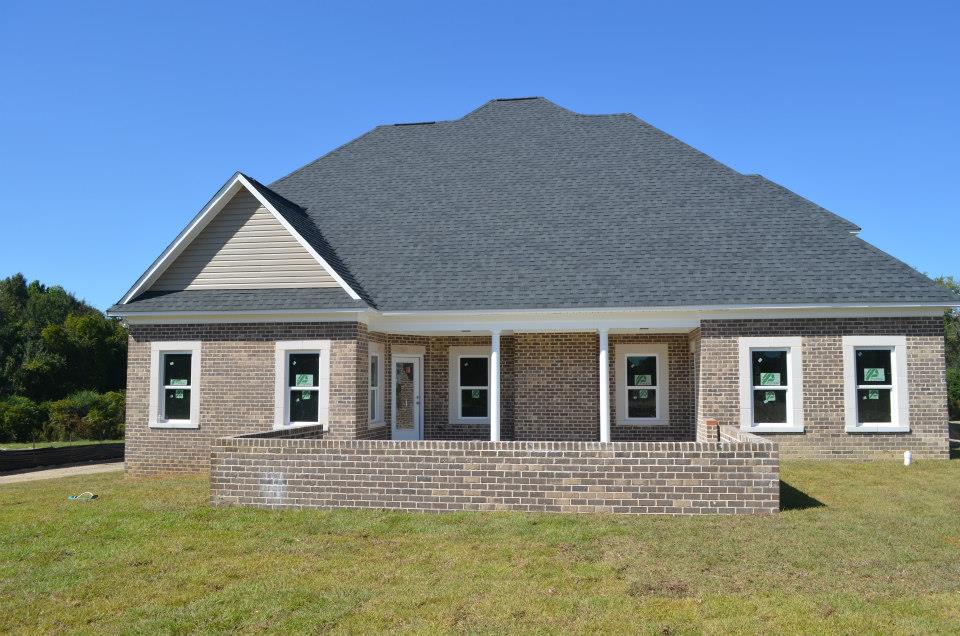

House Plan - Exterior Rear 002

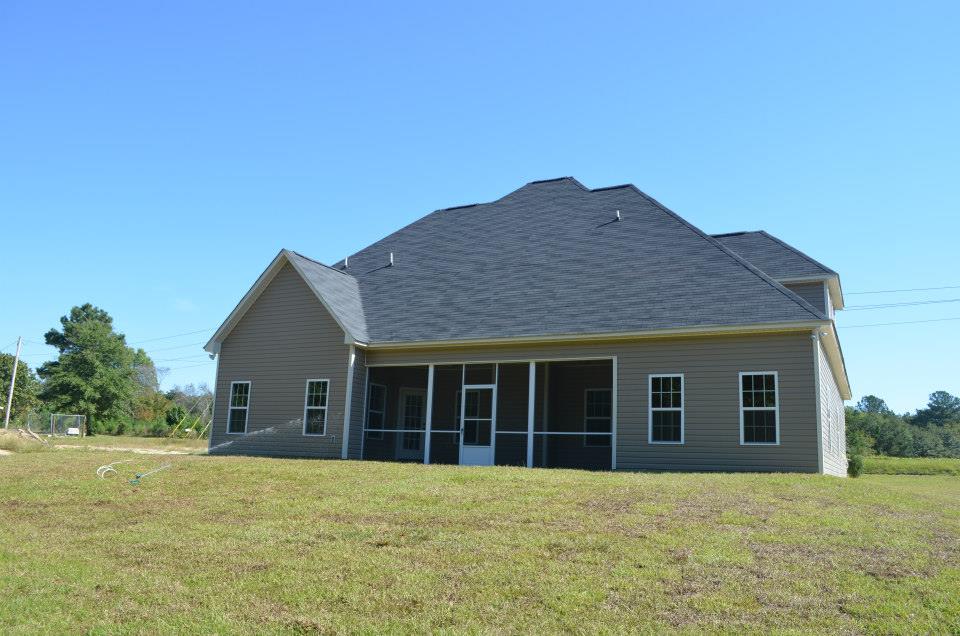

House Plan - Exterior Rear 003

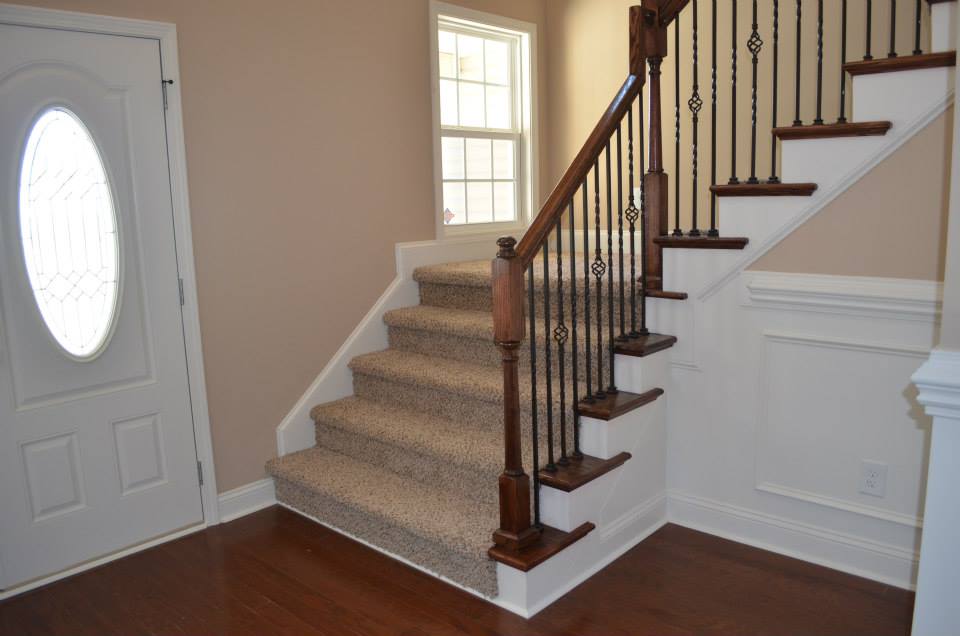

House Plan - Foyer Brown Stairs 002
House Plan - Foyer Brown 002
House Plan - Kid's Nook 002
House Plan - Kitchen Passthrough to Great Room

Floor plans

NDG 951

House Plan 951 Ambrose Boulevard, Heritage House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 951
  • Total Living Space:2642Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 55
  • Width In.: N/A
  • Depth Ft.: 52
  • Depth In.: 10

Description

Upon entering the grand foyer of this Nelson Design Group home you will be overwhelmed with the charm of this design. The expansive great room showcases a fireplace and media center while lending easy access to the kitchen. The master bedroom offers plenty of possibilities, and the master bath is luxuriously equipped with a whirlpool bath, glass shower, and huge walk-in closet. Upstairs, you can revel in the view from either theater balcony before heading into your home theater or tucking the kids into one of the three bedrooms.

Specifications

  • Total Living Space:2642Sq.Ft.
  • Main Floor: 1747 Sq.Ft
  • Upper Floor (Sq.Ft.): 895 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 263 Sq.Ft.
  • Porch (Sq.Ft.): 459 Sq.Ft.
  • Garage (Sq.Ft.): 501 Sq.Ft.
  • Total Square Feet: 3865 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 34
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
