House Plan B1016 The Emerson, Barna Log House Plan

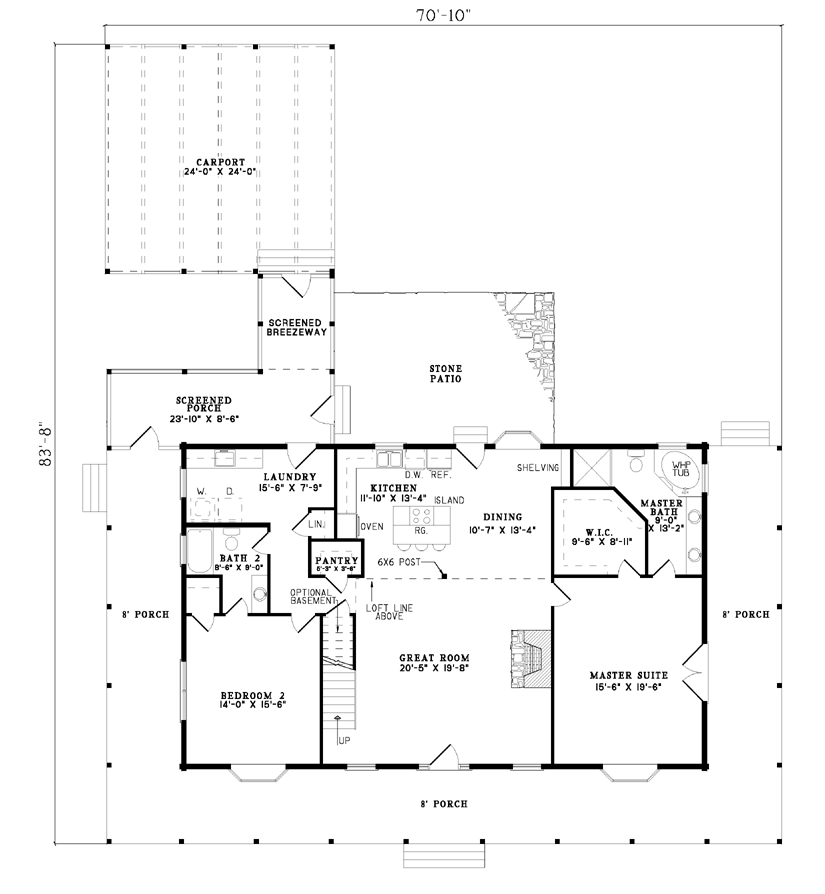

House Plan NDG B1016 Main Floor

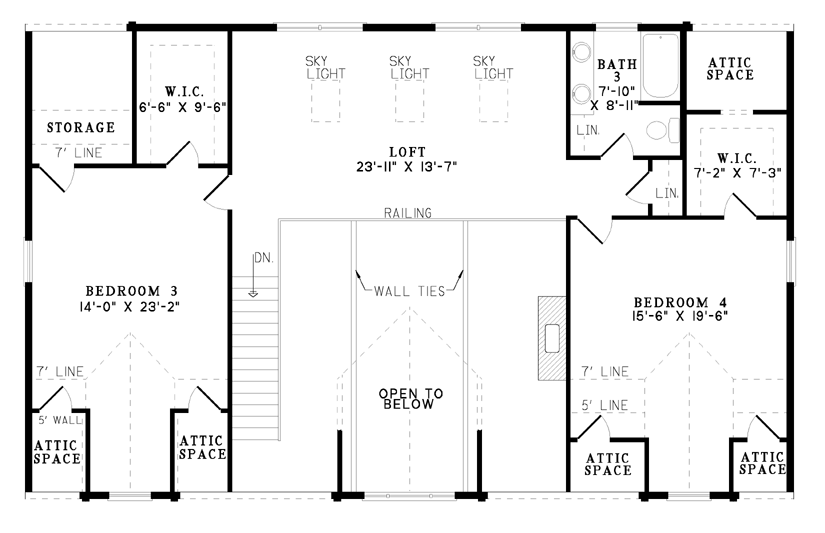

House Plan NDG B1016 Upper Floor
House Plan NDG B1016 Main Floor
House Plan NDG B1016 Upper Floor

Floor plans

NDG B1016

House Plan B1016 The Emerson, Barna Log House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG B1016
  • Total Living Space:3098Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: Yes
  • Carport Type: Side Load
  • Stories: 1.5
  • Width Ft.: 70
  • Width In.: 10
  • Depth Ft.: 83
  • Depth In.: 8


NDG B1016

A stunning addition to our Barna Log House Collection, The Emerson showcases a lovely wrap-around porch that expands into a Screened Porch and Breezeway, Carport, and a gorgeous Stone Patio at the rear of the property. Upon entry, you will find yourself in the Great Room with a fireplace that is enjoyed by the rest of the open floor plan. The Kitchen has everything you need, with plenty of counterspace, an eat-at center island with a gas stove, and a walk-in pantry. This space is also open to the Dining Room, which features access to the Stone Patio beside built-in shelving, perfect for storing your favorite dinner plates. The right wing of The Emerson houses your Master Suite, where you will enjoy a cozy bay window viewing the front porch, as well as a double door entry to the side porch. The walk-in closet is sure to hold all your wardrobe essentials, and the Master Bath features dual vanities, a whirlpool tub, and separate shower.

On the opposite side of The Emerson, you will find Bedroom 2 with a matching bay window, a modest walk-in closet, and a private bath that can also be accessed from the hall. From here you can also access the Laundry Room, which includes a linen closet, soaking sink with counterspace, and access to the Screened Porch. The kids will love their space upstairs, with three skylights adding to the natural lighting in the Loft. Bedroom 3 is very spacious and features a large storage closet and walk-in closet, while Bedroom 4 has a walk-in closet accessing an additional attic space and lies adjacent to the full bath with dual vanities. How would you customize this amazing house plan?

NOTE: Barna plans are intended for log exterior walls. Converting these to 2X6 exterior walls requires modification and will be subject to additional modification cost. Contact one of our home plan specialists today to discuss modification requirements by emailing or calling 870-931-5777

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experienced house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:3098Sq.Ft.
  • Main Floor: 1870 Sq.Ft
  • Upper Floor (Sq.Ft.): 1228 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1371 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 5045 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
