House Plan B1027 The Springview, Barna Log House Plan

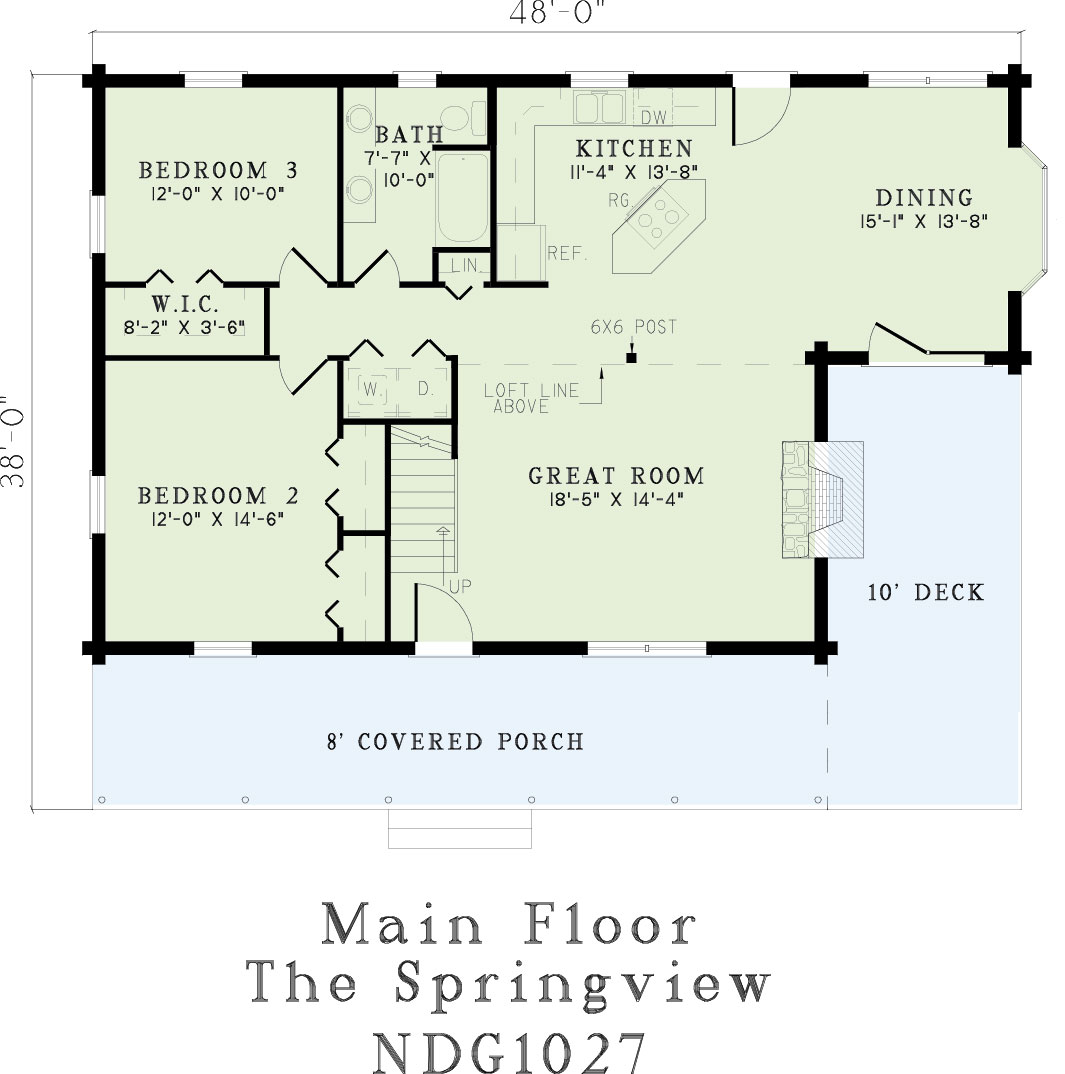

House Plan B1027 Main Floor

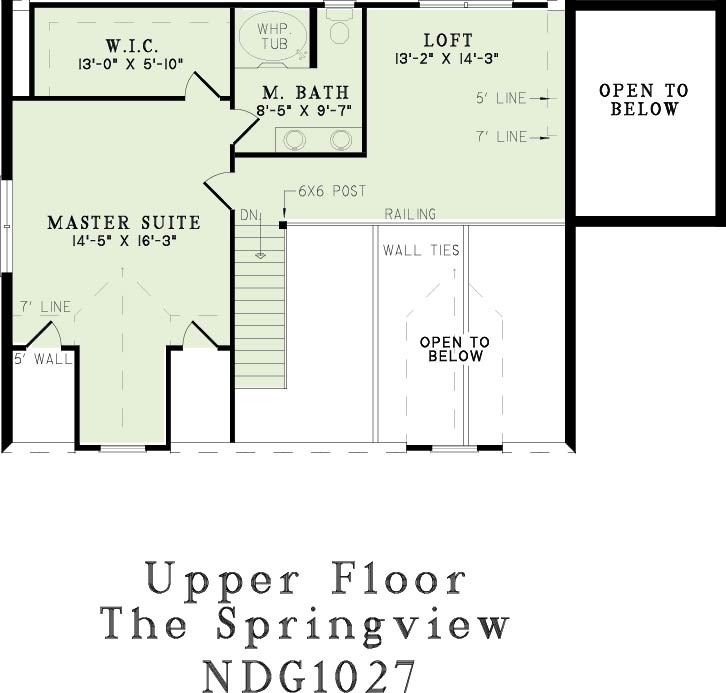

House Plan NDG B1027 Upper Floor
House Plan B1027 Main Floor
House Plan NDG B1027 Upper Floor

Floor plans

NDG B1027

House Plan B1027 The Springview, Barna Log House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG B1027
  • Total Living Space:2064Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 48
  • Width In.: N/A
  • Depth Ft.: 38
  • Depth In.: N/A


NDG B1027

A stunning addition to our Barna Log House Collection, The Springview gives a warm welcome to guests, invoking feelings of a cozy cabin nestled in the heart of the woods, bothered by nothing but the sounds of birds chirping and crickets singing. Stepping inside, you will find yourself in the large Great Room, with a view of the expansive open floor plan. A cozy stone fireplace offers a great place to gather, while a center island with a stove angled from the Kitchen toward the Great Room and Dining Room, allowing for the cook to join in on the festivities while prepping for or cleaning up after a meal. Family meals have never been better in the Dining Room, where a bay window allows the room to be filled with natural lighting. On the left side of The Springview are Bedrooms 2 and 3, along with a washer/dryer space directly across from the hall bath. Bedroom 2 is the larger of the two and boasts two sizeable closets, while Bedroom 3 enjoys a spacious walk-in closet. Step into luxury upstairs, where your Master Suite awaits! A large Loft is found just outside your suite, available to serve any purpose you need. The master bedroom is huge and features a cozy dormer that would be perfect as a window seat. The walk-in closet provides plenty of space for all your wardrobe favorites, and the Master Bath allows you relax the stress of the day away in a lovely whirlpool tub. How would you customize this amazing house plan?

NOTE: Barna plans are intended for log exterior walls. Converting these to 2X6 exterior walls requires modification and will be subject to additional modification cost. Contact one of our home plan specialists today to discuss modification requirements by emailing or calling 870-931-5777

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experienced house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:2064Sq.Ft.
  • Main Floor: 1290 Sq.Ft
  • Upper Floor (Sq.Ft.): 774 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2064 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
