House Plan B1034 The Cedar Grove, Barna Log House Plan

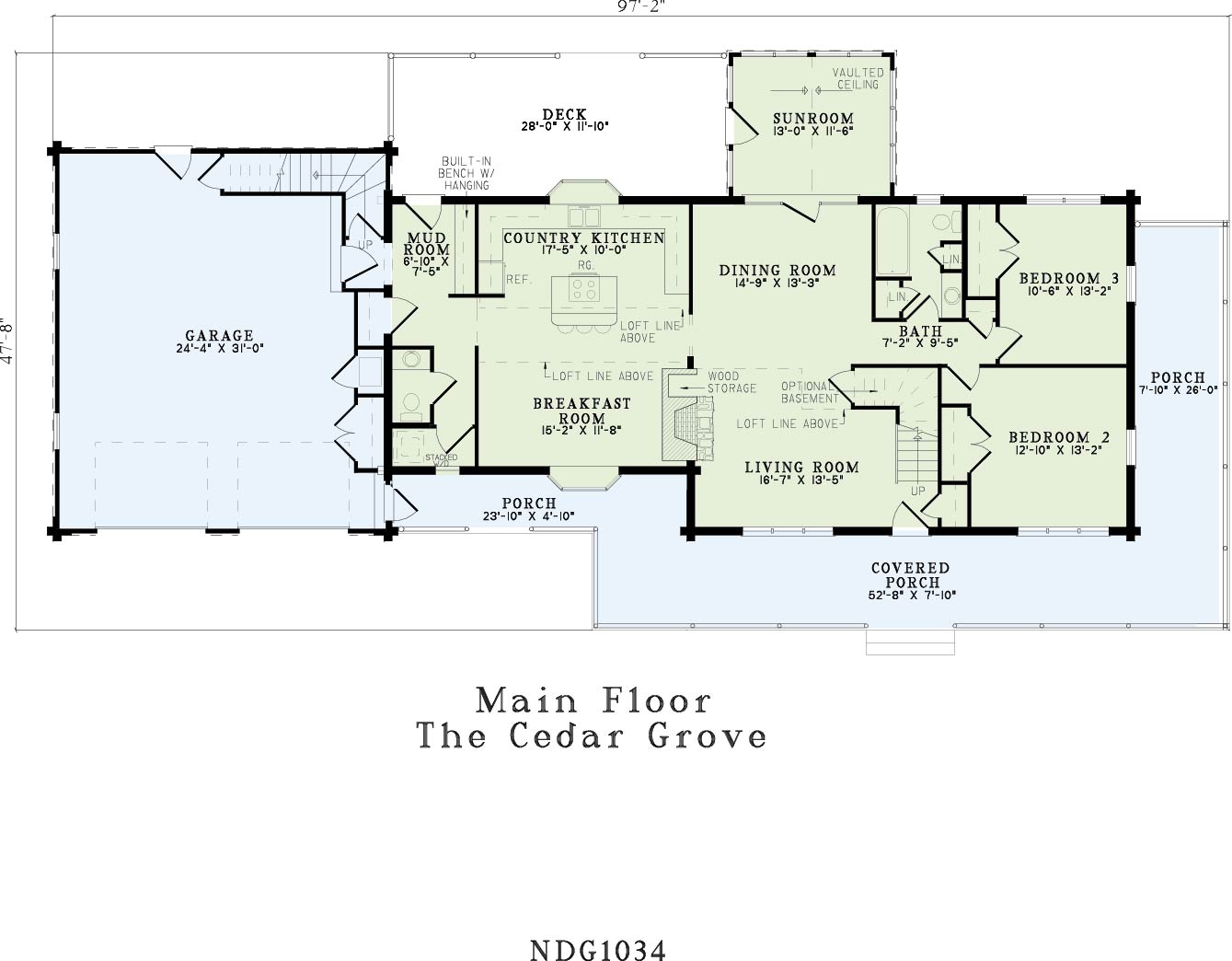

House Plan B1034 Main Floor

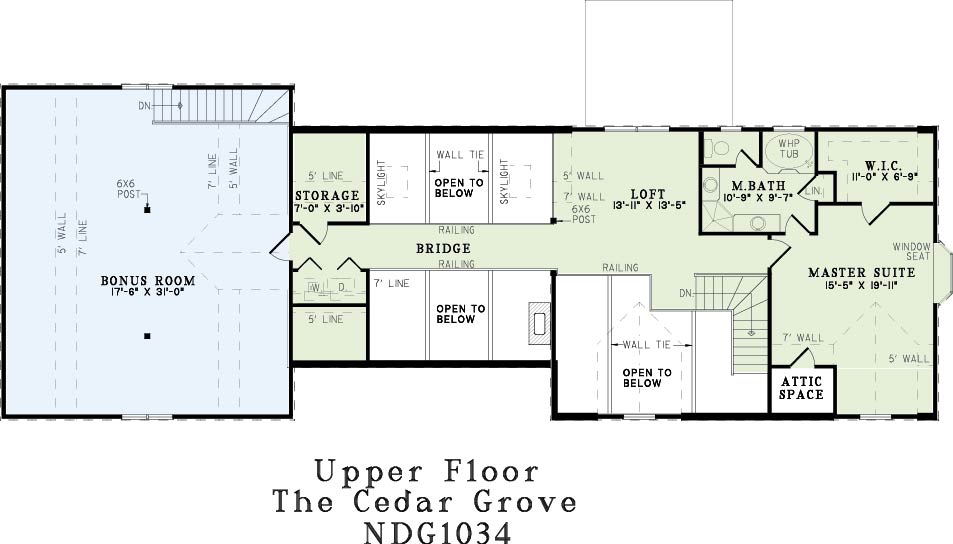

House Plan NDG B1034 Upper Floor
House Plan B1034 Main Floor
House Plan NDG B1034 Upper Floor

Floor plans

NDG B1034

House Plan B1034 The Cedar Grove, Barna Log House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG B1034
  • Total Living Space:3402Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 97
  • Width In.: 2
  • Depth Ft.: 47
  • Depth In.: 8


NDG B1034

A stunning addition to our Barna Log House Collection, The Cedar Grove showcases warm wood framing a classic front porch and windows throughout for welcoming curb appeal. Upon entry, you will find yourself in the spacious Living Room, where a stone fireplace featuring wood storage makes for great gathering. You are also able to see the Dining Room, and moving to the left will take you into the Country Kitchen, complete with wrap-around counterspace, a bay window above the sink which looks out onto the rear Deck, and an eat-at center island. A matching bay window is found in the adjoining Breakfast Room, where you can enjoy your morning coffee with a view of the front porch. Farther to the left is a Mudroom featuring a built-in bench with hanging storage, half bath, small laundry room, and entry to the 2-car garage. During fair weather, step out onto the rear Deck to catch some rays, or lounge in the Sunroom with a vaulted ceiling for tons of natural lighting while cozying up with a book!

On the right side of The Cedar Grove, you will find Bedrooms 2 and 3, each with views of the wrap-around porch and sizeable closets. Bedroom 2 is larger in size, and a hall bath lies adjacent to Bedroom 3. Upstairs, you will first find yourself in a spacious Loft open to the Living Room below. To the right, retire to your luxurious Master Suite! The huge master bedroom houses an attic space closet in addition to the walk-in closet, as well as a cozy window seat beside a bay window. Relax the day away in your private Master Bath, complete with his and her vanities, a corner shower, and whirlpool tub. The left of the upper level takes you down a Bridge overlooking the Kitchen and Breakfast Room below, past a pair of skylights over the Kitchen, a Storage closet, and additional laundry room before you find yourself in a massive Bonus Room for even more gathering! How would you customize this amazing house plan?

NOTE: Barna plans are intended for log exterior walls. Converting these to 2X6 exterior walls requires modification and will be subject to additional modification cost. Contact one of our home plan specialists today to discuss modification requirements by emailing or calling 870-931-5777

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experienced house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:3402Sq.Ft.
  • Main Floor: 1848 Sq.Ft
  • Upper Floor (Sq.Ft.): 1554 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1062 Sq.Ft.
  • Garage (Sq.Ft.): 803 Sq.Ft.
  • Total Square Feet: 5267 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
