House Plan B1049 The Savannah, Barna Log House Plan

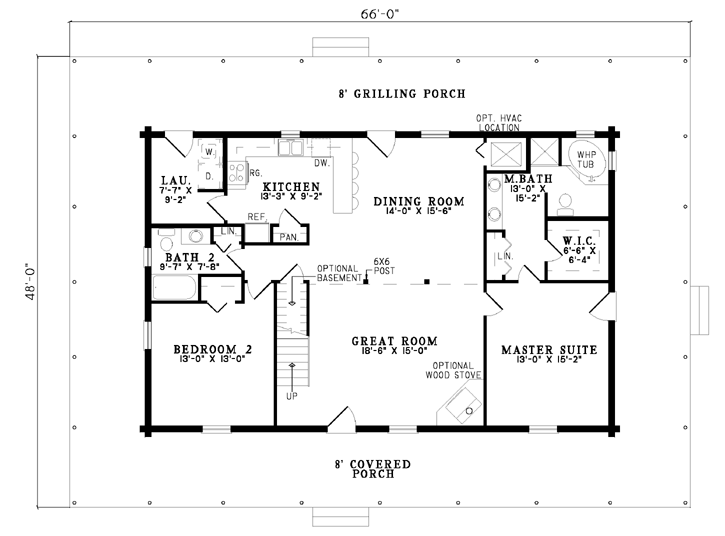

House Plan NDG B1049 Main Floor

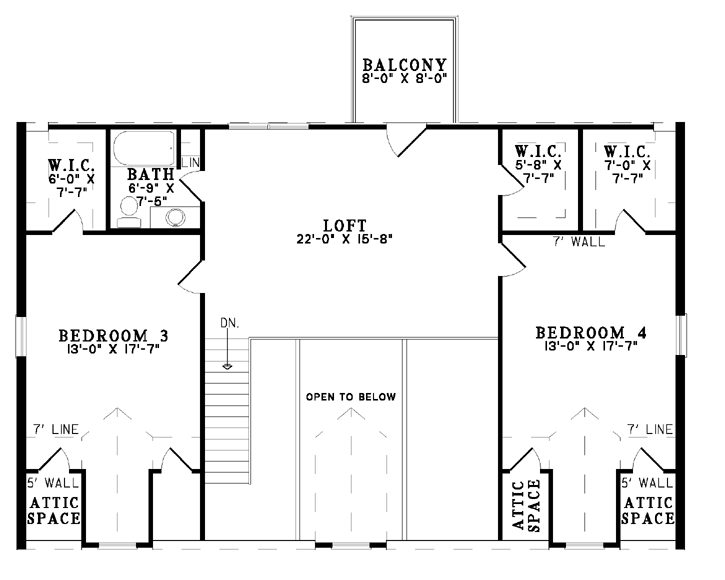

House Plan NDG B1049 Upper Floor
House Plan NDG B1049 Main Floor
House Plan NDG B1049 Upper Floor

Floor plans

NDG B1049

House Plan B1049 The Savannah, Barna Log House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG B1049
  • Total Living Space:2741Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 66
  • Width In.: N/A
  • Depth Ft.: 48
  • Depth In.: N/A

Description

Specifications

  • Total Living Space:2741Sq.Ft.
  • Main Floor: 1600 Sq.Ft
  • Upper Floor (Sq.Ft.): 1141 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1568 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 4309 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
