House Plan B1062 The Twin Cover, Barna Log House Plan

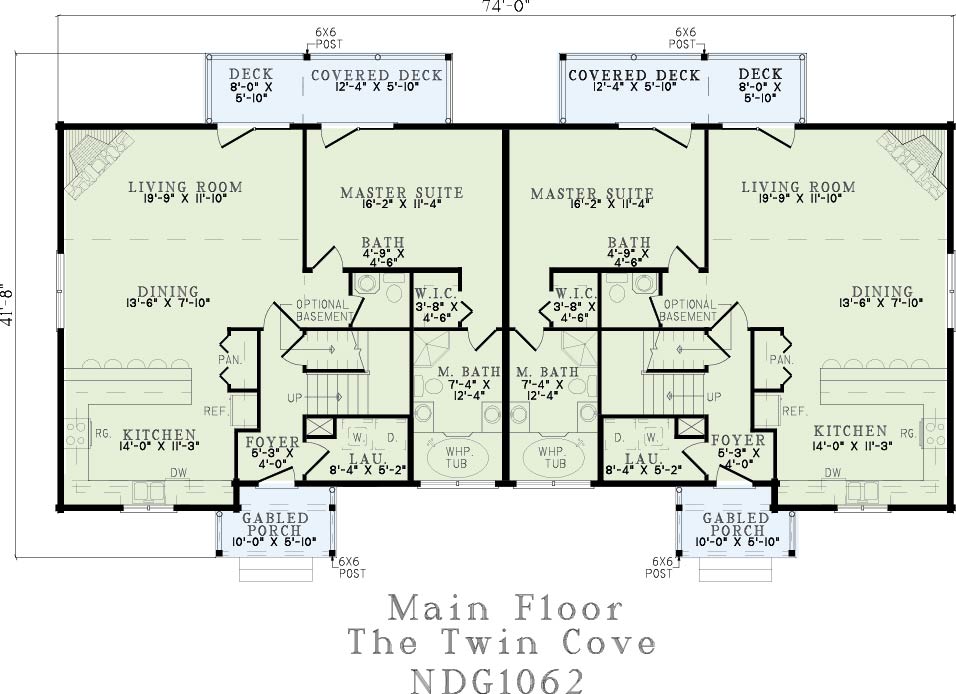

House Plan NDG B1062 Main Floor

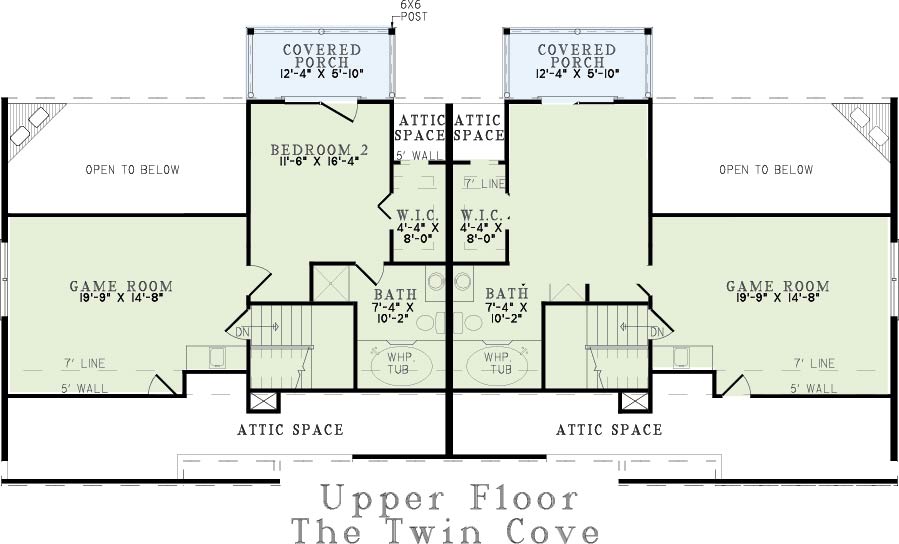

House Plan NDG B1062 Upper Floor
House Plan NDG B1062 Main Floor
House Plan NDG B1062 Upper Floor

Floor plans

NDG B1062

House Plan B1062 The Twin Cover, Barna Log House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG B1062
  • Total Living Space:1830Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2.5
  • Width Ft.: 74
  • Width In.: N/A
  • Depth Ft.: 41
  • Depth In.: 8

Description

Specifications

  • Total Living Space:1830Sq.Ft.
  • Main Floor: 1140 Sq.Ft
  • Upper Floor (Sq.Ft.): 690 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 241 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2071 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: N/A
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: N/A
  • Ridge Height (Ft.): N/A
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
