House Plan 163 Emery Lane, Farmhouse House Plan

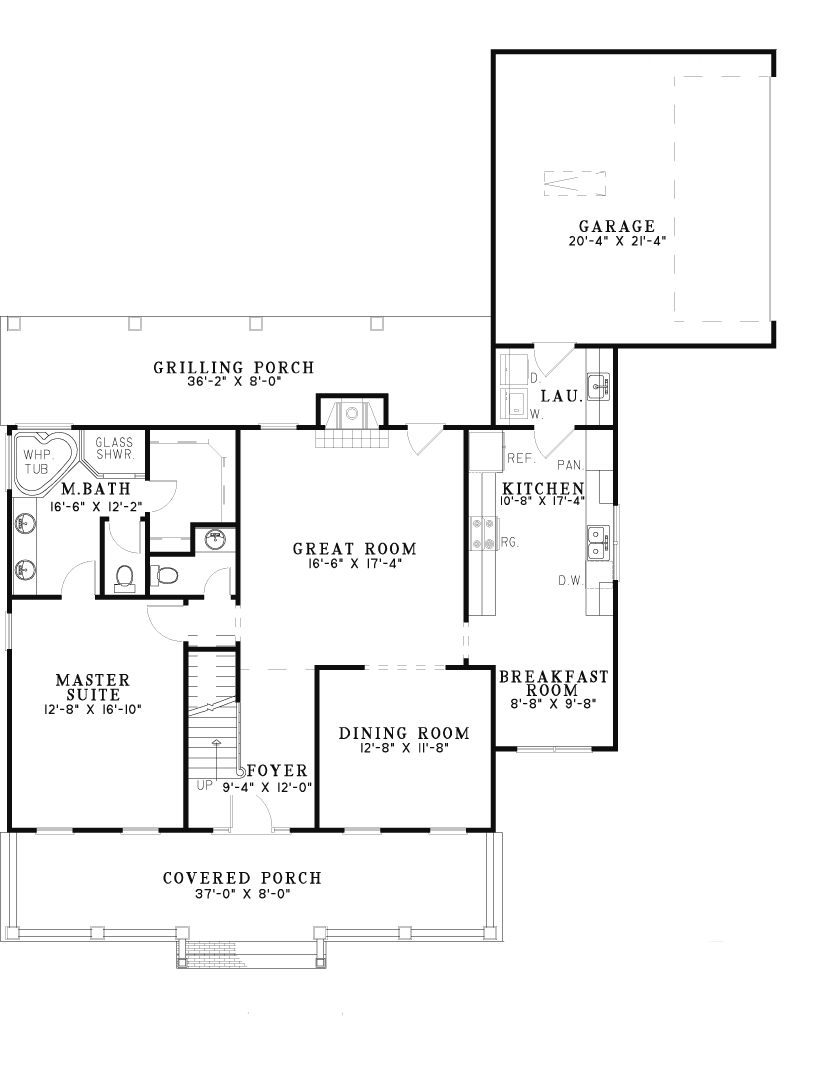

House Plan NDG 163 Main Floor

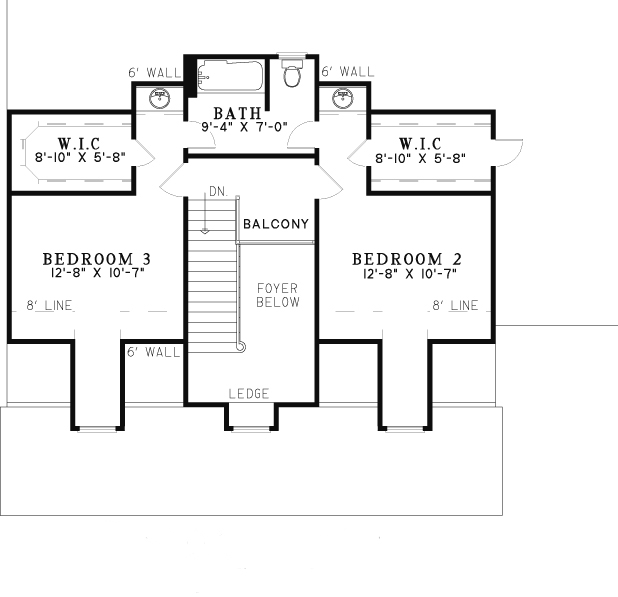

House Plan NDG 163 Upper Floor

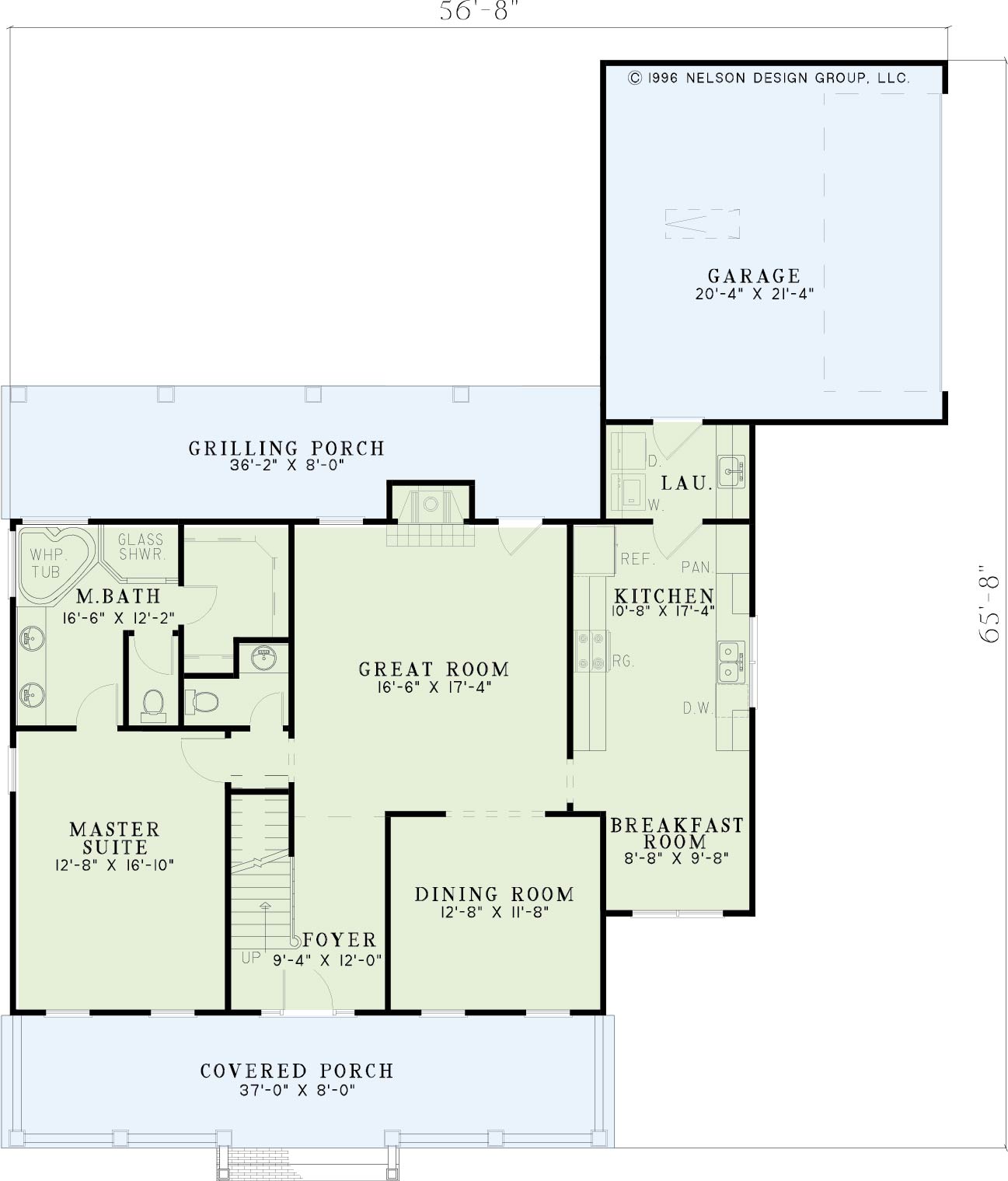

House Plan NDG 163 Main Floor

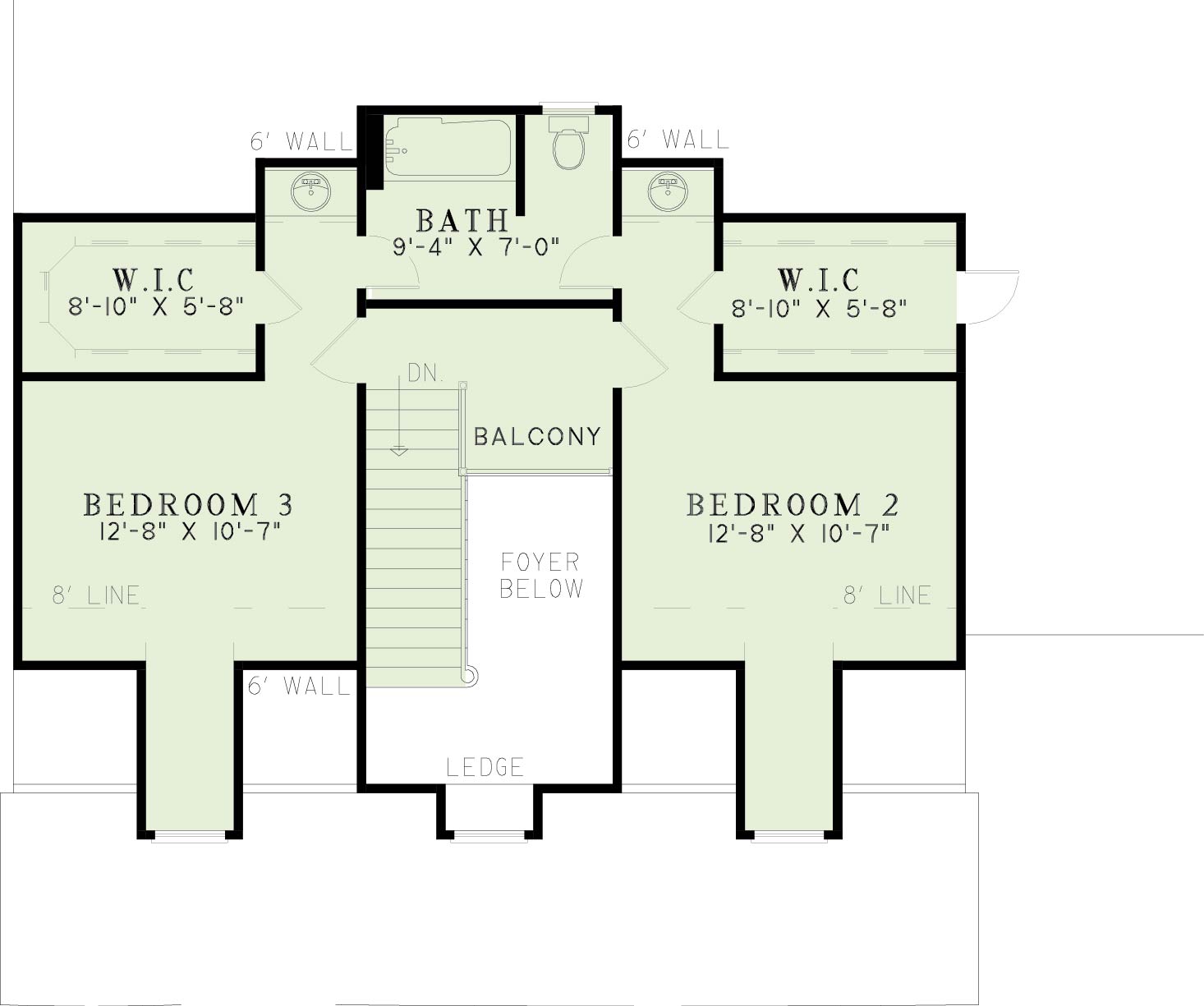

House Plan NDG 163 Upper Floor

Floor plans

NDG 163

House Plan 163 Emery Lane, Farmhouse House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 163
  • Total Living Space:2025Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 56
  • Width In.: 8
  • Depth Ft.: 65
  • Depth In.: 8


This home reflects true southern charm hosting both a front covered porch and large rear-grilling porch for the ultimate in family gatherings. Upon entering the foyer, stairs will lead you to an upstairs complete with two bedrooms each with large walk-in closets and private access to a shared bath. A luxurious Master Suite complete with a corner whirlpool tub, glass shower and large walk-in closet is located on the main floor for both convenience and privacy. A formal dining room gently accesses the kitchen and breakfast room for ease in entertaining.


  • Total Living Space:2025Sq.Ft.
  • Main Floor: 1352 Sq.Ft
  • Upper Floor (Sq.Ft.): 673 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 585 Sq.Ft.
  • Garage (Sq.Ft.): 454 Sq.Ft.
  • Total Square Feet: 3064 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 12:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
