Floor Plan #1
Description

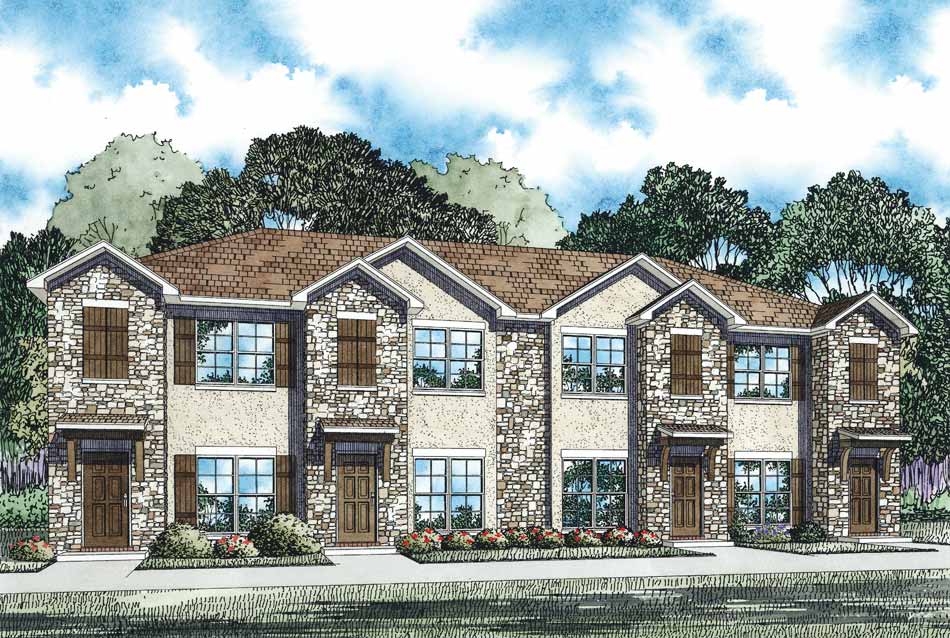

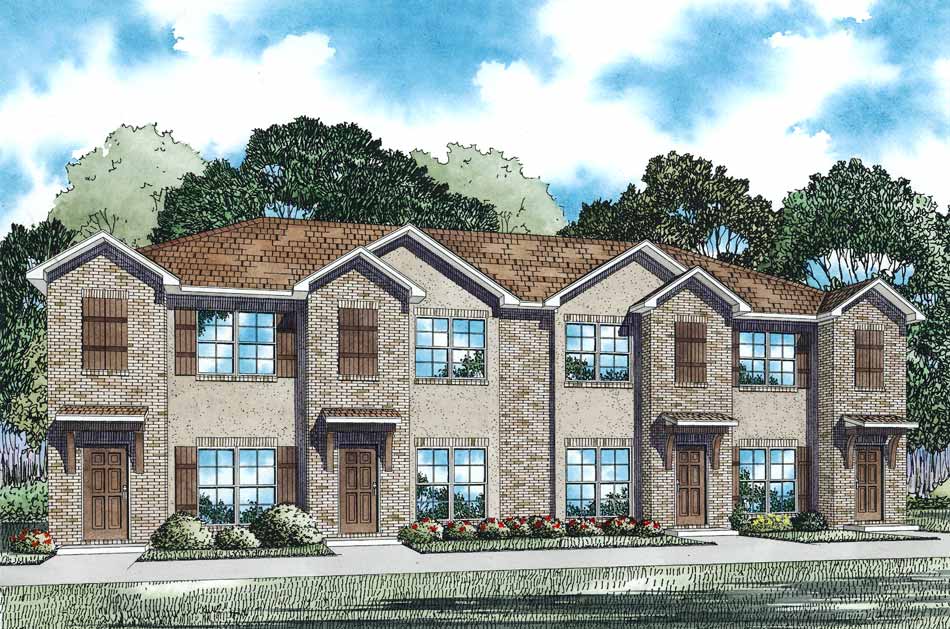

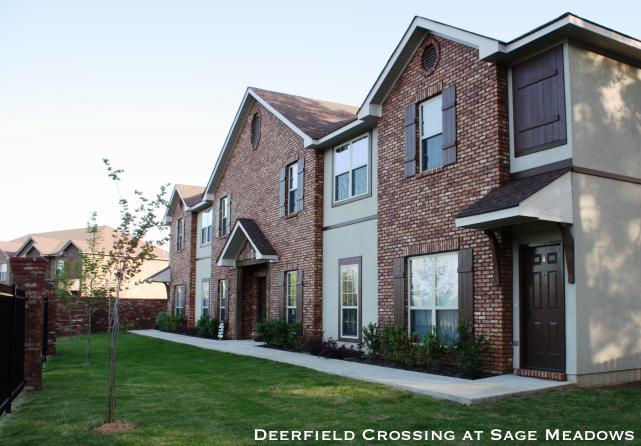

Discover a Smart Multi‑Family House Plan: Quarters NDG 1357
Quarters (NDG 1357) is a well‑designed, efficient multi‑family house plan that offers compact living units within a larger building — ideal for rental investment, shared housing, or property development. This plan delivers a practical layout, modest square footage per unit, and flexibility for smaller households or tenants.
Highlights of the Quarters House Plan
- Single‑unit living space of approximately 1,053 square feet
- Each unit includes 2 bedrooms and 2 full bathrooms — offering comfortable private living space

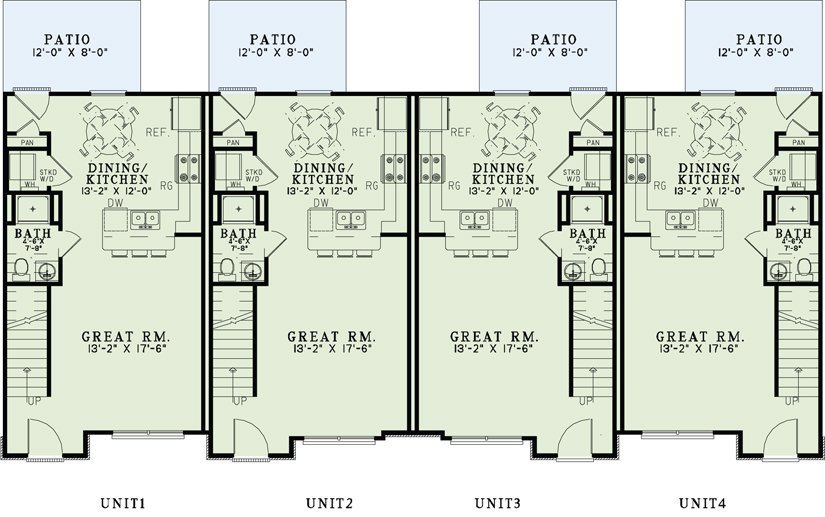

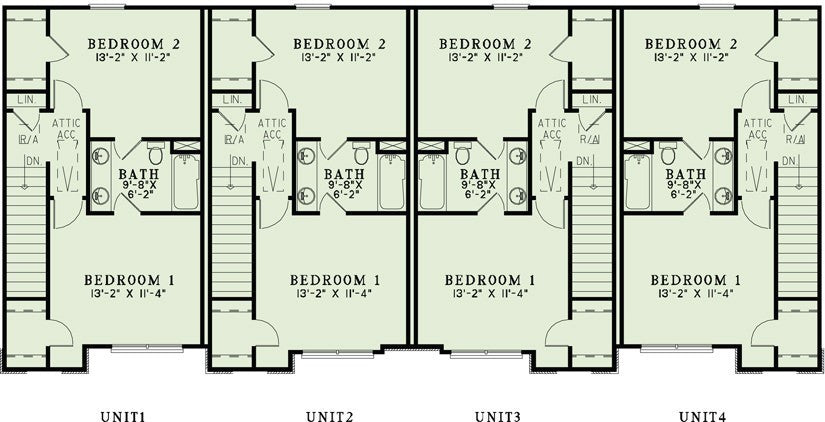

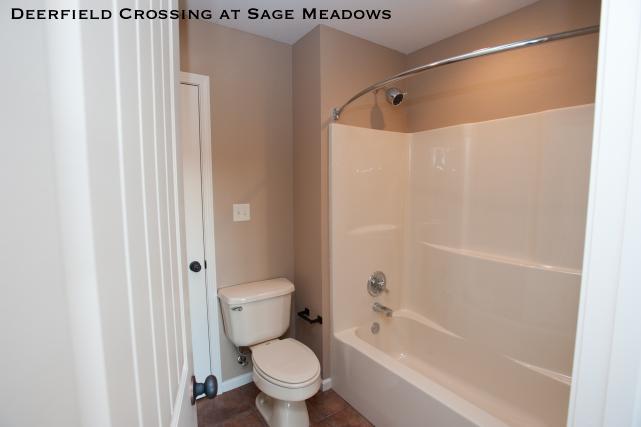

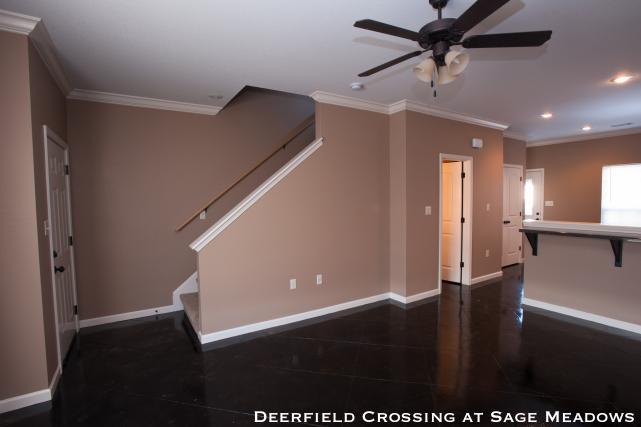

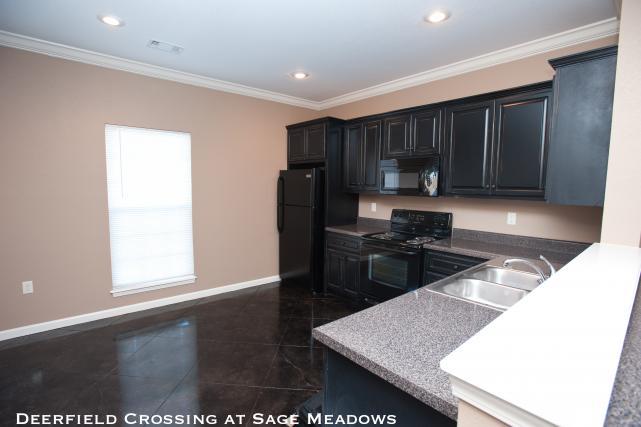

- Two‑story layout: first floor includes a Great Room and Kitchen with bar, plus a full bathroom; second floor includes 2 bedrooms and a second full bathroom
- Compact footprint with overall building width ~71 ft 8 in and depth ~32 ft — suitable for narrow or urban lots
- Open-concept first floor combining common areas for efficient use of space and ease of living
- No attached garage per unit — simplifies construction and reduces per‑unit cost
- Designed for shared housing or rental investment: the overall 4‑plex building generates approximately 4,212 total square feet when all units are combined (4 units × ~1,053 sq ft)
A Flexible Plan Designed for Investment, Rentals, or Multi‑Unit Living
Quarters is built to offer practical, affordable living without sacrificing essential features. Each unit’s two‑bedroom, two‑bathroom layout provides privacy and comfort, while the open-concept main floor suits everyday living or rental appeal. Because the plan is compact and efficient, it’s ideal for investors looking to develop rental units, homeowners seeking multi‑family accommodations, or property owners wanting a versatile building that maximizes lot usage.
This plan stands out among multi‑unit house plans for its balance of efficient design, modest size per unit, and potential for steady rental income — making Quarters a solid choice for real estate investors or anyone needing multiple compact housing units in a single structure.
Entire quadplex H/C Main Level SQ.FT is 2,192 Entire quadplex H/C Upper Level SQ.FT is 2,020 Total SQ.FT is 4,212
Home Specifications
- Total Living Space: 1053
- Ridge Height (Ft.) 29
- Main Floor (Sq. Ft.): 548 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): 505 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): N/A
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): N/A
- Garage: No
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:N/A N/A
- Bedrooms: 2
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 7:12
- Porch Roof Pitch: N/A
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 32
- Width (Ft): 71
- Depth (In.) N/A
- Width (In.) 8
- Total Sq. Ft. 1053 Sq.Ft.
- Customizable: Yes
Key Features
- Decks Patios Balconies
- Great Room
- Jack & Jill Bathroom
- No Formal Dining
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Walk-in Closet
