Floor Plans
Floor Plan #1
Description

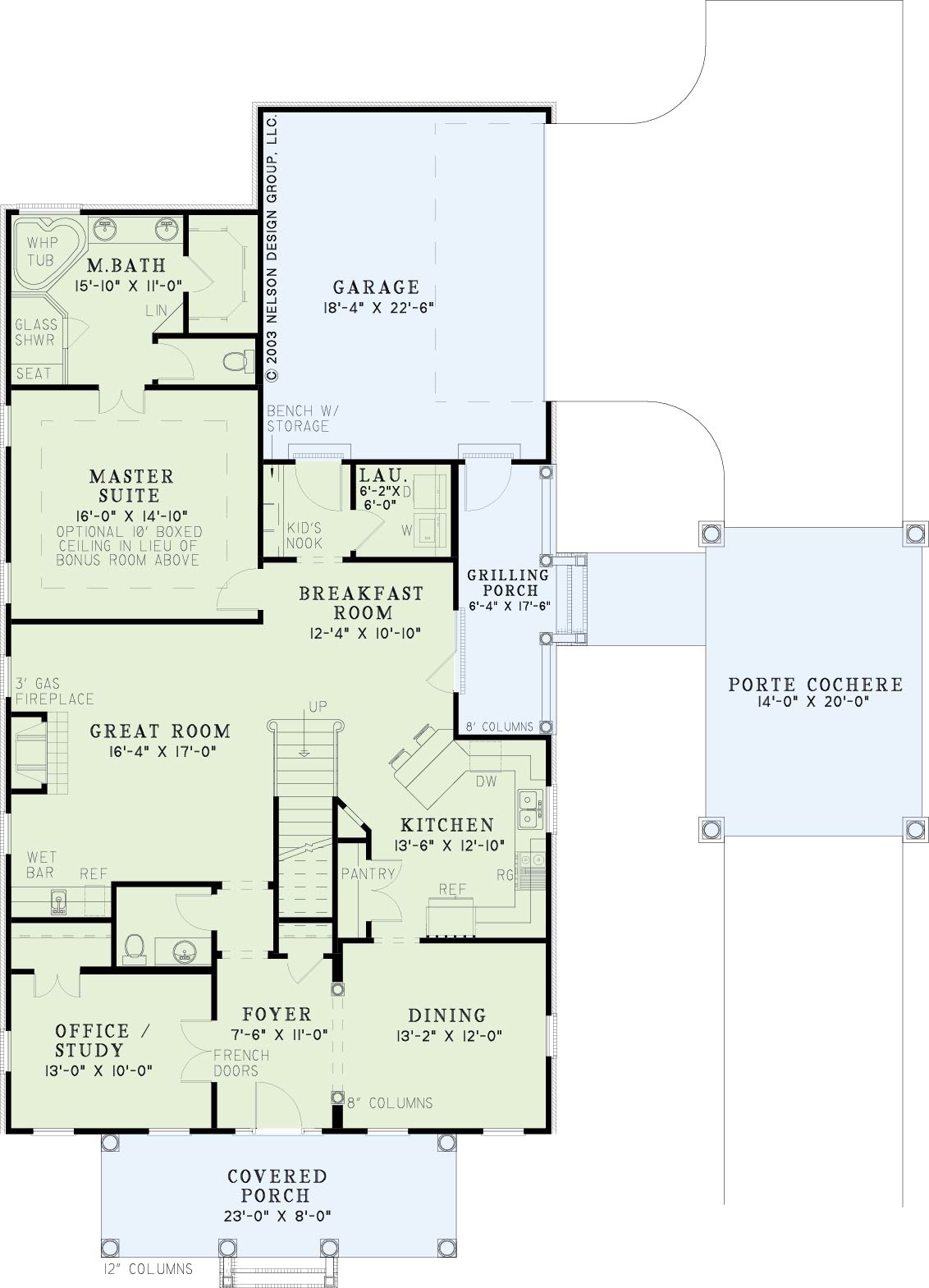

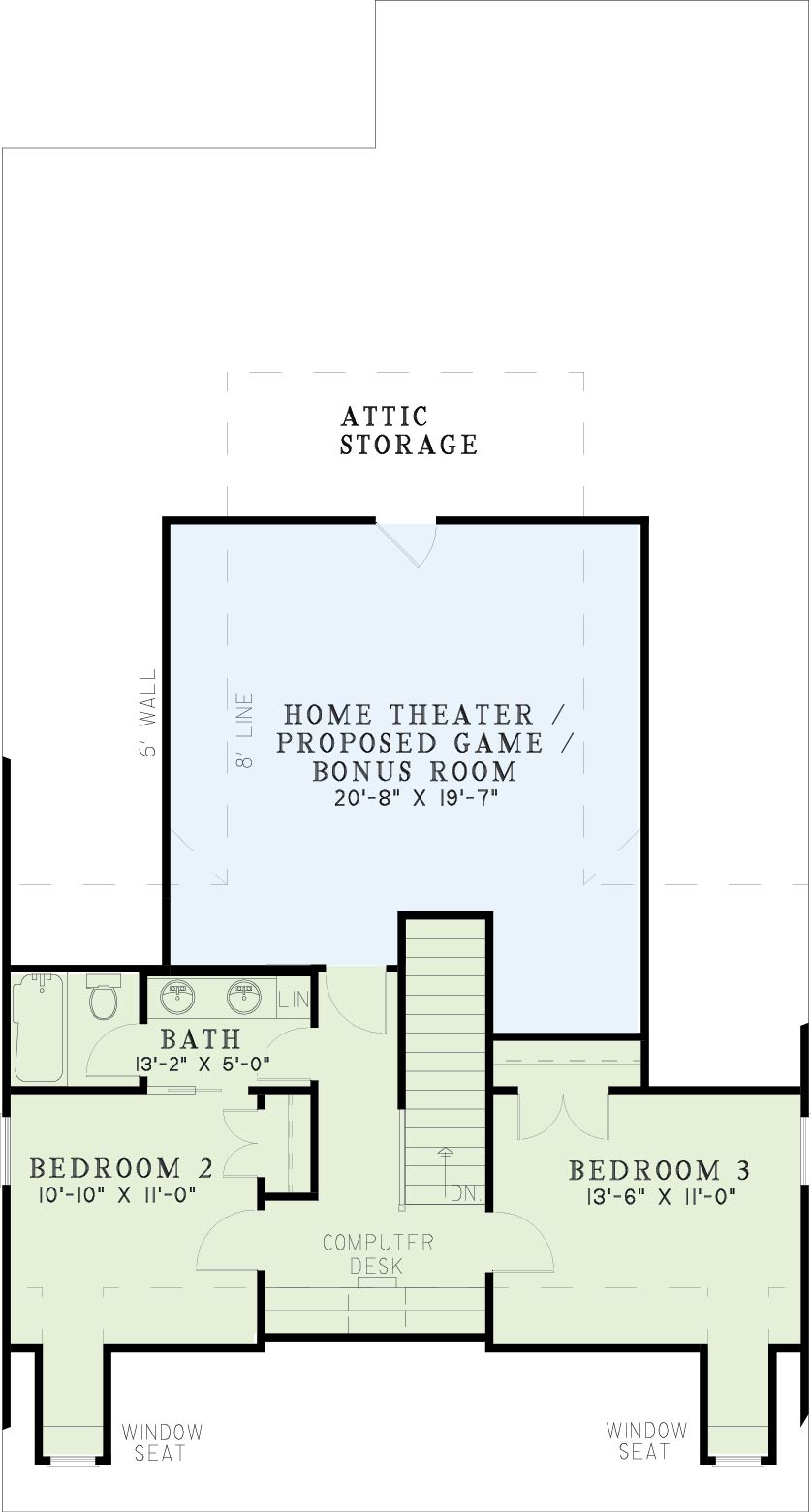

Your family deserves a home theatre; finance it! Nelson Design Group designed this plan with the family in mind. The main level has a large breakfast room which opens into the great room with cozy fireplace and wet bar while the kitchen has a large pantry and adjoining formal dining room. Opposite the dining room is a study with French doors and a nearby powder room. The master suite has the ultimate bathroom and is set apart from the two additional bedrooms located upstairs, near the fabulous proposed game room or better, complete home theatre.
Home Specifications
- Total Living Space: 2231
- Ridge Height (Ft.) 27
- Main Floor (Sq. Ft.): 1698 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): 533 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 349 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 714 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 394 Sq.Ft.
- Garage/Carport Type:Side Load and Porte-Cochere Side Load and Porte-Cochere
- Bedrooms: 3
- Carport: Yes
- Full Baths: 2
- Roof Pitch: 10:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 74
- Width (Ft): 59
- Depth (In.) 6
- Width (In.) 4
- Total Sq. Ft. 3688 Sq.Ft.
- Customizable: Yes
Key Features
- Bonus/Game and Media Room
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Home Theater
- Jack & Jill Bathroom
- Main Floor Master
- Mudroom
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Porte-Cochere
- Rear Alley Load
- Split Bedroom Design
- Walk-in Closet
Plan Collections
- Midtown Village House Plans Collection
Plan Styles
- Arts & Crafts House Plans
- Country Home House Plans
- Craftsman House Plans
- Luxury House Plans
- Southern House Plans
- Traditional House Plans
- Traditional Neighborhood Design (TND) House Plans
