Floor Plans
Floor Plan #1
Description

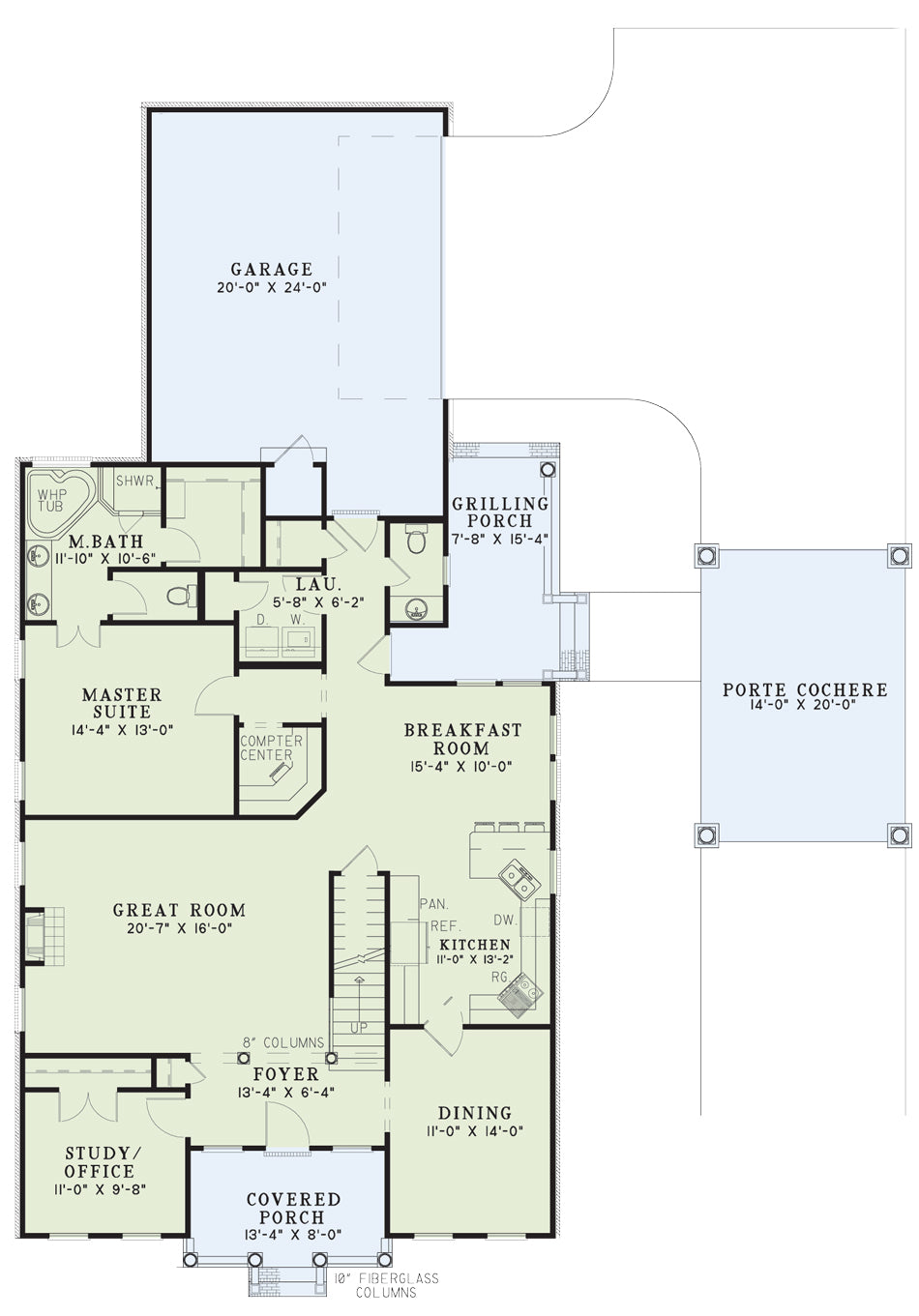

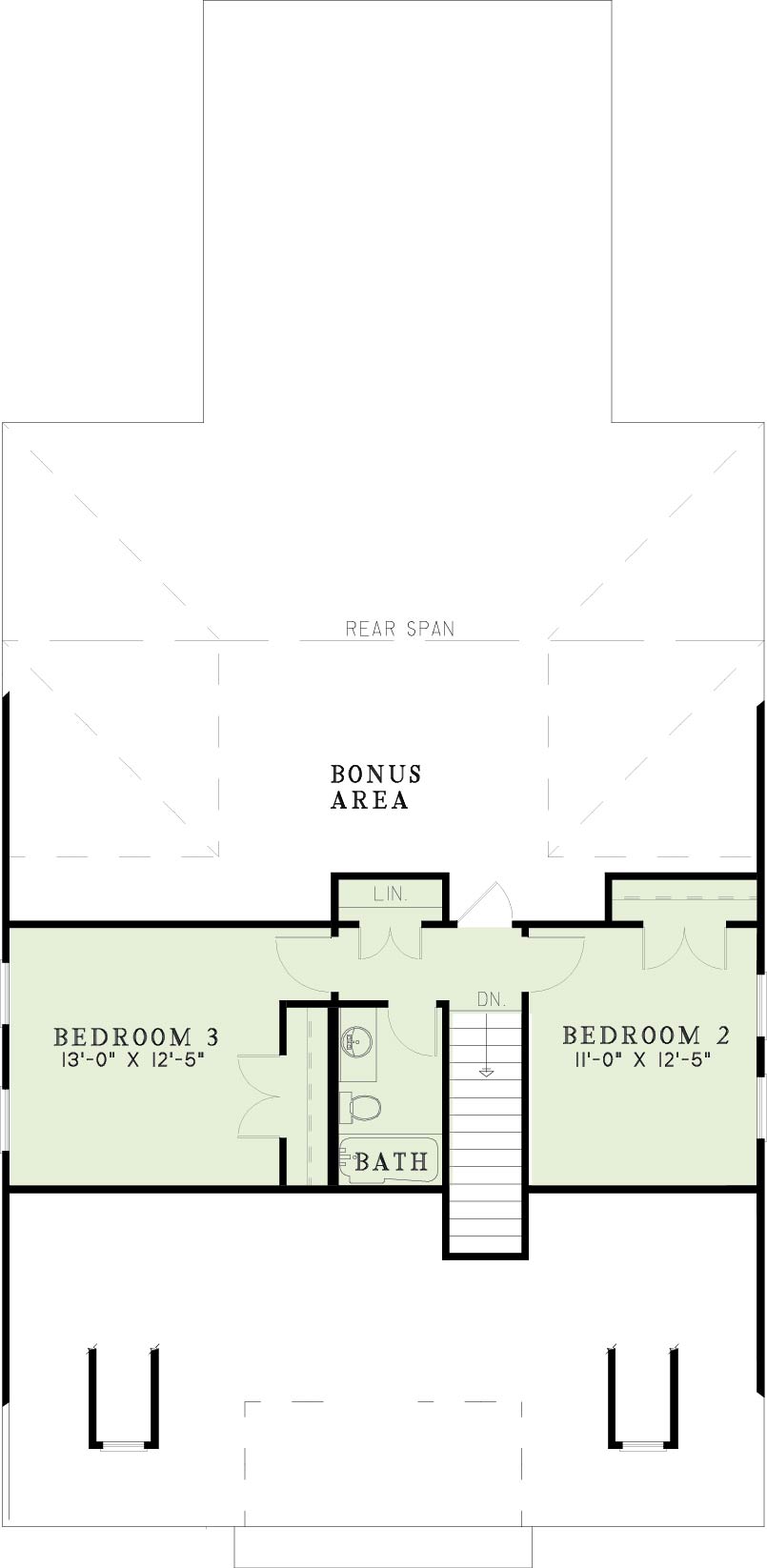

Family oriented describes this great home plan by Nelson Design Group. A quaint covered porch leads into the foyer, which divides a study/office from the formal dining room while a timeless swinging door gives access to the kitchen. For convenience, the master suit is placed on the main level and two additional bedrooms and a large bonus area are located above. A convenient porte cochere gives protection from the elements and leads to the rear-loading garage.
Home Specifications
- Total Living Space: 2140
- Ridge Height (Ft.) 28
- Main Floor (Sq. Ft.): 1690 Sq.Ft
- Ridge Height (In.) 0
- Upper Floor (Sq. Ft.): 450 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 296 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 808 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Side Load and Porte-Cochere Side Load and Porte-Cochere
- Bedrooms: 3
- Carport: Yes
- Full Baths: 2
- Roof Pitch: 10:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 79
- Width (Ft): 60
- Depth (In.) 6
- Width (In.) 8
- Total Sq. Ft. 3244 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Main Floor Master
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Porte-Cochere
- Rear Alley Load
- Sitting Area
- Split Bedroom Design
- Walk-in Closet
