Floor Plans
Floor Plan #1
Description

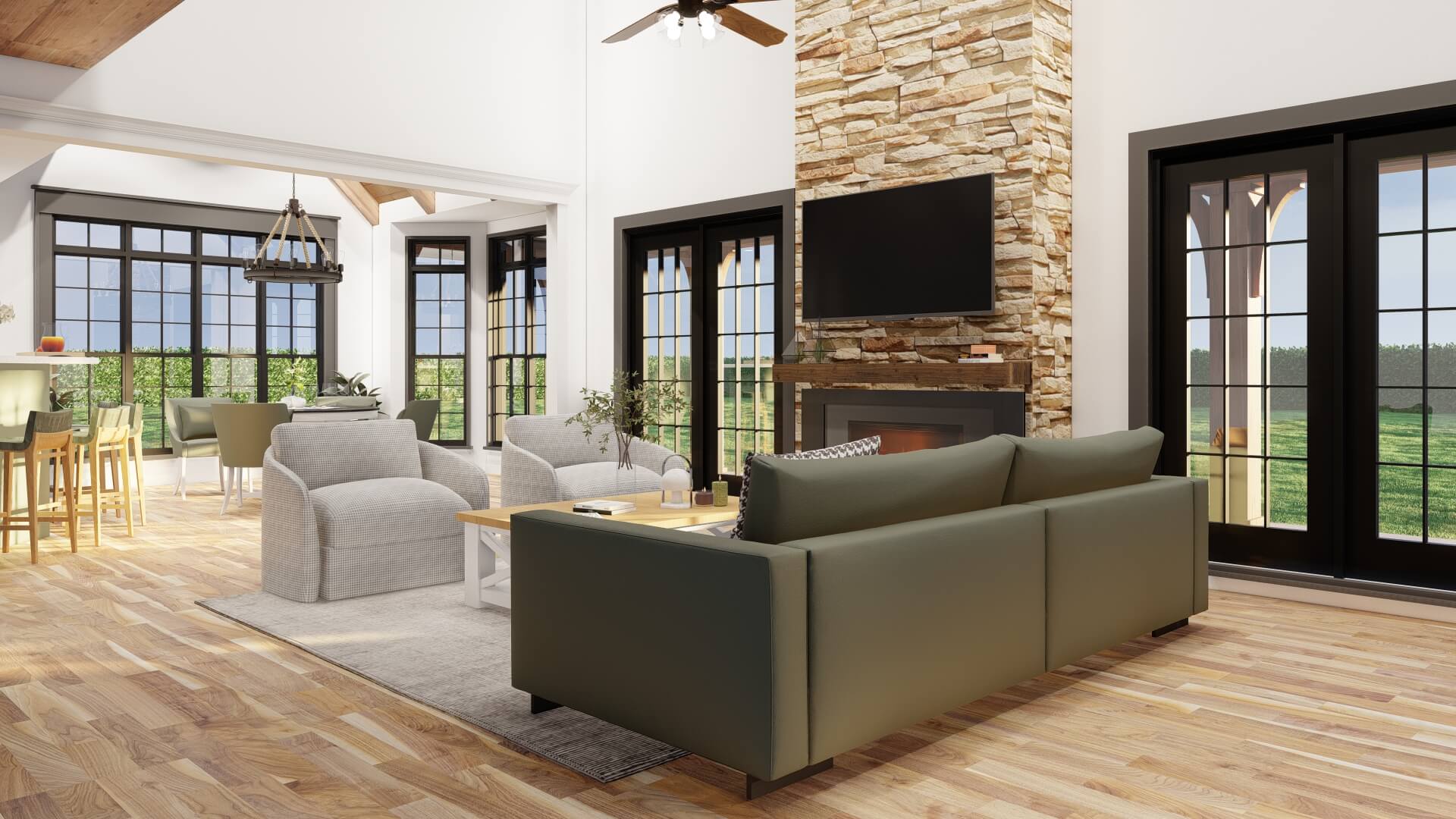

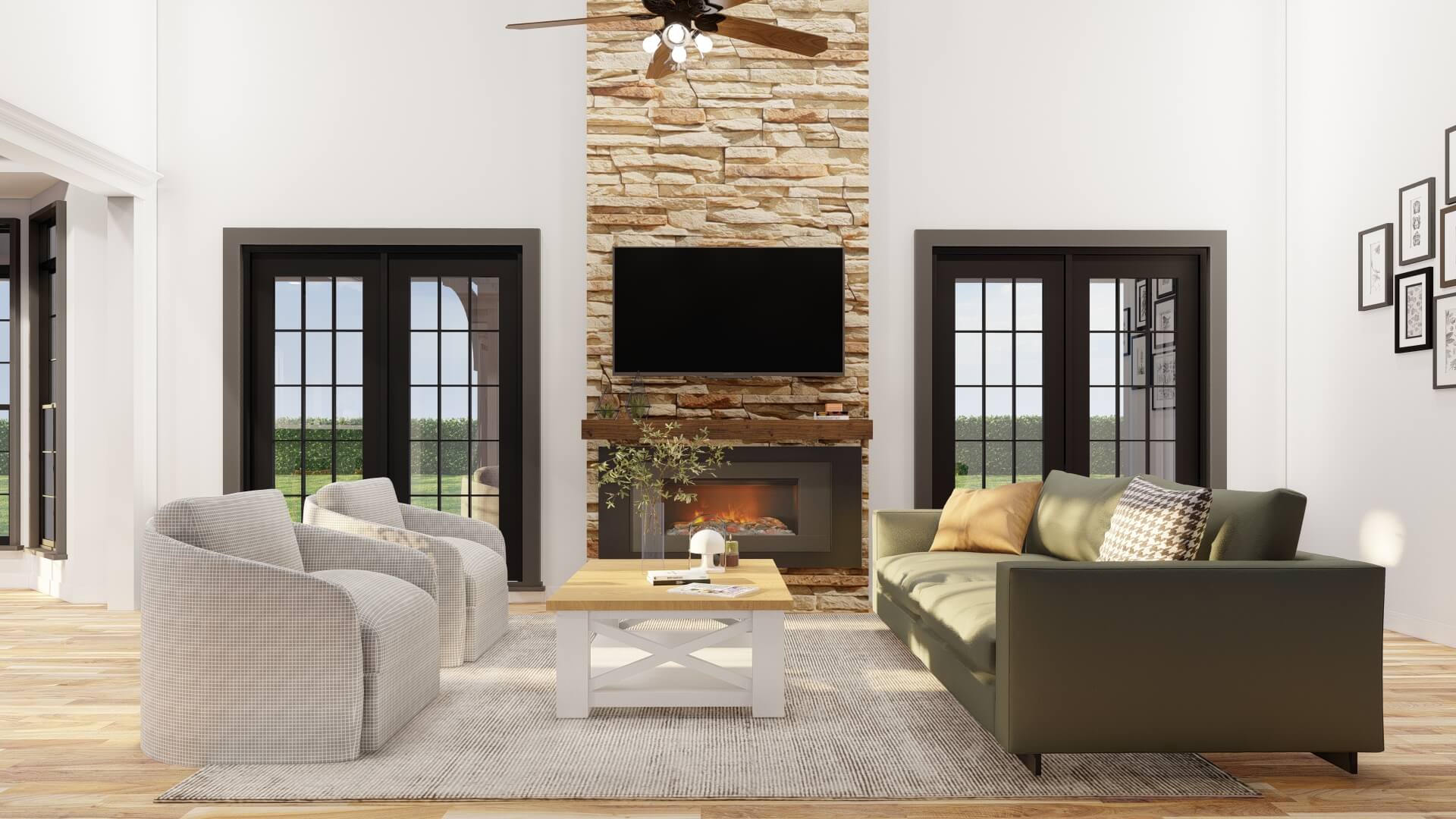

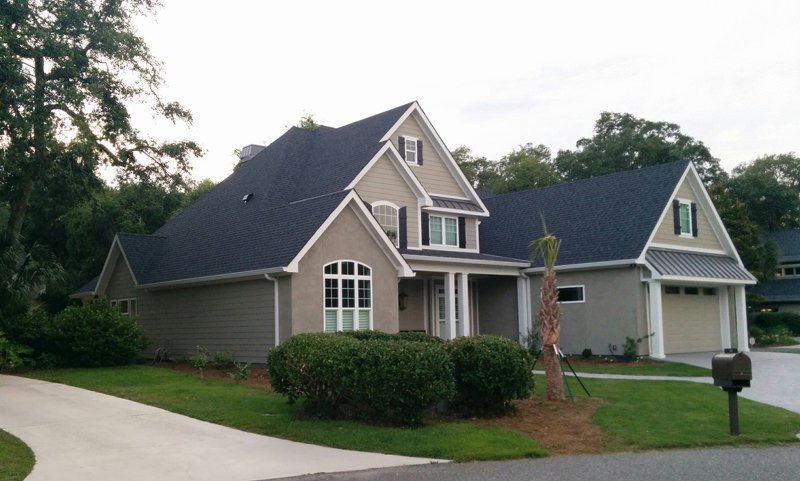

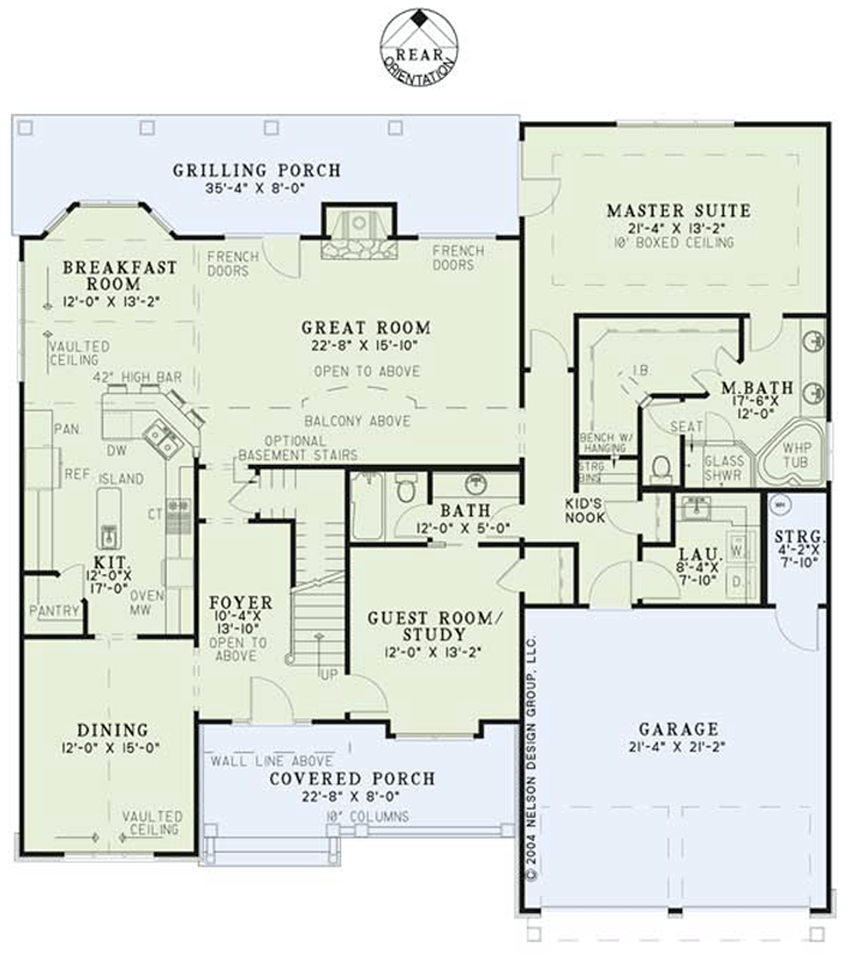

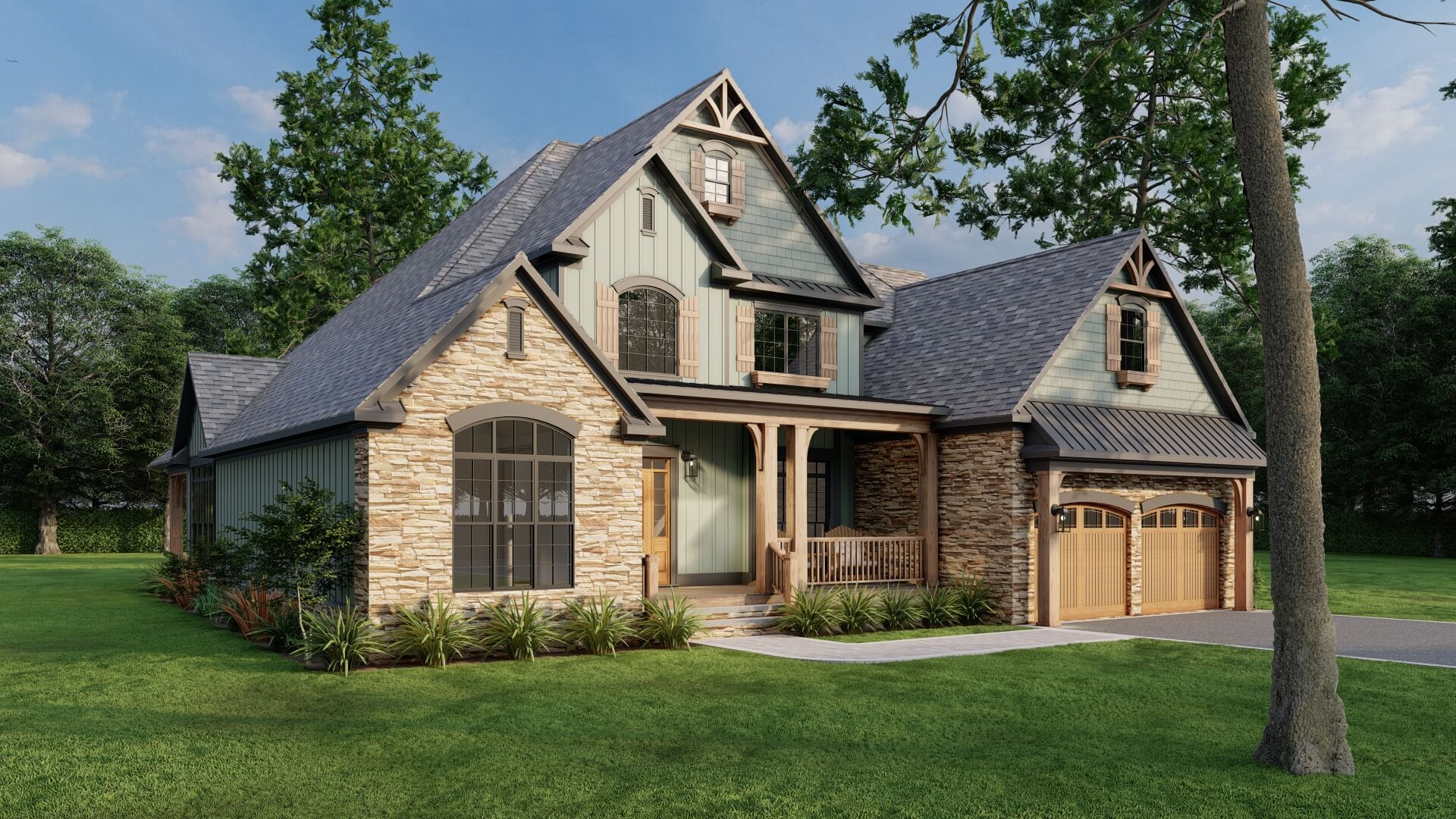

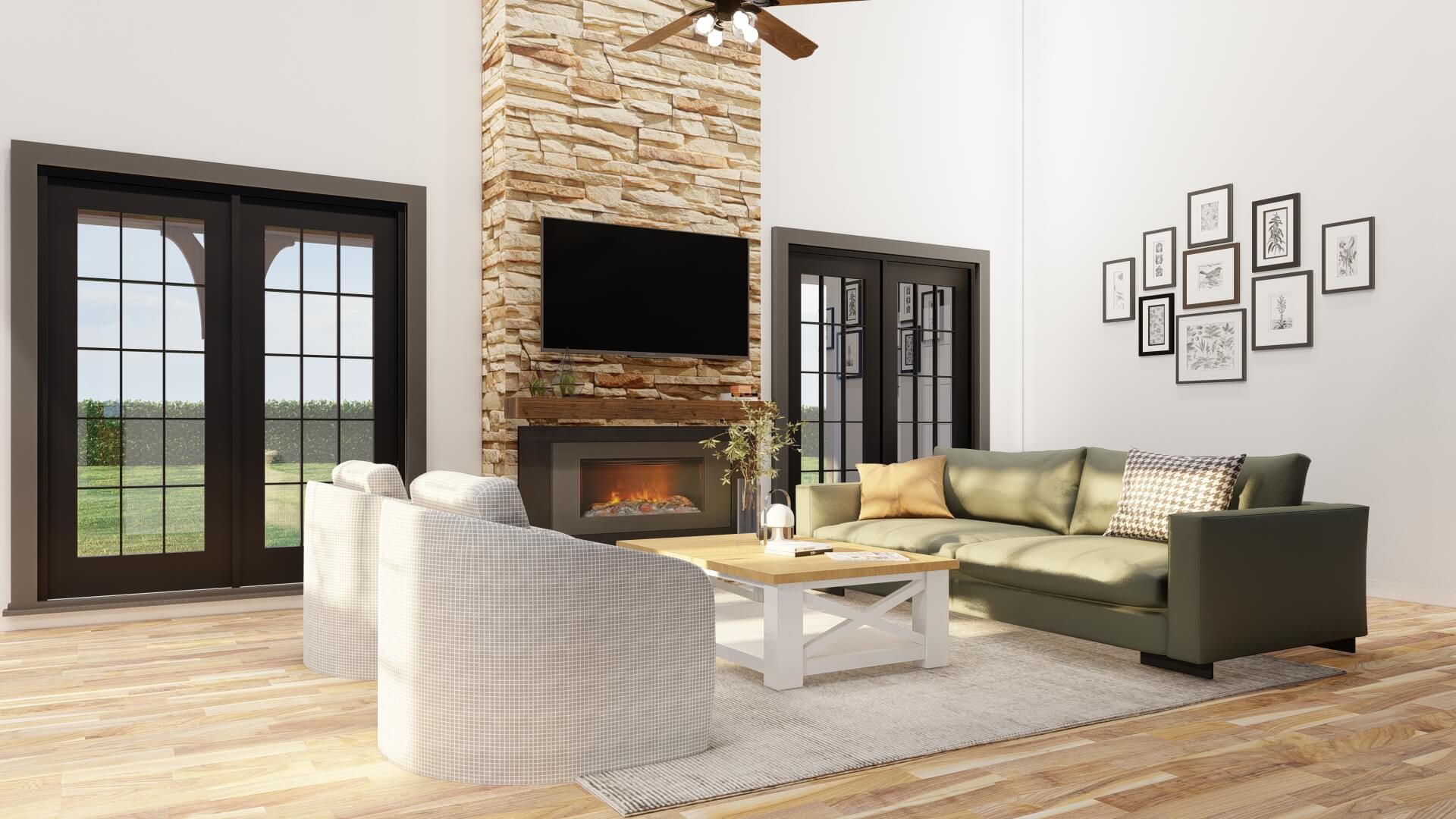

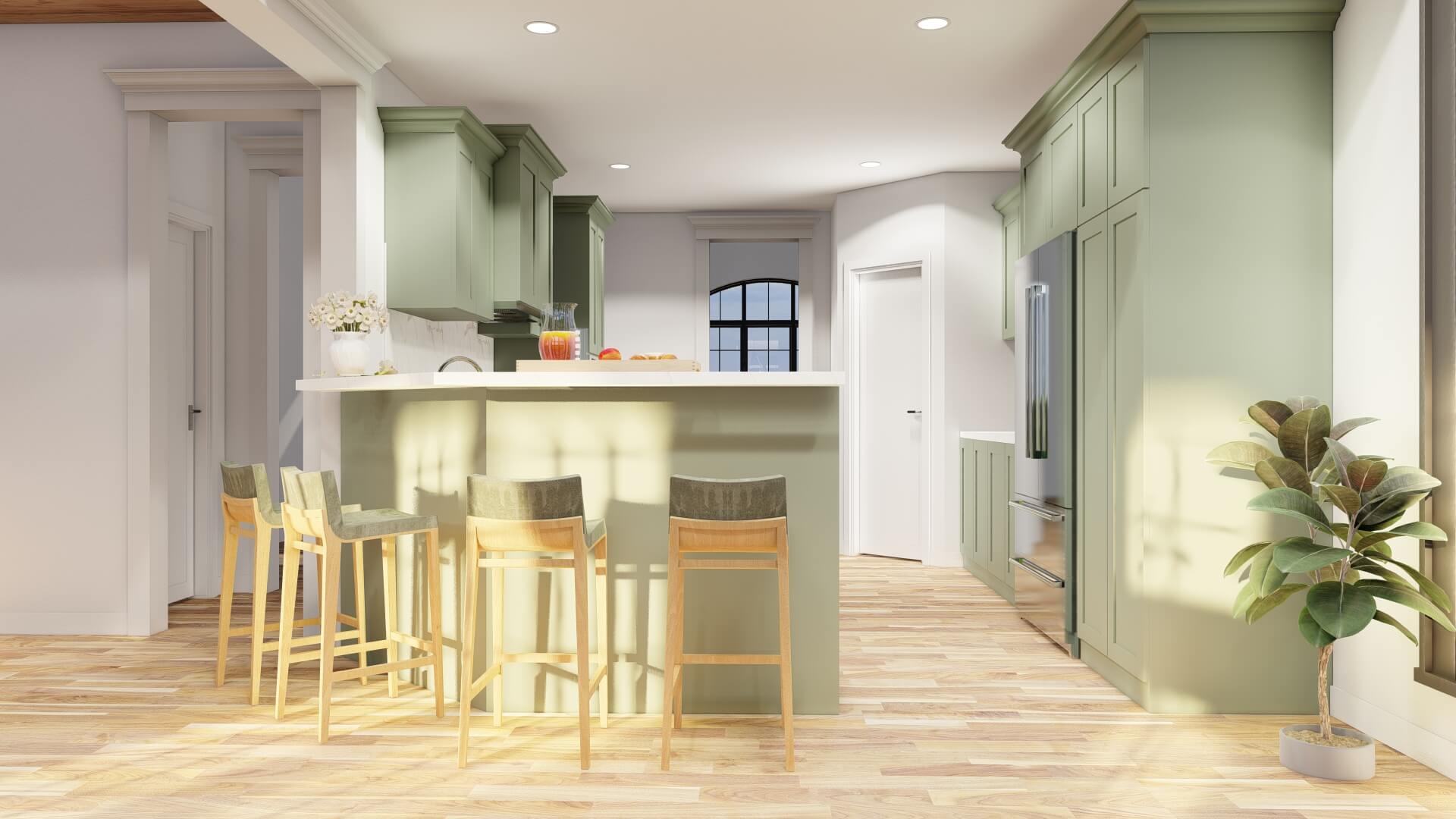

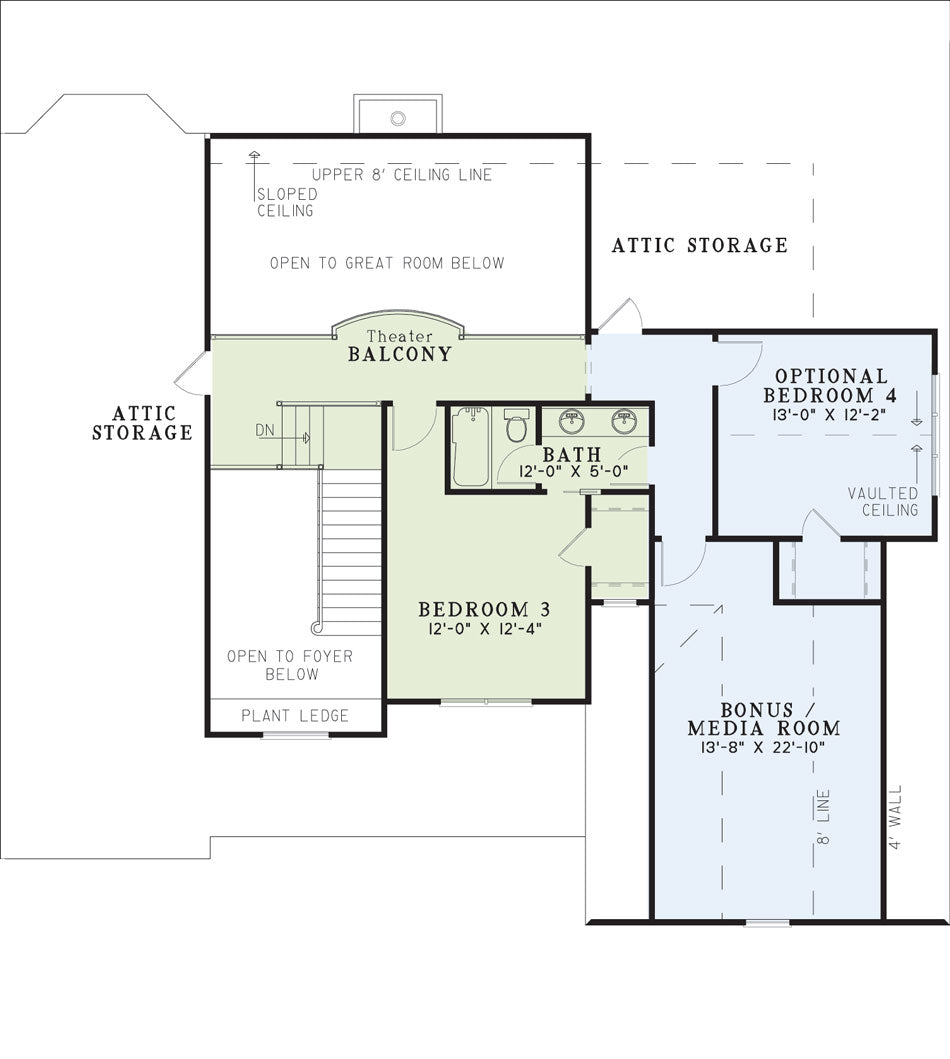

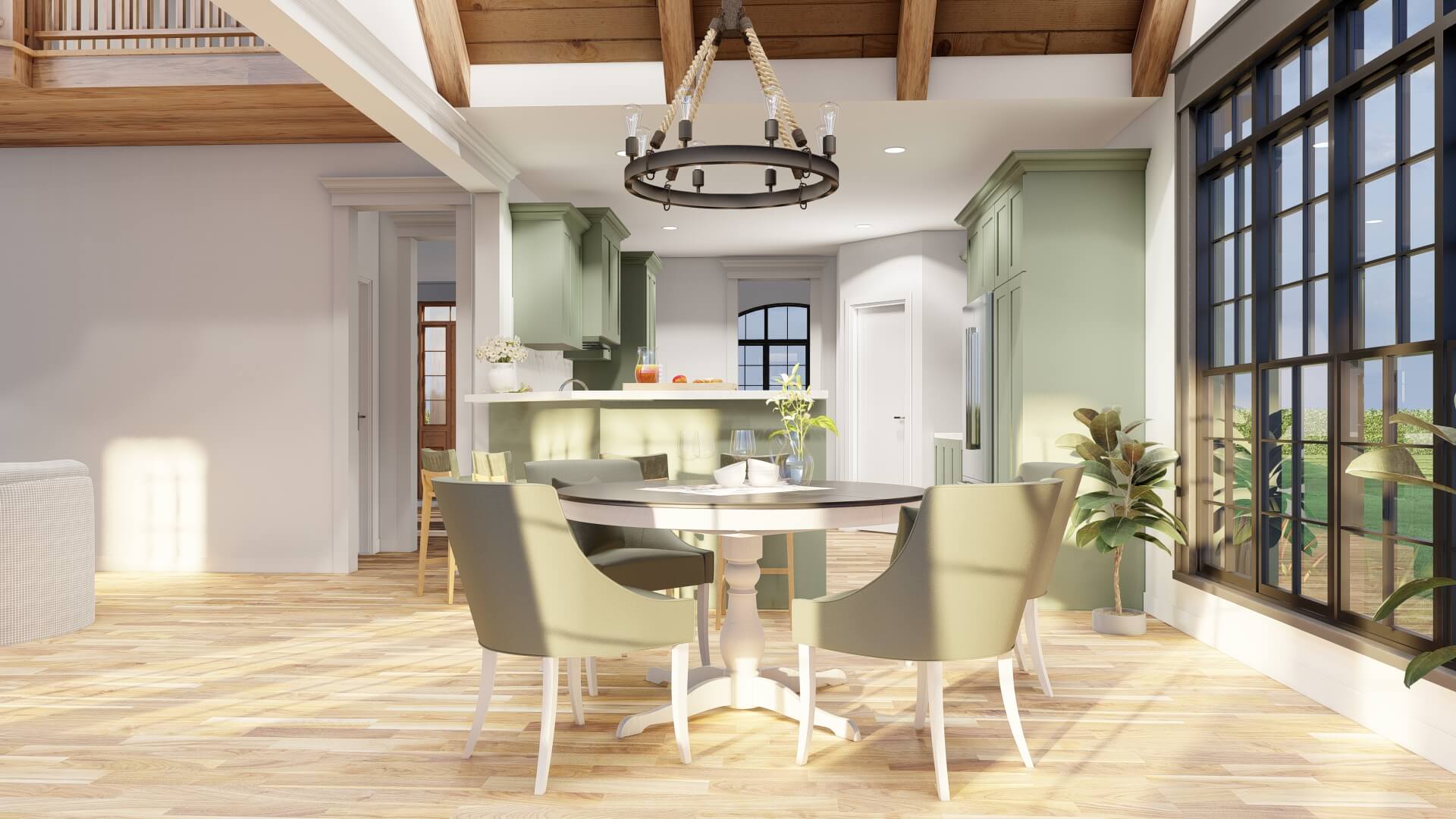

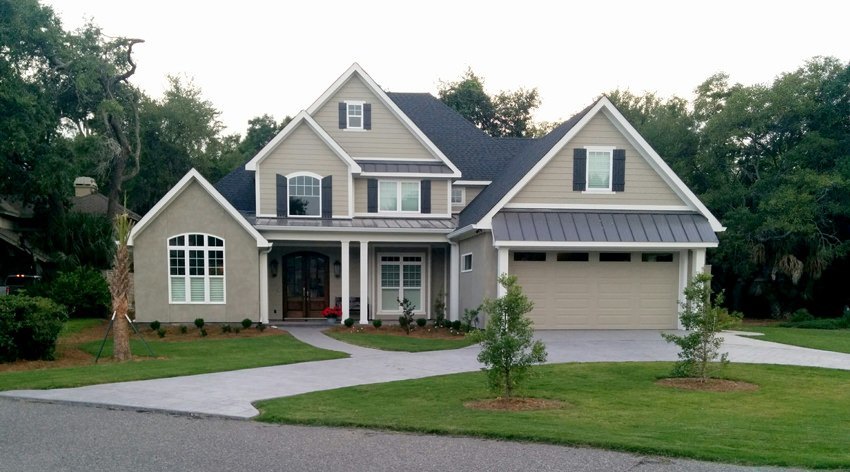

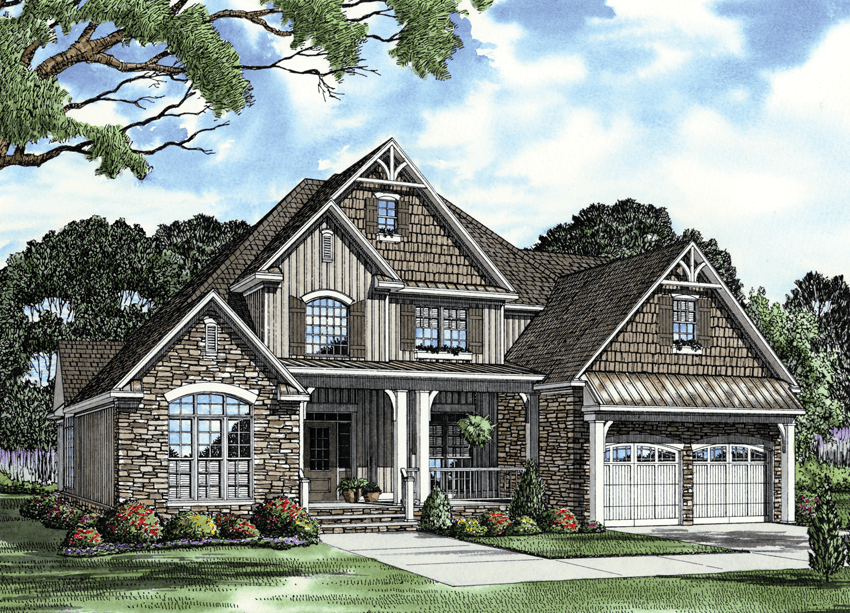

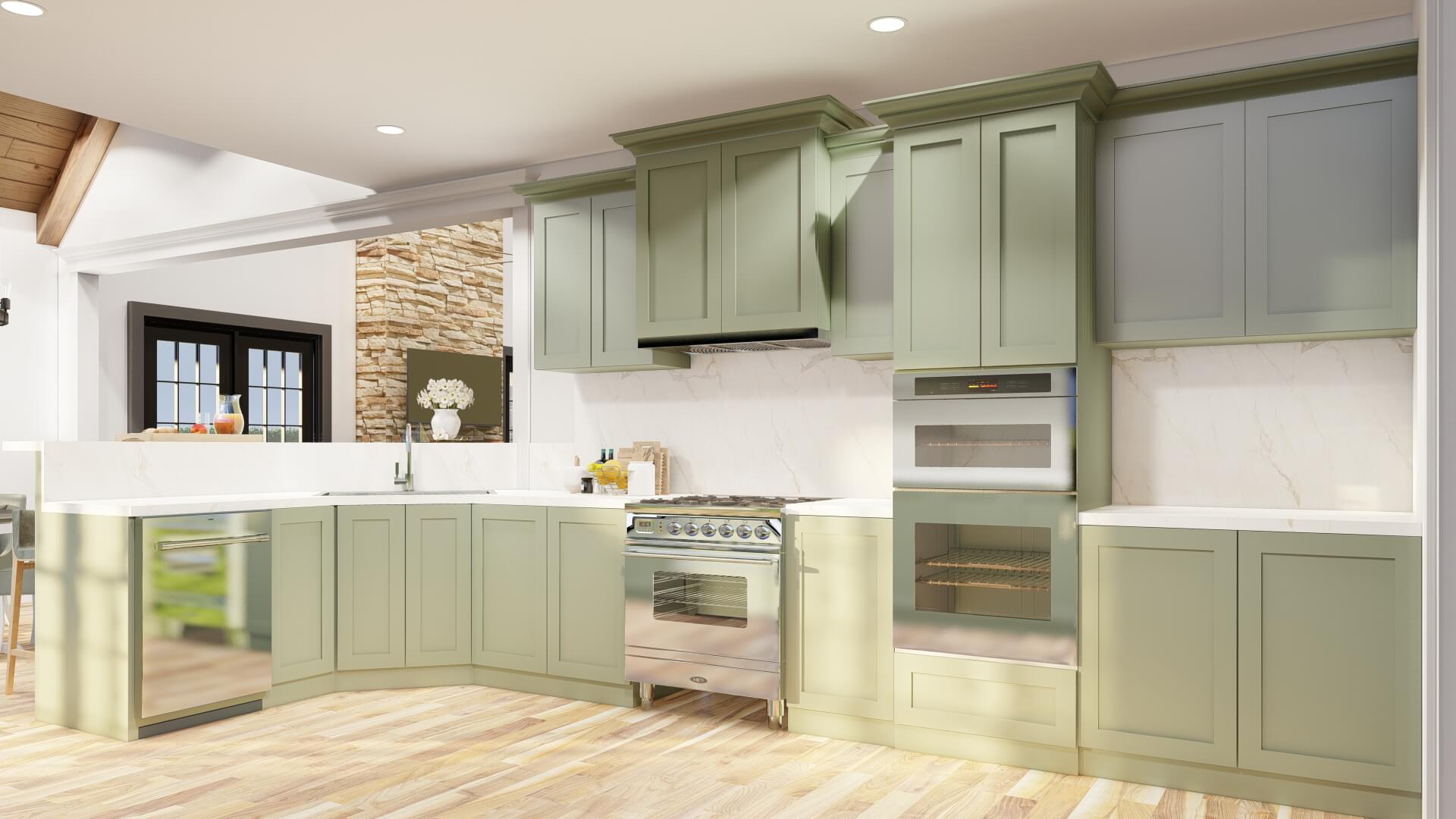

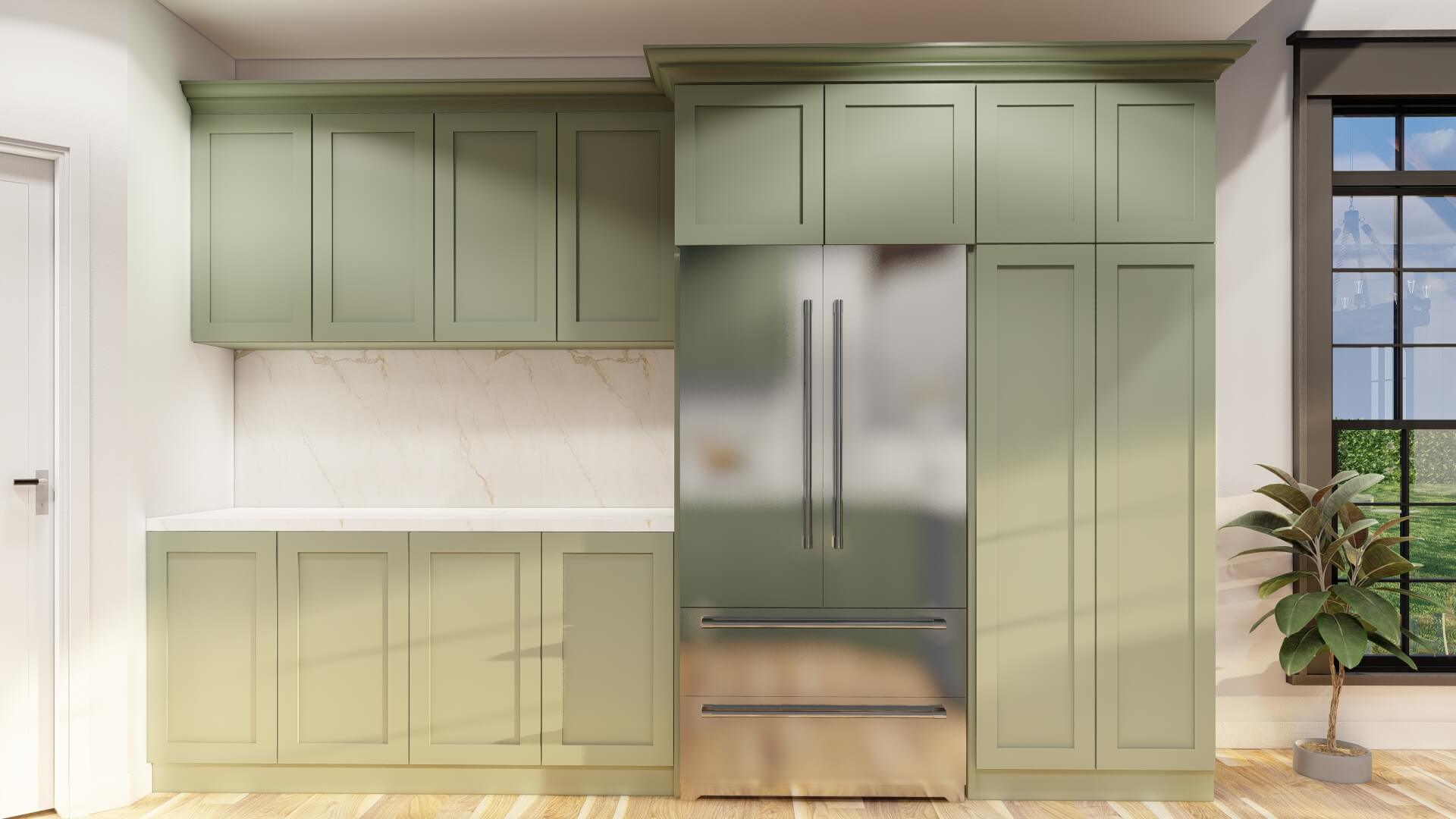

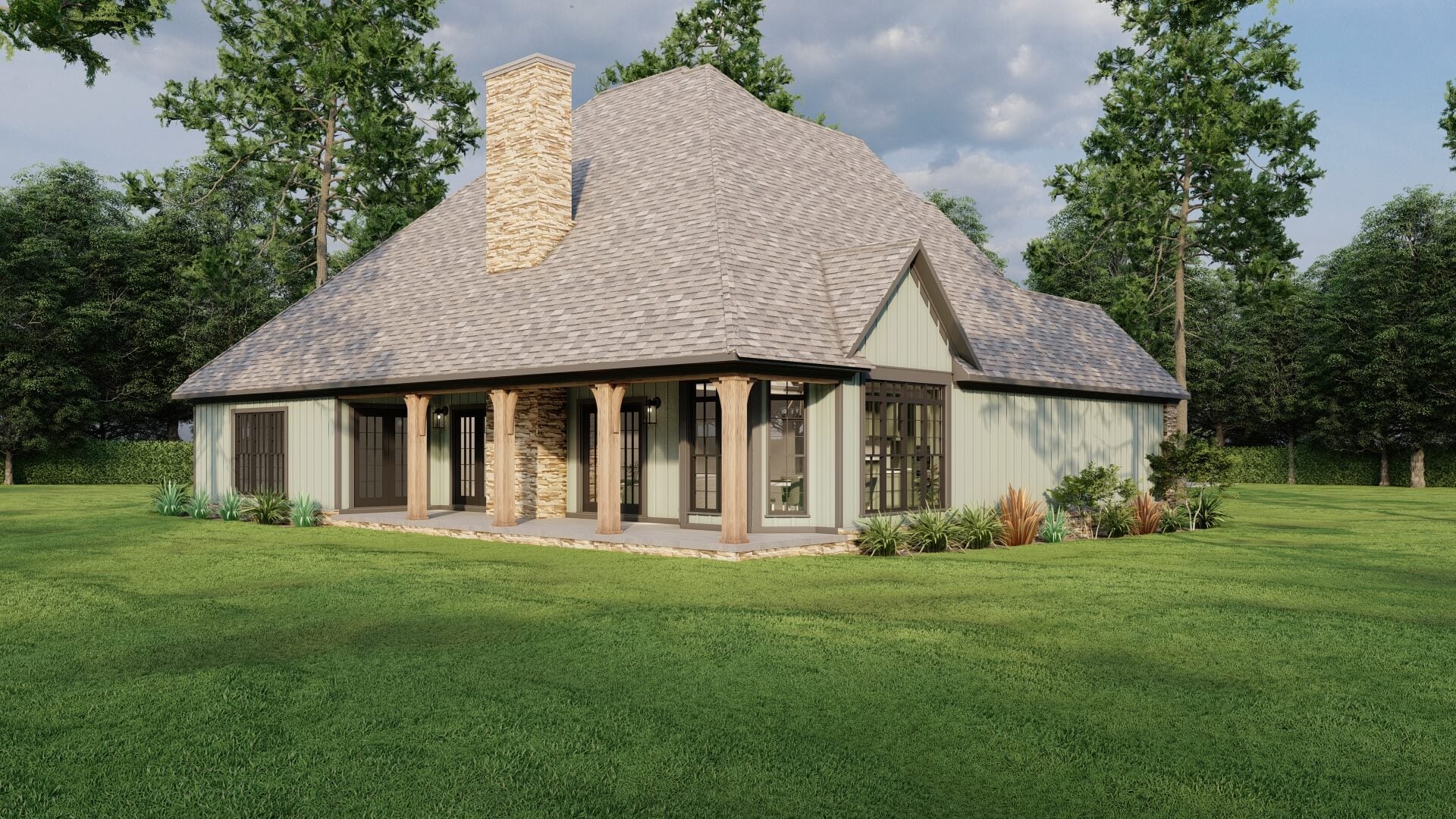

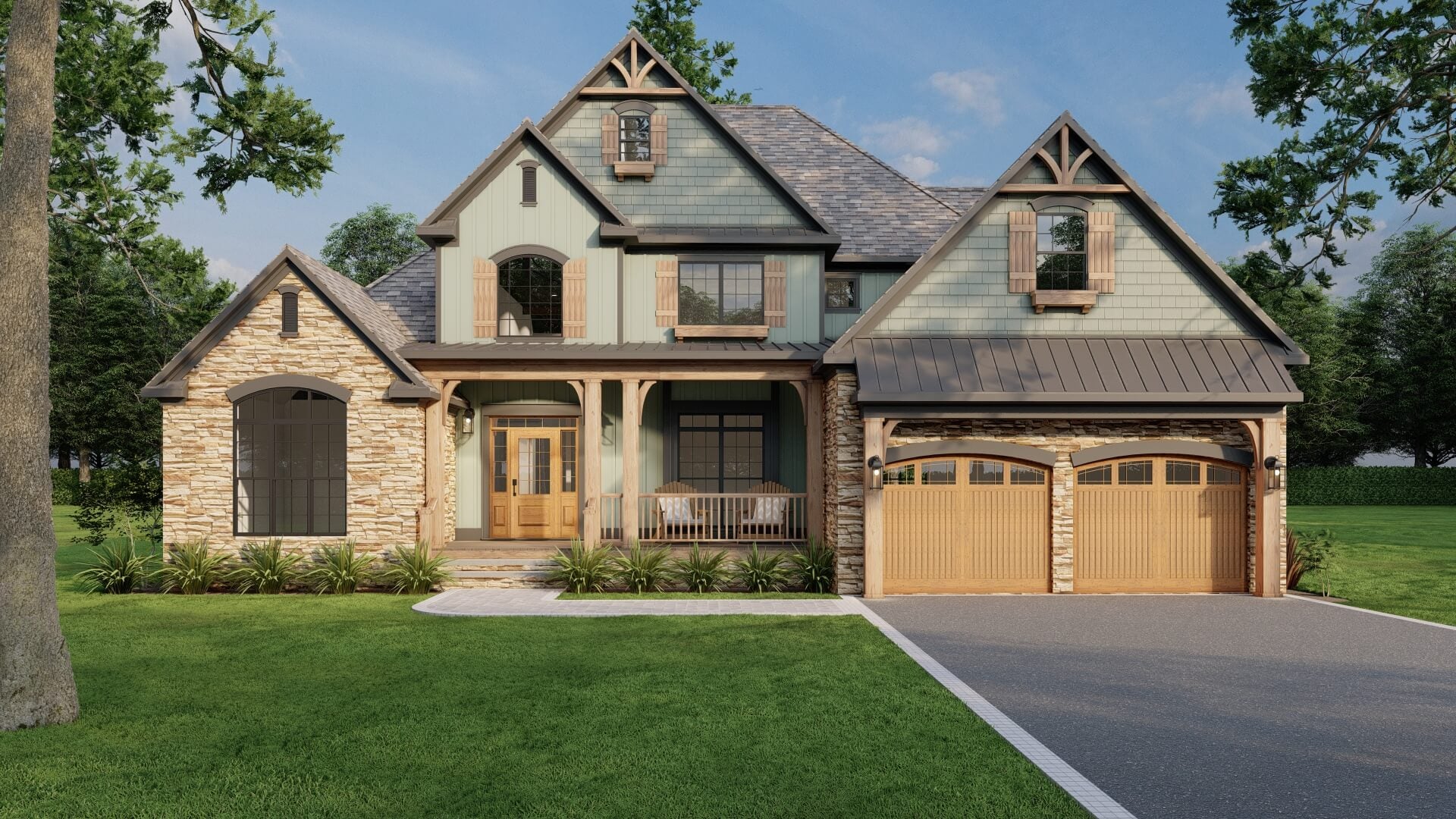

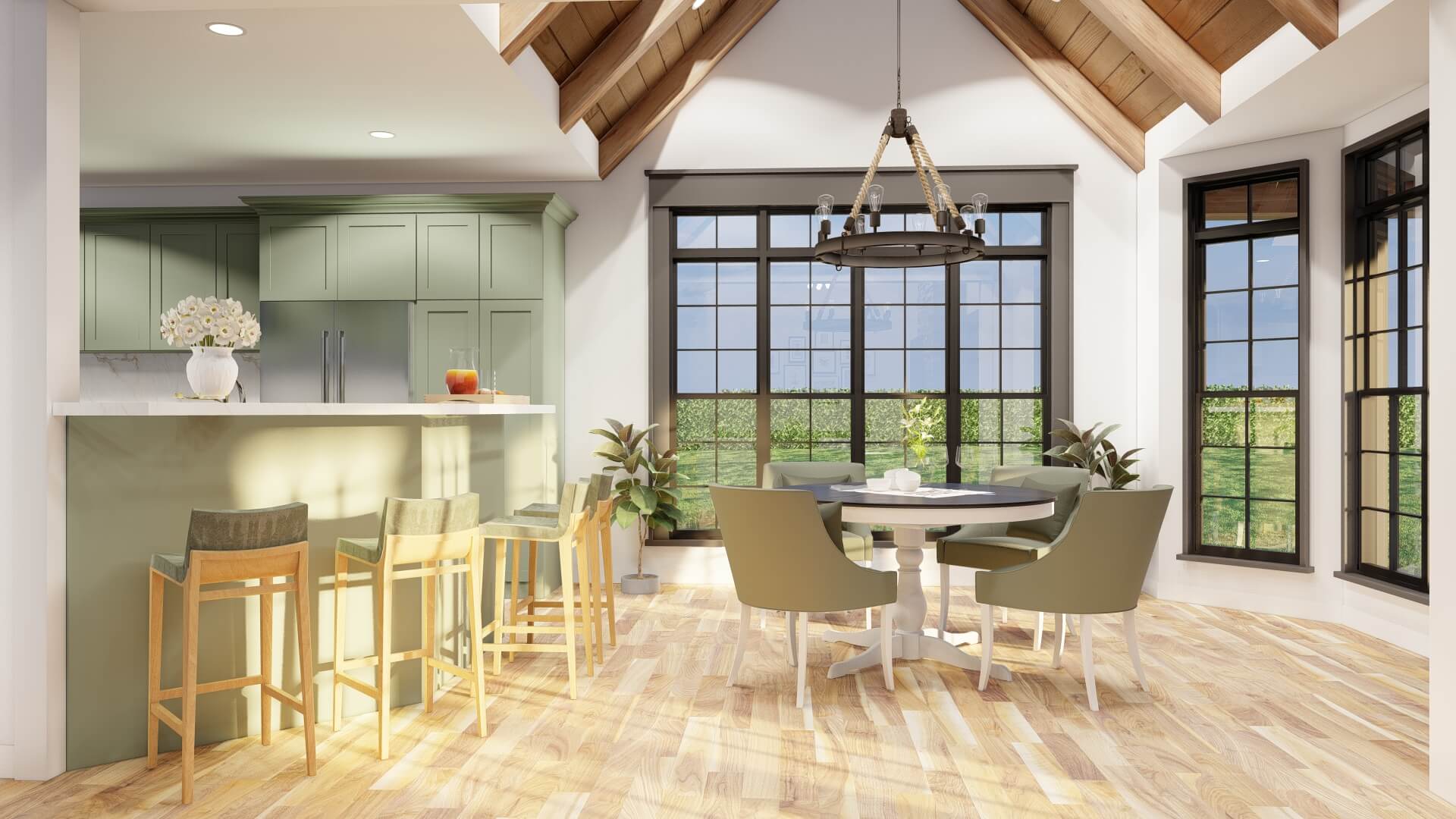

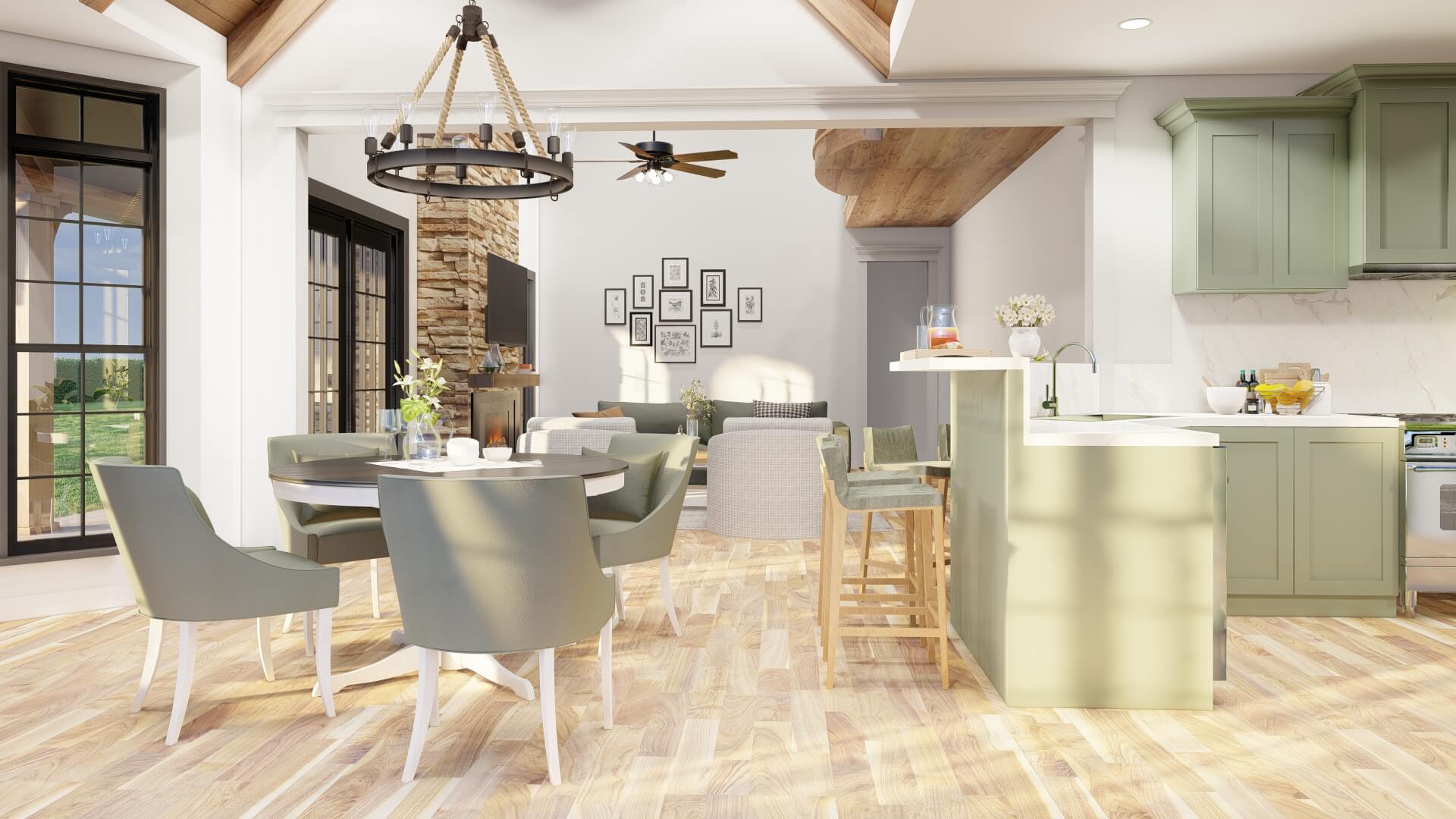

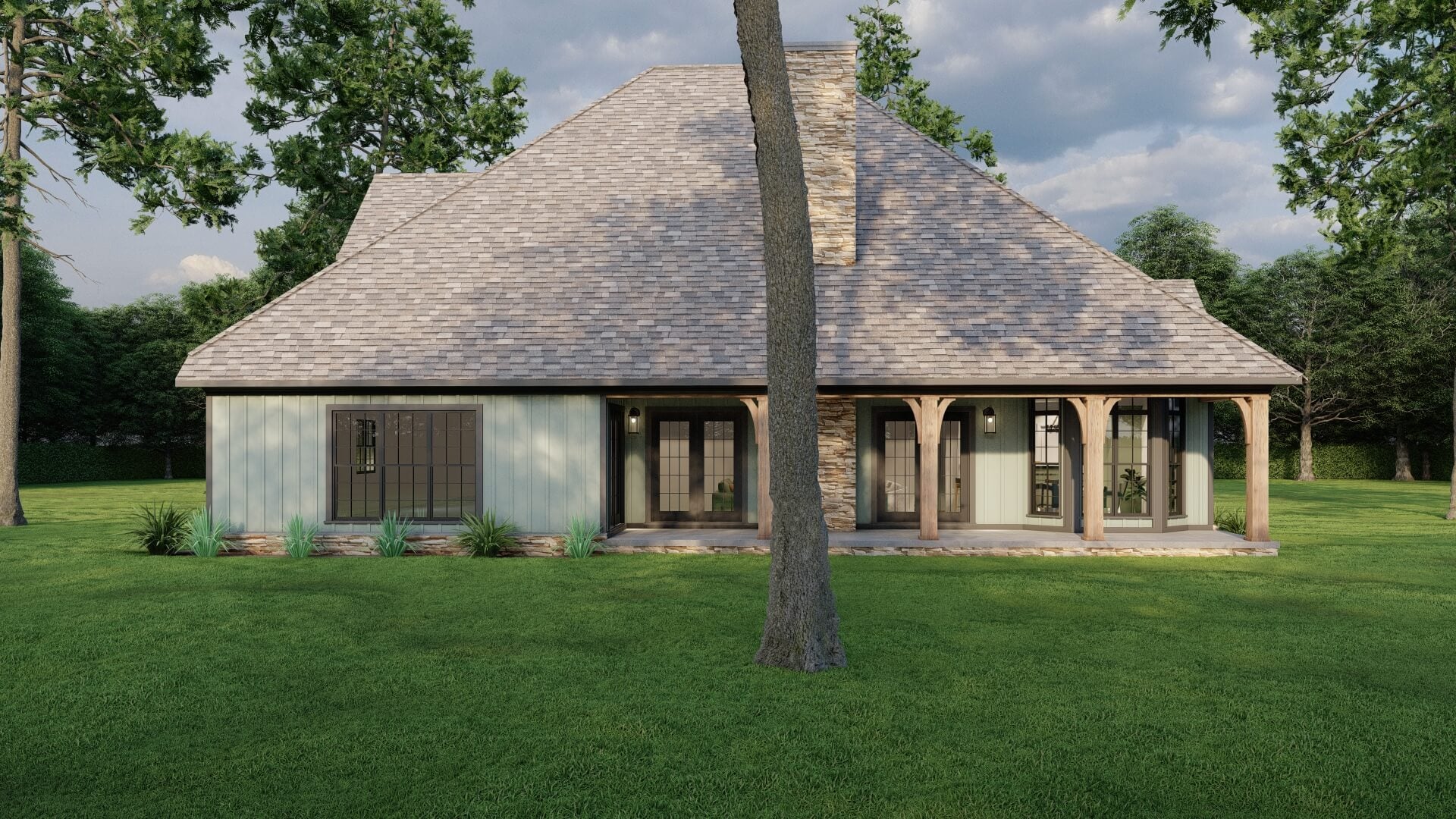

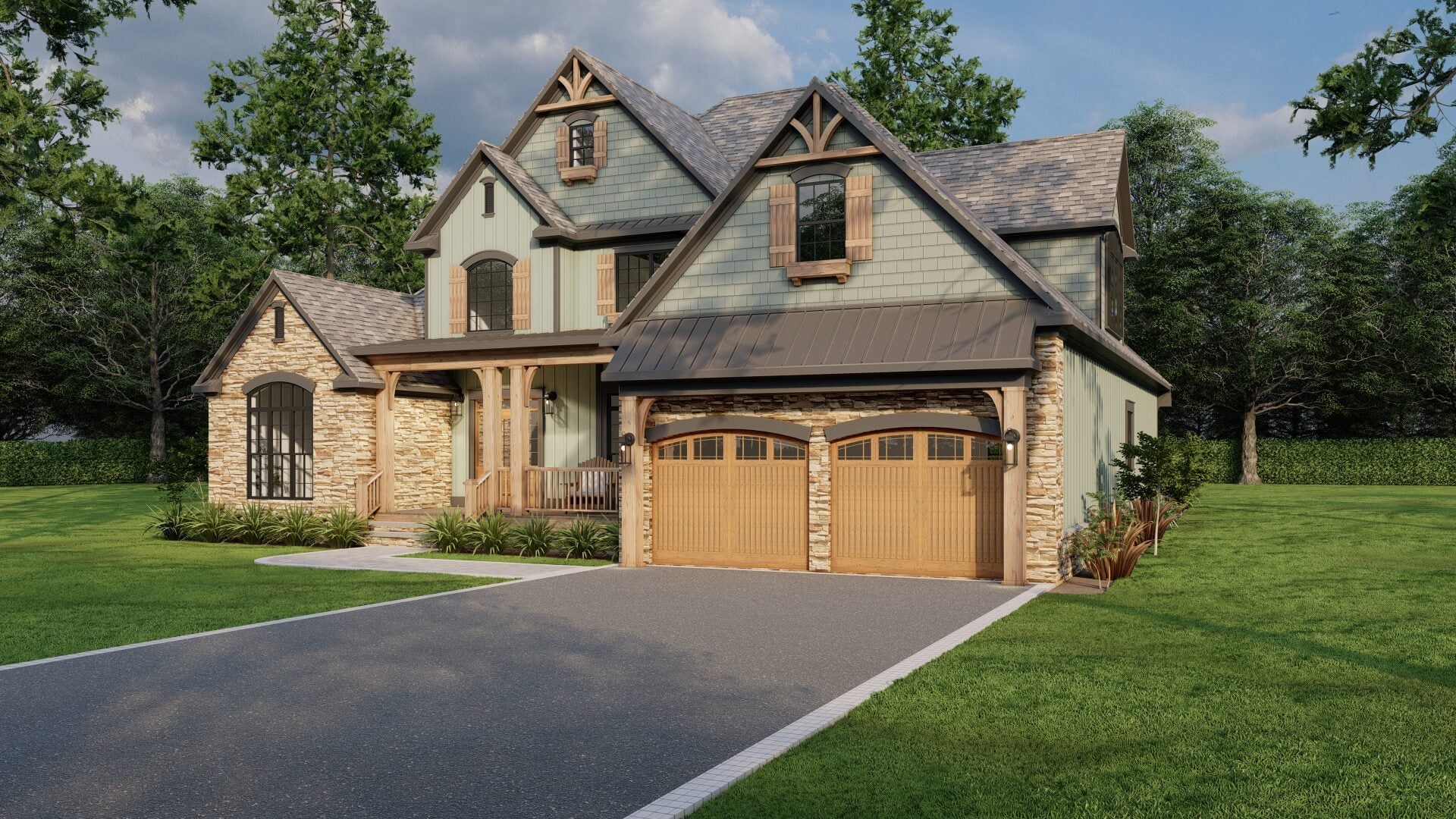

The gorgeous exterior of this Nelson Design Group home, coupled with its unique design, will create a memorable experience for all who see it. A large covered porch welcomes you and your guests inside where the great room will set the perfect mood for all occasions. A fireplace and French doors to the rear grilling porch help to enhance the great room. An island and a high bar with seating are just a few of the luxuries you’ll discover in this kitchen, just a few short steps away from the breakfast and dining rooms. Upstairs, one can’t help but admire the stunning view from the theater balcony before traveling into the media room or one of the remaining bedrooms. Two attic access doors also lend more than enough storage possibilities.
Halls for optional rooms is 63 SQ. FT, and Optional Bedroom is 196 SQ. FT. Bonus Room is 306 SQ.FT. The total for the Bonus Room(includes the halls for optional room, optional bedroom, and the bonus room) is 565 SQ.FT. Balcony is 118 SQ. FT
Home Specifications
- Total Living Space: 2481
- Ridge Height (Ft.) 32
- Main Floor (Sq. Ft.): 2084 Sq.Ft
- Ridge Height (In.) 10
- Upper Floor (Sq. Ft.): 397 Sq.Ft.
- Main Ceiling Height: 9
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 438 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 506 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): 565 Sq.Ft.
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 3
- Carport: N/A
- Full Baths: 3
- Roof Pitch: 12:12
- Porch Roof Pitch: N/A
- Stories: 1.5
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: Yes
- Depth (Ft): 55
- Width (Ft): 57
- Depth (In.) 10
- Width (In.) 4
- Total Sq. Ft. 3990 Sq.Ft.
- Customizable: Yes
Key Features
- Balcony
- Bonus Room Over Garage
- Bonus/Game and Media Room
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- In-Law Suite Private Guest
- Jack & Jill Bathroom
- Kitchen Island
- Main Floor Master
- Mudroom
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Vaulted High Cathedral Ceiling
- Walk-in Closet
- Walk-in-Pantry
