Floor Plans
Floor Plan #1
Description

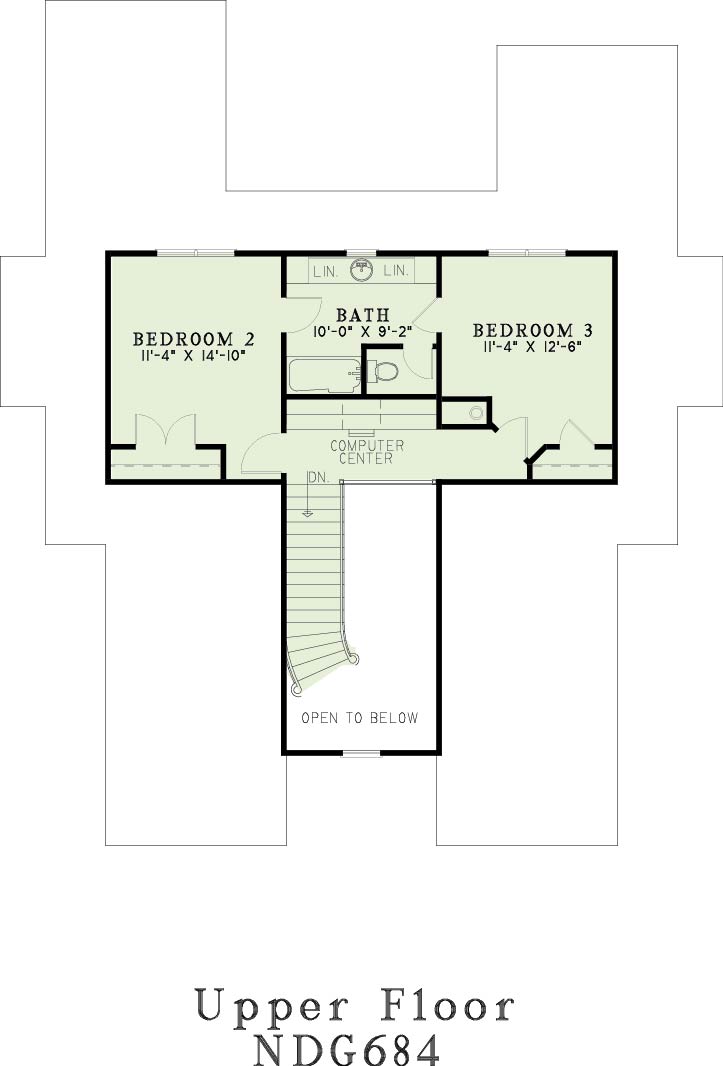

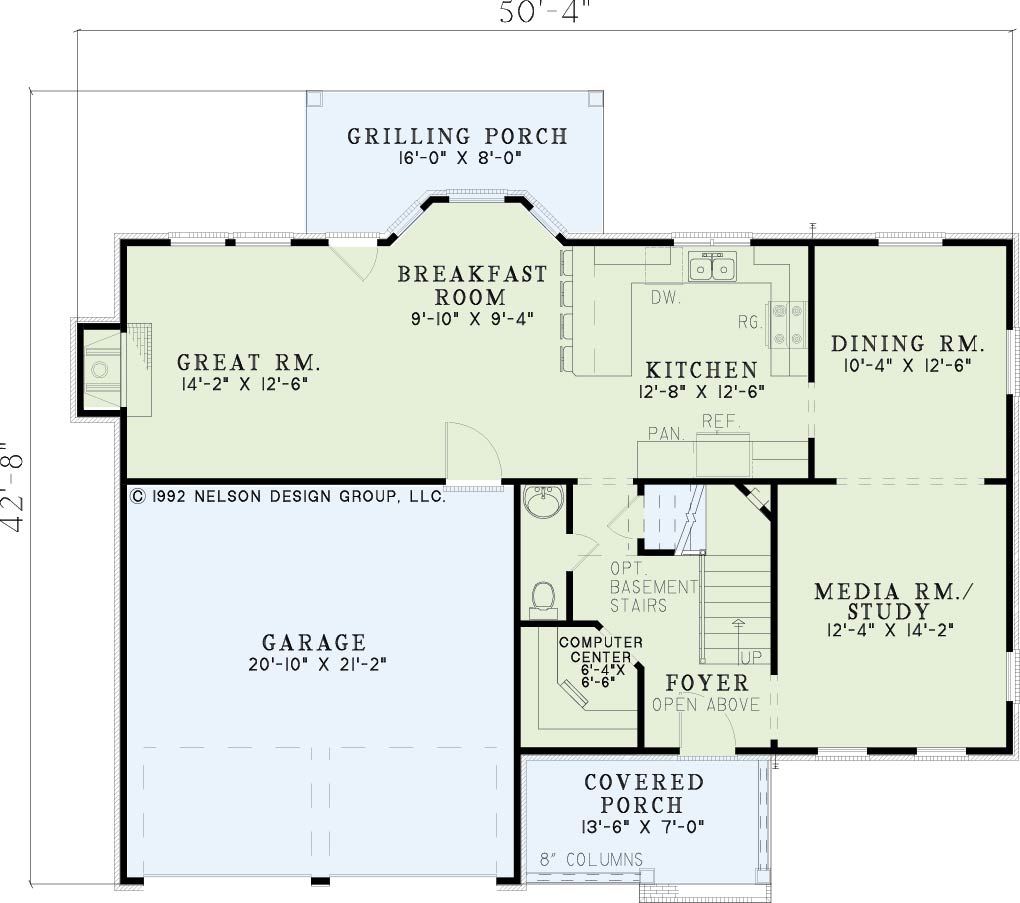

This Nelson Design Group home has excellent curb appeal. A convenient computer center lends peace and quiet for the computer users in the family. The main floor of this home will be perfect for entertaining. The huge great room not only offers access to the rear grilling porch, but also flows into the breakfast room and kitchen. Nearby, the dining room and media room/study merge into one. The upper floor houses the generous master suite with private bath as well as three secondary bedrooms, a full bath, and a laundry room.
Home Specifications
- Total Living Space: 2046
- Ridge Height (Ft.) 26
- Main Floor (Sq. Ft.): 1039 Sq.Ft
- Ridge Height (In.) 6
- Upper Floor (Sq. Ft.): 1007 Sq.Ft.
- Main Ceiling Height: 8
- Lower Floor (Sq. Ft.): N/A
- Upper Ceiling Height: 8
- Porch (Sq. Ft.): 204 Sq.Ft.
- Lower Ceiling Height: N/A
- Garage (Sq. Ft.): 456 Sq.Ft.
- Garage: 2 Bay Yes
- Bonus (Sq.Ft): N/A
- Garage/Carport Type:Front Load Front Load
- Bedrooms: 4
- Carport: N/A
- Full Baths: 2
- Roof Pitch: 7:12
- Half Baths: 1
- Porch Roof Pitch: N/A
- Stories: 2.0
- Wall Construction: 2x4
- Lower Bonus (Sq. Ft.): N/A
- Vaulted Ceiling: No
- Depth (Ft): 42
- Width (Ft): 50
- Depth (In.) 8
- Width (In.) 4
- Total Sq. Ft. 2706 Sq.Ft.
- Customizable: Yes
Key Features
- Covered Front Porch
- Covered Rear Porch
- Formal Dining Room
- Great Room
- Grilling Porch
- Home Office/Study
- Media Room
- Nook/Breakfast Area
- Open Floor Plan House Plans
- Peninsula/Eating Bar
- Split Bedroom Design
- Walk-in Closet
