House Plan 5273 Haven Place, Craftsman House Plan

Floor plans

MEN 5273

House Plan 5273 Haven Place, Craftsman House Plan

PDF: $800.00

Plan Details

  • Plan Number: MEN 5273
  • Total Living Space:1769Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 28
  • Width In.: N/A
  • Depth Ft.: 52
  • Depth In.: 6


MEN 5273

From award-winning designer Michael E. Nelson comes a stunning addition to our Craftsman House Collection. Haven Place is a charming two-story home, perfect for a growing family. A large island in the kitchen allows for extra counter space and additional seating during holiday gatherings. An open floor plan gives both the dining room and kitchen a cozy view of the great room fireplace. The upstairs includes a spacious Master Suite with an extra large walk-in closet, two additional bedrooms, and a full bathroom.

Open Floor Design

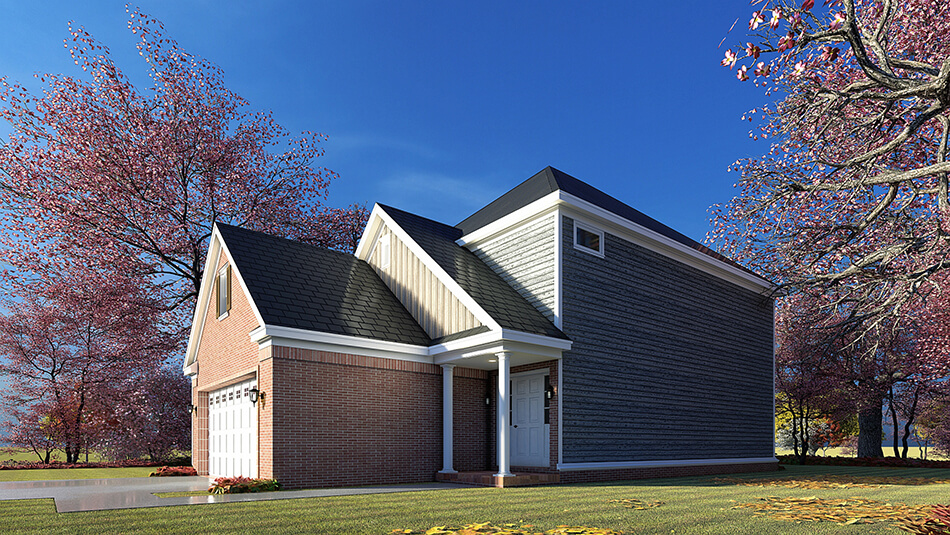

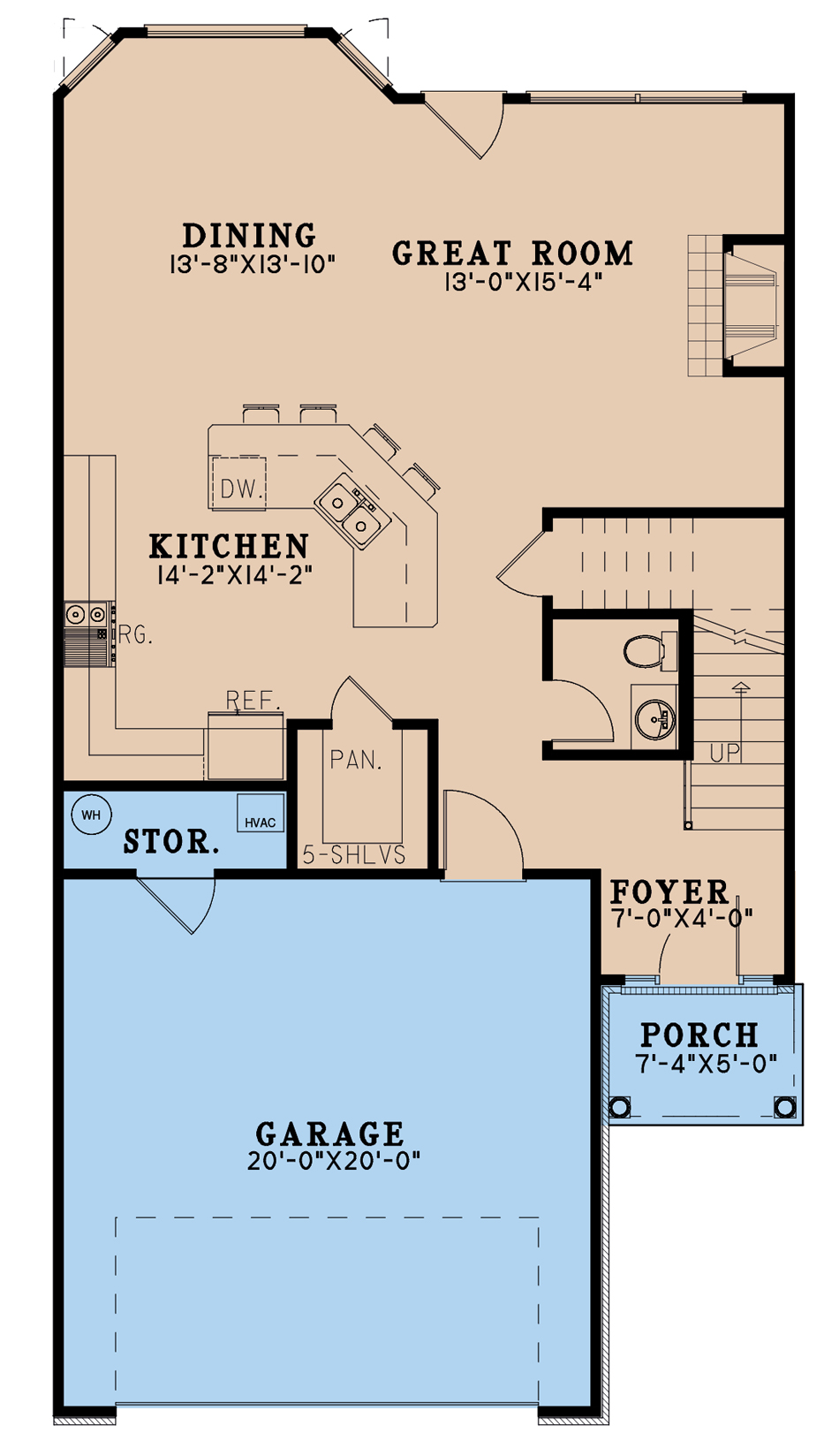

Haven Place opens up right off of the front porch to a cozy foyer space featuring a beautiful staircase. Past the staircase and around the corner, you enter straight into the kitchen area, which boasts a large island and spacious walk in pantry. Continue into the great room, showcasing a beautiful fireplace and tons of natural lighting provided by the picture windows. Also enjoying plenty of natural light, the dining space provides ideal entertaining space.

Upper Level Living

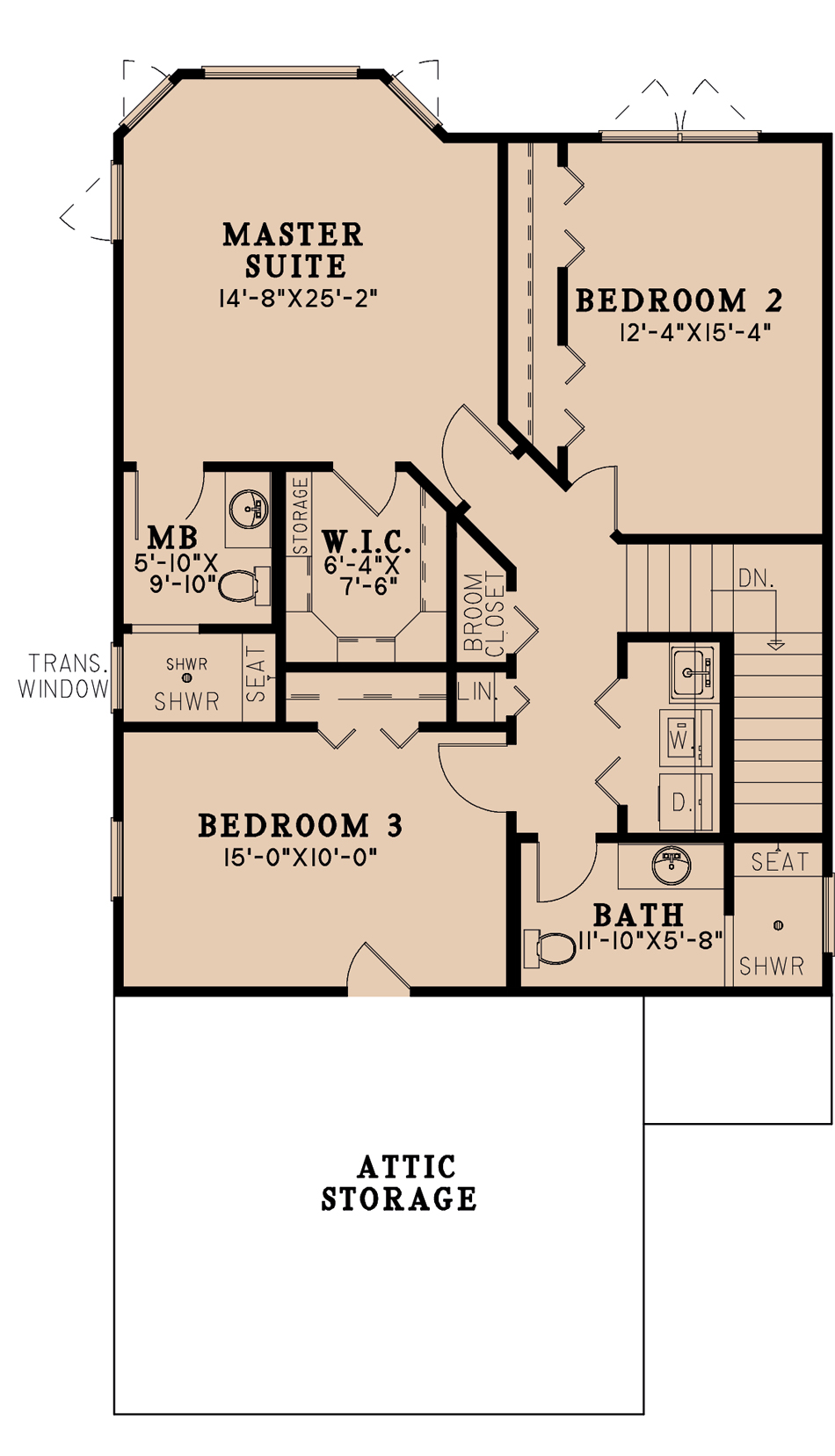

Upstairs features a spacious master suite equipped with a large walk-in closet. In addition to the master suite, the upper level is also home to both bedrooms, tons of closet space, the laundry room, and hall bathroom.

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:1769Sq.Ft.
  • Main Floor: 858 Sq.Ft
  • Upper Floor (Sq.Ft.): 911 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 37 Sq.Ft.
  • Garage (Sq.Ft.): 448 Sq.Ft.
  • Total Square Feet: 2254 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: N/A
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
