House Plan 5314 Fall Creek Place, Craftsman Bungalow House Plan

Floor plans

MEN 5314

House Plan 5314 Fall Creek Place, Craftsman Bungalow House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5314
  • Total Living Space:2408Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 1 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 63
  • Width In.: N/A
  • Depth Ft.: 52
  • Depth In.: 4

Description

MEN 5314

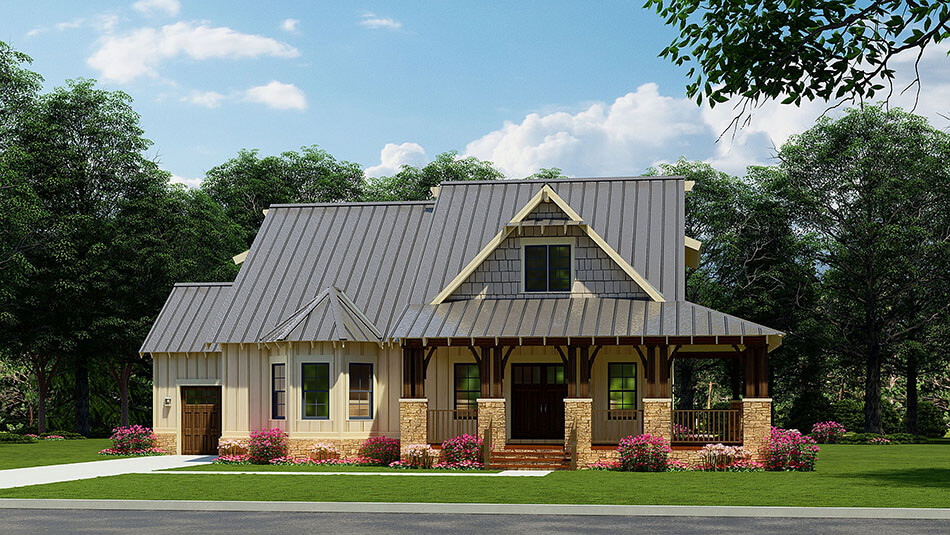

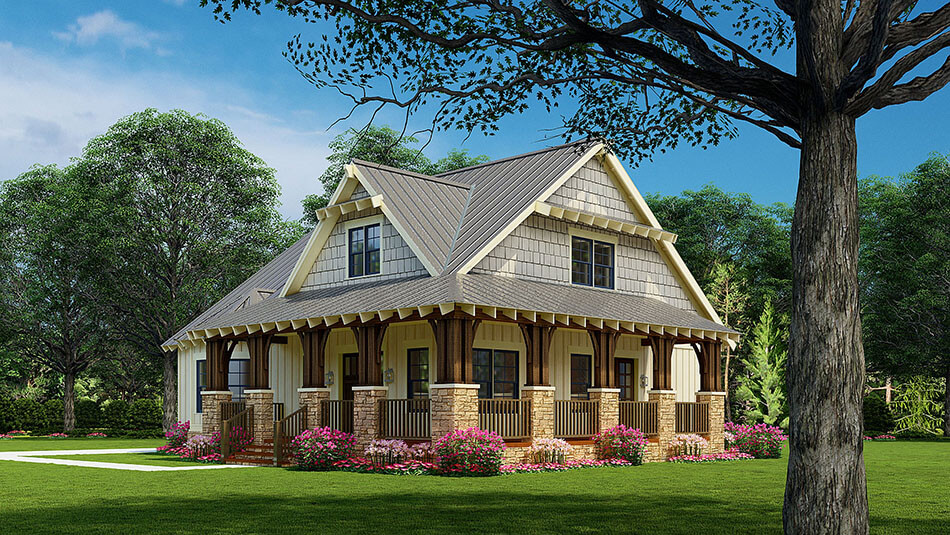

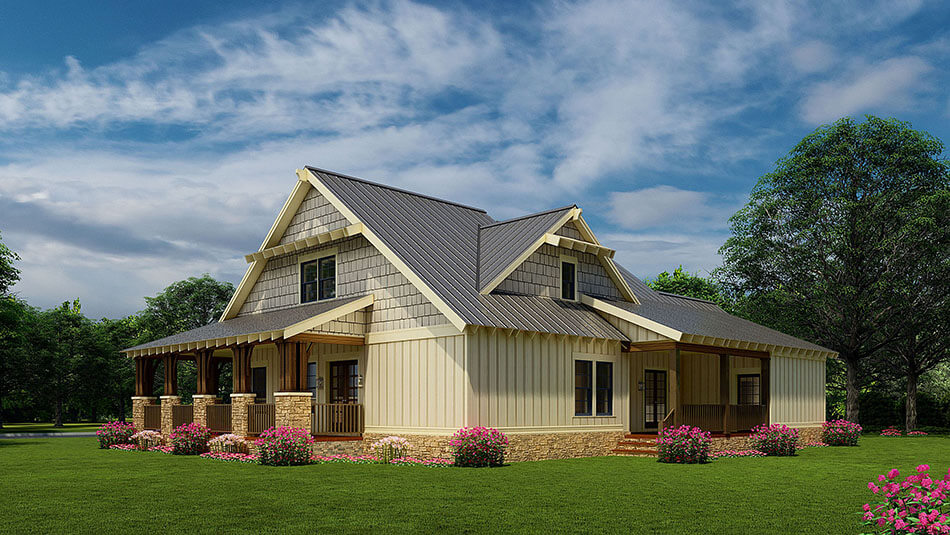

From award winning home designer Michael E. Nelson comes Fall Creek Place, a Craftsman Bungalow perfect for your next build. This one of a kind retreat features board & batten siding along with wooden and stone accents to add to the craftsman curb appeal. A large covered porch wraps around the side of Fall Creek Place to frame the house plan perfectly. This 2 story, 3 bedroom home offers an open floor plan with tons of entertaining potential. A grilling porch at the rear of Fall Creek Place along with the wrap around to the front and side of the home create great out door living options as well.

 Main Level Master Suite

The master suite on the main level of Fall Creek Place boasts tons of natural lighting along with great space. The master bathroom offers a double vanity along with a large shower, private toilet room, and walk-in closet. Easy access to the Laundry Room can be found through the master bedroom as well to make laundry day a little more simple.

Customizing This House Plan

Making this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page. Browse our other home plans at www.nelsondesigngroup.com!

Specifications

  • Total Living Space:2408Sq.Ft.
  • Main Floor: 1440 Sq.Ft
  • Upper Floor (Sq.Ft.): 968 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 643 Sq.Ft.
  • Garage (Sq.Ft.): 412 Sq.Ft.
  • Total Square Feet: 3463 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
