House Plan 1020 Flat Acres, Farmhouse House Plan

House Plan SMN 1020 Main Floor
House Plan SMN 1020 Upper Floor
House Plan SMN 1020 Main Floor
House Plan SMN 1020 Upper Floor

Floor plans

SMN 1020

House Plan 1020 Flat Acres, Farmhouse House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: SMN 1020
  • Total Living Space:3277Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 107
  • Width In.: 8
  • Depth Ft.: 57
  • Depth In.: 10

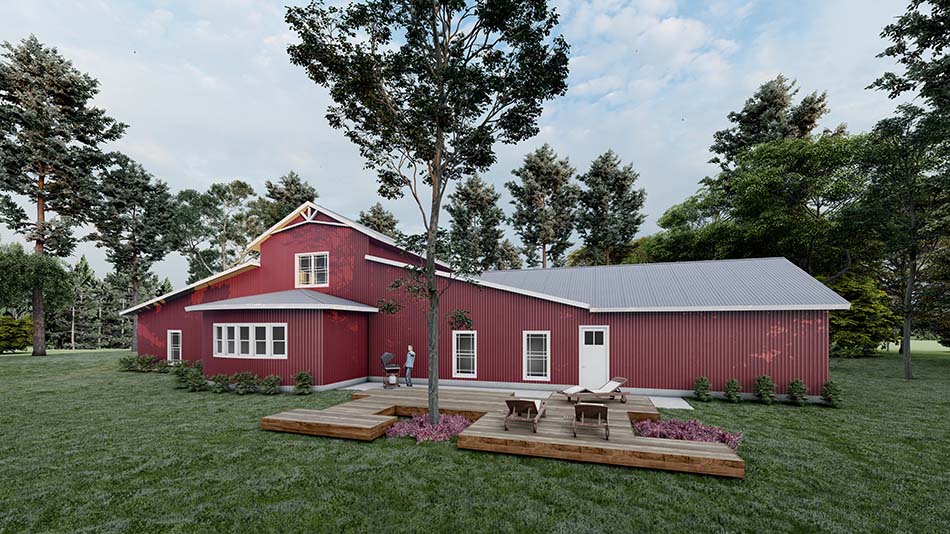

House Plan SMN 1020 is a very modern farmhouse with a barn inspired exterior. The barn-like curb appeal feels fresh and sleek with long vertical siding and a massive covered front porch perfect for a porch swing and a few rocking chairs to enjoy a glass of cold lemonade on a hot summer afternoon.

Once inside this farmhouse foyer you will immediately notice the large open floor plan. Looking in, you can see all the way through the great room and into the kitchen. This creates the perfect atmosphere for family living and entertaining. The spacious area between the great room and kitchen, where you will find the spiral staircase leading to the loft above, is a wonderful spot for your dining room table.
Not only do you have the barn house exterior this modern rustic theme is infused throughout this design with barn doors called out on either side of the great room as well as in the master suite. This master suite is for more than just sleeping. The bedroom gives you plenty of room for a seating area, vanity or evening a desk for a small in-home office space! The master bath has all the amenities you could want with a tile shower and separate whirl pool tub, his and hers vanities and two huge walk-in closets.
Four additional bedrooms can be found opposite the master suite allowing suitable privacy. Each bedroom is pair with another through a jack and jill style bathroom perfect for the kids! These four bedrooms share a living space that would be perfect for a game table and chairs or a play room for younger children.
The rear of the house that opens to the garage features a huge mudroom and laundry room in a shotgun style entry making it easy to move from one chore to the next.
An option loft is located above the great room if desired. This additional space is perfect for a game room or home office. **The Loft is bonus space making it an additional 603 Sq.Ft. Heated and Cooled**

The MudroomWhy is a mudroom a must?

Whether it be the kids, the dog, or however was last to mow the lawn someone is going to track dirt and mud into your home at some point. This is not what you want in your new home! You can’t completely avoid tracking mess into your home however, with a mudroom, you can control where that mess is and concentrate it to just one space making cleaning up so much easier.
The mudroom for this home is even complete with a small shower to make sure muddy boots and adventurous kids and dogs are all cleaned up before entering the rest of your beautiful home.

Jack and Jill Style BathroomA great feature for kids!

Bedroom 1 and 2 and Bedrooms 3 and 4 share jack and jill style bathrooms. This is can be a major bonus to those who have kids! These bathrooms allow for direct access to bathroom a bathroom from each room while save money and space. These particular jack and jill style baths have two different sections, one with a double sink vanity and one with the shower/tub unit and the toilet. This allows one person to be showering while the other uses the sinks. And with 5 feet of counter and sink space, once the showers are over there is still enough room for both to be using the sinks and mirrors.
With these bathrooms being non-accessible from any main living areas, and with the convenience of a half bath off the great room for guests, this will wipe away the stresses of making sure the kid’s bathrooms are “visitor friendly”.

Customize This House PlanIs this home almost perfect but needs just a few tweaks to make it perfect?

Our experienced team of house plan specialists would love to help you customize this house plan to better suite your vision and needs. Contact us today for a free quote on the changes you need made. If you aren’t quite sure what changes need to be made to make it perfect but just have an idea no worries! We would love to help you brainstorm and create the perfect design for your home.
Email us at
Or give us a call at 870-219-8821
What to know more about the customization process? Check out our Modifications FAQ page.


  • Total Living Space:3277Sq.Ft.
  • Main Floor: 3277 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 603 Sq.Ft.
  • Porch (Sq.Ft.): 651 Sq.Ft.
  • Garage (Sq.Ft.): 658 Sq.Ft.
  • Total Square Feet: 5189 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 10
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
