House Plan 1040 Cascade Drive, Modern House Plan

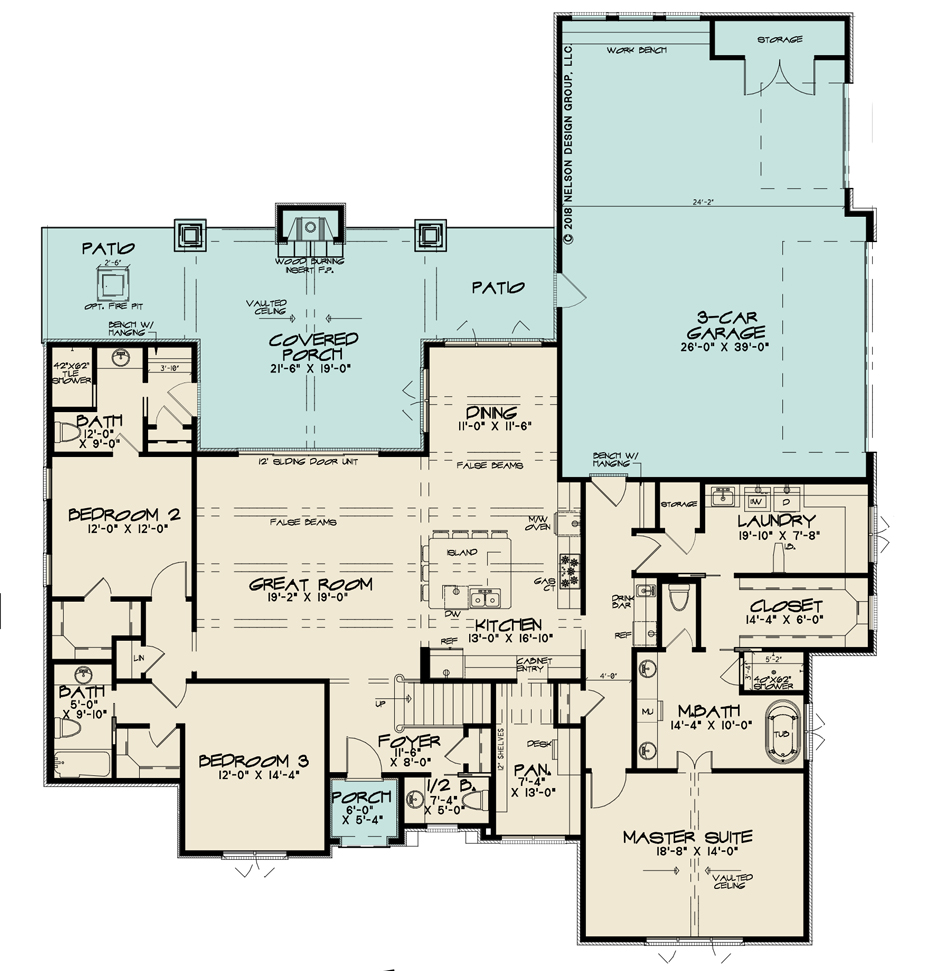

House Plan SMN 1040 Main Floor

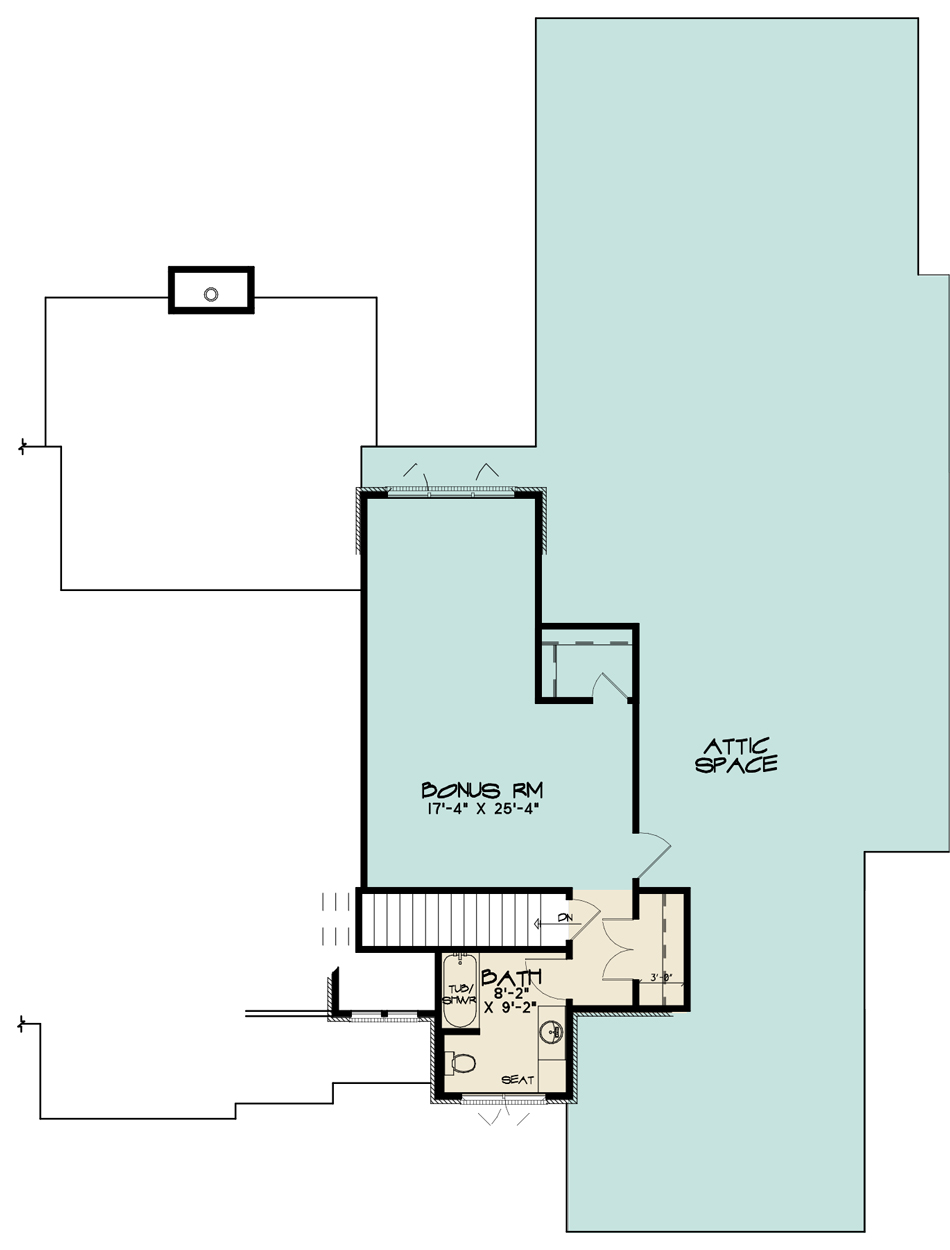

House Plan SMN 1040 Upper Floor
House Plan SMN 1040 Main Floor
House Plan SMN 1040 Upper Floor

Floor plans

SMN 1040

House Plan 1040 Cascade Drive, Modern House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: SMN 1040
  • Total Living Space:2641Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 70
  • Width In.: 4
  • Depth Ft.: 78
  • Depth In.: 10

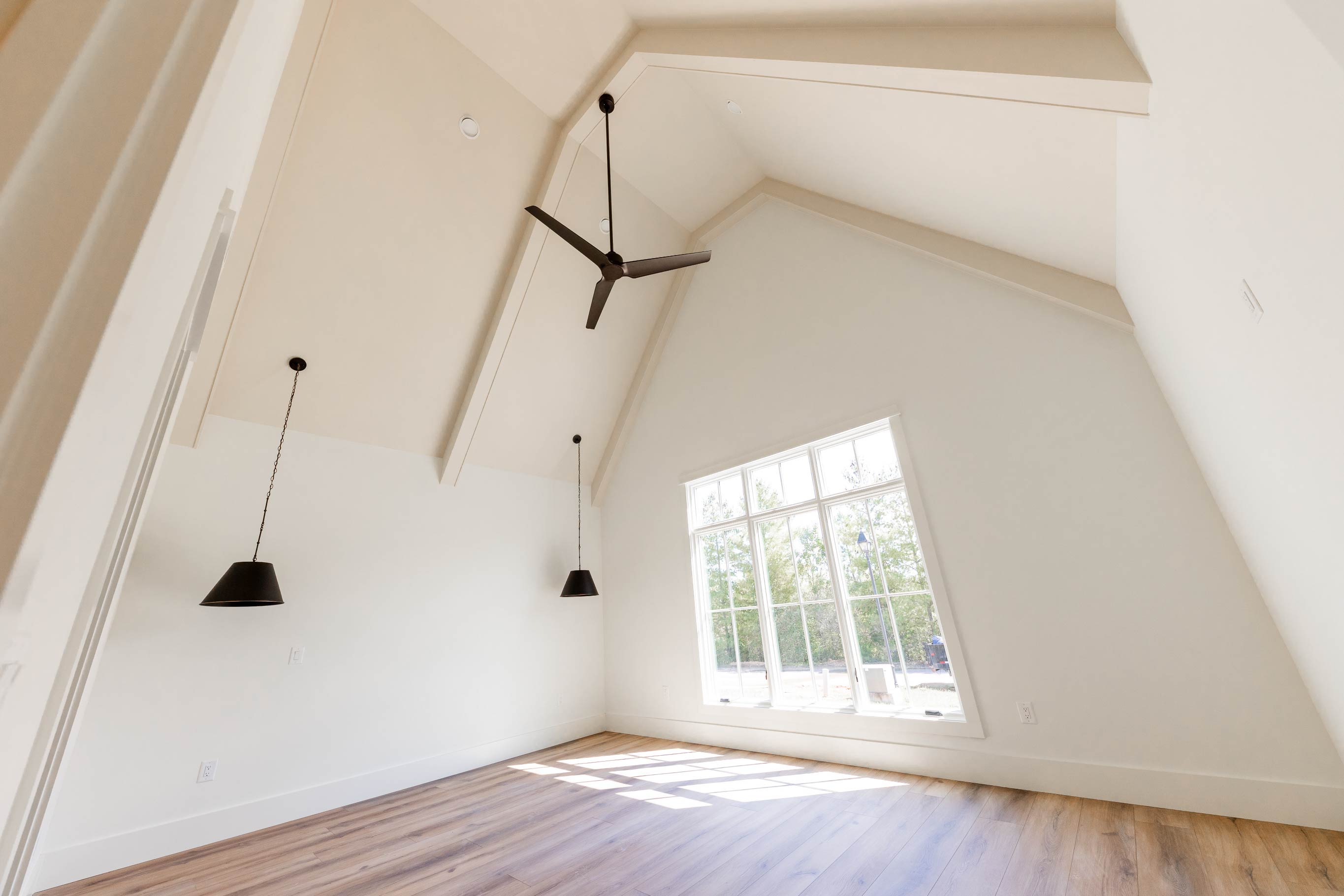

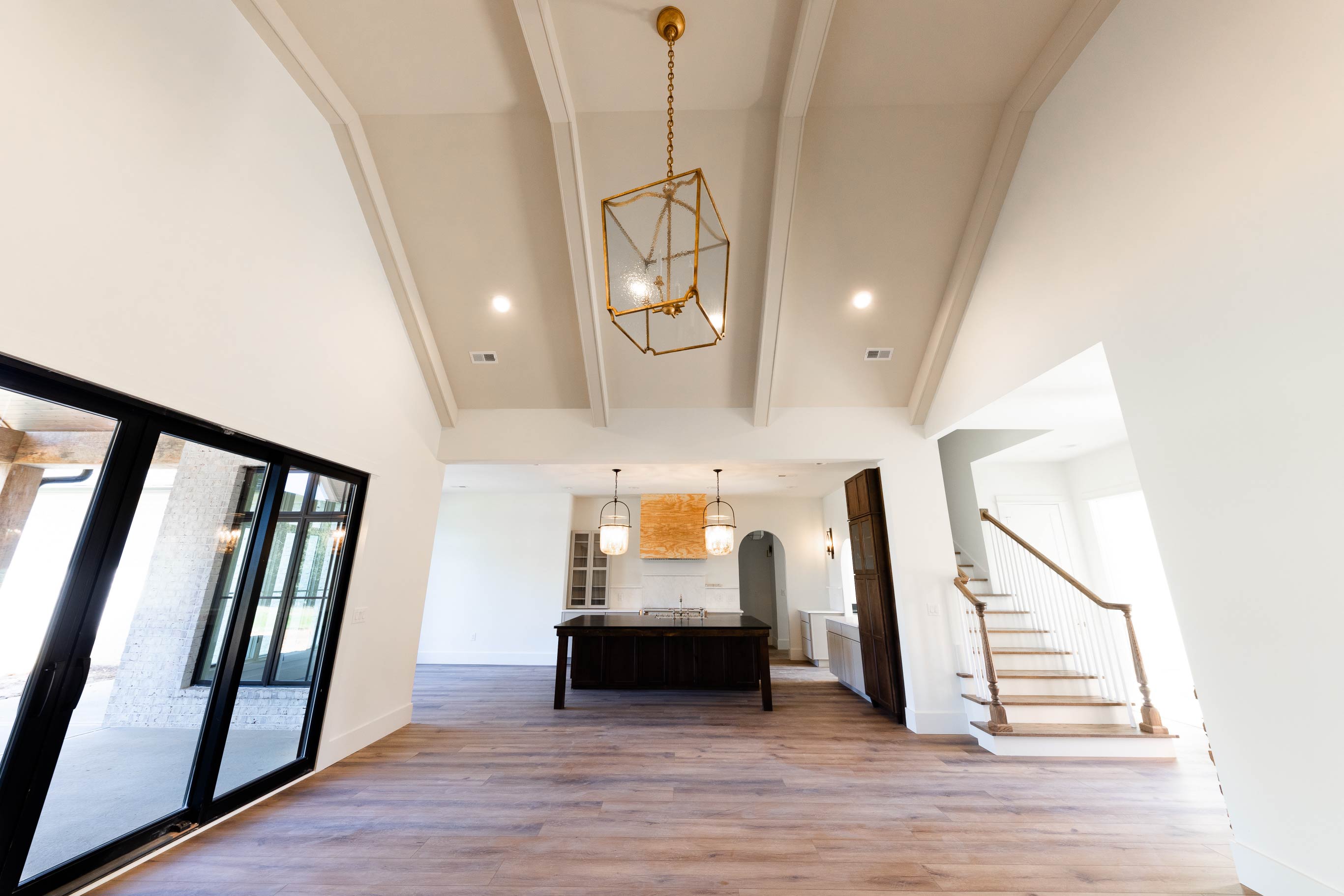

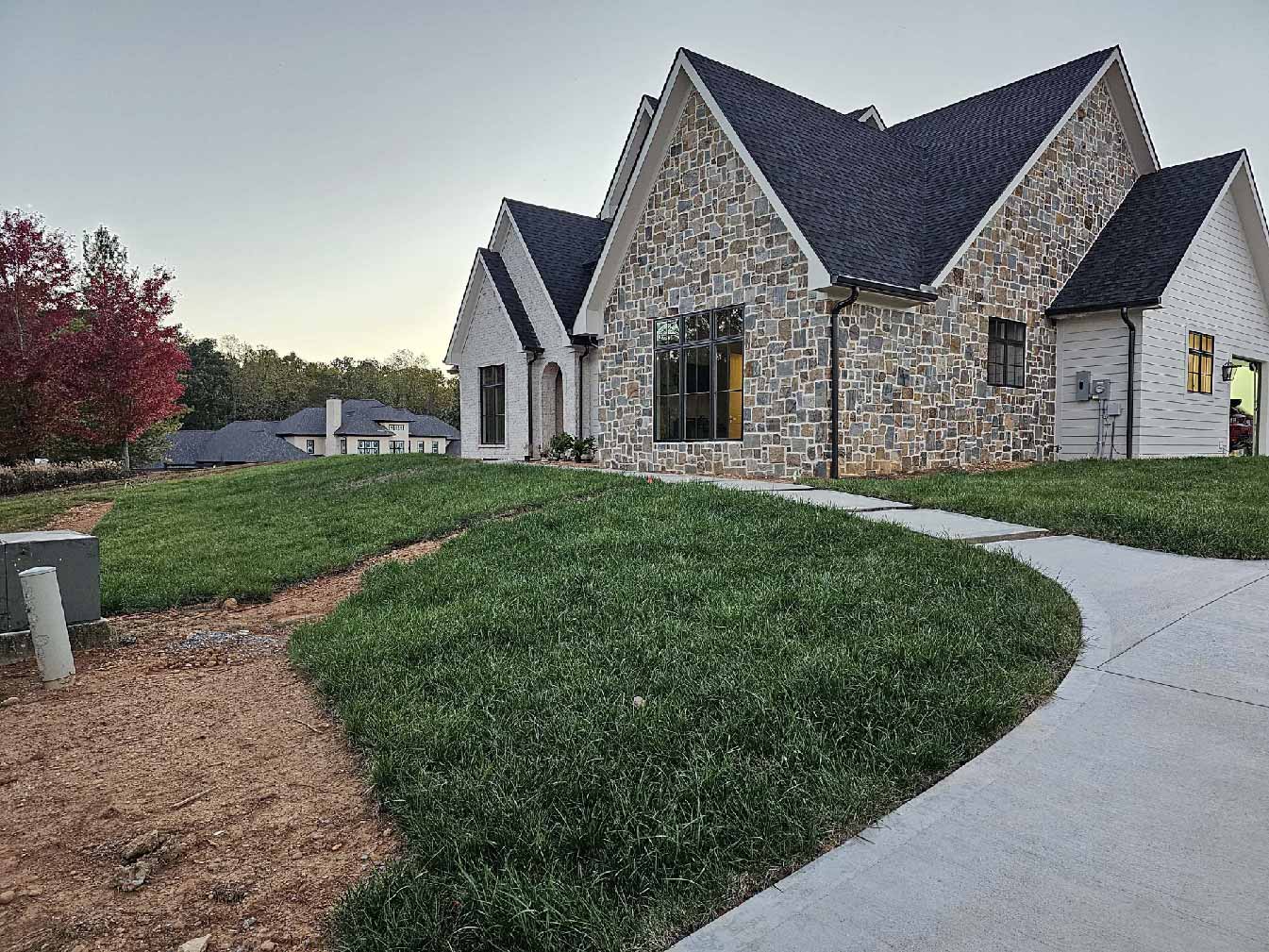

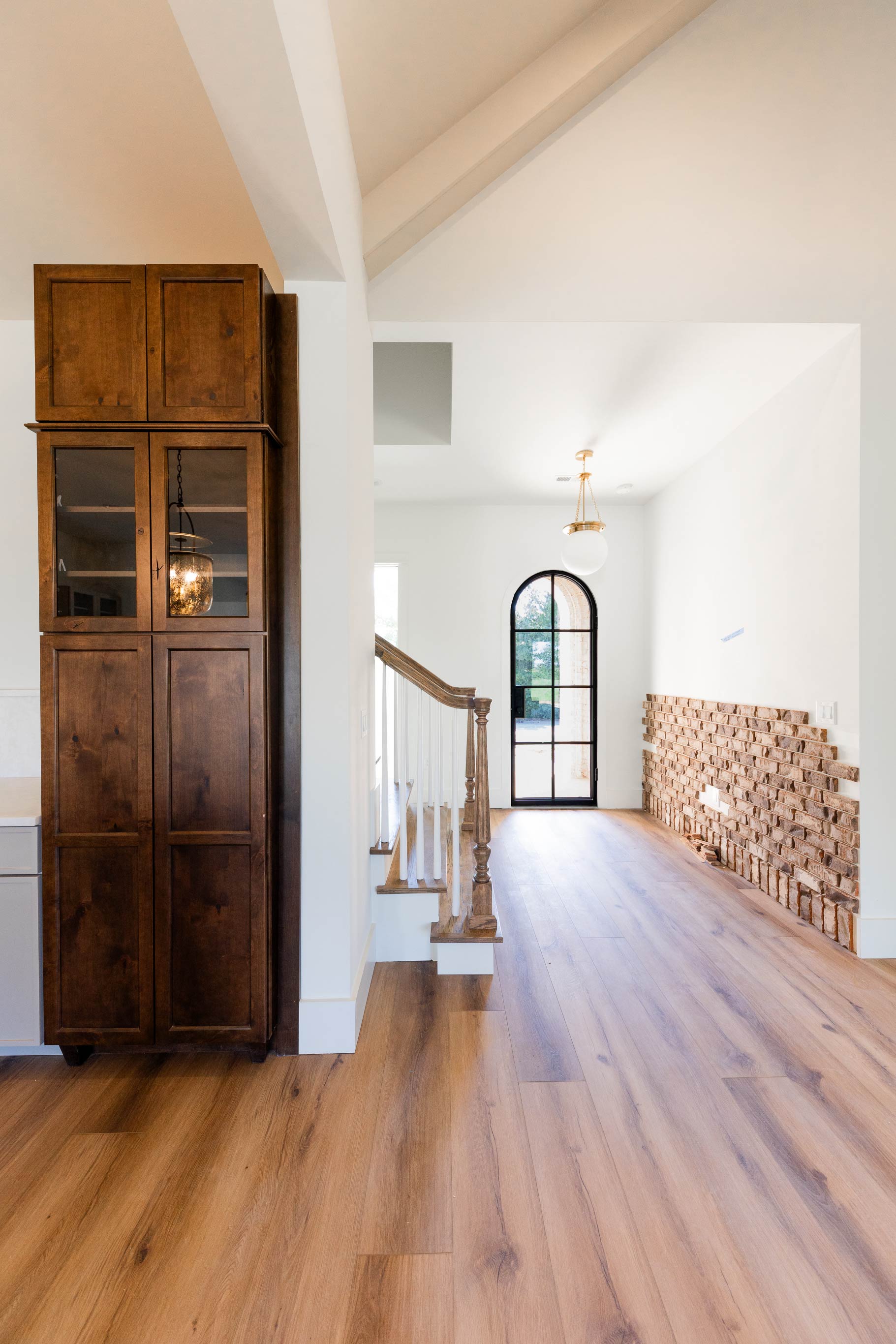

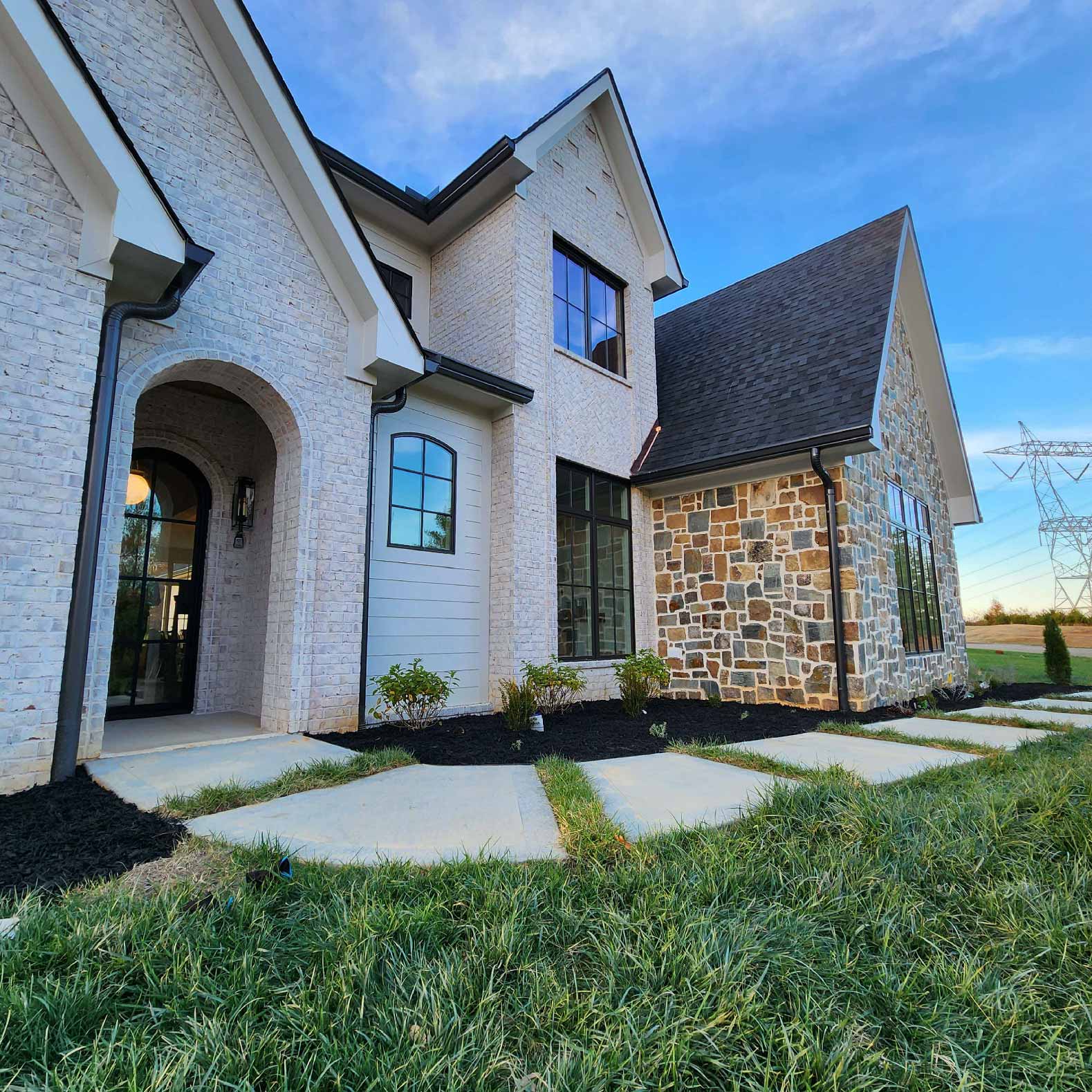

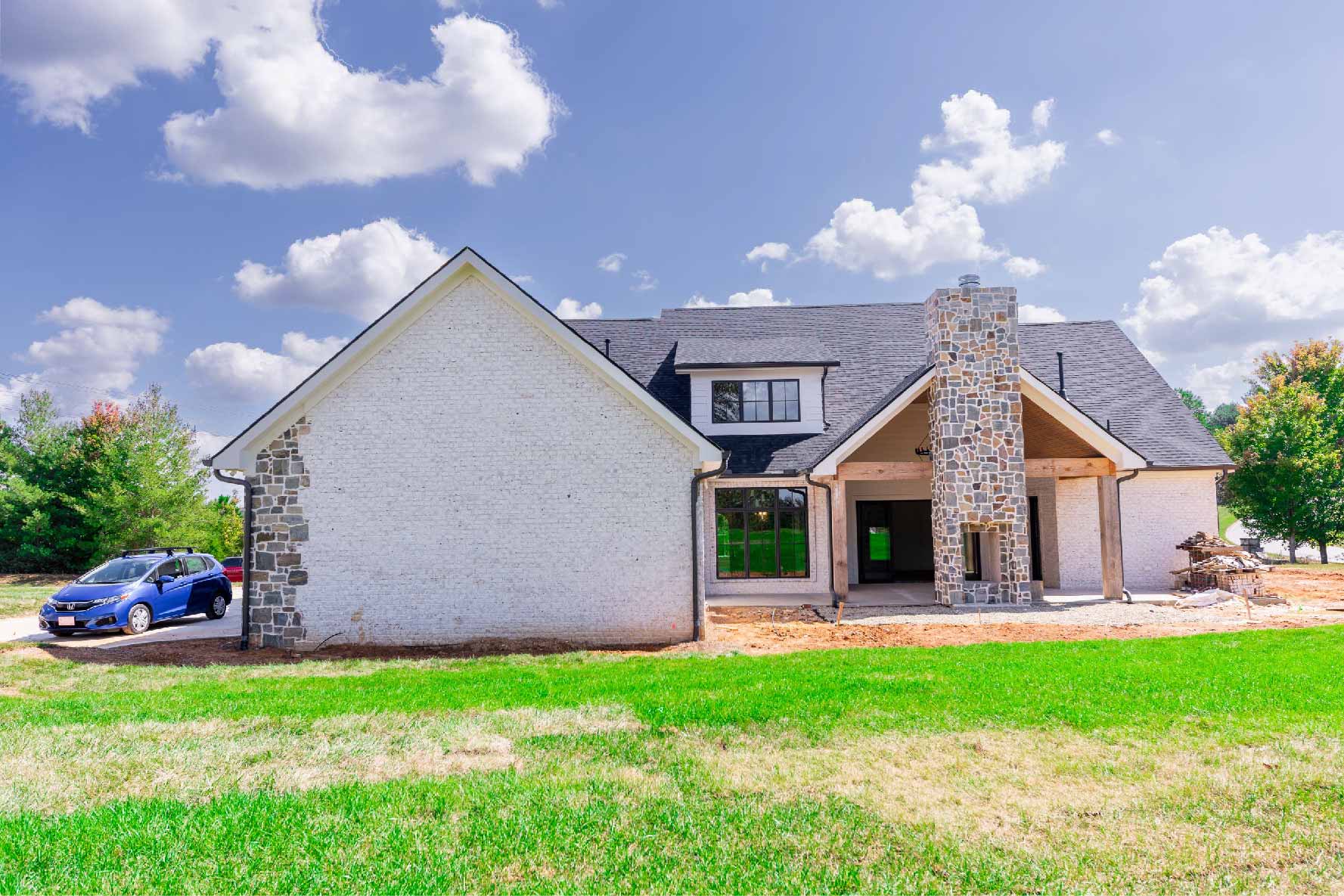

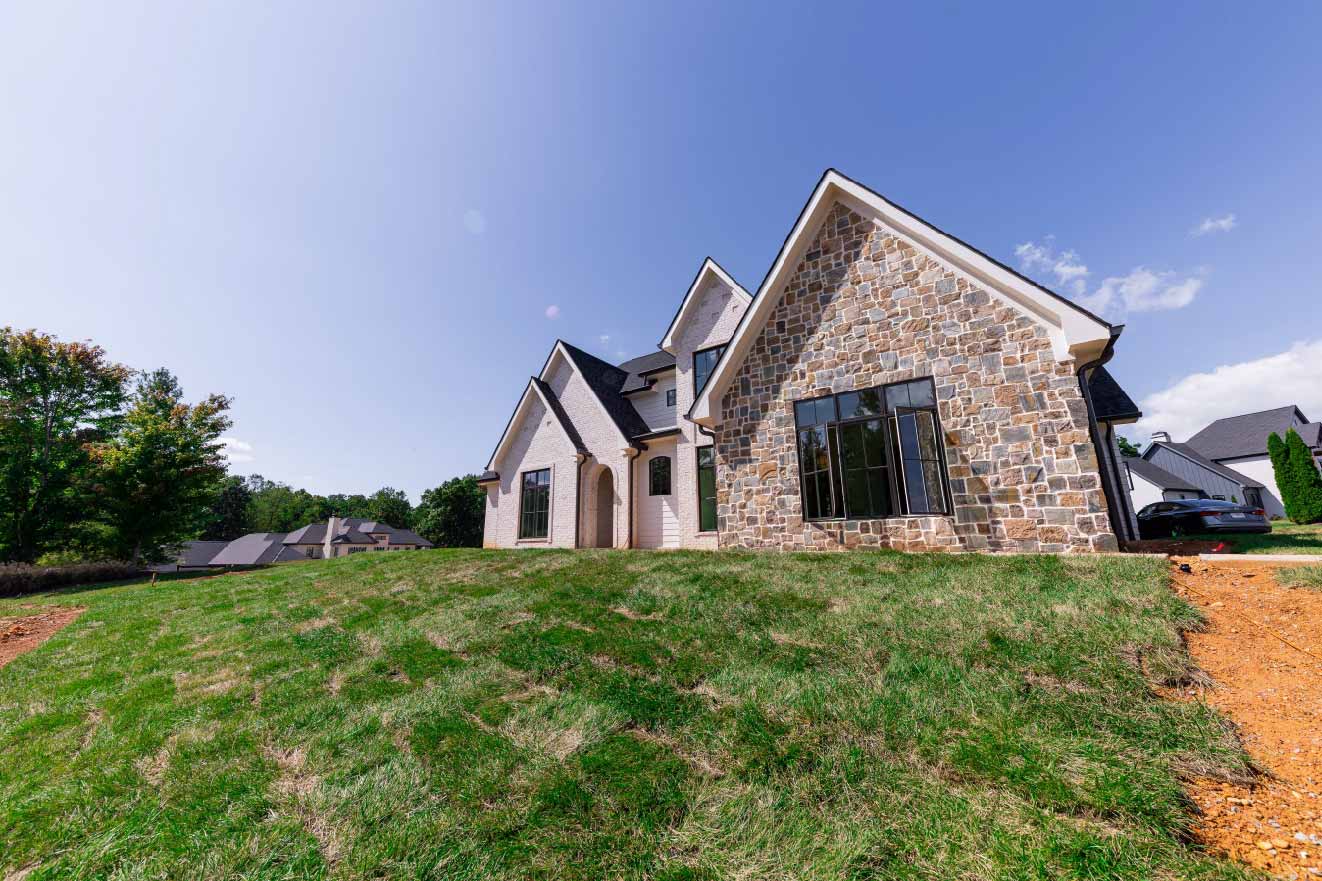

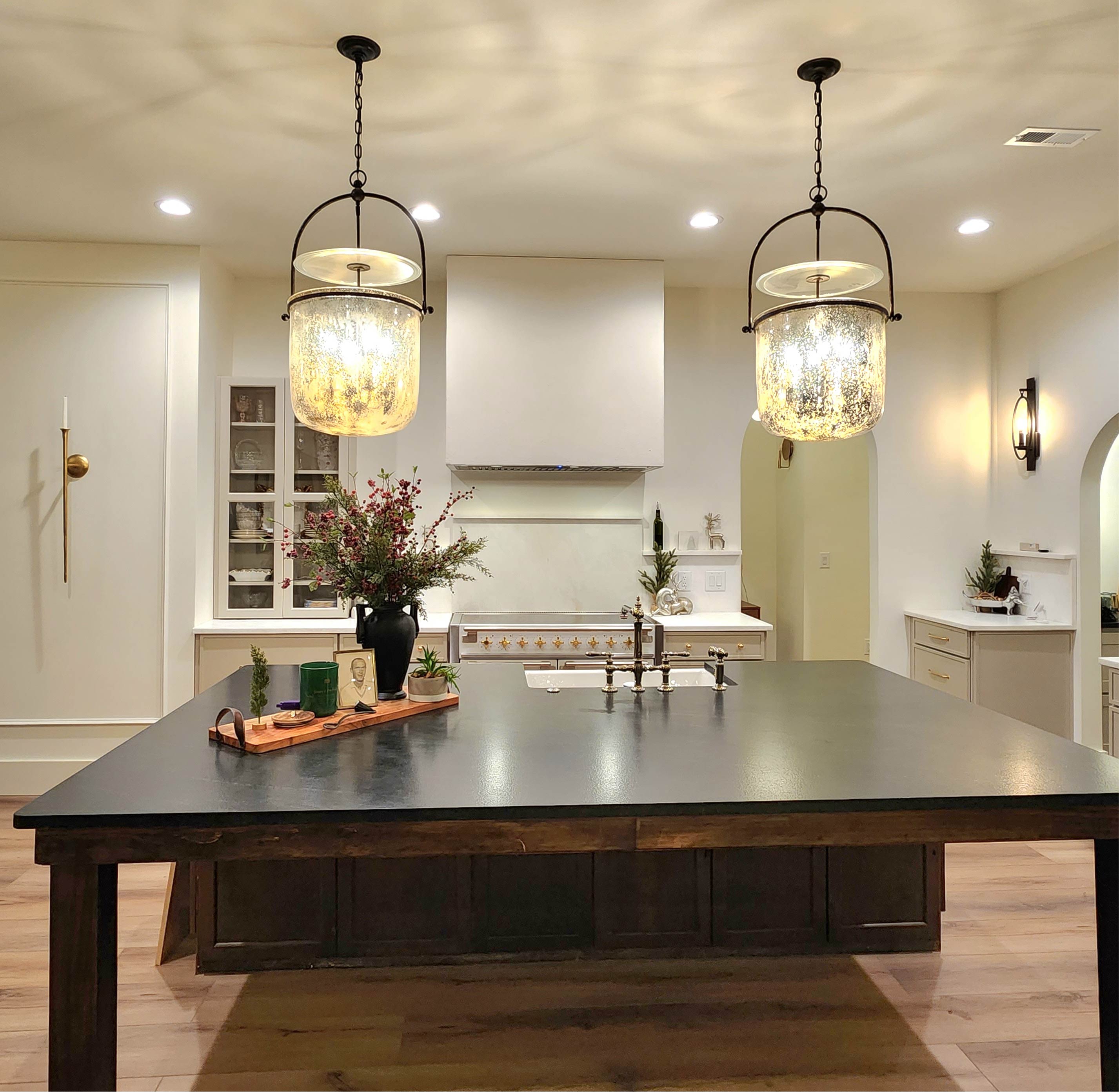

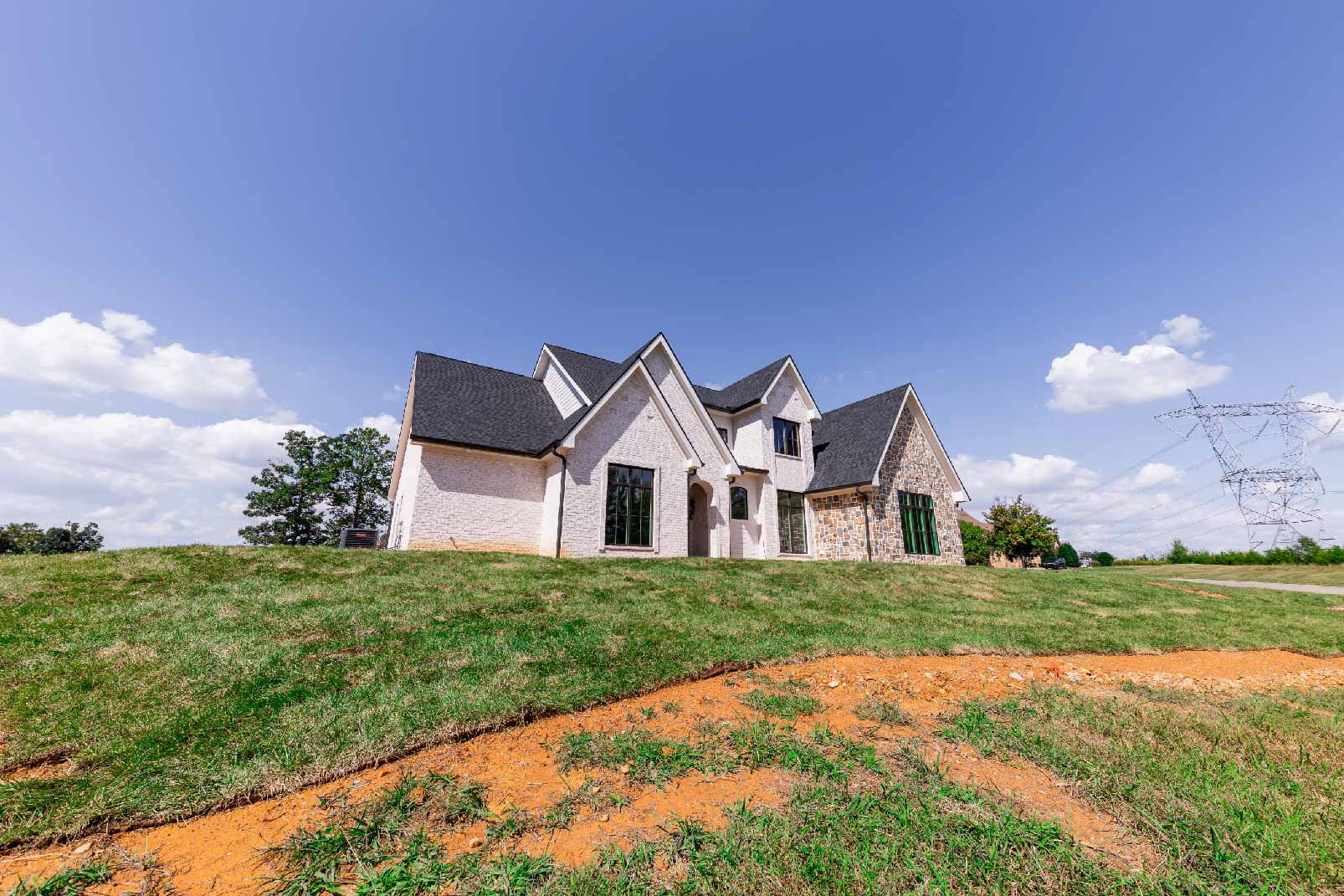

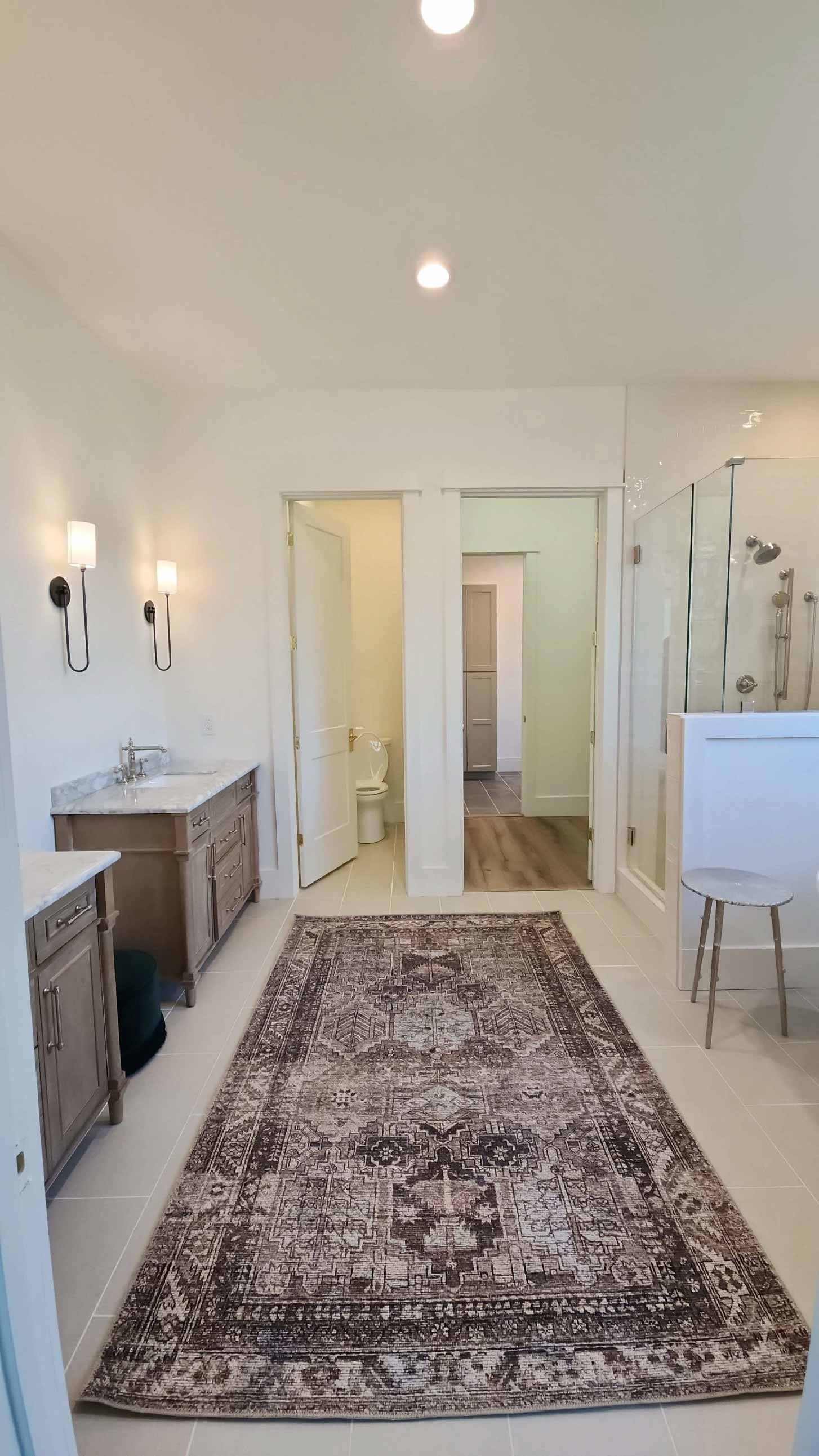

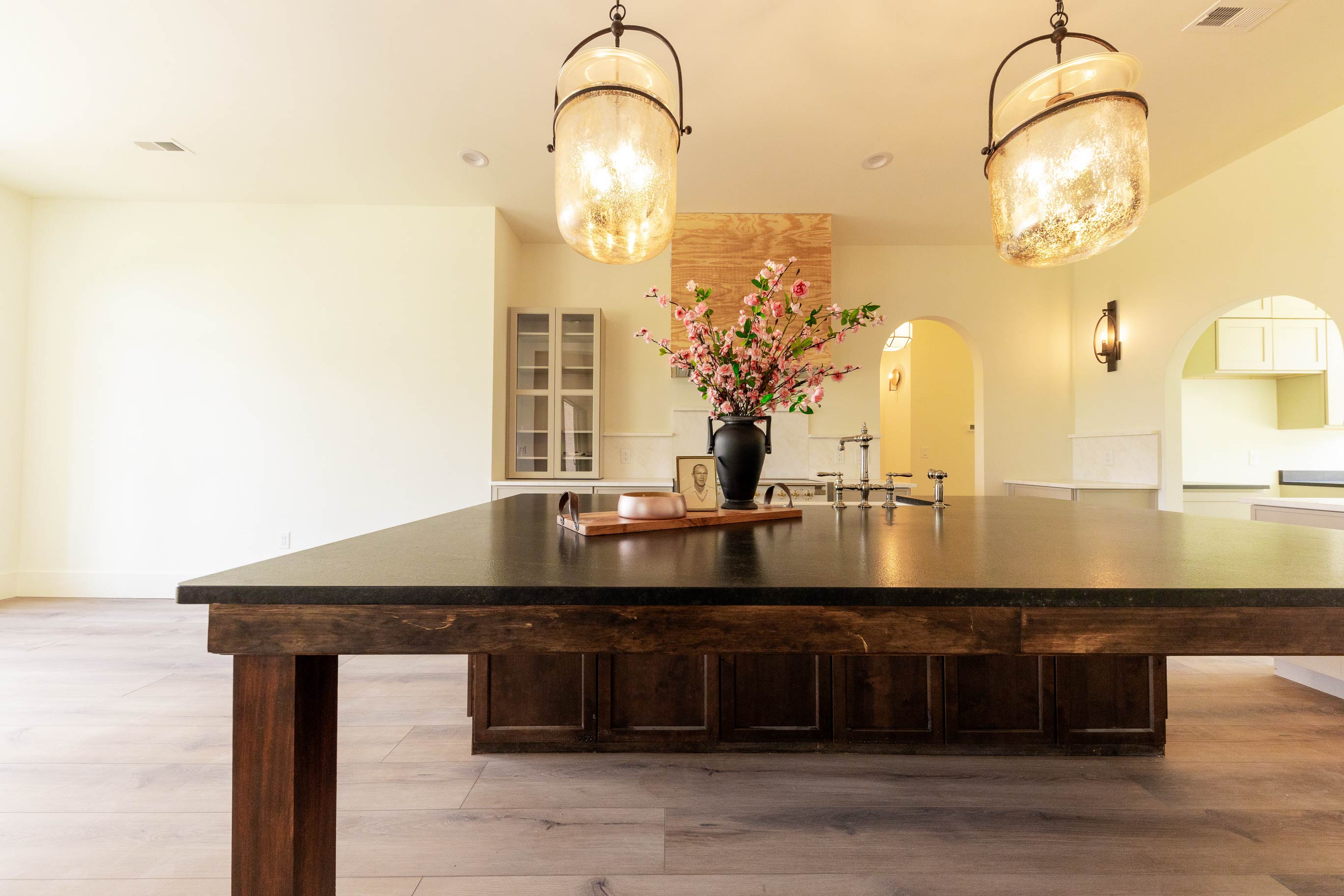

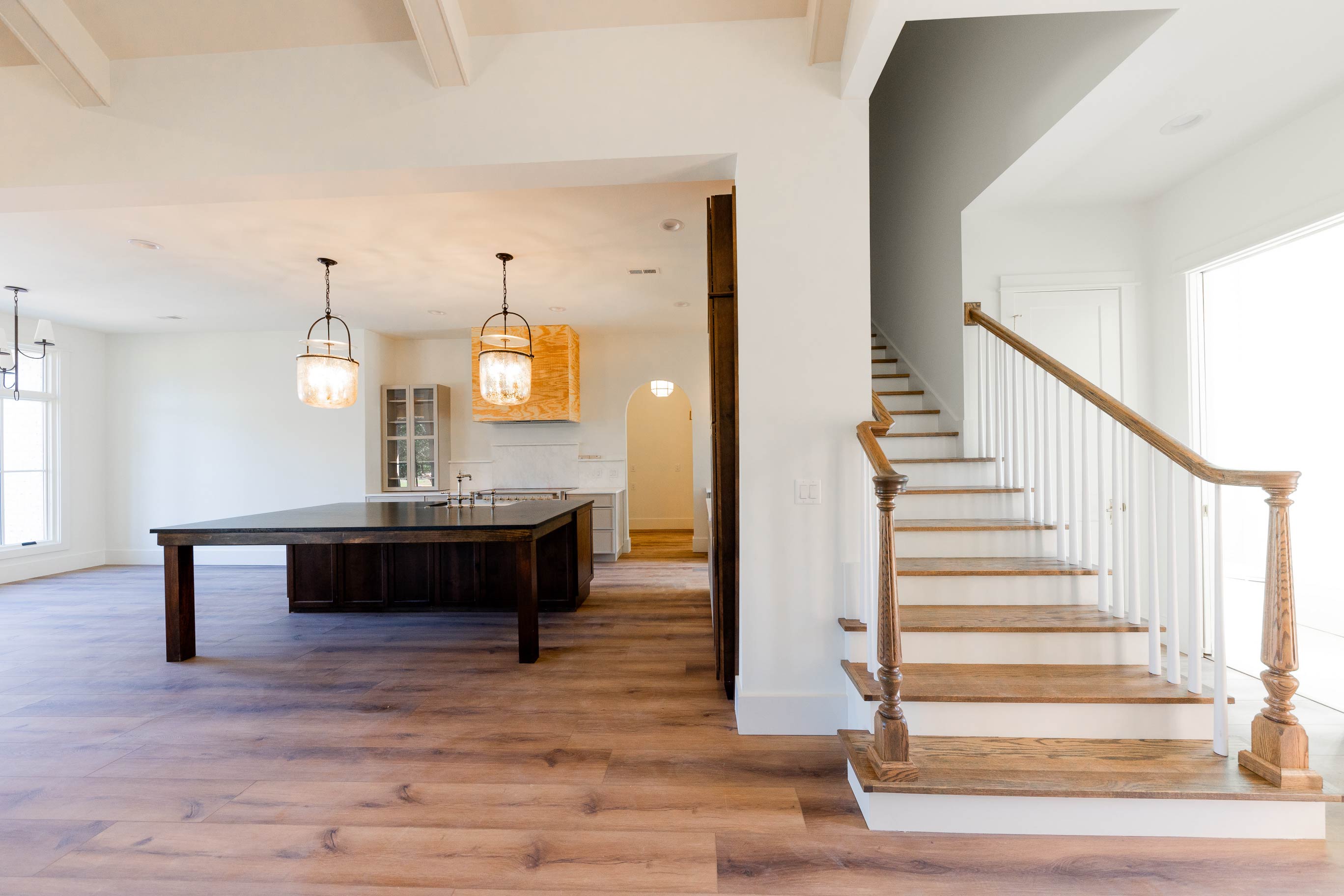

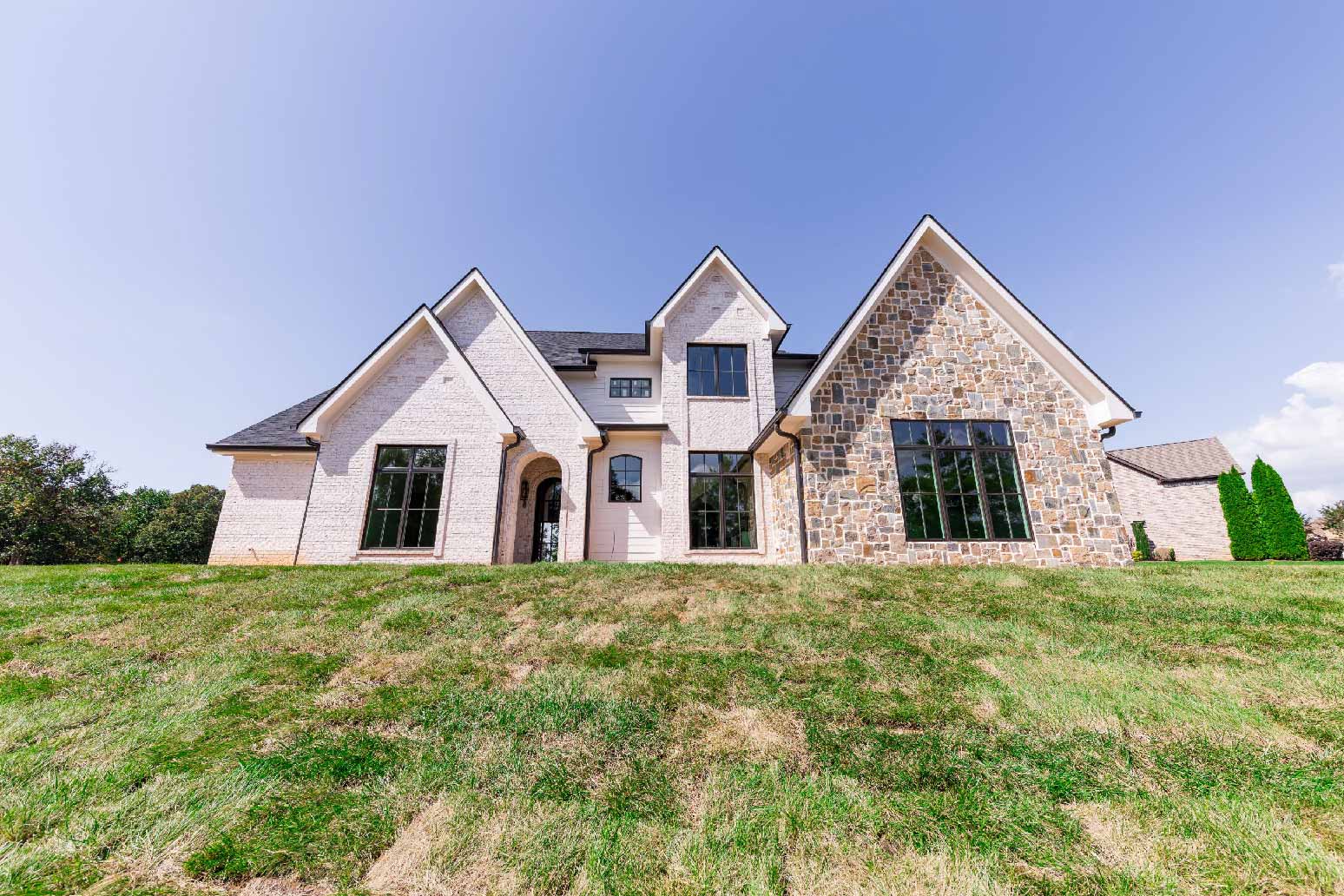

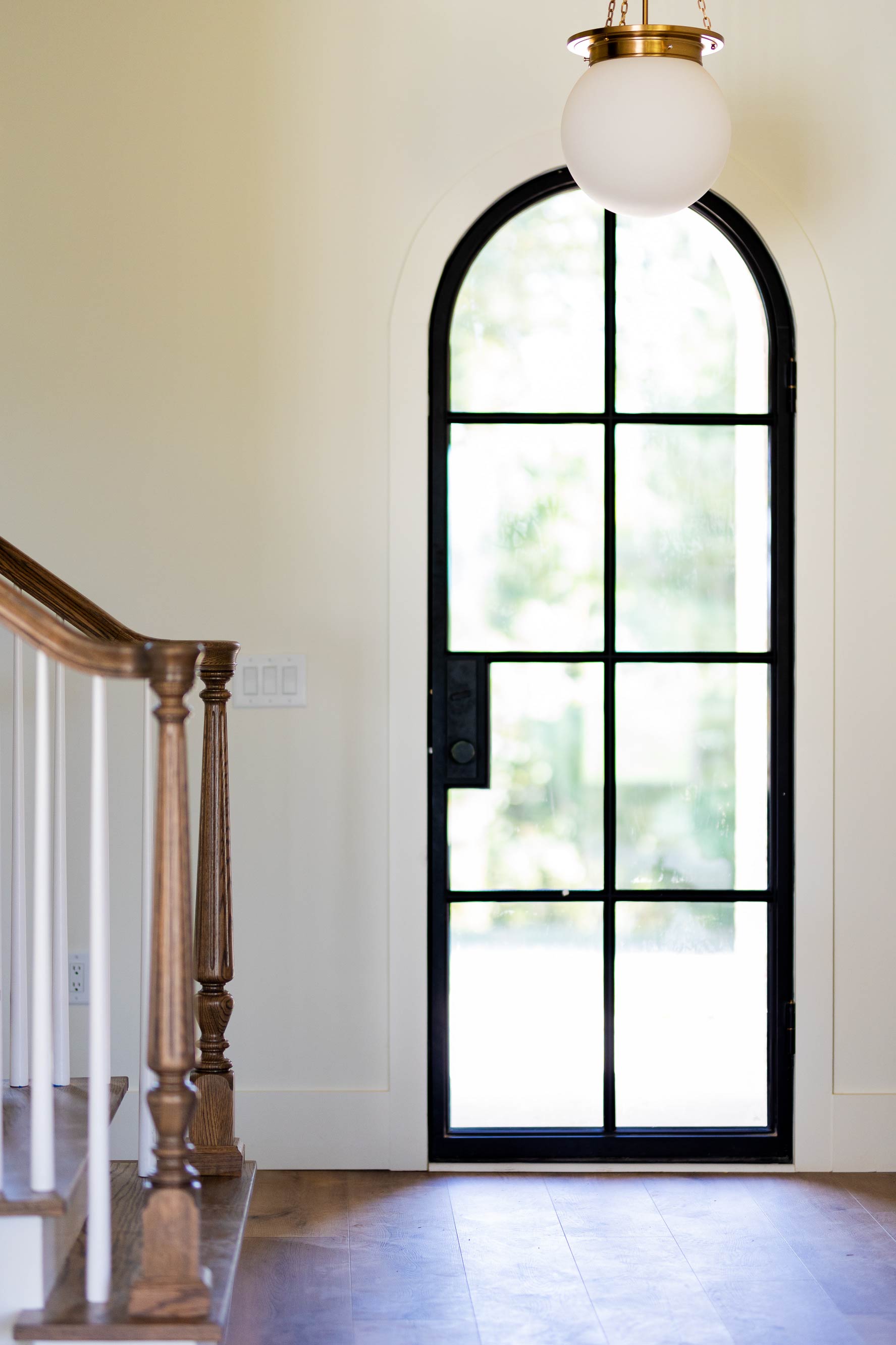

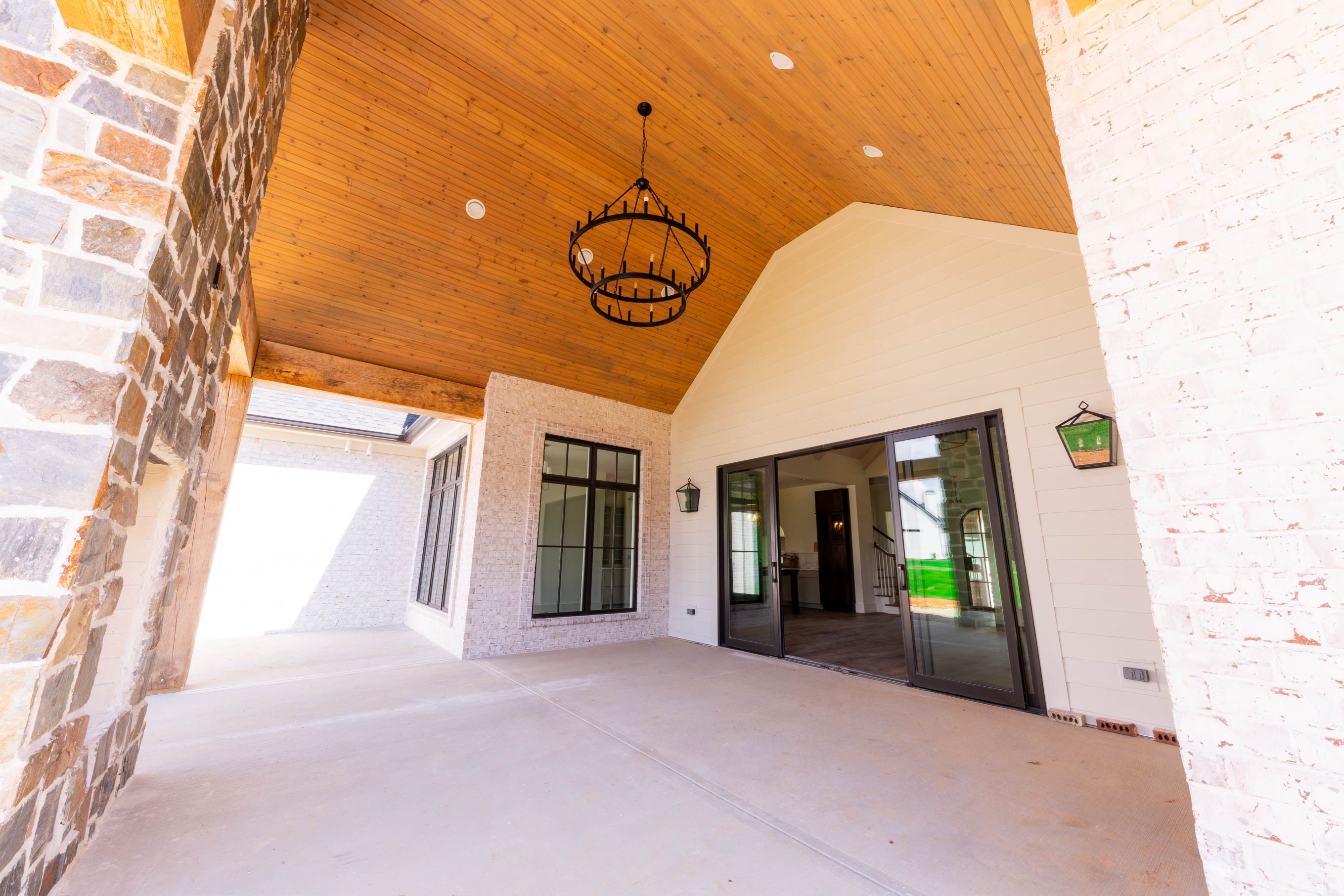

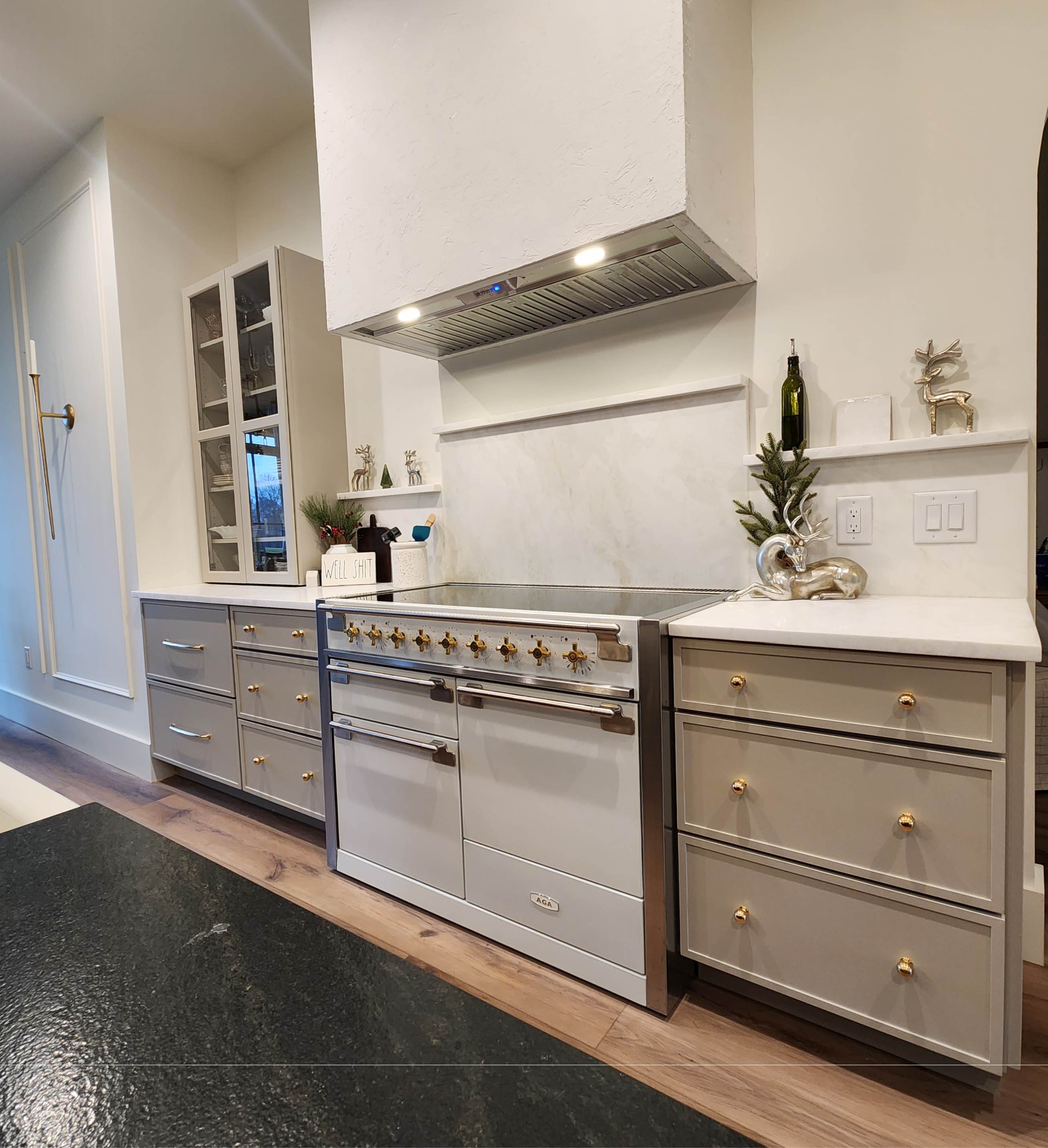

Designer Seth Michael Nelson brings to life the beauty of marrying European and modern design elements in this stunning house plan.The strategic mixture of brick siding with stone siding brings visual interest and style to the home. This is complimented by the towering rooflines and modern windows to give you the best curb appeal possible.As you make your way into this home through the front entryway you will find yourself in the foyer that displays the staircase to the upper floor while gazing into the large great room and to the rear porch beyond.This spacious great room displays beautiful false beams along the ceiling and a 12’ sliding glass door unit allowing a great view to the covered porch. The open floor plan between the great room, kitchen and dining room will promote time spent together with family while allowing conversations to flow through the spaces uninterrupted. This kitchen features a huge island with seating along 2 sides for casual meals or a great space to visit with the chef. Through the kitchen you have access to the right side of the home which is heavily devoted to the luxurious master suite. A beautiful vaulted ceiling adds elegance and grandeur to the bedroom. The master bath contains all the amenities one could need including a free standing tub, tile shower, his and her sinks at the spacious vanity, a makeup counter, and a walk-in closet with direct access to the laundry room. The laundry room not only has direct access to the master suite but also provides other great features such as a built-in ironing unit and a convenient sink along with plenty of counter and cabinet space. This side of the home is where you can access the large 3 car garage which features a workbench and storage, perfect for the do-it-yourself-er. Heading to the other side of the home you will find bedrooms 2 and 3. Each of these rooms contain their own private ensuite bathrooms and large closets. Bedrooms 2 also has direct access to the covered porch through a closet in the bathroom. Upstairs is another full bath as well as an optional bonus room if additional space and square footage is desired. This bonus room makes the perfect hangout space for teenagers, office space for anyone working from home or media/game room for those who love to spend time together with family and friends. Other Great Features Of This Home Include: - A huge pantry off the kitchen with a desk space - A convenient half bath located off the foyer for guests - A drink bar in the hall off the kitchen leading to the master suite

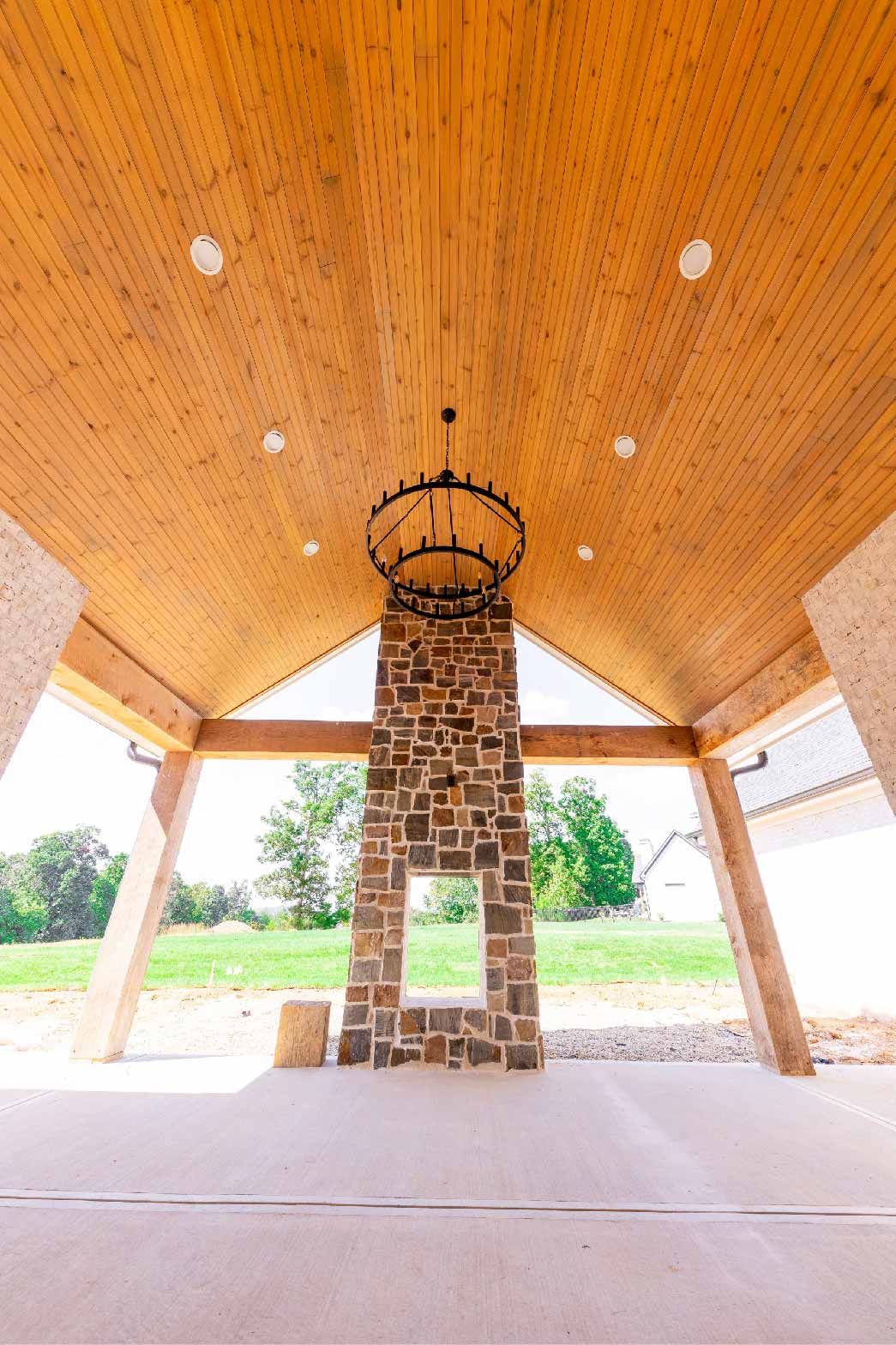

Outdoor LivingCreating The Perfect Outdoor Space

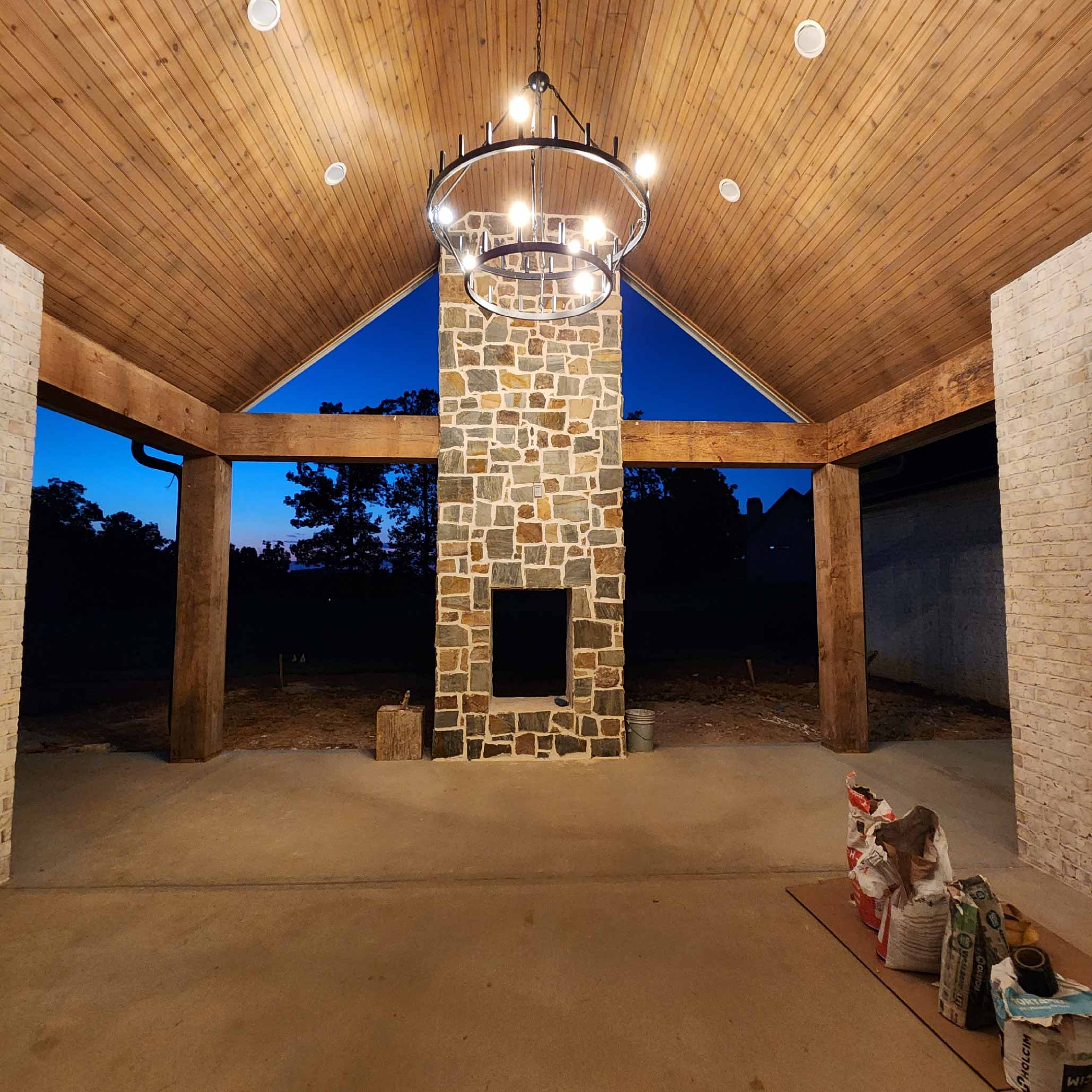

If you love to spend time grilling out and enjoying a beautiful fall evening outside with friends and family then an outdoor living space is a must! Having both covered and uncovered space is a great set up as it allows a grilling space and a place for comfortable outdoor furniture and even a tv so the come game day this will be the best place not only in your own home but on your entire block! Adding a fireplace to your outdoor living area will extend the weeks in which this space is usable and thus adding value and worth.

Customize A Nelson Design Group House PlanTake This House Plan From Great To Perfect!

A stock plan doesn’t always fit what you are looking for but this doesn’t mean you have to reinvent the wheel and spend too much money getting a full customized plan drawn up. Here at Nelson Design Group we want to make the process of getting your perfect house plan as easy and cost effective as possible. If you have found a Nelson Design Group house plan that almost fits the bill but needs a few changes to be perfect we would love to work with you to do just that. Our experienced team of house plan specialist and designers will help guide you through the steps of customizing a house plan to result in your dream home. Want to know more about the customization process? Check out our: Modifications FAQ page. Ready to get started? Send us an email to and be sure to include the plan number, changes you are wanting to make and your desired timeline to have the finished plans in hand


  • Total Living Space:2641Sq.Ft.
  • Main Floor: 2493 Sq.Ft
  • Upper Floor (Sq.Ft.): 148 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 414 Sq.Ft.
  • Porch (Sq.Ft.): 424 Sq.Ft.
  • Garage (Sq.Ft.): 1018 Sq.Ft.
  • Total Square Feet: 4497 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 16:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
