House Plan 1127 Quail Drive, Traditional House Plan

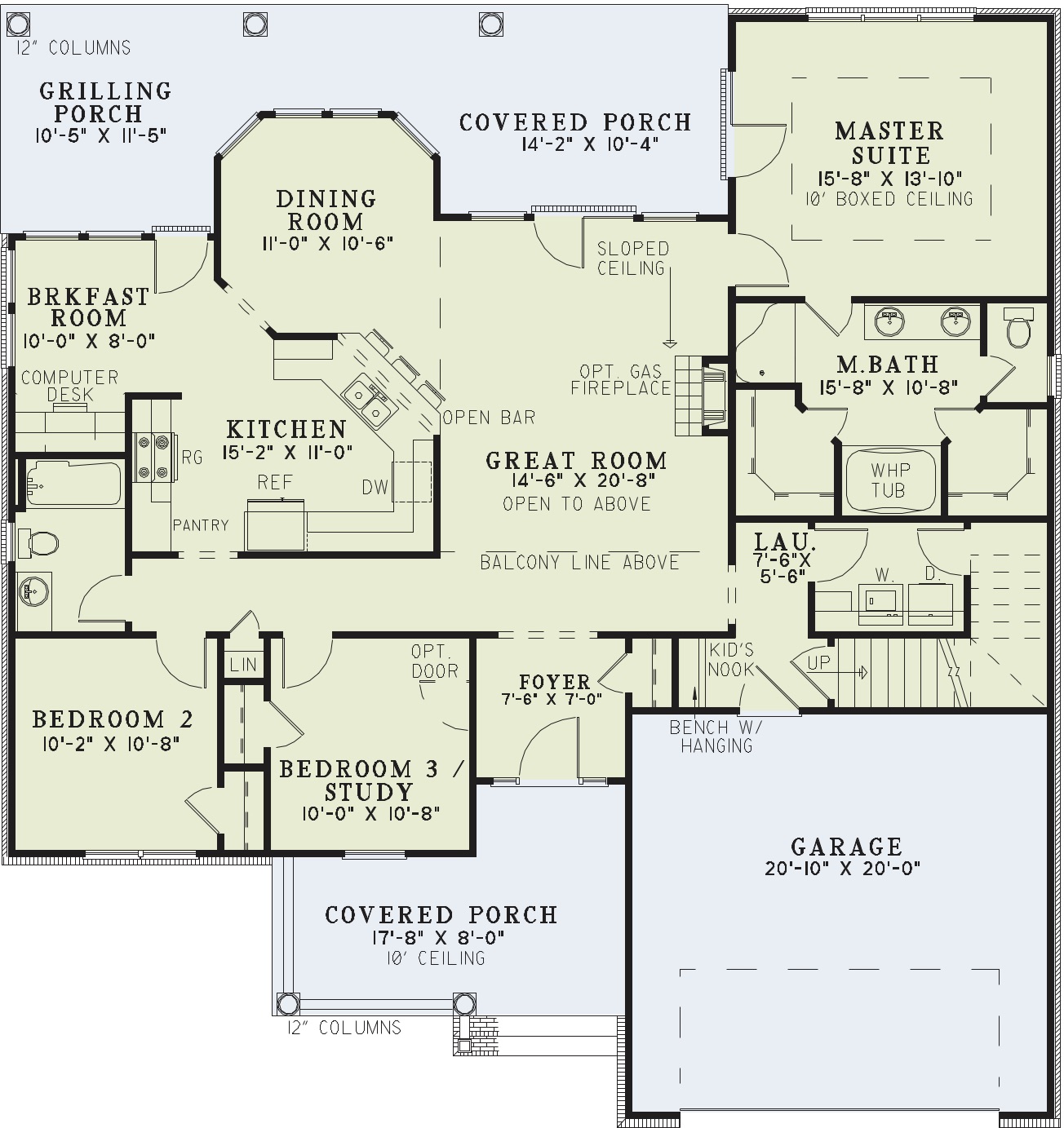

House Plan NDG 1127 Main Floor

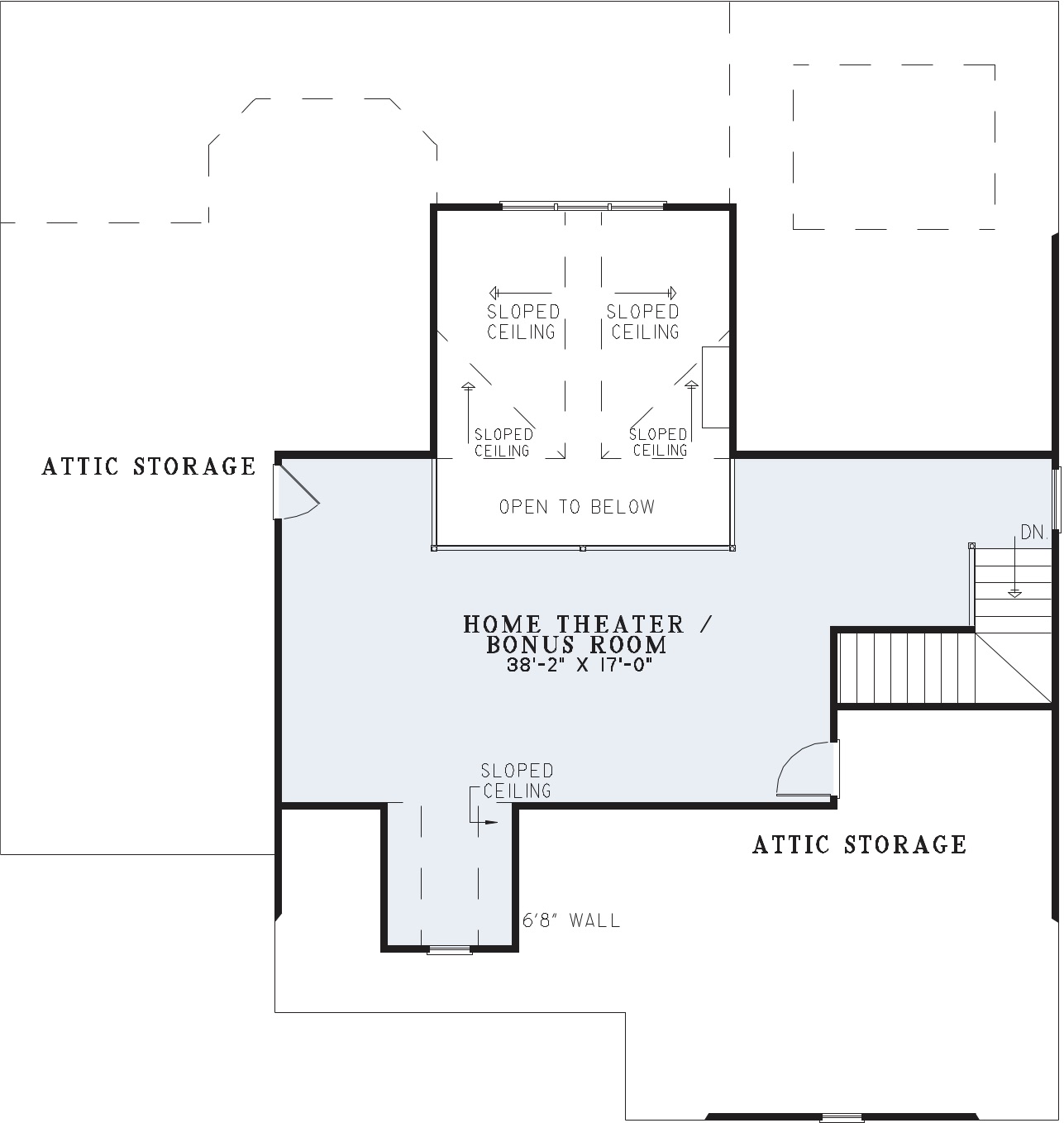

House Plan NDG 1127 Bonus/Upper Floor
>
House Plan NDG 1127 Main Floor
House Plan NDG 1127 Bonus/Upper Floor

Floor plans

NDG 1127

House Plan 1127 Quail Drive, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 1127
  • Total Living Space:1723Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: 6
  • Depth Ft.: 55
  • Depth In.: 6

Description

NDG 1127

A stunning addition to our Traditional House Collection, Quail Drive uses mixed materials to create an attractive exterior for this craftsman style home. The great room, complete with a fireplace, is the central entertaining area of your home. In your spacious breakfast room with accommodating computer center you will be able to manage your budget effectively, and the kitchen's eat-at bar counter makes quick meals and entertaining easy. The rear grilling porch will serve as the entertaining area for summer barbeques. The split bedroom design will be appreciated when retiring for the evening to the master bath, complete with luxuries of a whirlpool tub and his and her walk-in closets. The upper bonus area will be an excellent choice for the home theater for the entire family's enjoyment. How would you customize this amazing house plan?

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.

Specifications

  • Total Living Space:1723Sq.Ft.
  • Main Floor: 1723 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 557 Sq.Ft.
  • Porch (Sq.Ft.): 489 Sq.Ft.
  • Garage (Sq.Ft.): 436 Sq.Ft.
  • Total Square Feet: 3205 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
