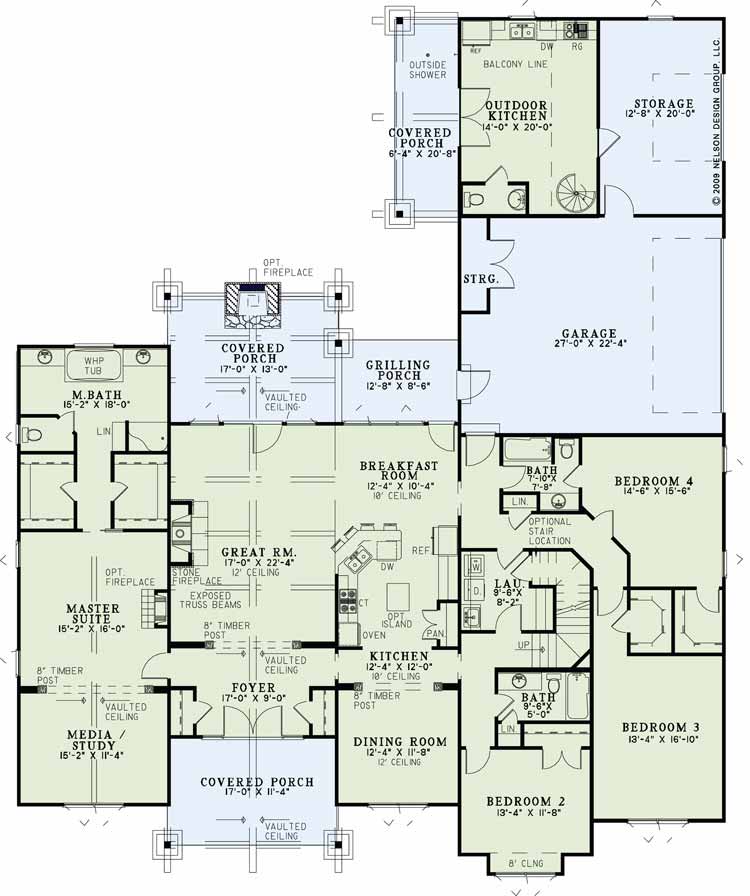

House Plan NDG 1302 Main Floor

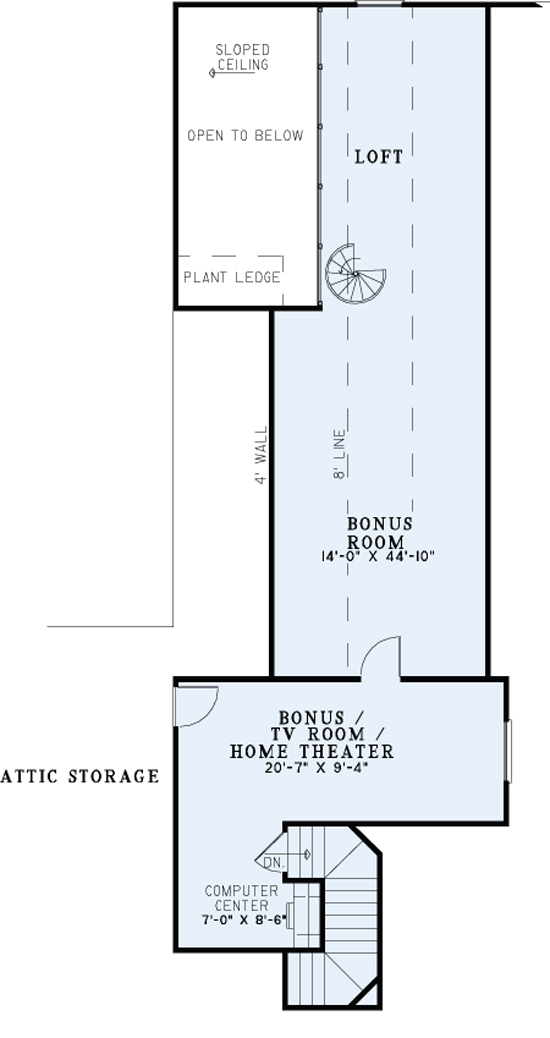

House Plan NDG 1302 Upper Floor

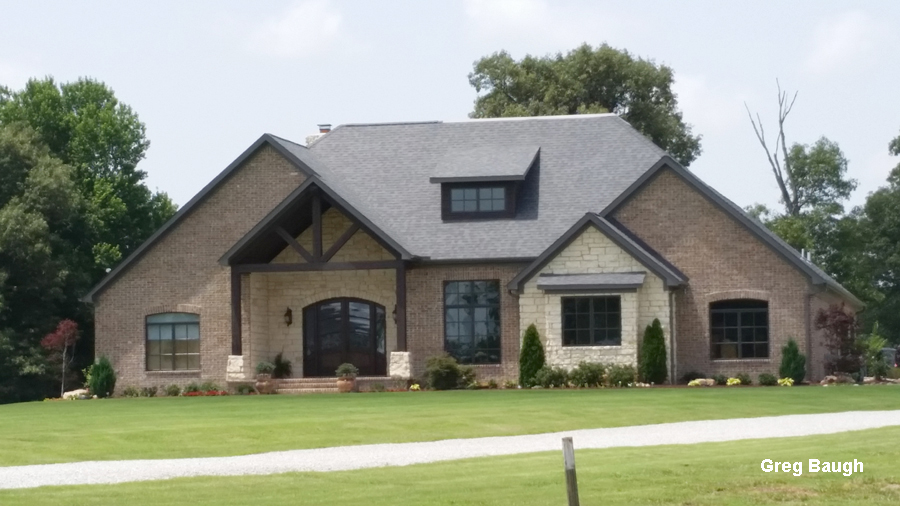

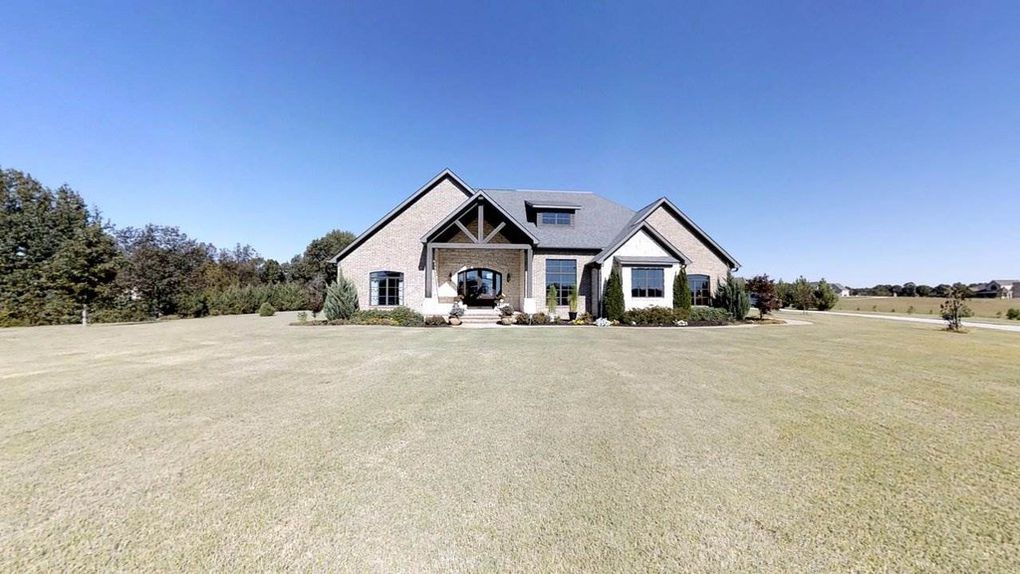

House Plan NDG 1302 Front Exterior
House Plan NDG 1302 Front Exterior
House Plan NDG 1302 Front Exterior

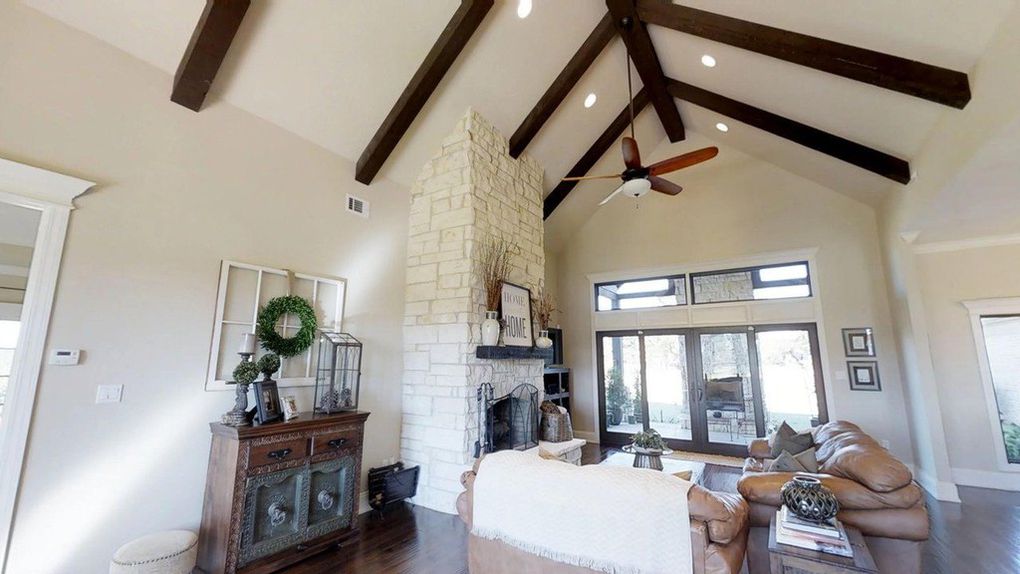

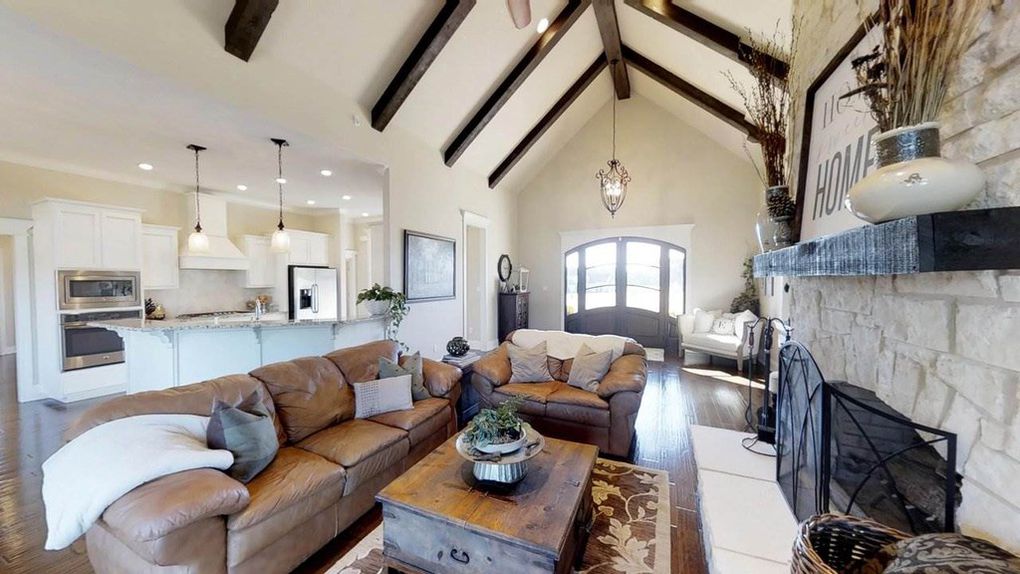

House Plan NDG 1302 Great Room
House Plan NDG 1302 Great Room
House Plan NDG 1302 Great Room
House Plan NDG 1302 Great Room

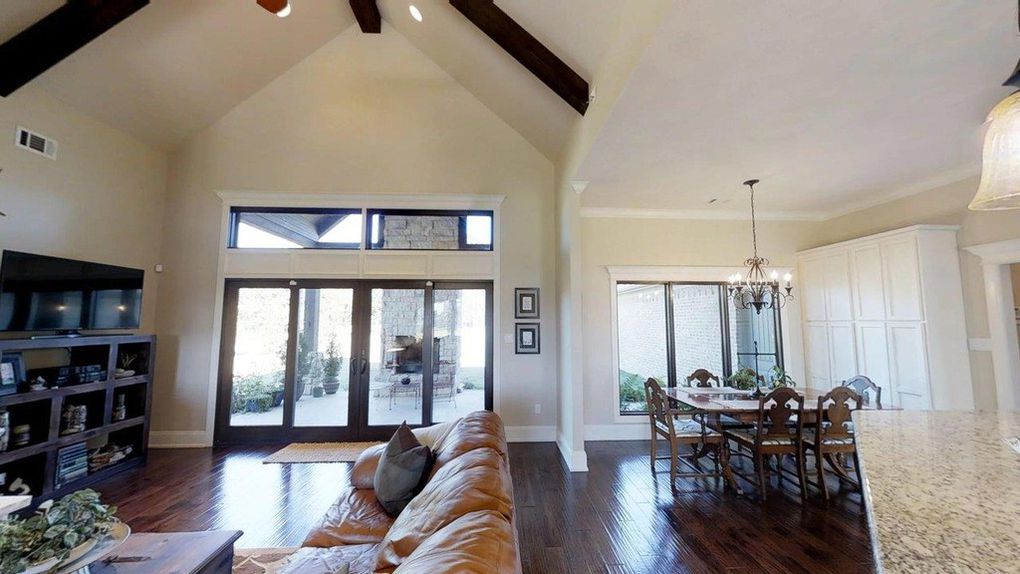

House Plan NDG 1302 Great Room & Breakfast Room
House Plan NDG 1302 Kitchen & Great Room

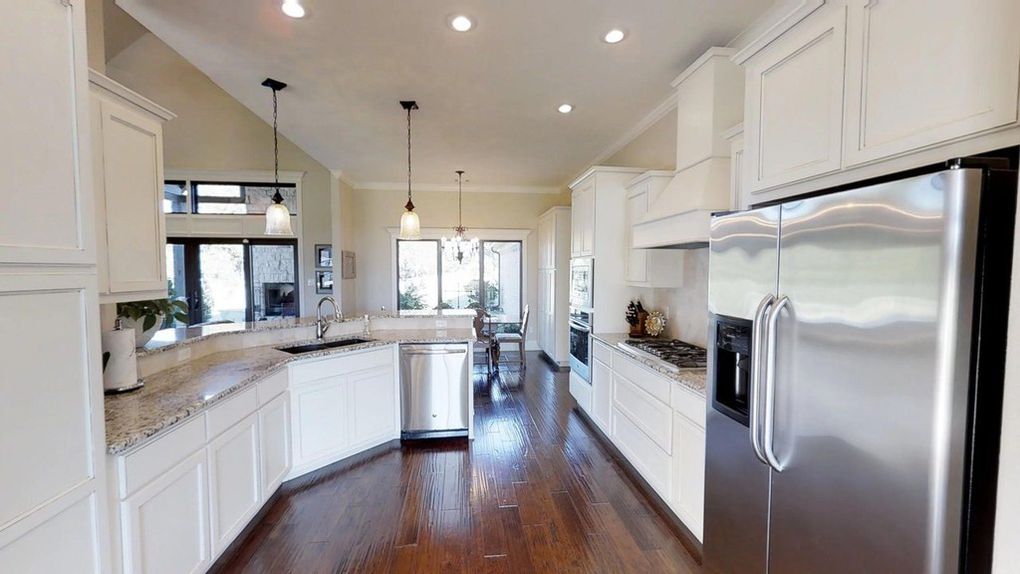

House Plan NDG 1302 Kitchen

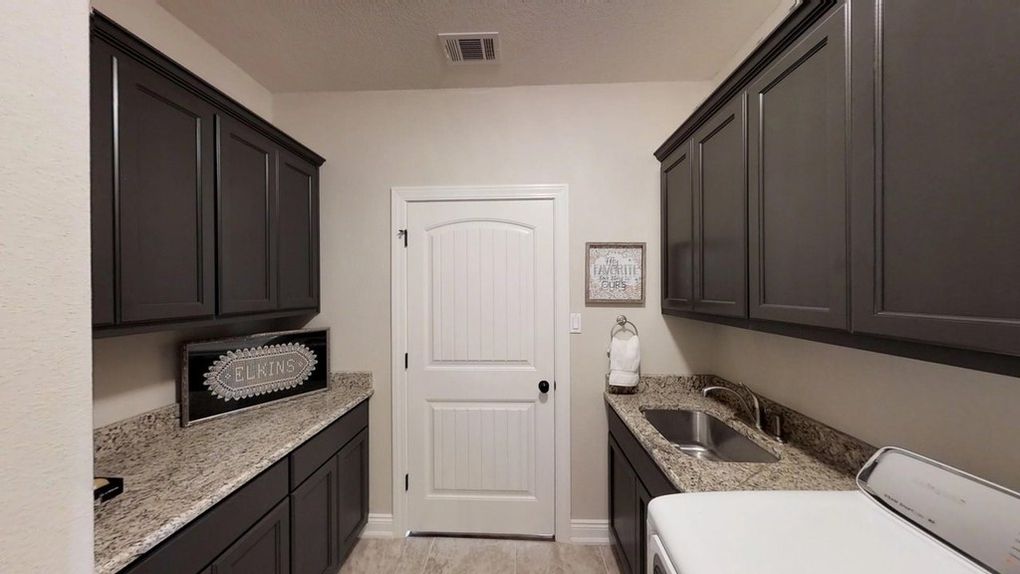

House Plan NDG 1302 Laundry

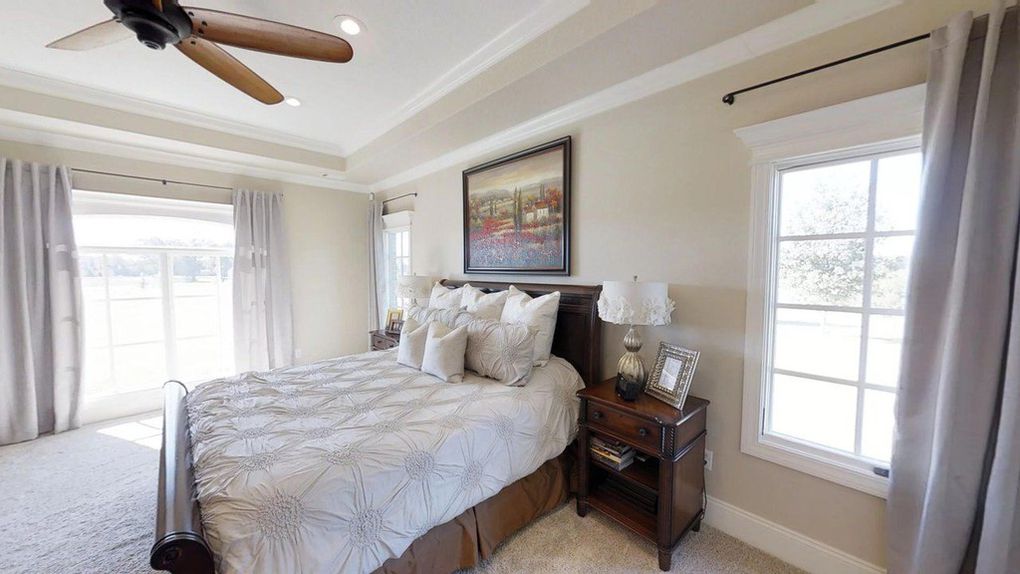

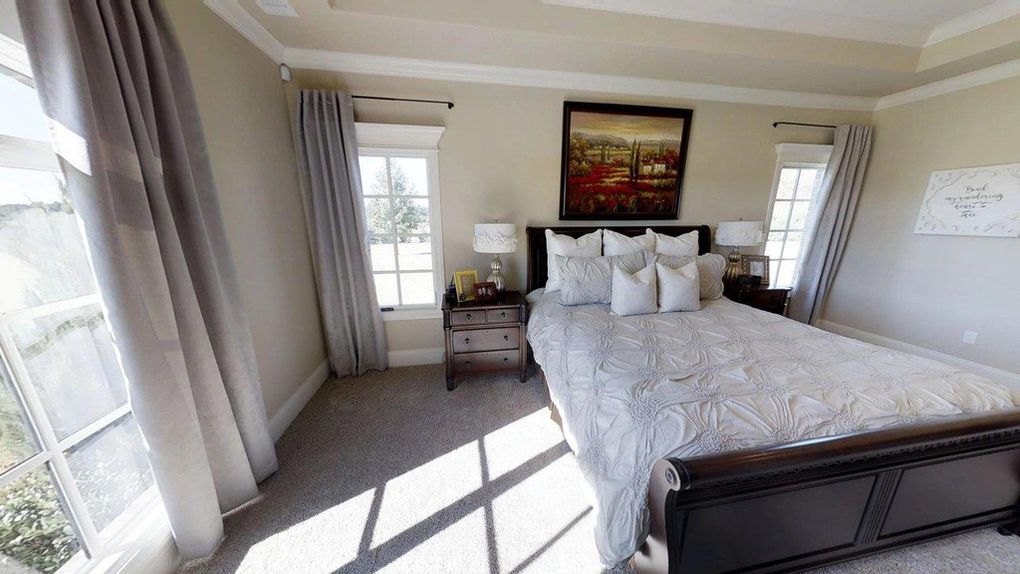

House Plan NDG 1302 Master Suite
House Plan NDG 1302 Master Suite

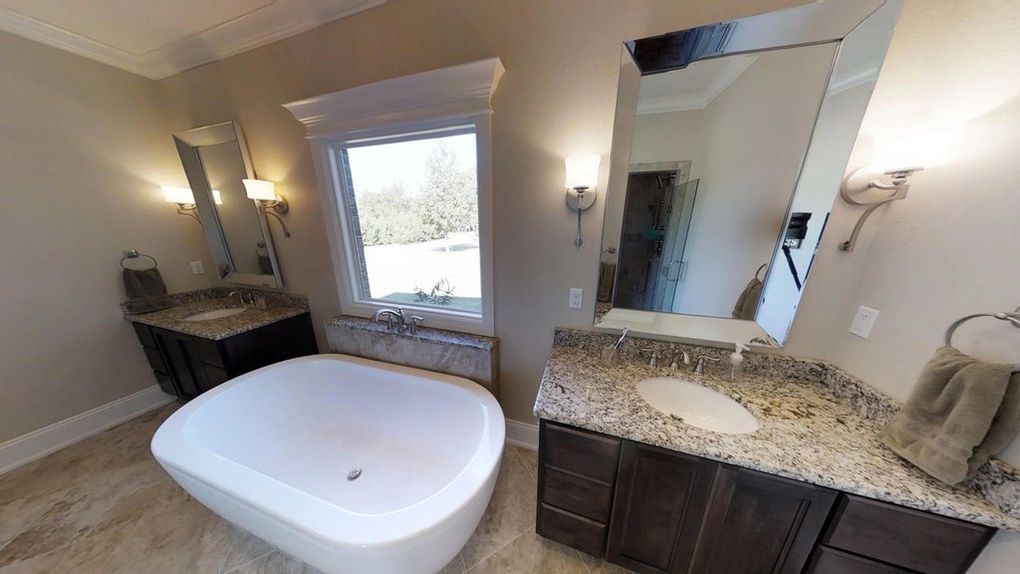

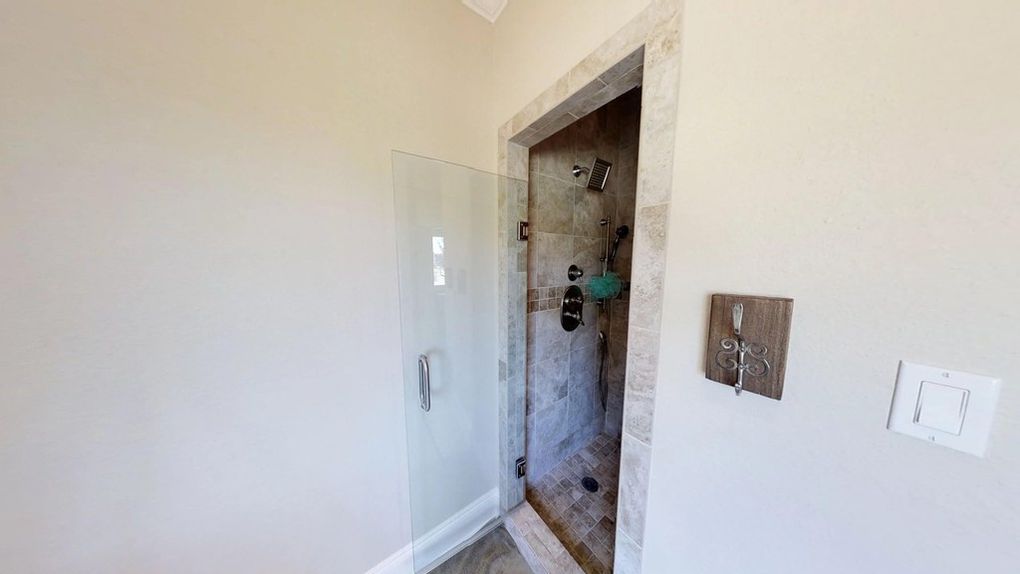

House Plan NDG 1302 Master Bathroom
House Plan NDG 1302 Master Bathroom
House Plan NDG 1302 Master Bathroom

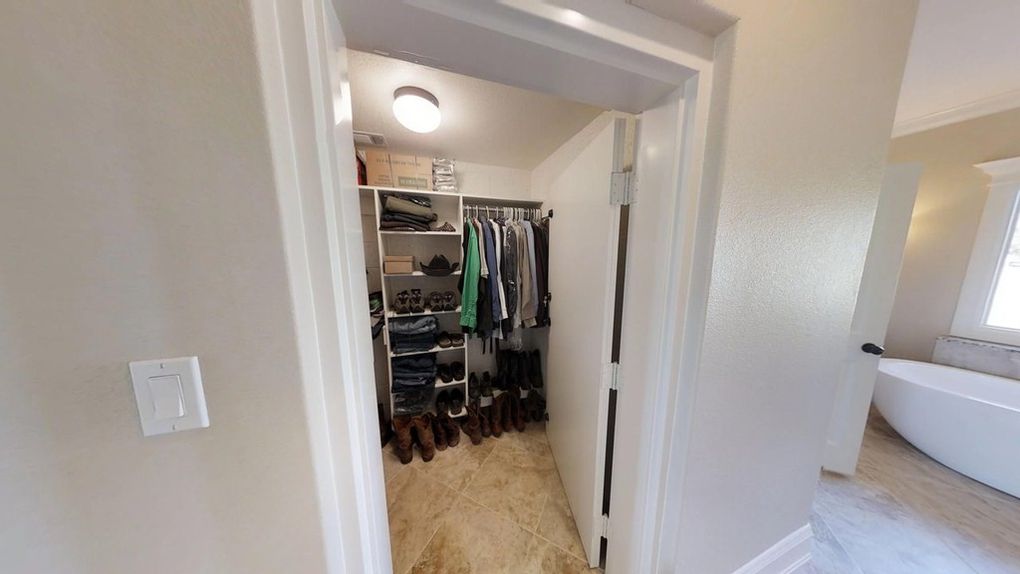

House Plan NDG 1302 Master Closet

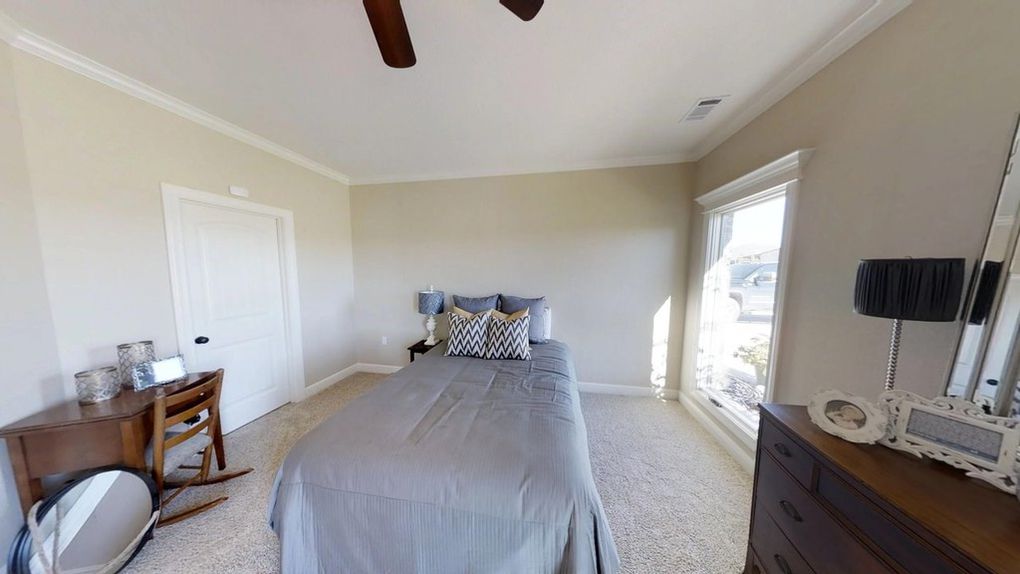

House Plan NDG 1302 Additional Bedroom
House Plan NDG 1302 Additional Bedroom

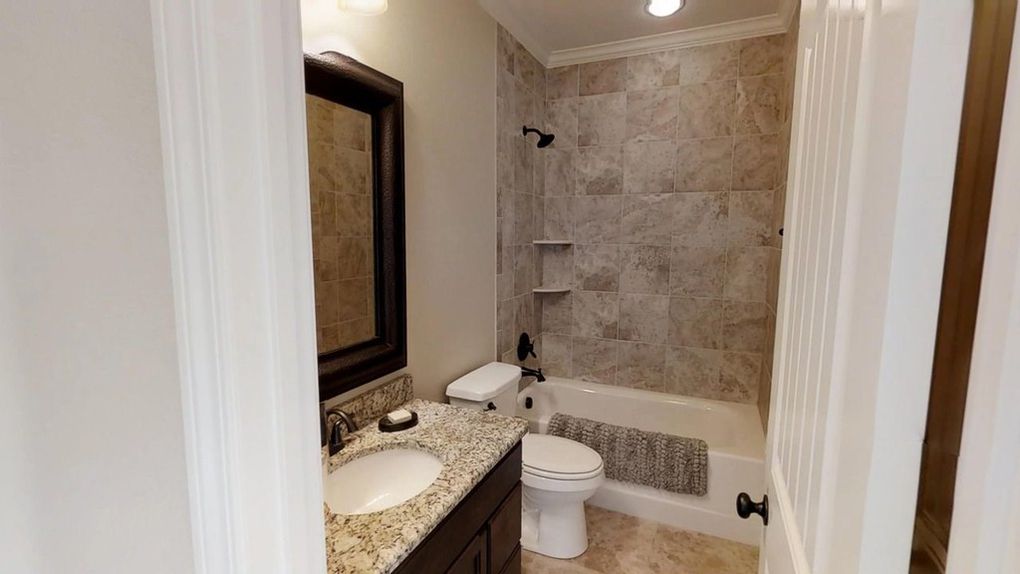

House Plan NDG 1302 Additional Bathroom

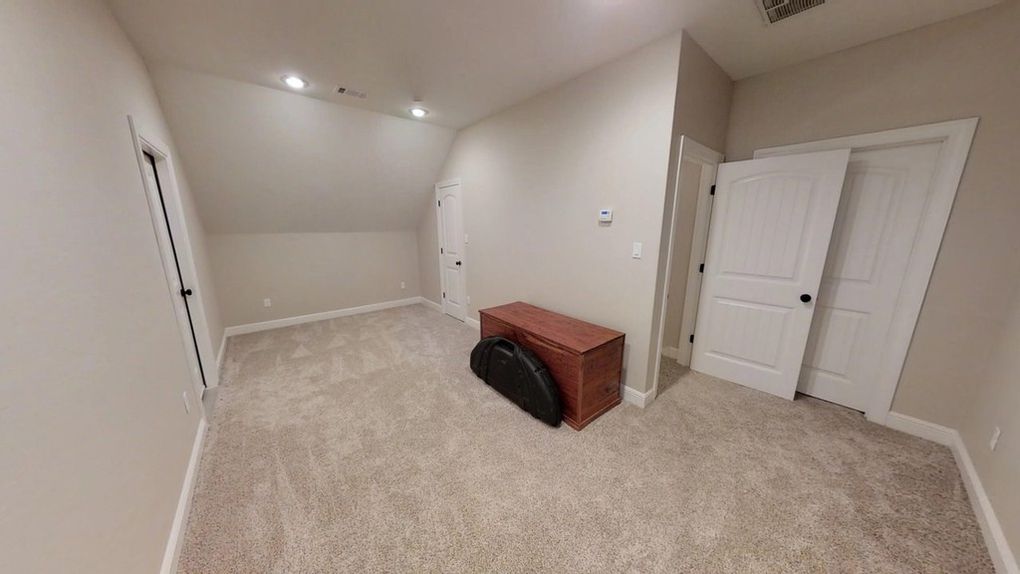

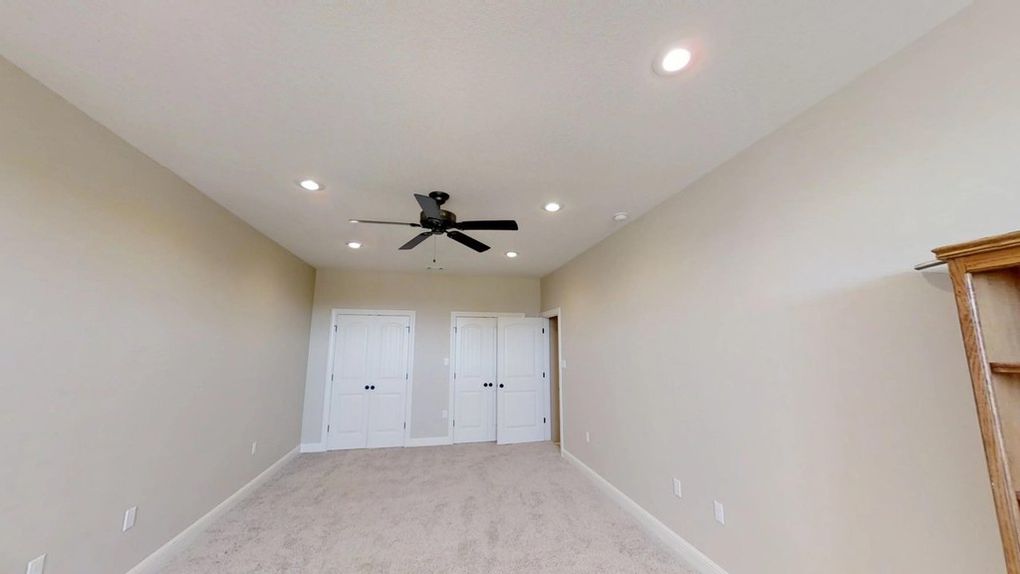

House Plan NDG 1302 Bonus Room
House Plan NDG 1302 Bonus Room

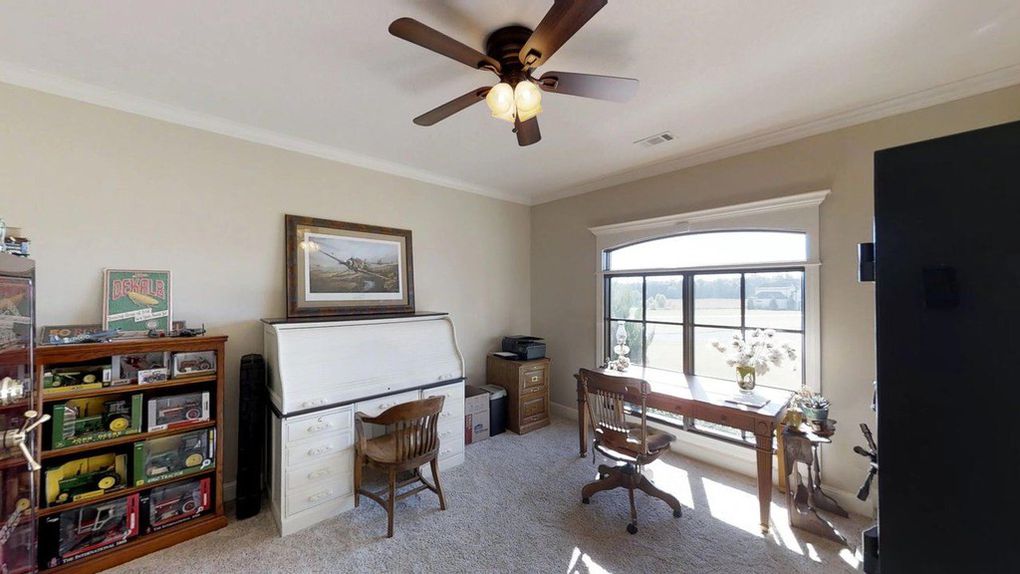

House Plan NDG 1302 Loft

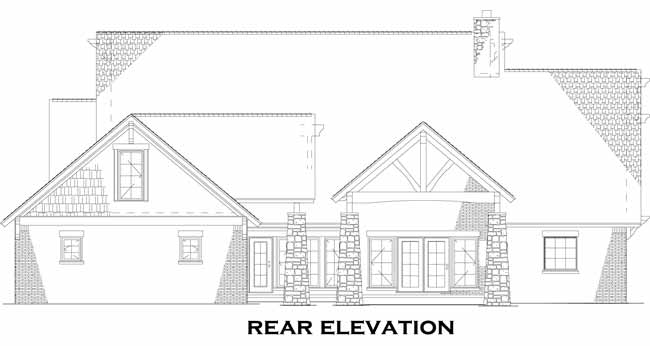

House Plan NDG 1302 Rear Exterior

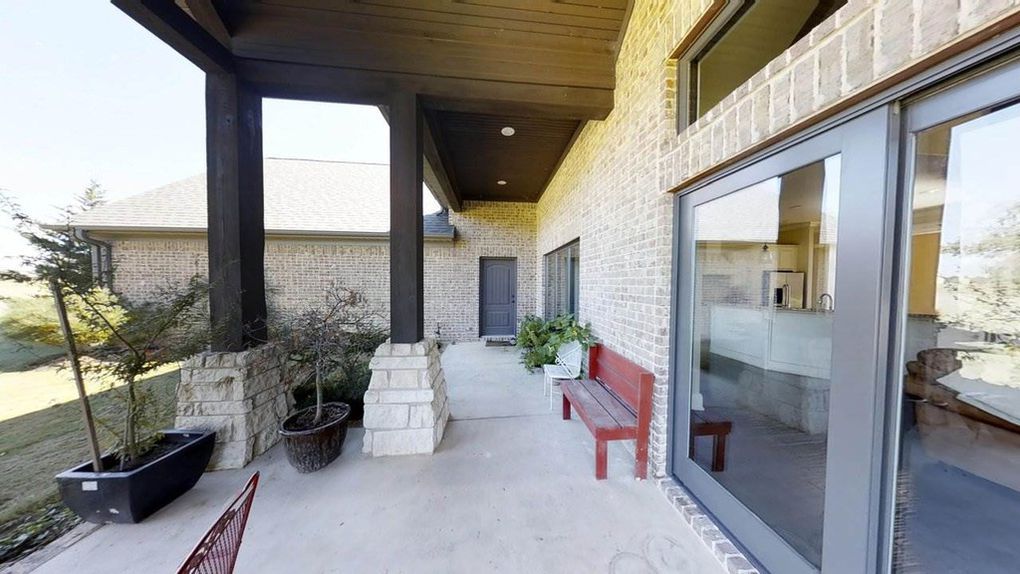

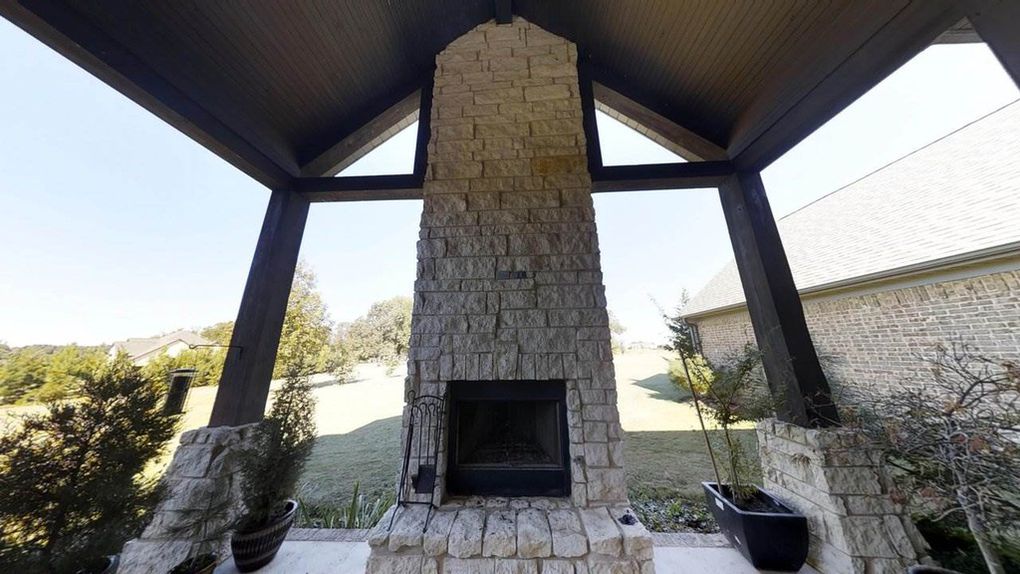

House Plan NDG 1302 Outdoor Living Porch
House Plan NDG 1302 Outdoor Living Porch
House Plan NDG 1302 Outdoor Living Porch
House Plan NDG 1302 Main Floor
House Plan NDG 1302 Upper Floor
House Plan NDG 1302 Front Exterior
House Plan NDG 1302 Front Exterior
House Plan NDG 1302 Front Exterior
House Plan NDG 1302 Great Room
House Plan NDG 1302 Great Room
House Plan NDG 1302 Great Room
House Plan NDG 1302 Great Room
House Plan NDG 1302 Great Room & Breakfast Room
House Plan NDG 1302 Kitchen & Great Room
House Plan NDG 1302 Kitchen
House Plan NDG 1302 Laundry
House Plan NDG 1302 Master Suite
House Plan NDG 1302 Master Suite
House Plan NDG 1302 Master Bathroom
House Plan NDG 1302 Master Bathroom
House Plan NDG 1302 Master Bathroom
House Plan NDG 1302 Master Closet
House Plan NDG 1302 Additional Bedroom
House Plan NDG 1302 Additional Bedroom
House Plan NDG 1302 Additional Bathroom
House Plan NDG 1302 Bonus Room
House Plan NDG 1302 Bonus Room
House Plan NDG 1302 Loft
House Plan NDG 1302 Rear Exterior
House Plan NDG 1302 Outdoor Living Porch
House Plan NDG 1302 Outdoor Living Porch
House Plan NDG 1302 Outdoor Living Porch

Floor plans

NDG 1302

House Plan 1302 Gervais Cove, Rustic House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1302
  • Total Living Space:3594Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 73
  • Width In.: 2
  • Depth Ft.: 88
  • Depth In.: 2

Description

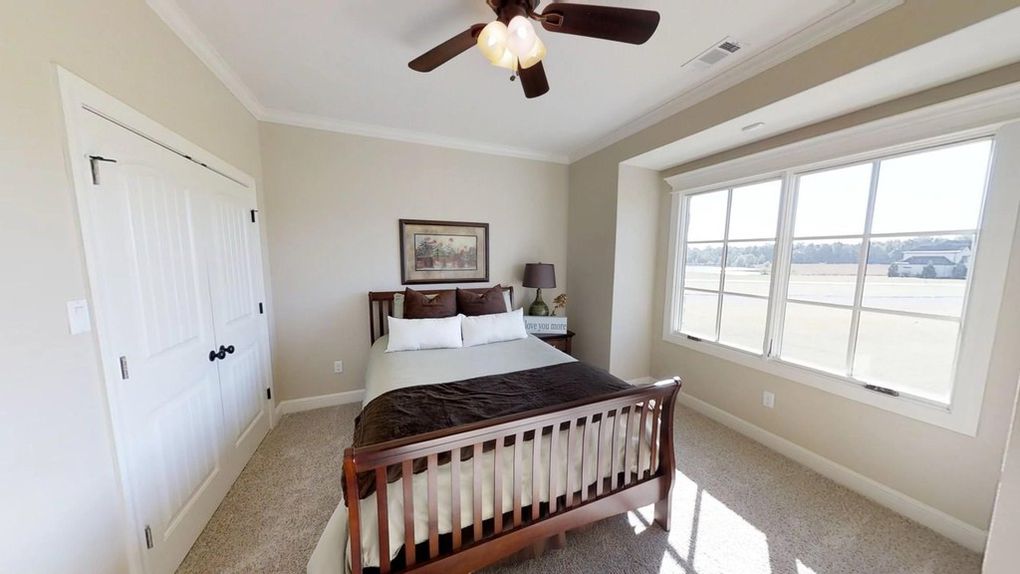

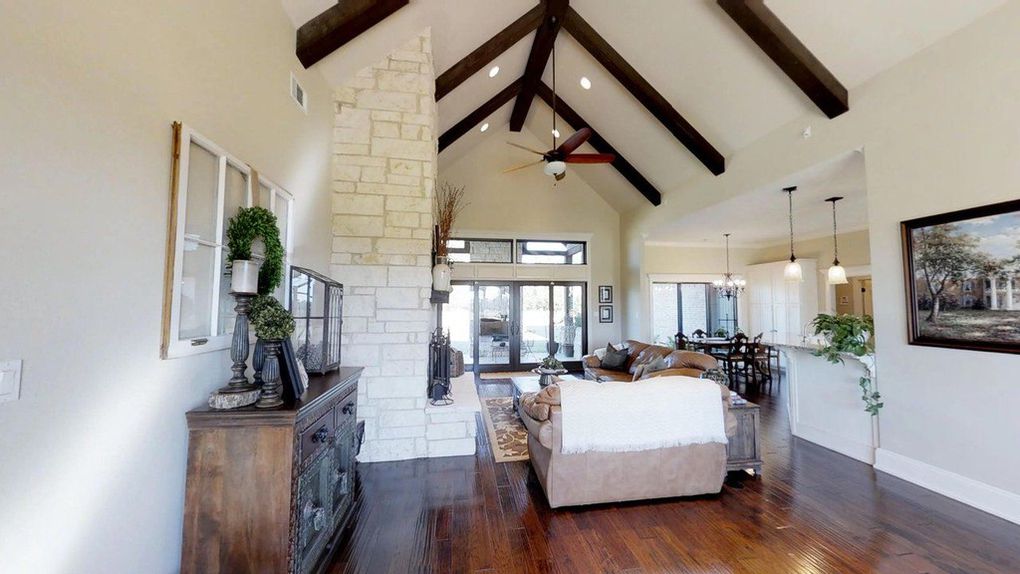

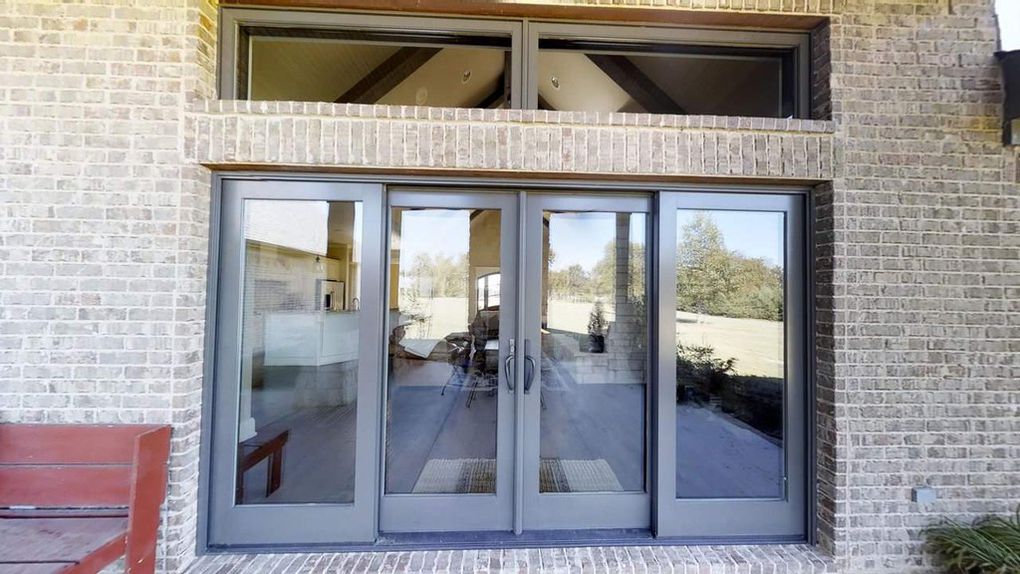

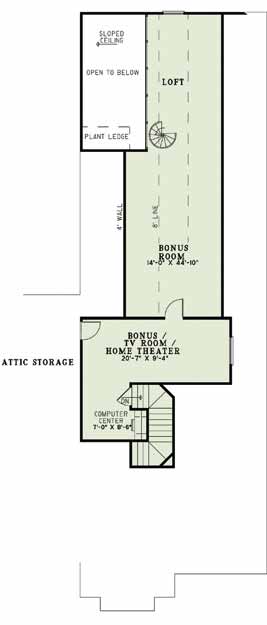

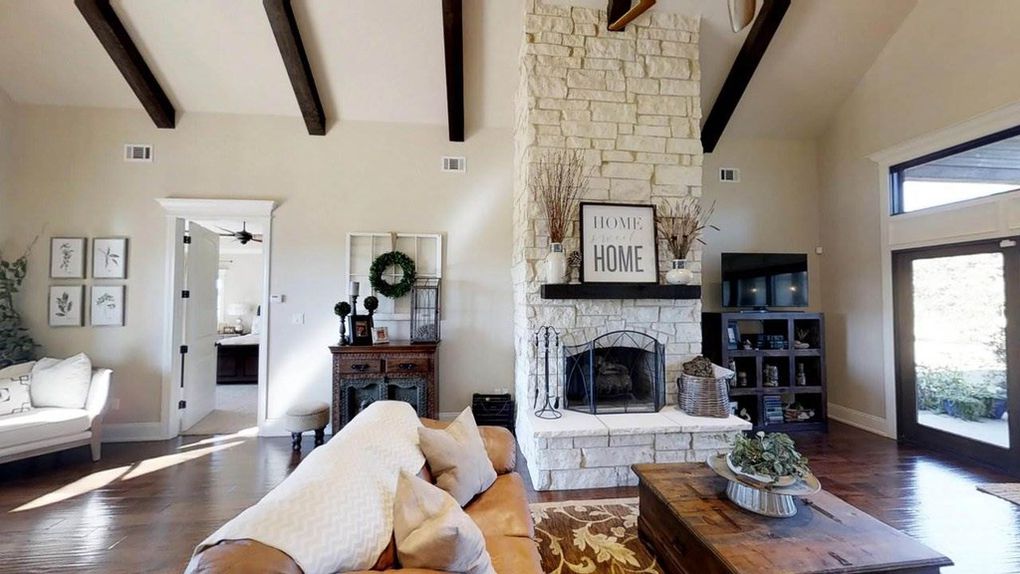

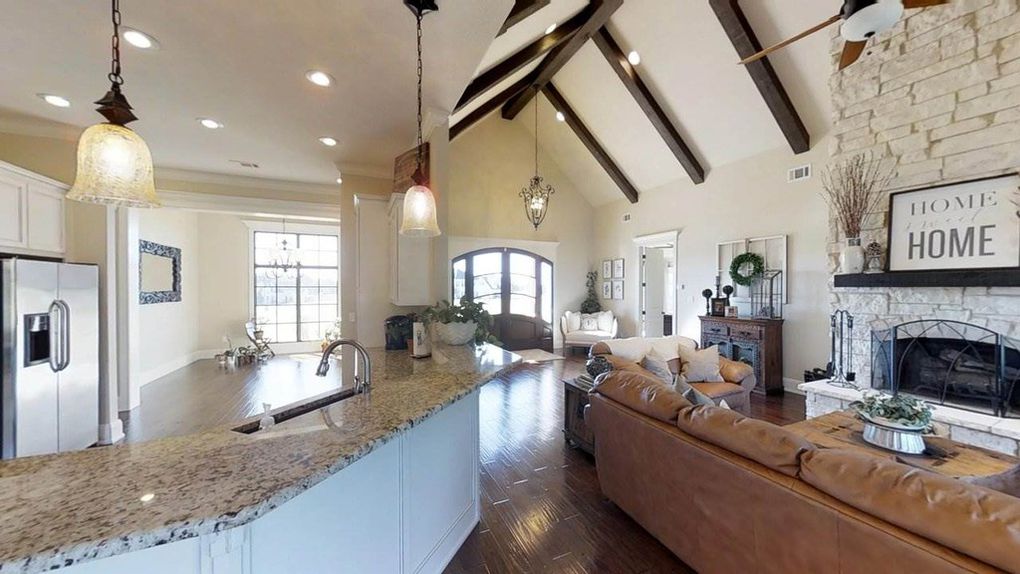

This gorgeous Rustic Ridge plan from Nelson Design Group offers plenty for the whole family throughout its 3500+ square feet. The massive front porch welcomes you into the spacious foyer where straight ahead you’ll find the great room. Exposed truss beams add character while the stone fireplace provides warmth and charm. Open to the great room is the breakfast room with plenty of natural light and a 10′ ceiling. The kitchen has a wrap around peninsula bar and an optional prep island. The master suite is exceptional with plenty of space, including a media room/study and also has an optional fireplace to set the mood. The master bath features his and hers walk-in closets and a whirlpool tub beneath a window. Bedroom 2, 3, and 4 are located on the right side of the house with 3 and 4 having walk-in closets. Head upstairs and you’ll find a computer center and a bonus/tv room/home theater. Past that and over the garage is another bonus room with a loft, balcony, and a charming spiral staircase that leads you back down to a second kitchen to prepare meals for a second covered porch, making entertaining family and friends a pure joy.

Specifications

  • Total Living Space:3594Sq.Ft.
  • Main Floor: 3292 Sq.Ft
  • Upper Floor (Sq.Ft.): 302 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 604 Sq.Ft.
  • Porch (Sq.Ft.): 670 Sq.Ft.
  • Garage (Sq.Ft.): 879 Sq.Ft.
  • Total Square Feet: 5747 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
