House Plan 1379 Oak Forrest, Farmhouse House Plan

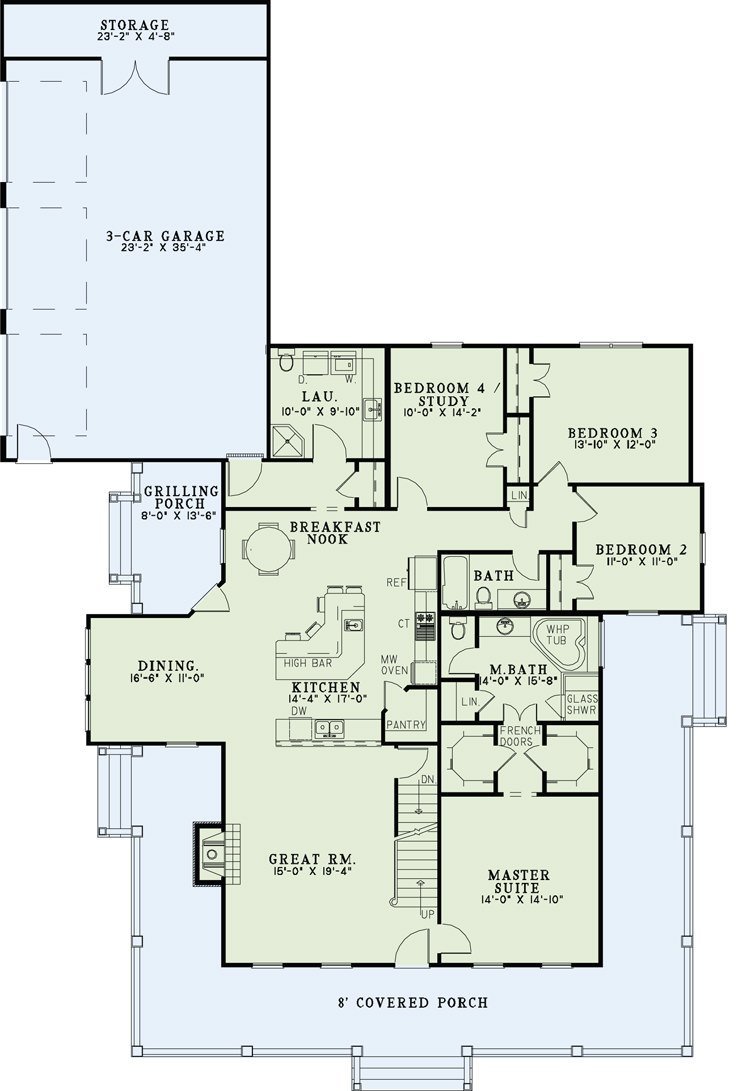

House Plan NDG 1379 Main Floor

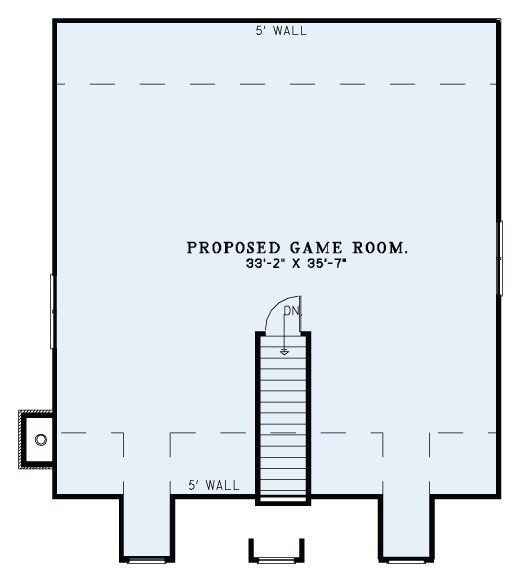

House Plan NDG 1379 Bonus Room/Game Room
>
House Plan NDG 1379 Main Floor
House Plan NDG 1379 Bonus Room/Game Room

Floor plans

NDG 1379

House Plan 1379 Oak Forrest, Farmhouse House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1379
  • Total Living Space:2180Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 62
  • Width In.: 6
  • Depth Ft.: 93
  • Depth In.: 10

Description

This country home offers a huge wrap-around front porch and has a side loading 3-car garage. A derivative of our 320 plan, the great room has a fireplace and is open to the kitchen. The kitchen features a large island bar, a walk-in pantry, breakfast nook, dining room, and access to the grilling porch. The laundry room has a shower and toilet for more convenience. The master suite has 2 walk-in closets and the master bathroom offers a corner whirlpool tub and a corner glass shower. 3 more bedrooms are located in the back corner of the house. And the upstairs is an enormous game room.

Specifications

  • Total Living Space:2180Sq.Ft.
  • Main Floor: 2180 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1214 Sq.Ft.
  • Porch (Sq.Ft.): 898 Sq.Ft.
  • Garage (Sq.Ft.): 979 Sq.Ft.
  • Total Square Feet: 5271 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
