House Plan 1616 Aspen Manor, Rustic House Plan

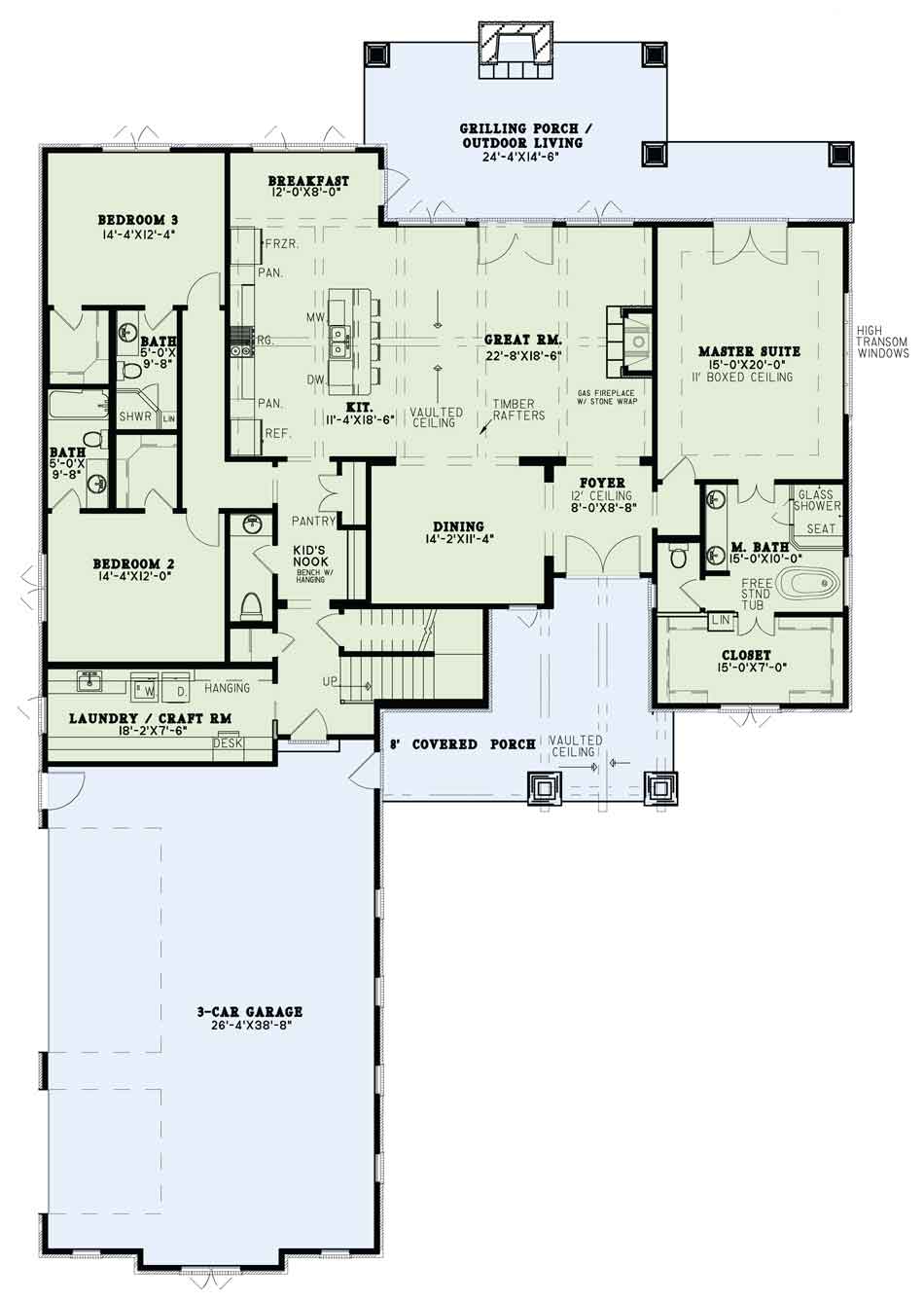

House Plan NDG 1616 Main Floor
House Plan NDG 1616 Upper Floor
House Plan NDG 1616 Main Floor
House Plan NDG 1616 Upper Floor

Floor plans

NDG 1616

House Plan 1616 Aspen Manor, Rustic House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1616
  • Total Living Space:3251Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 64
  • Width In.: 8
  • Depth Ft.: 98
  • Depth In.: 8

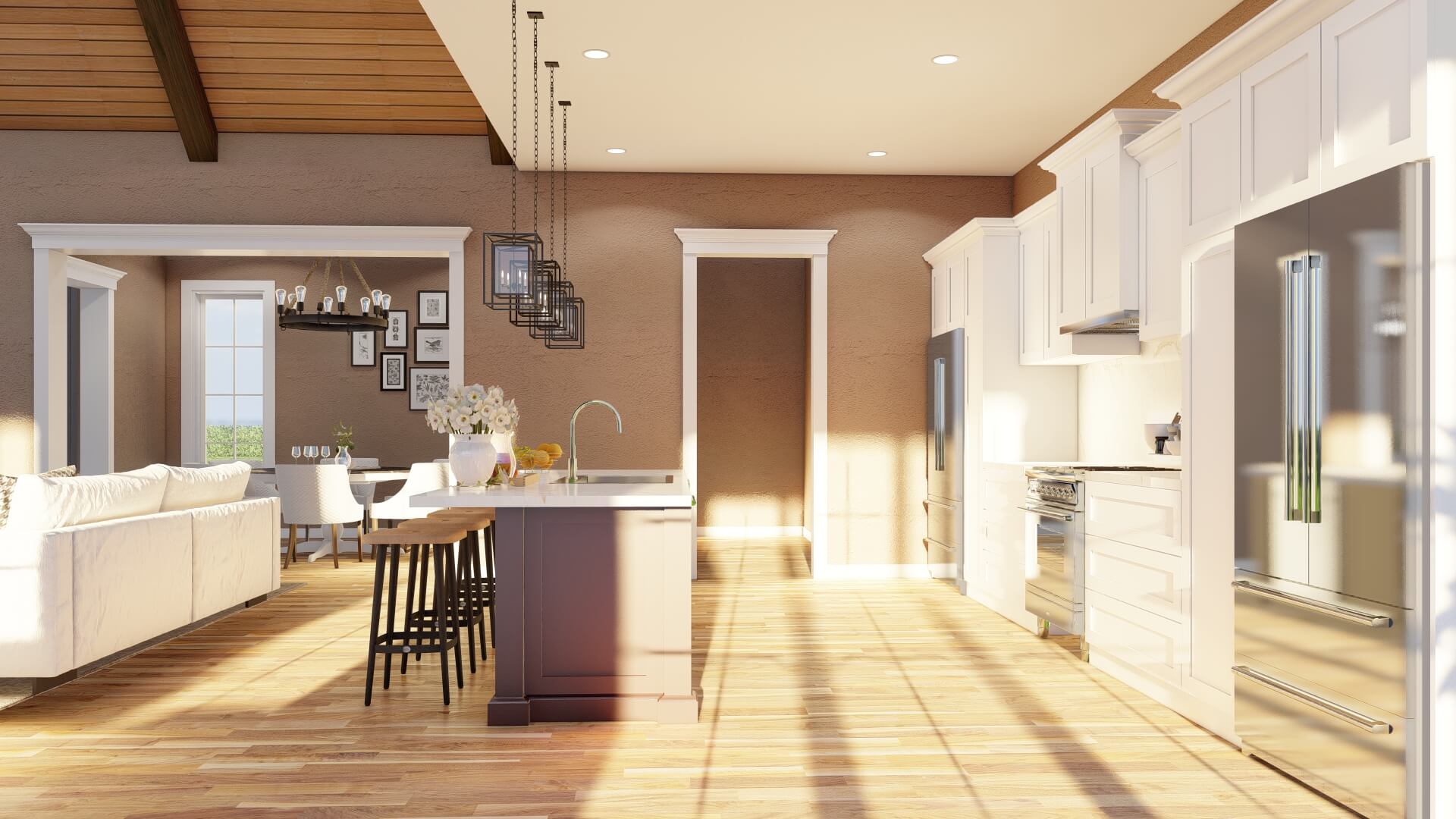

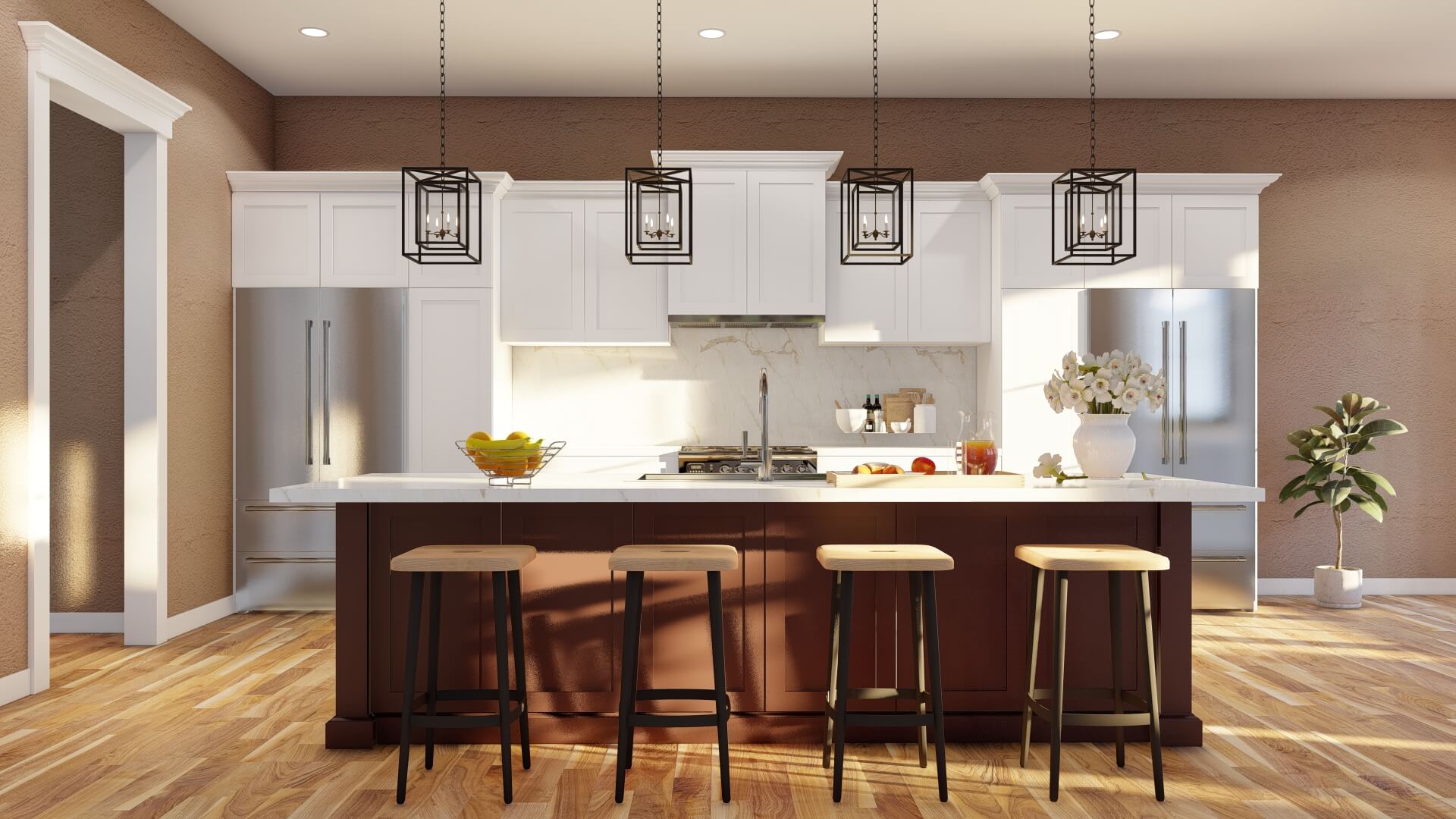

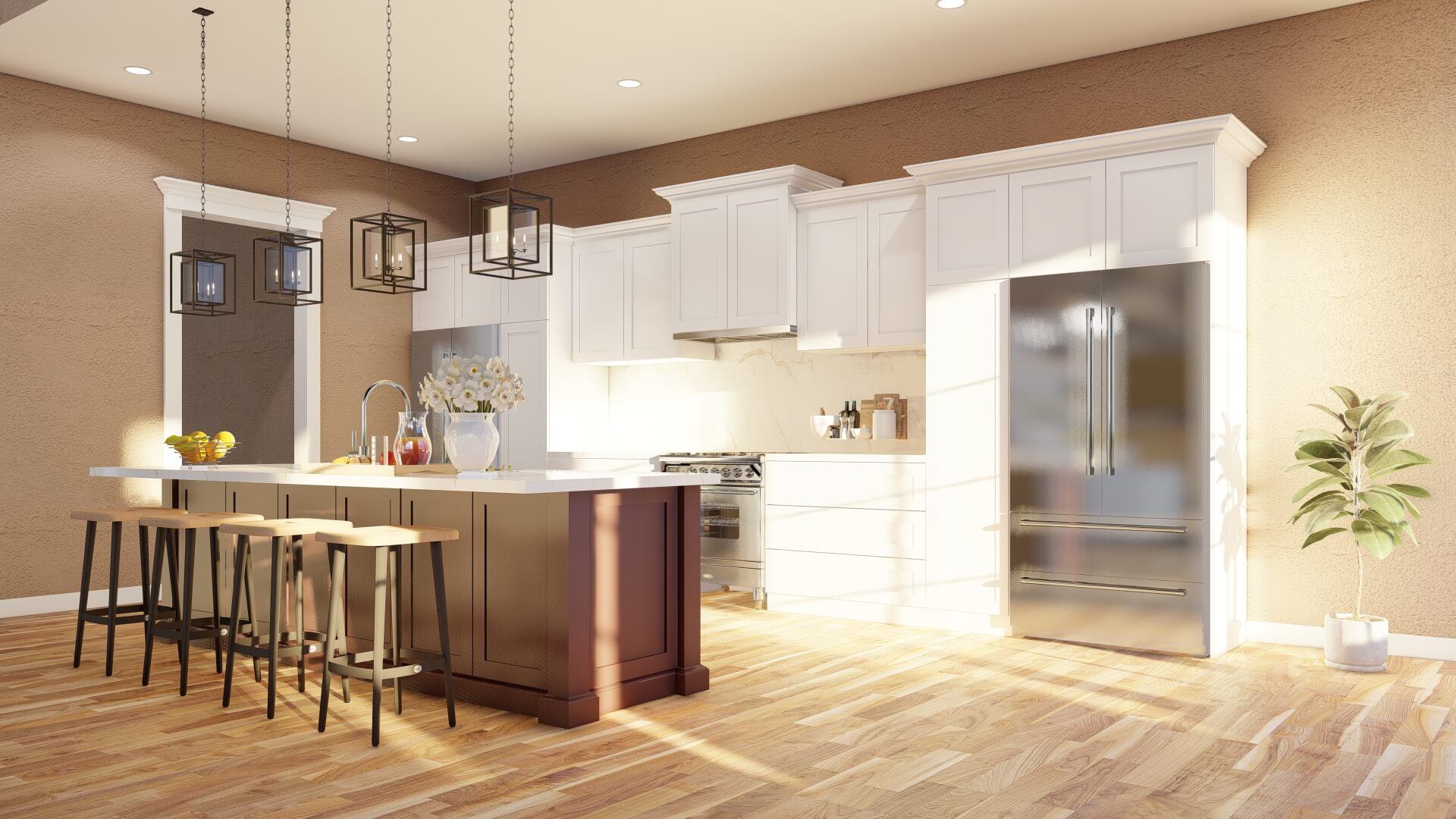

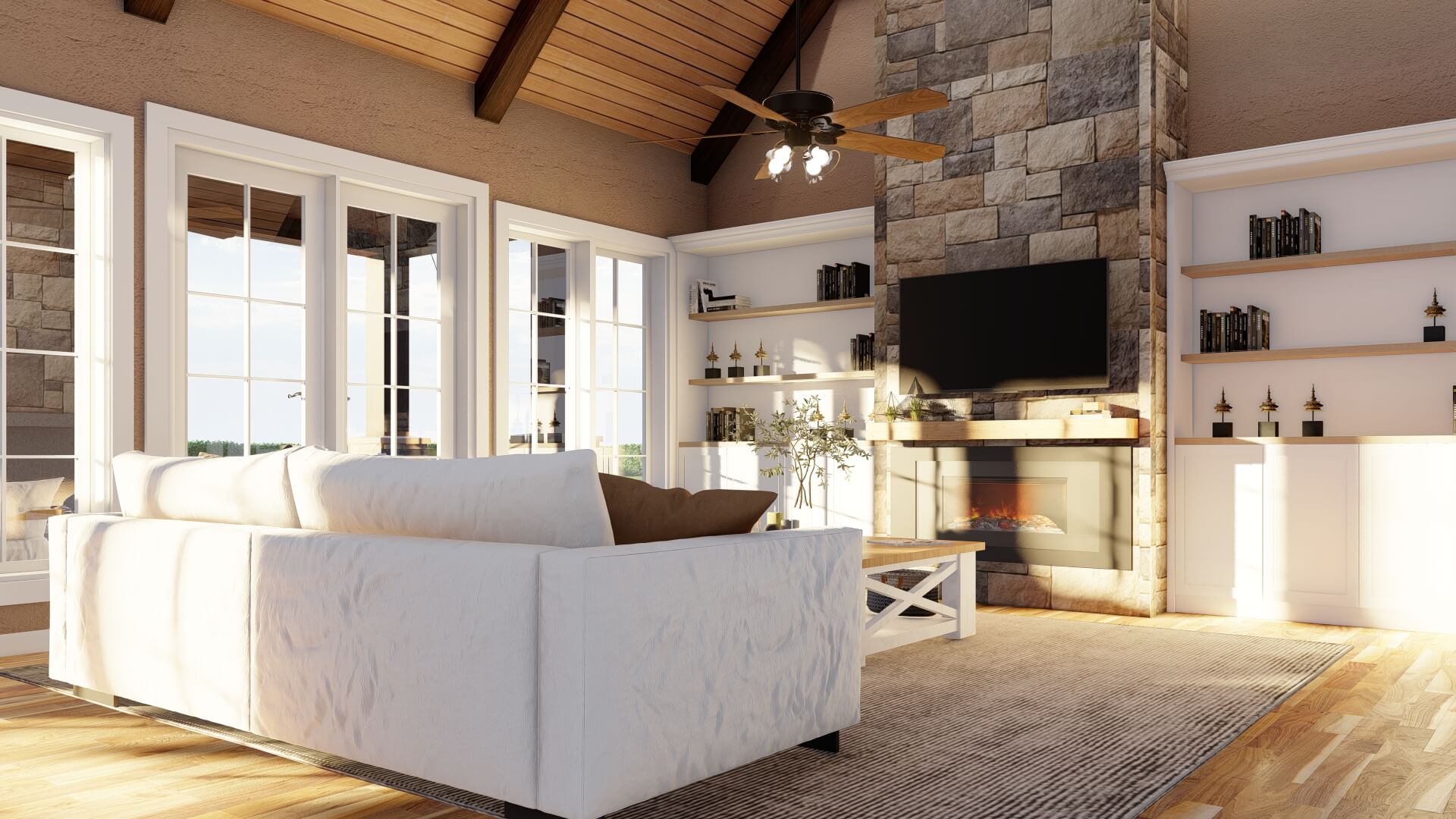

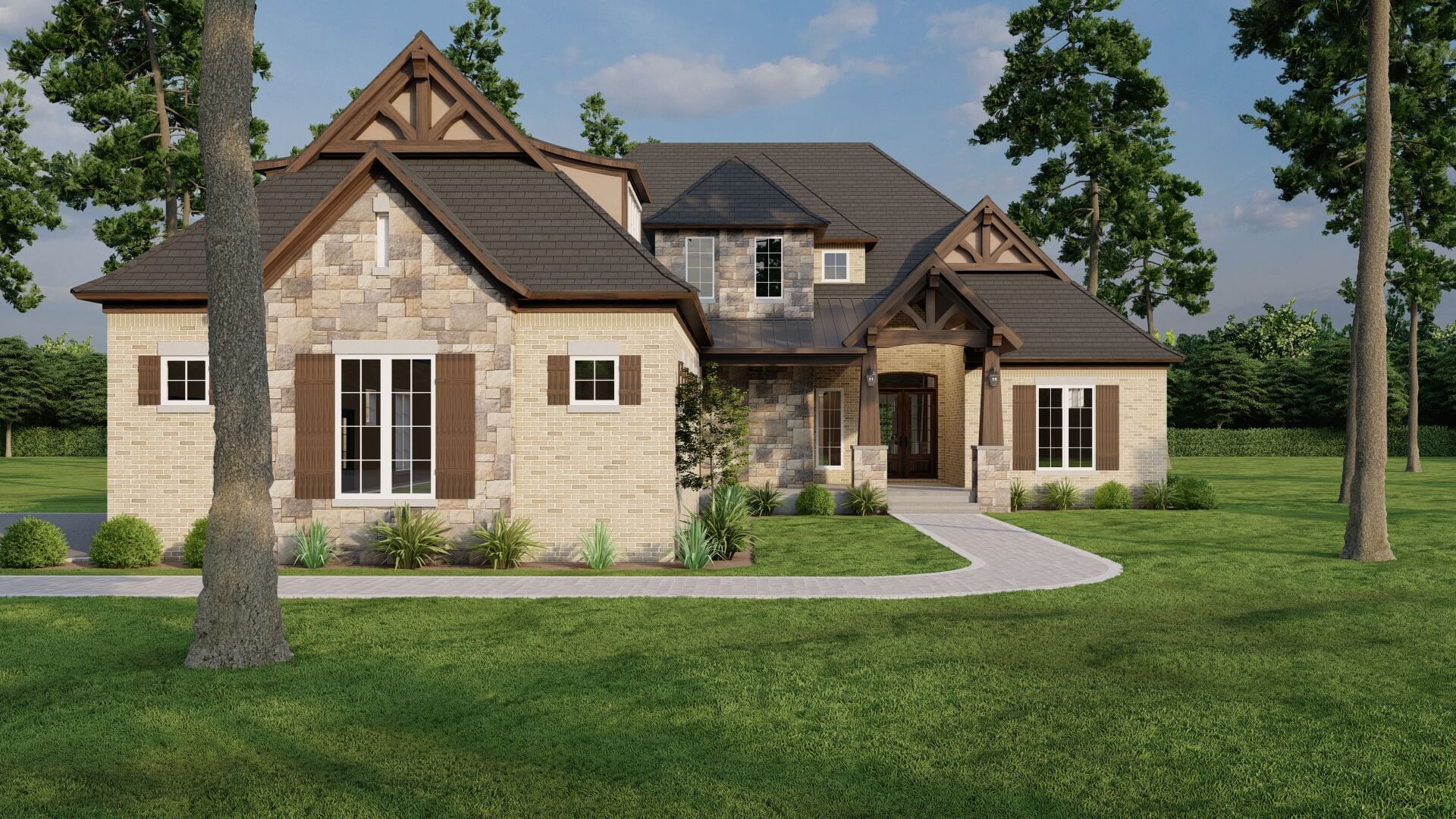

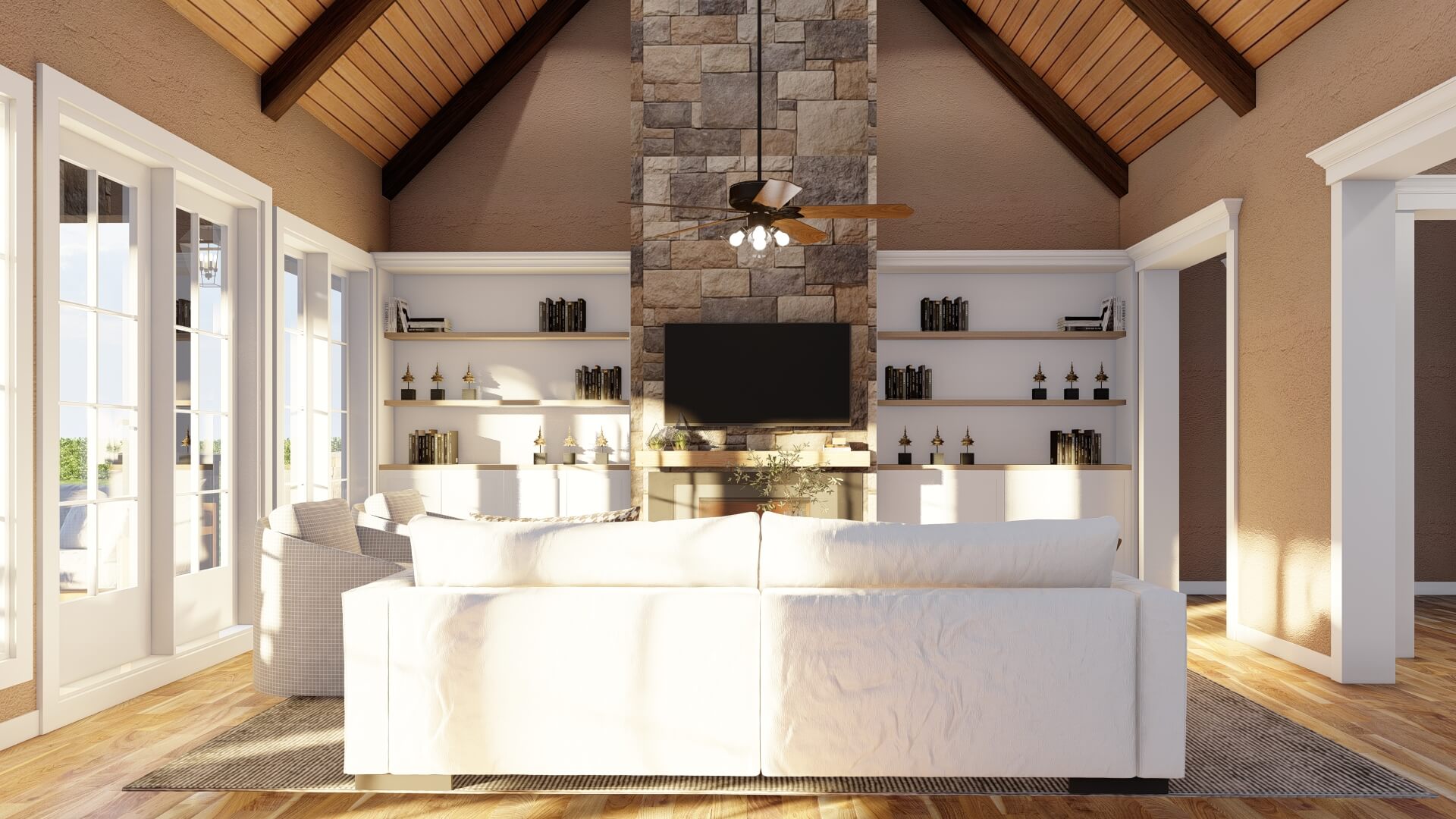

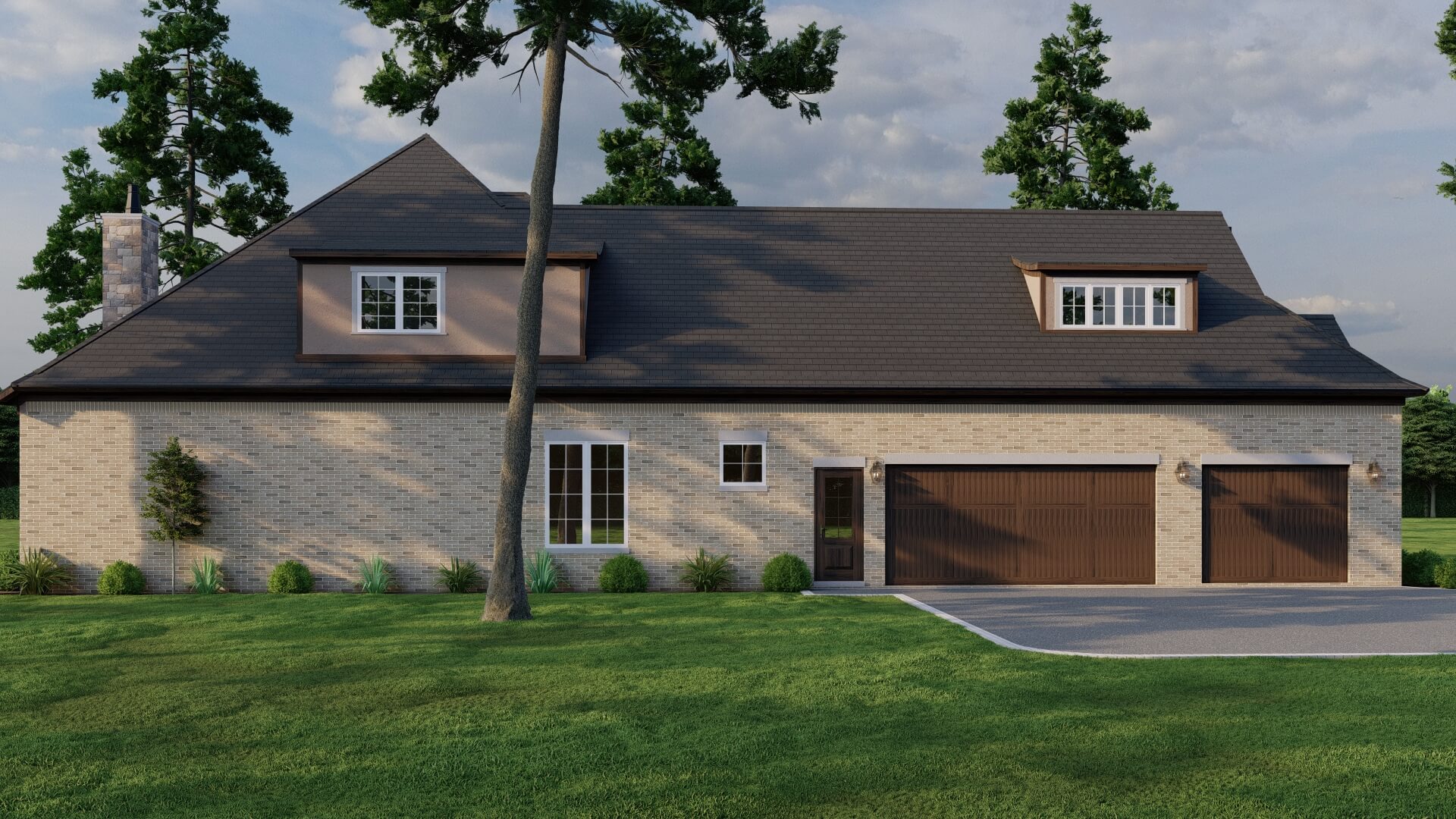

A unique blend of rustic and craftsman style design gives this home great curb appeal. The Foyer leads you into the Formal Dining Room or into the large Great Room where you can enjoy time spent relaxing in front of the cozy fireplace. An open floor plan allows the Great Room to flow into the Kitchen and Breakfast Nook and well as the Dining Room which is only partially closed off from these spaces to create a defined space. One the right side of the home you'll find Bedrooms 2 and 3, each with their own bathrooms. A hallway leading the the 3 car side load garage contains a 1/2 Bath, Pantry, and Kid's Nook as well the entrance to the larger Laundry/Craft Room. Privately tucked away on the other side of the home is the spacious Master Suite where you can enjoy plenty of natural light during the day and a great Master Bathroom featuring a freestanding tub, glass shower, and large walk-in closet. Head upstairs to find a 4th Bedroom, Full Bath, Computer Desk, Game Room and even a Bonus Room for added space if desired.


  • Total Living Space:3251Sq.Ft.
  • Main Floor: 2665 Sq.Ft
  • Upper Floor (Sq.Ft.): 586 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 849 Sq.Ft.
  • Porch (Sq.Ft.): 701 Sq.Ft.
  • Garage (Sq.Ft.): 1091 Sq.Ft.
  • Total Square Feet: 5892 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
