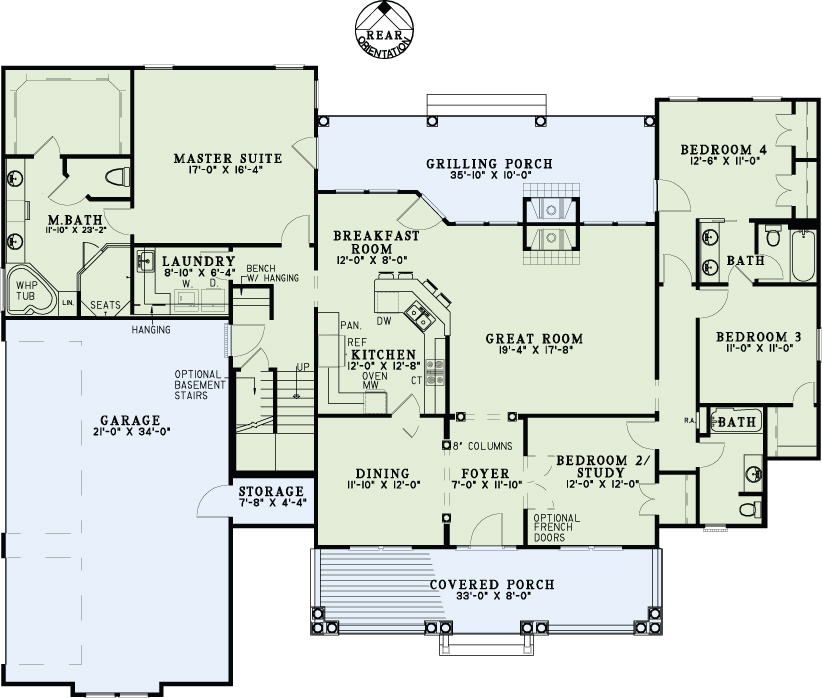

House Plan NDG 1619 Main Floor

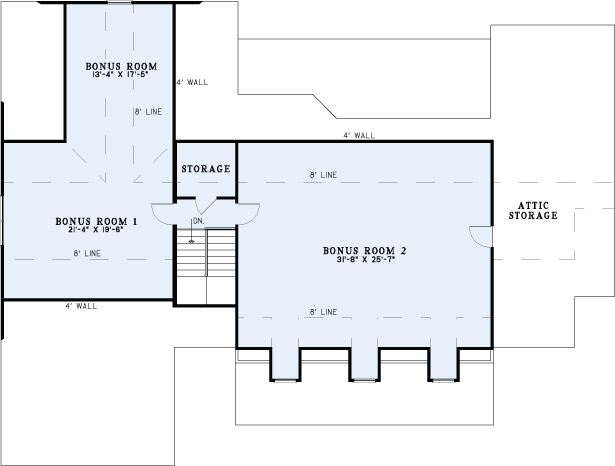

House Plan NDG 1619 Bonus
House Plan NDG 1619 Main Floor
House Plan NDG 1619 Bonus

Floor plans

NDG 1619

House Plan 1619 Gamble Drive, Traditional House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1619
  • Total Living Space:2430Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 76
  • Width In.: 10
  • Depth Ft.: 59
  • Depth In.: 2


This spectacular split bedroom design by Nelson Design Group blends the warmth of country living with classic southern tradition in a detailed porch with round columns on stone pillars. The spacious great room has a built-in media center, fireplace and wall of windows leading to a breakfast room/kitchen combination sharing a handy breakfast bar. The large master suite accesses a column lined rear porch and has a private bath featuring a corner whirlpool bath, makeup area and large walk-in closet. Three additional bedrooms with two shared bathrooms complete the main level. Upstairs, you’ll find several bonus rooms with creative ceilings and dormer windows.


  • Total Living Space:2430Sq.Ft.
  • Main Floor: 2430 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1665 Sq.Ft.
  • Porch (Sq.Ft.): 542 Sq.Ft.
  • Garage (Sq.Ft.): 783 Sq.Ft.
  • Total Square Feet: 5420 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
